Top-Mount Refrigerator

Model # 10660932901 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 10660932901 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

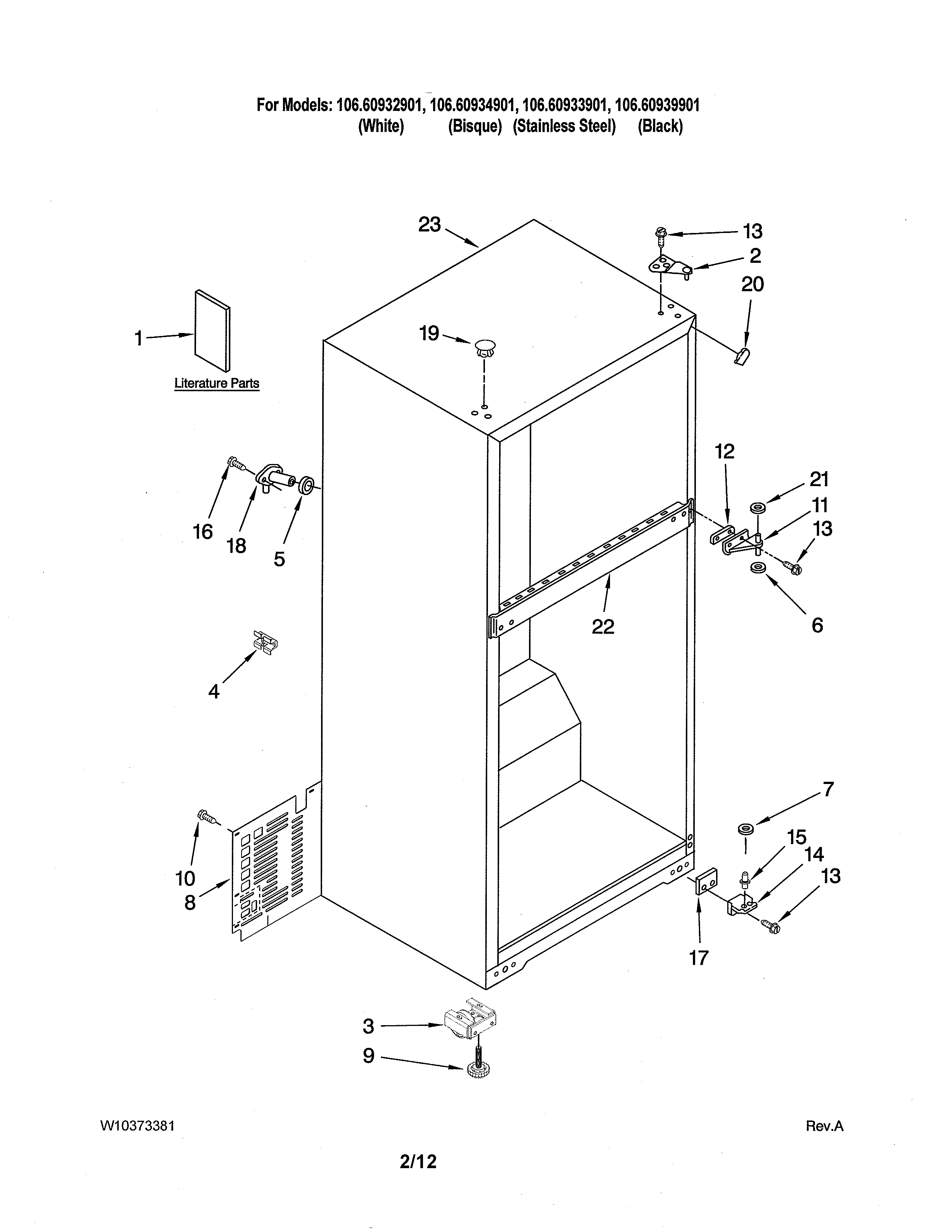

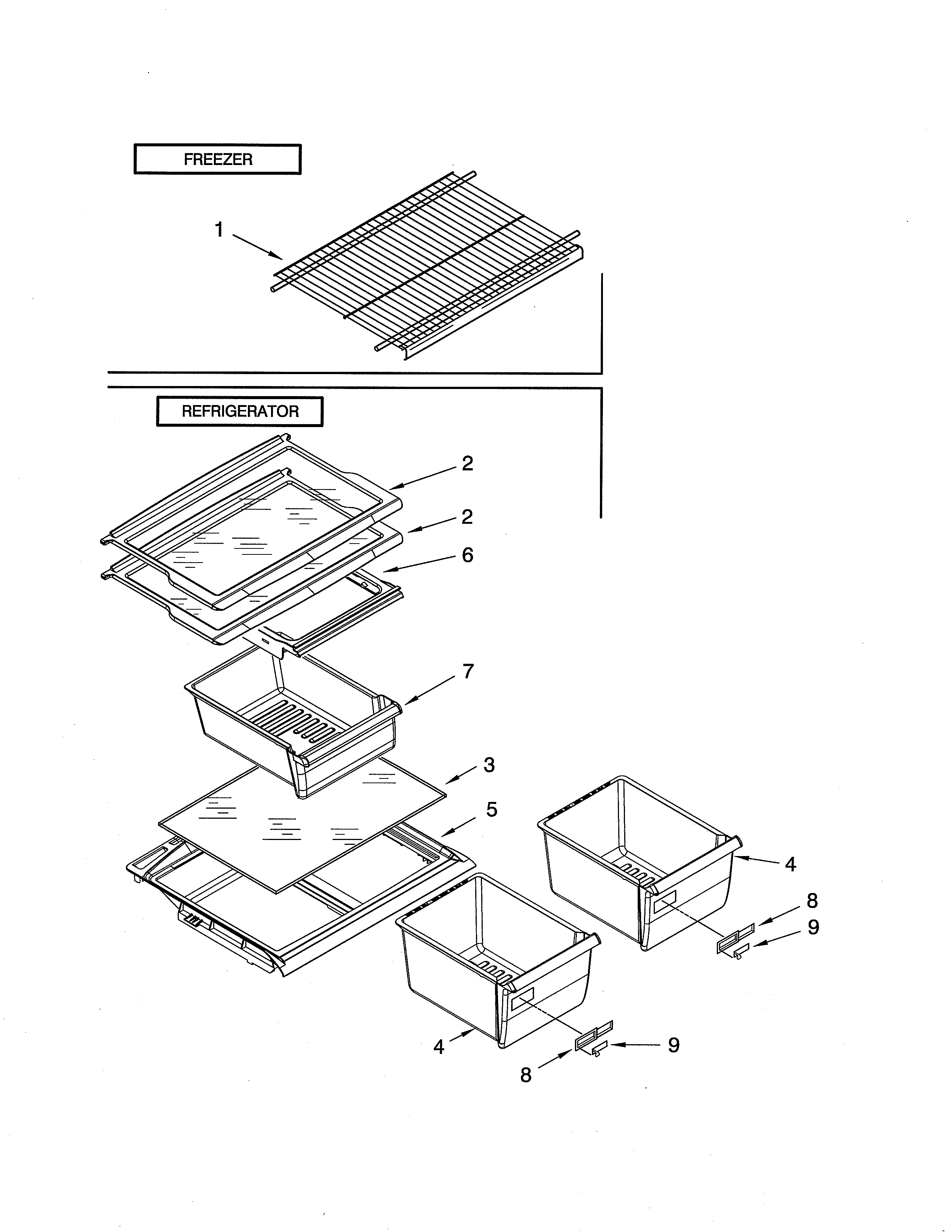

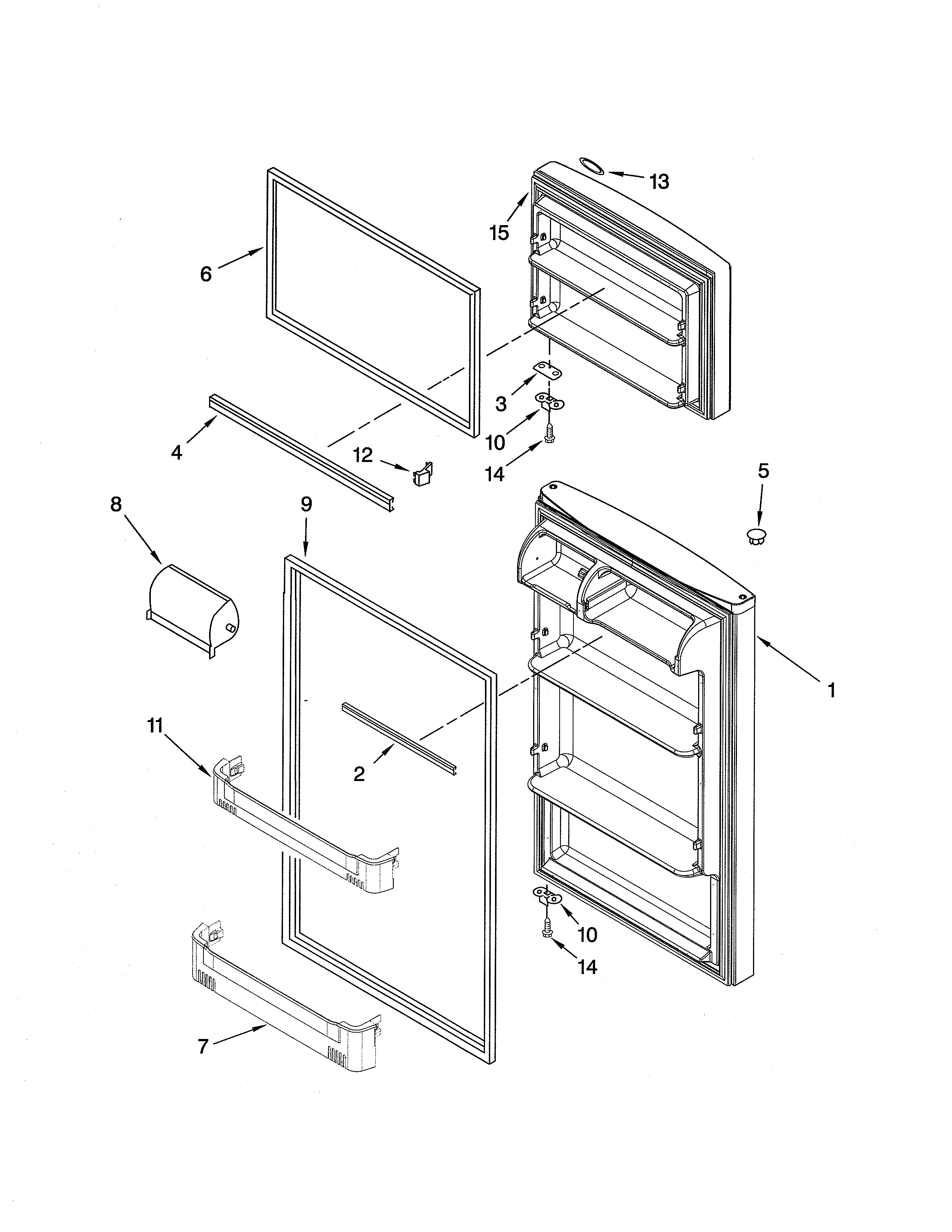

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 162 parts  |
Drier W/dye 2317845
#22A

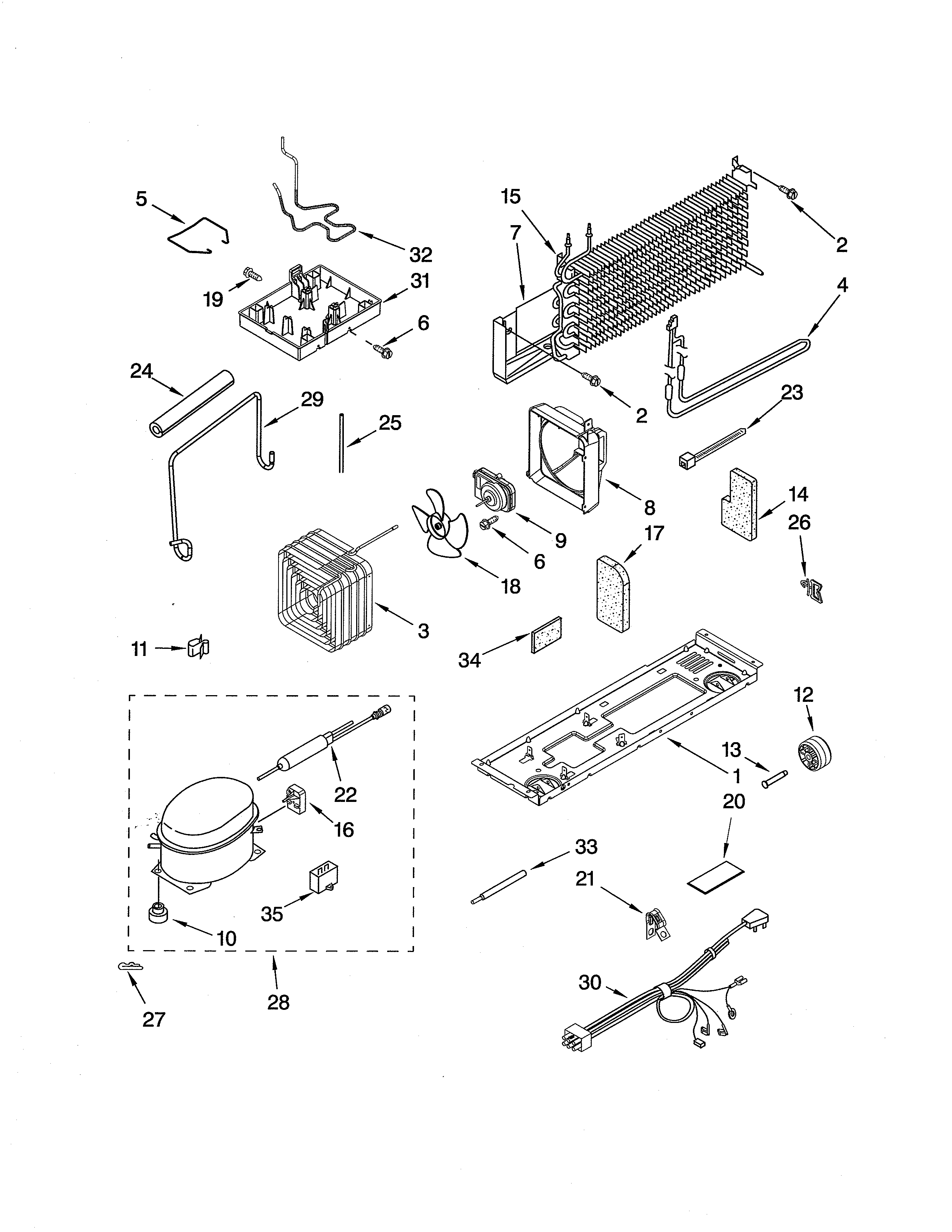

Unit diagram

Drier w/dye

Part #2317845

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 2317845. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Defrost Bi-metal 2266066
#32

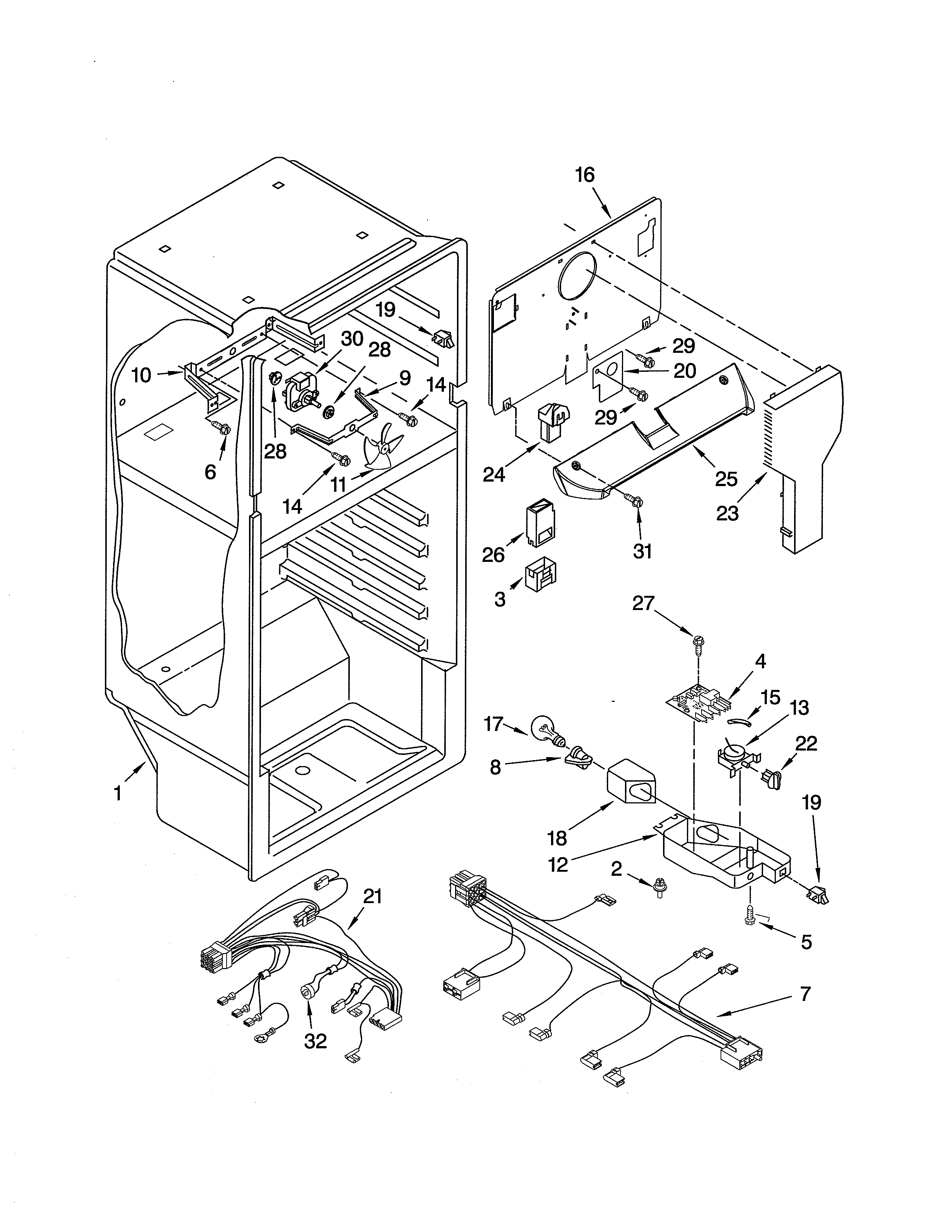

Liner diagram

Refrigerator defrost bi-metal

Part #2266066

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces 2266066. Substitute parts can look different from the original.
BEST SELLER
$34.02 |
15% OFF Phone Price : $40.02
In Stock
Refrigerator Light Bulb 2311792
#17

Liner diagram

Refrigerator light bulb

Part #2311792

Replaced by #40A15

?
Manufacturer substitution
This part replaces 2311792. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Refrigerator Light Switch 1118894
#19

Liner diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Evaporator Fan Motor 2315539
#30

Liner diagram

Refrigerator evaporator fan motor

Part #2315539

Replaced by #WP2315539

?
Manufacturer substitution
This part replaces 2315539. Substitute parts can look different from the original.
BEST SELLER
$54.64 |
10% OFF Phone Price : $60.64
In Stock
Drier Tube W10190413
#22

Unit diagram

Drier tube

Part #W10190413

Replaced by #W10843121

?
Manufacturer substitution
This part replaces W10190413. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Start Device W10128791
#16A

Unit diagram

Start device

Part #W10128791

Replaced by #WPW10197428

?
Manufacturer substitution
This part replaces W10128791. Substitute parts can look different from the original.
BEST SELLER
$52.44 |
10% OFF Phone Price : $58.44
In Stock
Refrigerator Start Relay W10197428
#16

Unit diagram

Refrigerator start relay

Part #W10197428

Replaced by #WPW10197428

?
Manufacturer substitution
This part replaces W10197428. Substitute parts can look different from the original.
BEST SELLER
$52.44 |
10% OFF Phone Price : $58.44
In Stock
Ice Maker 2155469

#NI29

All parts diagram

Ice maker

Part #2155469

Replaced by #W11510803

?
Manufacturer substitution
This part replaces 2155469. Substitute parts can look different from the original.
BEST SELLER
$111.86 |
10% OFF Phone Price : $123.86
In Stock
Refrigerator Compressor W10200250
#28

Unit diagram

Refrigerator compressor

Part #W10200250

Replaced by #W10160407

?
Manufacturer substitution
This part replaces W10200250. Substitute parts can look different from the original.
BEST SELLER
$402.23 |
$12.00 OFF Phone Price : $414.23
In Stock
