Amana
Furnace

Model # GSC100AA Official Amana gas-fired counterflow furnace

Here are the diagrams and repair parts for Official Amana GSC100AA gas-fired counterflow furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

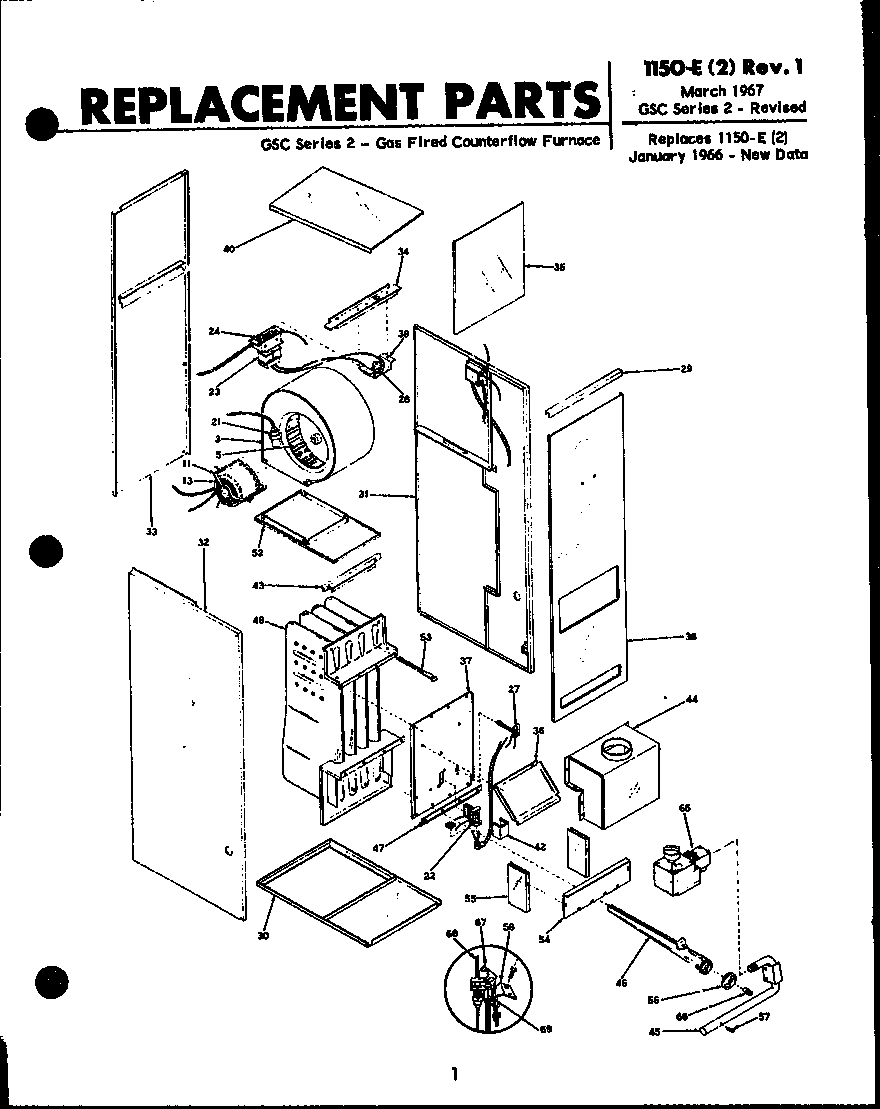

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 164 parts  |
Motor Capacitor 10mfd - 370v 22-9616
#21B

Replacement parts diagram

Motor capacitor 10mfd - 370v

Part #22-9616

The manufacturer no longer makes this part, and there's no substitute part

Burner Pouch Seal Strip 270-5030
#47D

Replacement parts diagram

Burner pouch seal strip

Part #270-5030

The manufacturer no longer makes this part, and there's no substitute part

Top Front Rail 268-110
#29B

Replacement parts diagram

Top front rail

Part #268-110

The manufacturer no longer makes this part, and there's no substitute part

Limit Switch 21-0147
Limit switch

Part #21-0147

The manufacturer no longer makes this part, and there's no substitute part

Front Plenum Flange Panel 371-1125
#34E

Replacement parts diagram

Front plenum flange panel

Part #371-1125

The manufacturer no longer makes this part, and there's no substitute part

Air Filter (2 Req.) 16x20x1 Disposable 22-1130
#26A

Replacement parts diagram

Air filter (2 req.) 16x20x1 disposable

Part #22-1130

The manufacturer no longer makes this part, and there's no substitute part

Top Front Rail 269-110
#29C

Replacement parts diagram

Top front rail

Part #269-110

The manufacturer no longer makes this part, and there's no substitute part

Motor - Direct Drive 1/2 West 309p526 20-9153
#13C

Replacement parts diagram

Motor - direct drive 1/2 west 309p526

Part #20-9153

The manufacturer no longer makes this part, and there's no substitute part

Flue Baffles (nat. Gas) 905-0902
Flue baffles (nat. gas)

Part #905-0902

The manufacturer no longer makes this part, and there's no substitute part

Burner Tube Spacer 975-1038
#54B

Replacement parts diagram

Burner tube spacer

Part #975-1038

The manufacturer no longer makes this part, and there's no substitute part
