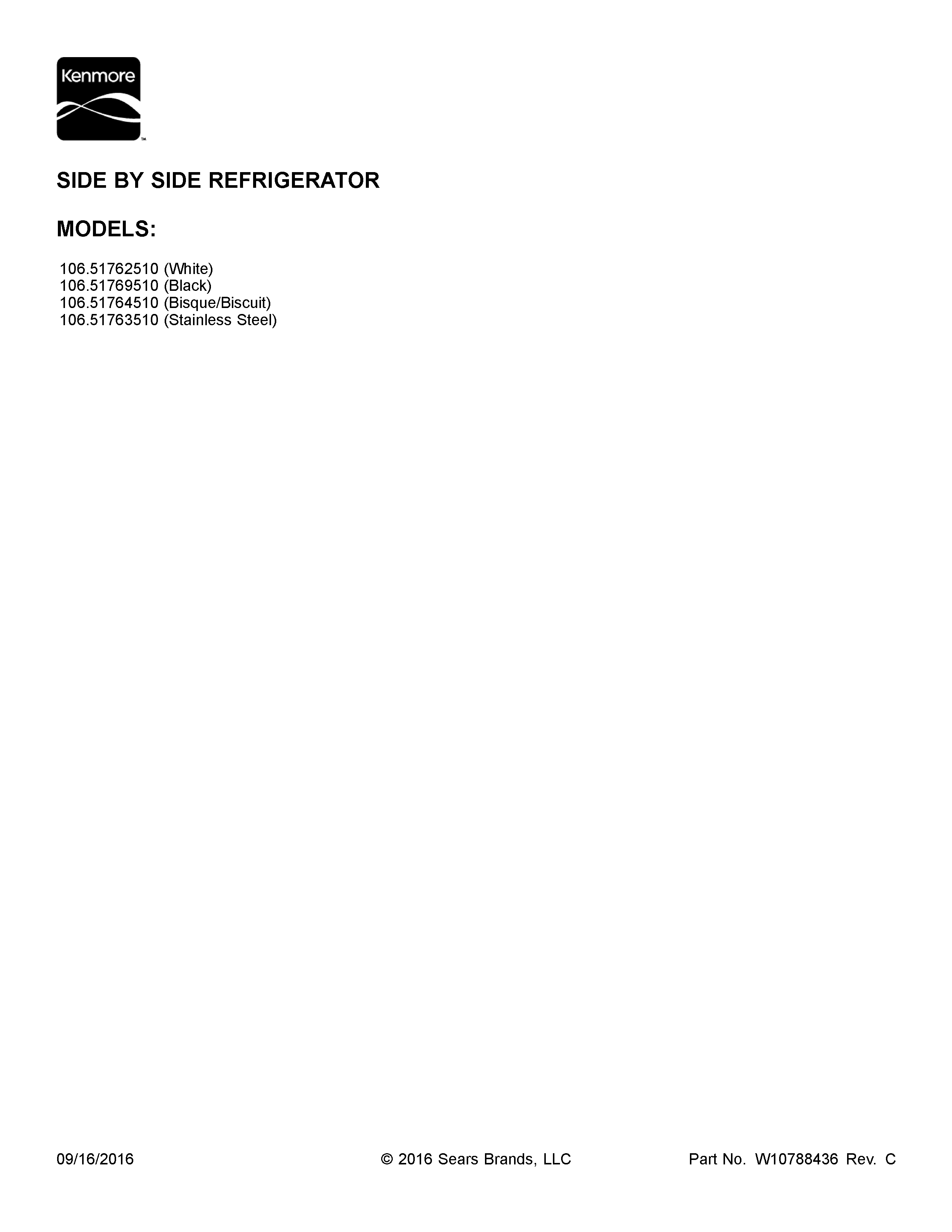

Model # 10651763510 Official Kenmore refrigerator
Here are the diagrams and repair parts for Official Kenmore 10651763510 refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

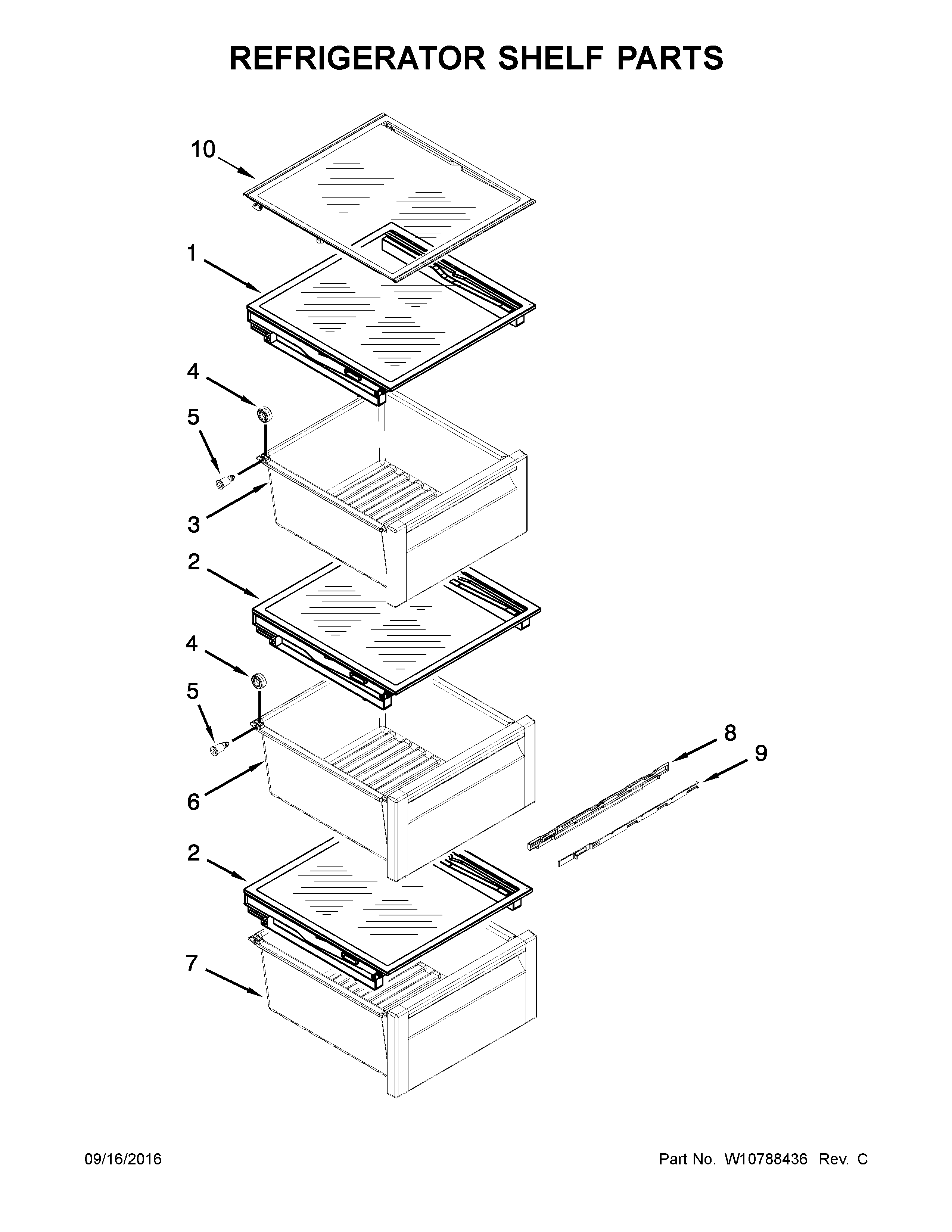

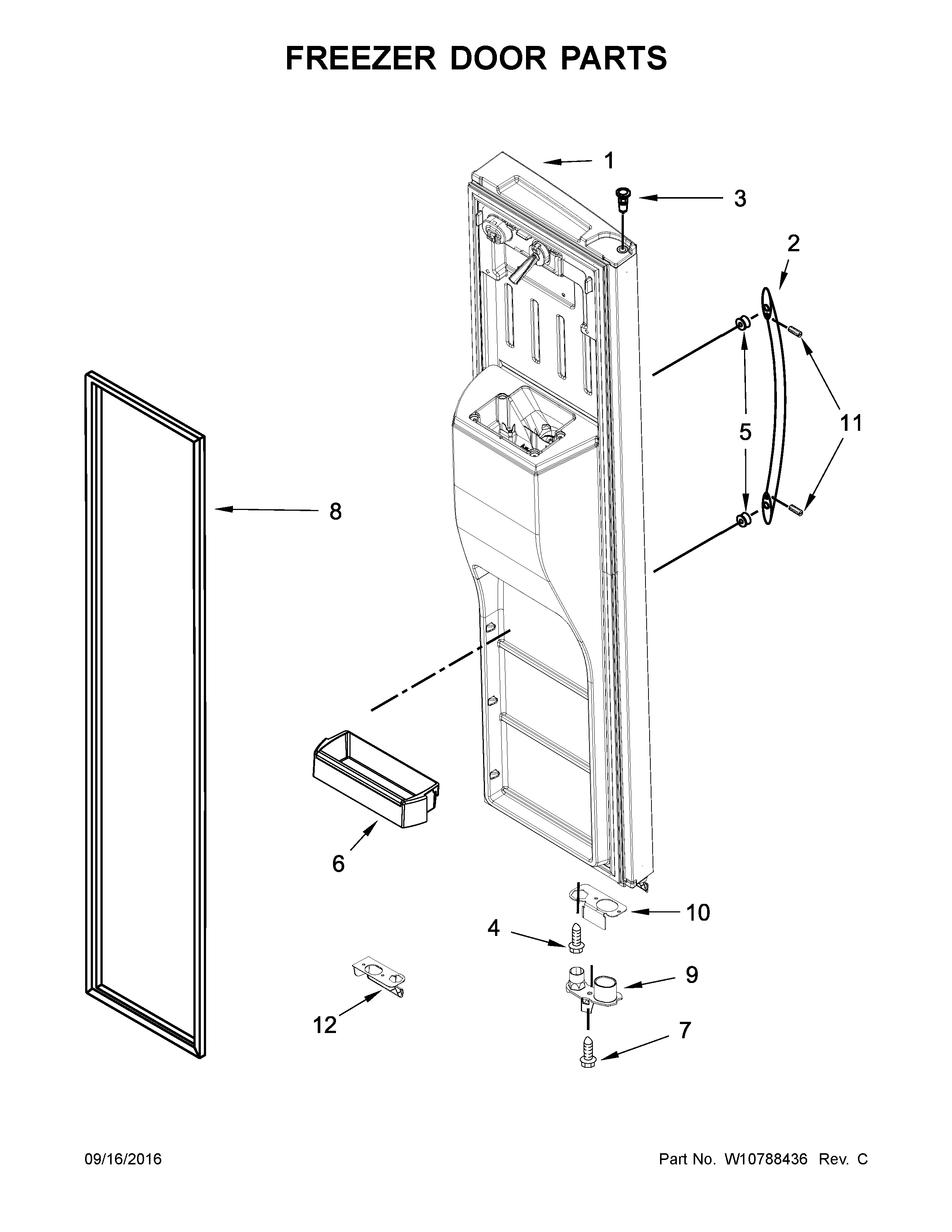

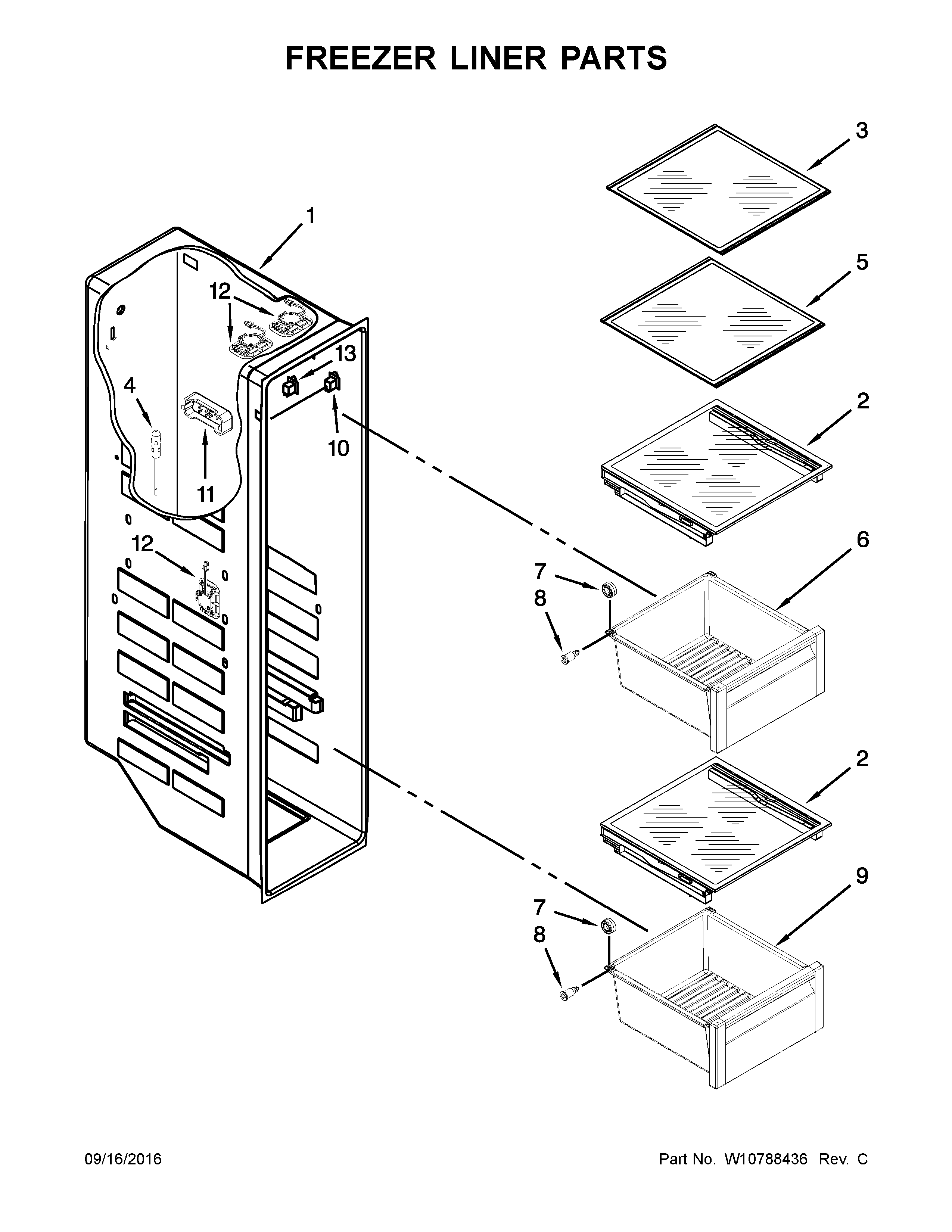

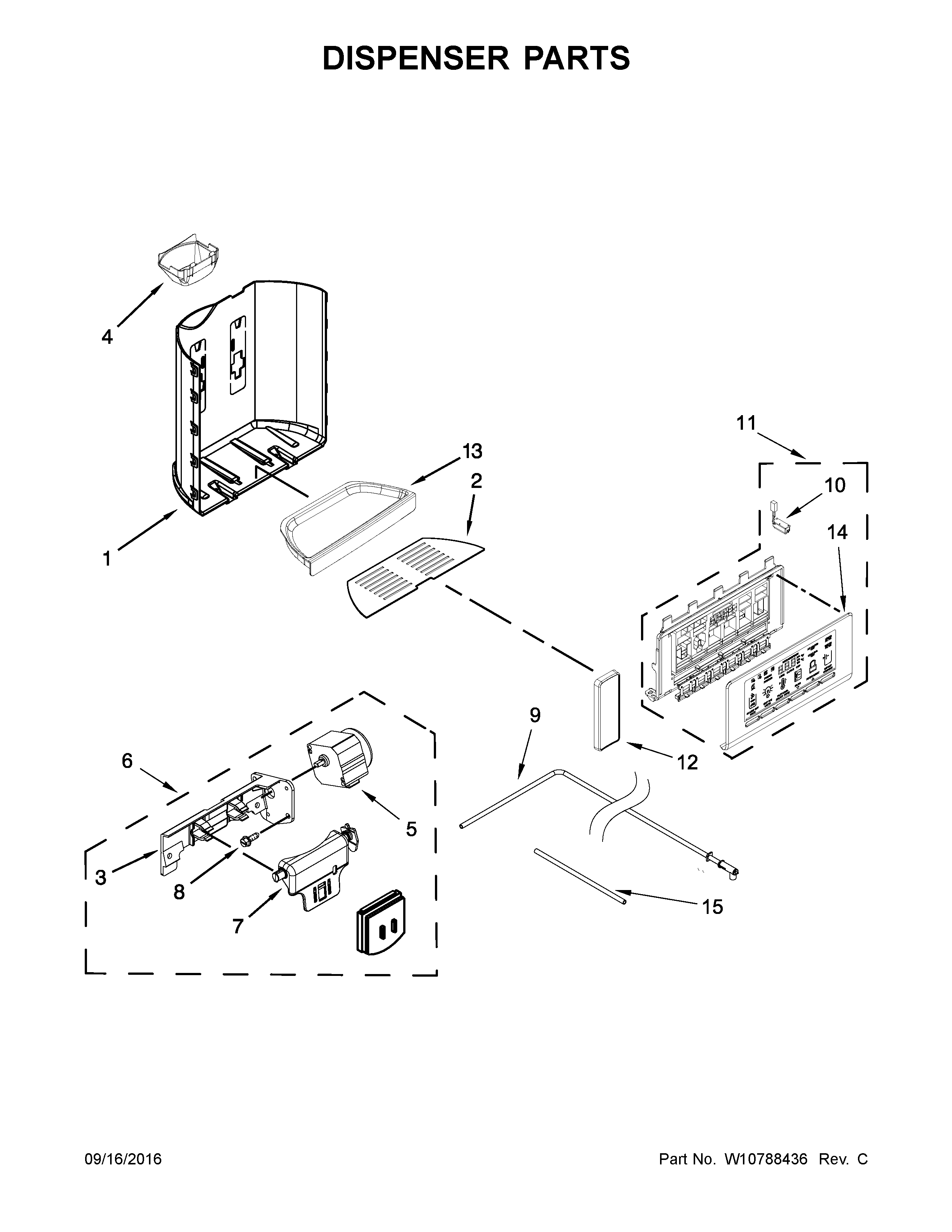

SELECT DIAGRAM
Browse Parts for10651763510 Refrigerators
- #3

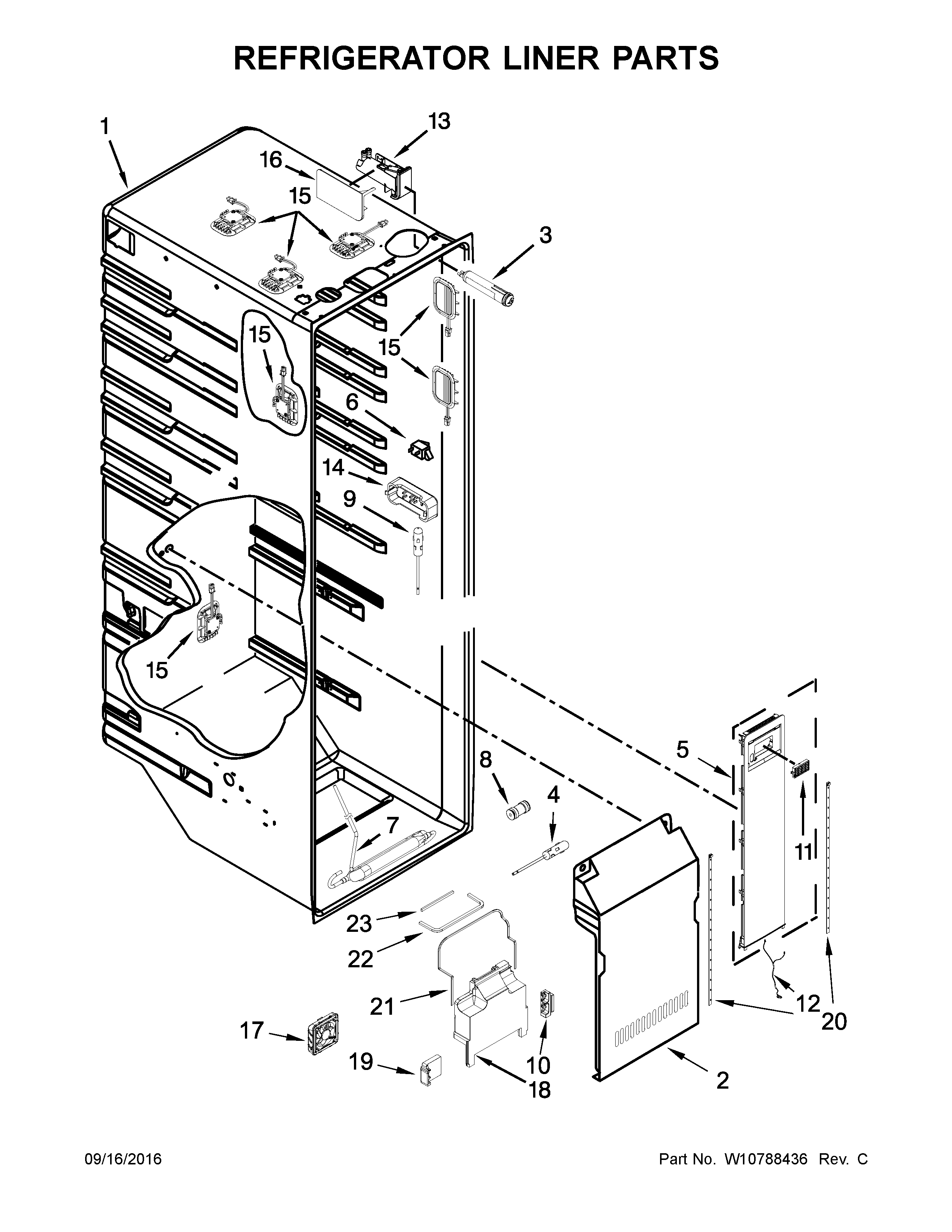

Refrigerator liner parts diagram
Kenmore refrigerator water filterPart #9081
Replaced by #9081
?Manufacturer substitutionThis part replaces 9081. Substitute parts can look different from the original.Get free shipping with Automatic Reorder
$54.98Back Order - #11
Refrigerator liner parts diagram
Refrigerator air filterPart #W10335147
Replaced by #W10311524
?Manufacturer substitutionThis part replaces W10335147. Substitute parts can look different from the original.Get free shipping with Automatic Reorder
$15.90 |11% OFF Phone Price : $17.90In Stock - #21

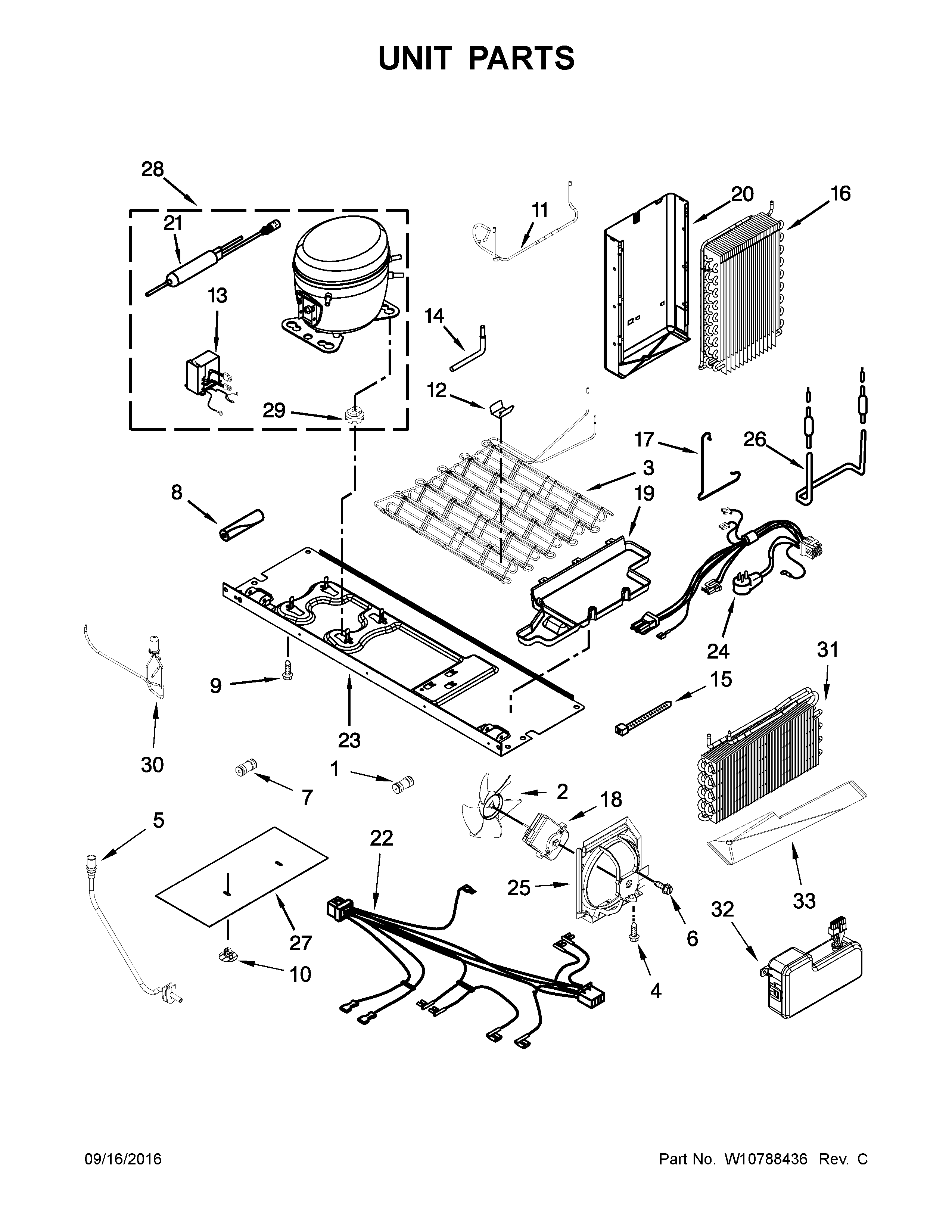

Unit parts diagram
Drier tubePart #W10286069
Replaced by #WPW10143759
?Manufacturer substitutionThis part replaces W10286069. Substitute parts can look different from the original.$20.04 |23% OFF Phone Price : $26.04In Stock - #17
Icemaker and ice container parts diagram
Refrigerator ice makerPart #W10798411
Replaced by #W10873791
?Manufacturer substitutionThis part replaces W10798411. Substitute parts can look different from the original.$62.32 |9% OFF Phone Price : $68.32In Stock - #2
Refrigerator door parts diagram
Refrigerator door binPart #W10710203
Replaced by #WPW10710203
?Manufacturer substitutionThis part replaces W10710203. Substitute parts can look different from the original.This item is not returnable$28.13 |18% OFF Phone Price : $34.13In Stock - #4
Refrigerator liner parts diagram
Refrigerator thermistorPart #W10323459
Replaced by #W10316760
?Manufacturer substitutionThis part replaces W10323459. Substitute parts can look different from the original.$44.88 |12% OFF Phone Price : $50.88In Stock - #6
Refrigerator liner parts diagram
Refrigerator door switchPart #W10656773
Replaced by #W11384469
?Manufacturer substitutionThis part replaces W10656773. Substitute parts can look different from the original.$20.16 |23% OFF Phone Price : $26.16In Stock - #8

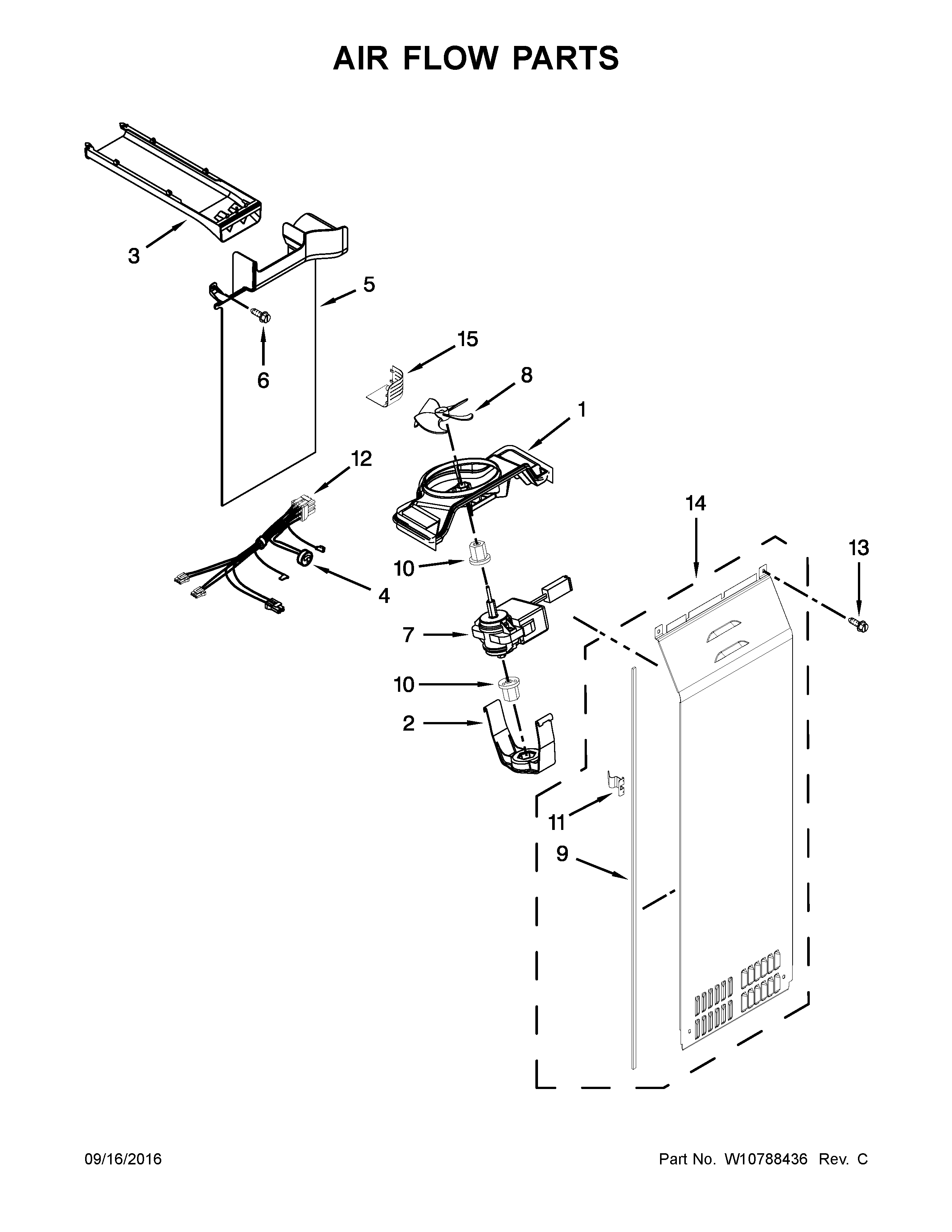

Air flow parts diagram
Refrigerator evaporator fan bladePart #2169142
Replaced by #WP2169142
?Manufacturer substitutionThis part replaces 2169142. Substitute parts can look different from the original.$24.98 |19% OFF Phone Price : $30.98In Stock - #37

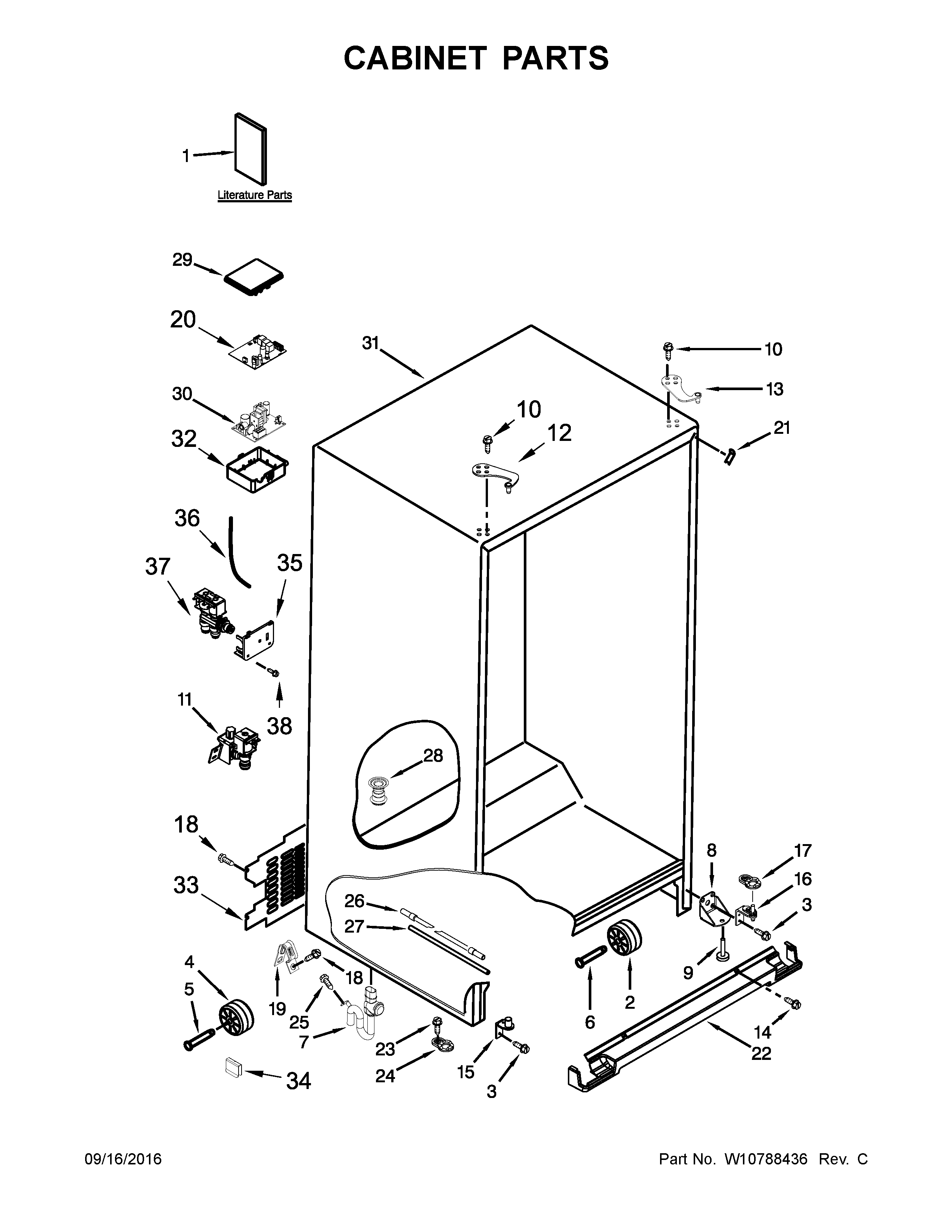

Cabinet parts diagram
Refrigerator water inlet valvePart #W10341320
Replaced by #WPW10341320
?Manufacturer substitutionThis part replaces W10341320. Substitute parts can look different from the original.$127.44 |9% OFF Phone Price : $139.44In Stock - #11
Cabinet parts diagram
Refrigerator inlet valvePart #W10498992
Replaced by #WPW10238100
?Manufacturer substitutionThis part replaces W10498992. Substitute parts can look different from the original.$91.35 |6% OFF Phone Price : $97.35In Stock
