Craftsman
Walk-Behind Mower

Model # 13197480 Official Craftsman 20" self-propelled rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 13197480 20" self-propelled rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Bolt 52246
#24

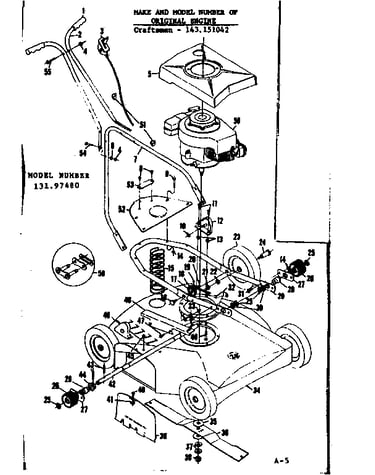

Replacement parts diagram

Bolt

Part #52246

Replaced by #532121117

?
Manufacturer substitution
This part replaces 52246. Substitute parts can look different from the original.
This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Blade 56400
#36

Replacement parts diagram

Blade

Part #56400

Replaced by #532145106

?
Manufacturer substitution
This part replaces 56400. Substitute parts can look different from the original.
$28.46
In Stock
Cotter Pin 455563
#10

Replacement parts diagram

Cotter pin

Part #455563

Replaced by #532051793

?
Manufacturer substitution
This part replaces 455563. Substitute parts can look different from the original.
This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Sprocket 52827
#18

Replacement parts diagram

Sprocket

Part #52827

Replaced by #582002201

?
Manufacturer substitution
This part replaces 52827. Substitute parts can look different from the original.
$8.54
In Stock
Screw 55445
#49

Replacement parts diagram

Screw

Part #55445

The manufacturer no longer makes this part, and there's no substitute part

Support Yoke 56626
#29

Replacement parts diagram

Support yoke

Part #56626

The manufacturer no longer makes this part, and there's no substitute part

Drive Shaft 55414
#42

Replacement parts diagram

Drive shaft

Part #55414

The manufacturer no longer makes this part, and there's no substitute part

Spacer Ring 55416
#32

Replacement parts diagram

Spacer ring

Part #55416

The manufacturer no longer makes this part, and there's no substitute part

Bearing Retainer 52822
#27

Replacement parts diagram

Bearing retainer

Part #52822

The manufacturer no longer makes this part, and there's no substitute part

Chain Guard 55499
#48

Replacement parts diagram

Chain guard

Part #55499

The manufacturer no longer makes this part, and there's no substitute part
