Model # JBP35SM4SS Official GE electric range

Here are the diagrams and repair parts for Official GE JBP35SM4SS electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Range Surface Element Control Switch, 2,600-watt WB24T10025
#19

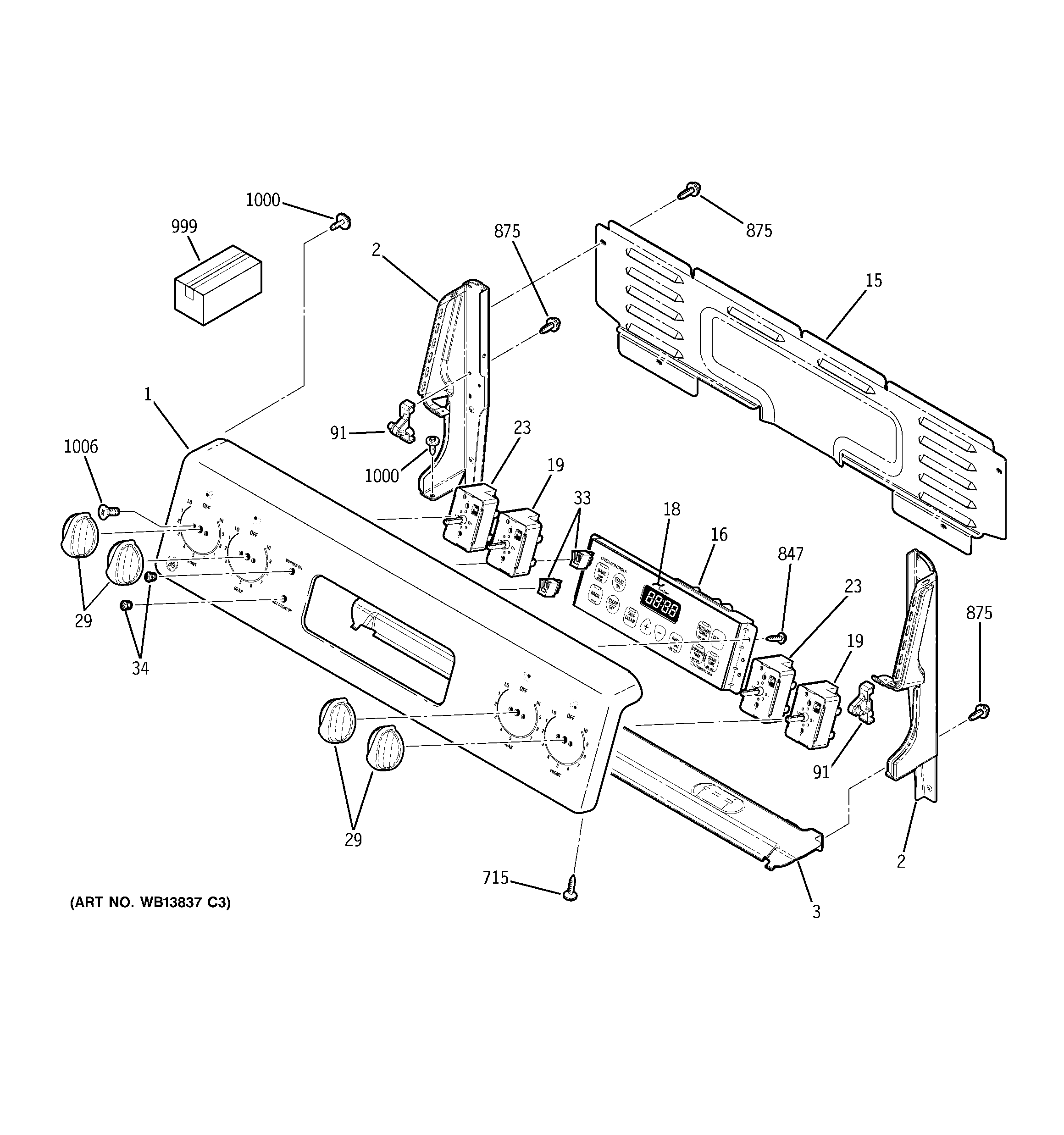

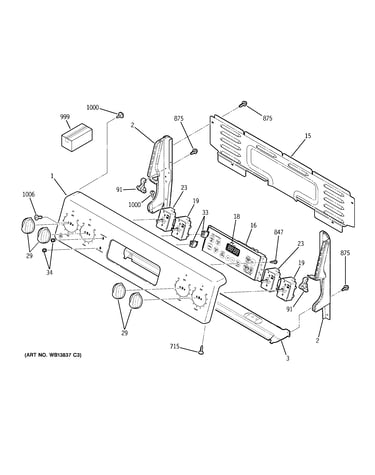

Control panel diagram

Range surface element control switch, 2,600-watt

Part #WB24T10025

BEST SELLER
$36.13 |
14% OFF Phone Price : $42.13
In Stock
Range Oven Control Board (replaces Wb27t11311) WB27T11273
#16

Control panel diagram

Range oven control board (replaces wb27t11311)

Part #WB27T11273

Replaced by #WB27X45466

?
Manufacturer substitution
This part replaces WB27T11273. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$142.37 |
8% OFF Phone Price : $154.37
In Stock
Wall Oven Temperature Sensor WB21T10007
#253

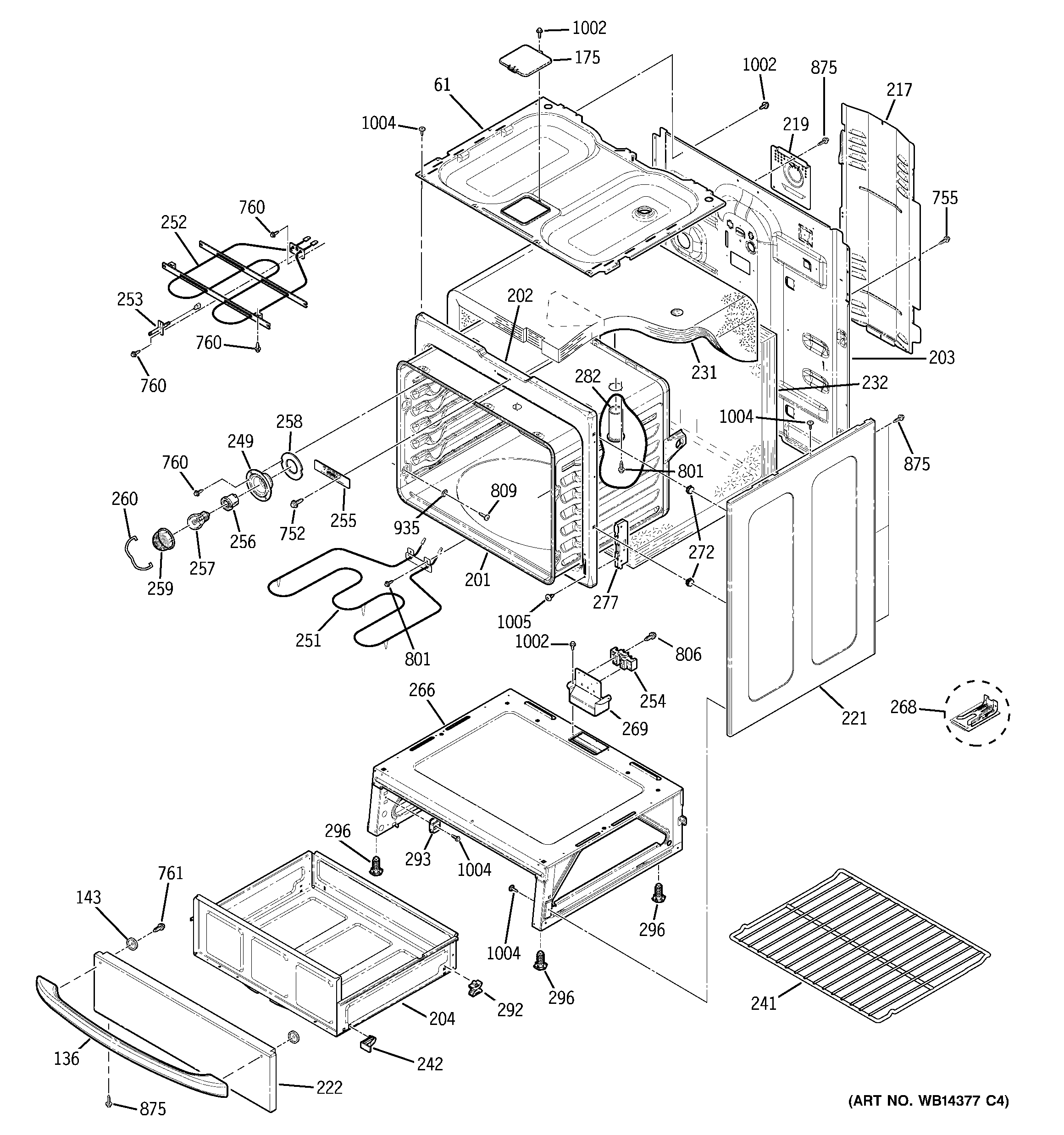

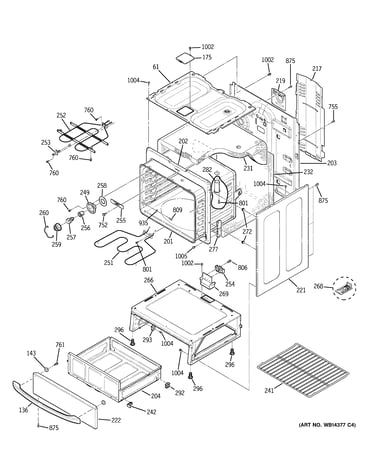

Body parts diagram

Wall oven temperature sensor

Part #WB21T10007

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10007. Substitute parts can look different from the original.
BEST SELLER
$24.05 |
20% OFF Phone Price : $30.05
In Stock
Range Surface Element Control Switch, 1,500-watt WB24T10029
#23

Control panel diagram

Range surface element control switch, 1,500-watt

Part #WB24T10029

BEST SELLER
$45.94 |
12% OFF Phone Price : $51.94
In Stock
Hotpoint Range Surface Element Receptacle (replaces Wb17k10003, Wb17t10001, Wb17x10007) WB17T10006
#82

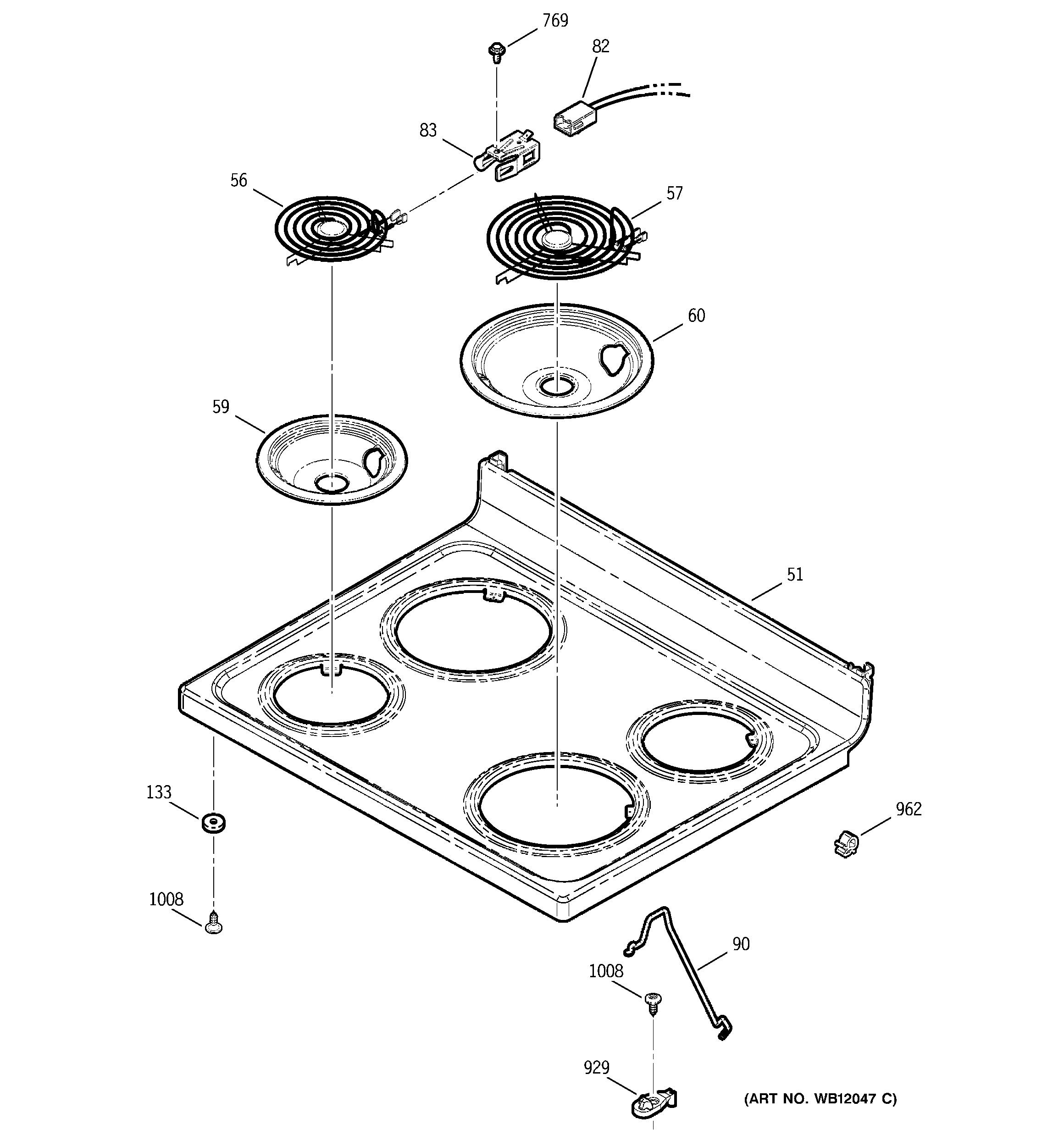

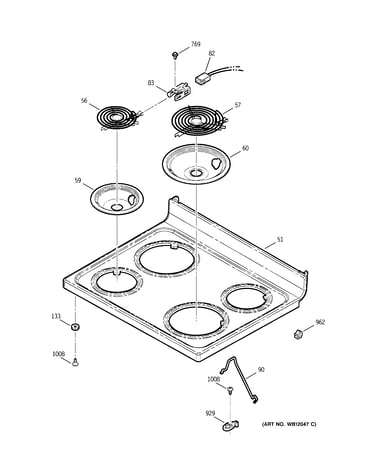

Cooktop diagram

Hotpoint range surface element receptacle (replaces wb17k10003, wb17t10001, wb17x10007)

Part #WB17T10006

BEST SELLER
$25.63 |
19% OFF Phone Price : $31.63
In Stock
Range Bake Element WB44T10059
#251

Body parts diagram

Range bake element

Part #WB44T10059

Replaced by #WB44T10011

?
Manufacturer substitution
This part replaces WB44T10059. Substitute parts can look different from the original.
BEST SELLER
$79.56 |
7% OFF Phone Price : $85.56
In Stock
Terminal Block Assembly WB17K5017
#254

Body parts diagram

Terminal block assembly

Part #WB17K5017

Replaced by #WB17X210

?
Manufacturer substitution
This part replaces WB17K5017. Substitute parts can look different from the original.
BEST SELLER
$22.97 |
21% OFF Phone Price : $28.97
In Stock
Range Oven Door Middle Glass (replaces Wb55t10191) WB56T10105
#338

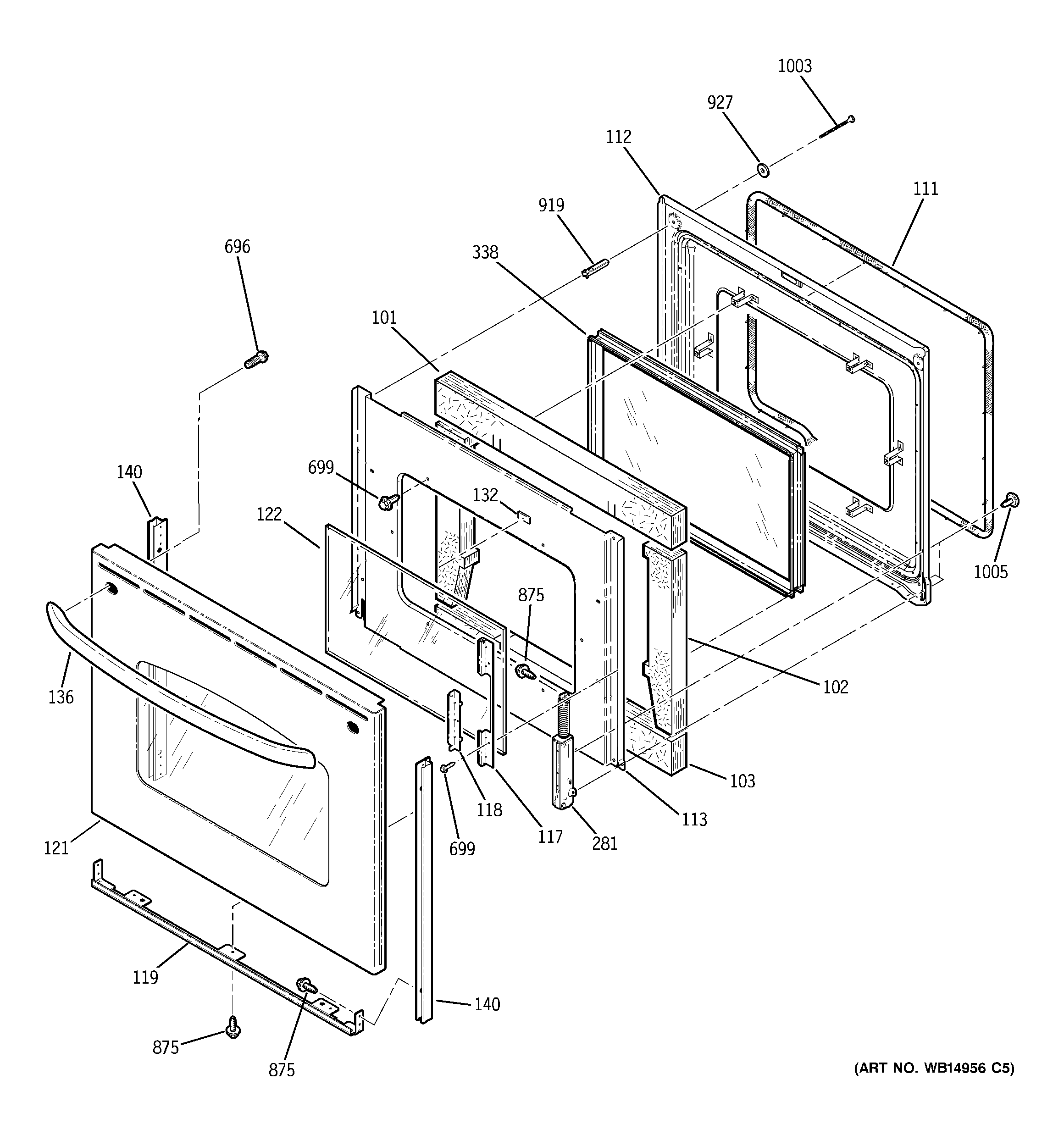

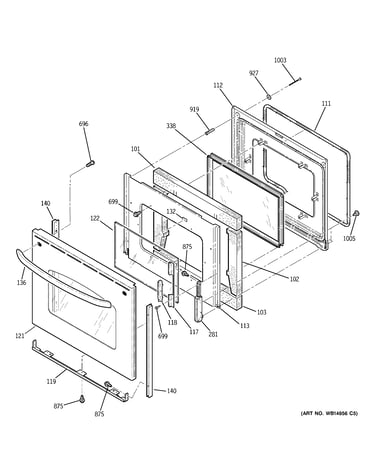

Door diagram

Range oven door middle glass (replaces wb55t10191)

Part #WB56T10105

BEST SELLER
$101.93 |
11% OFF Phone Price : $113.93
In Stock
Range Coil Element WB30T10109
#57

Cooktop diagram

Range coil element

Part #WB30T10109

Replaced by #WB30X20481

?
Manufacturer substitution
This part replaces WB30T10109. Substitute parts can look different from the original.
$63.38 |
9% OFF Phone Price : $69.38
In Stock
Range Oven Door Gasket WB04T10001
#111

Door diagram

Range oven door gasket

Part #WB04T10001

Replaced by #WB04T10086

?
Manufacturer substitution
This part replaces WB04T10001. Substitute parts can look different from the original.
$39.75 |
13% OFF Phone Price : $45.75
In Stock
