Frigidaire
Electric Range

Model # FFED3015LBA Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire FFED3015LBA electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

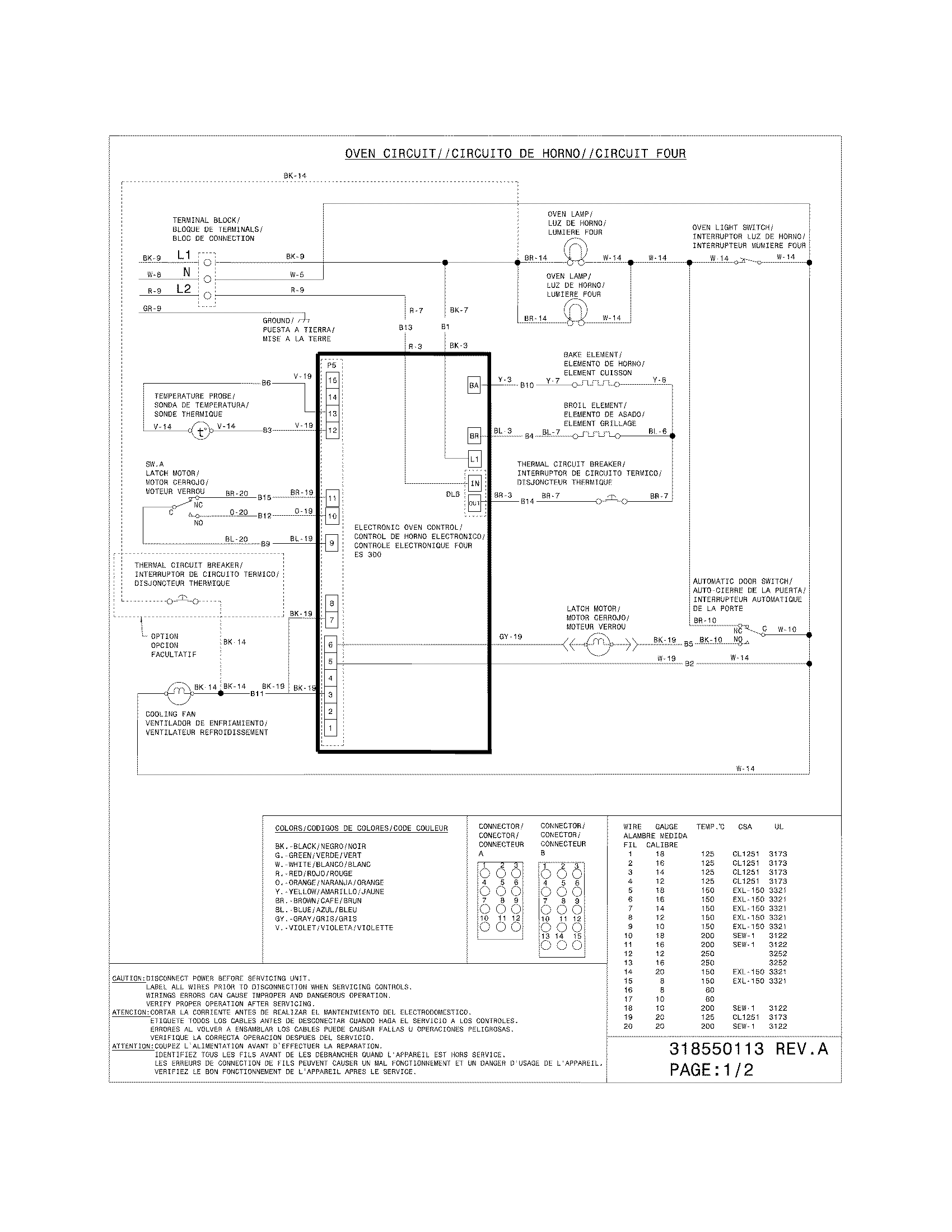

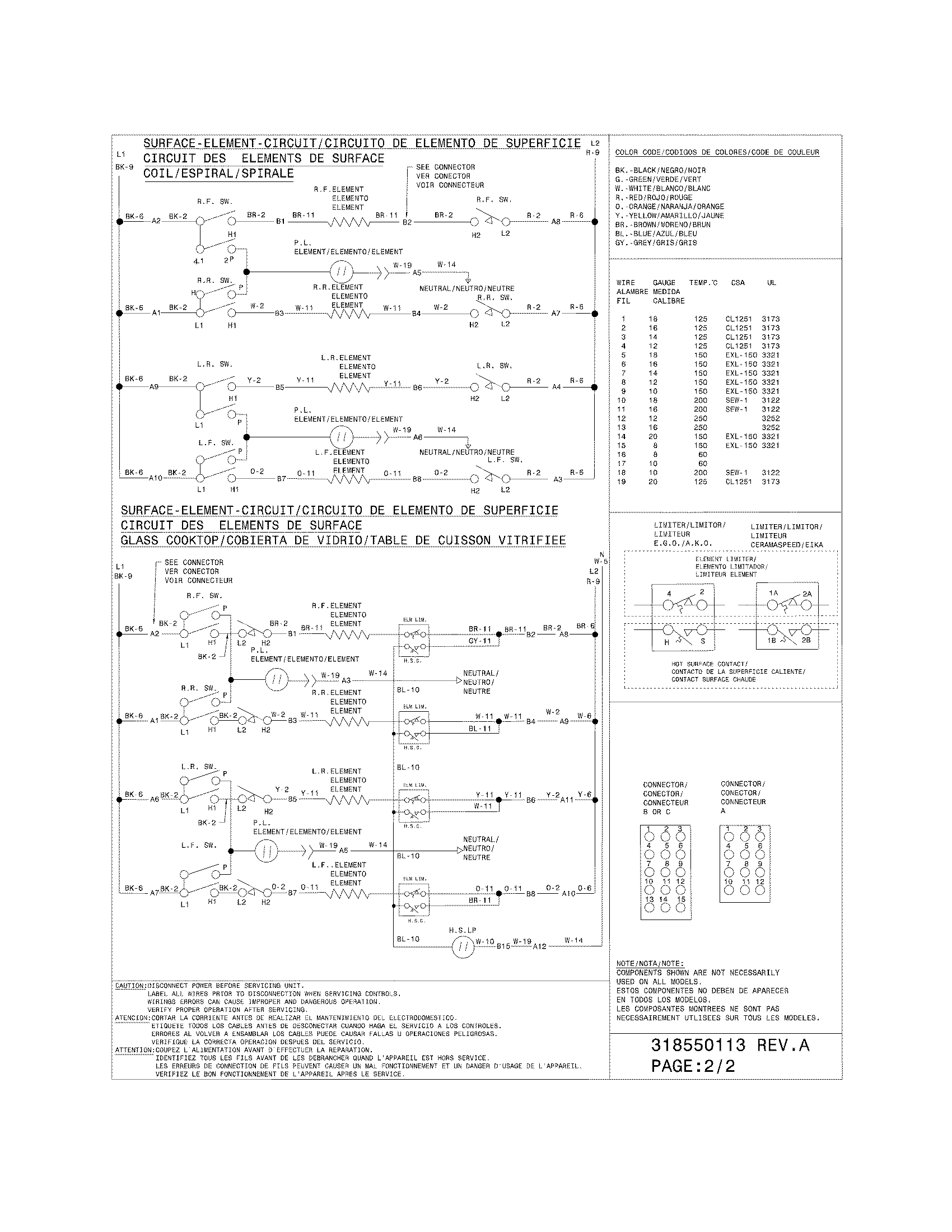

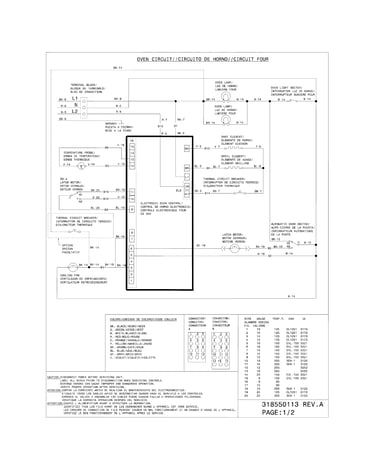

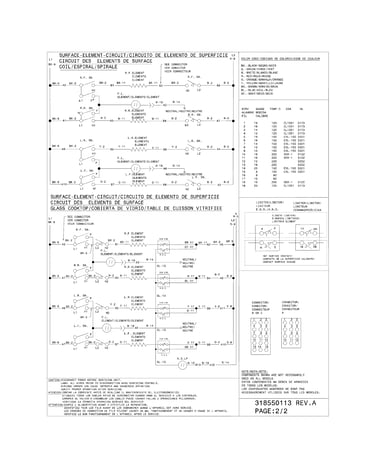

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Element 318372214
#15

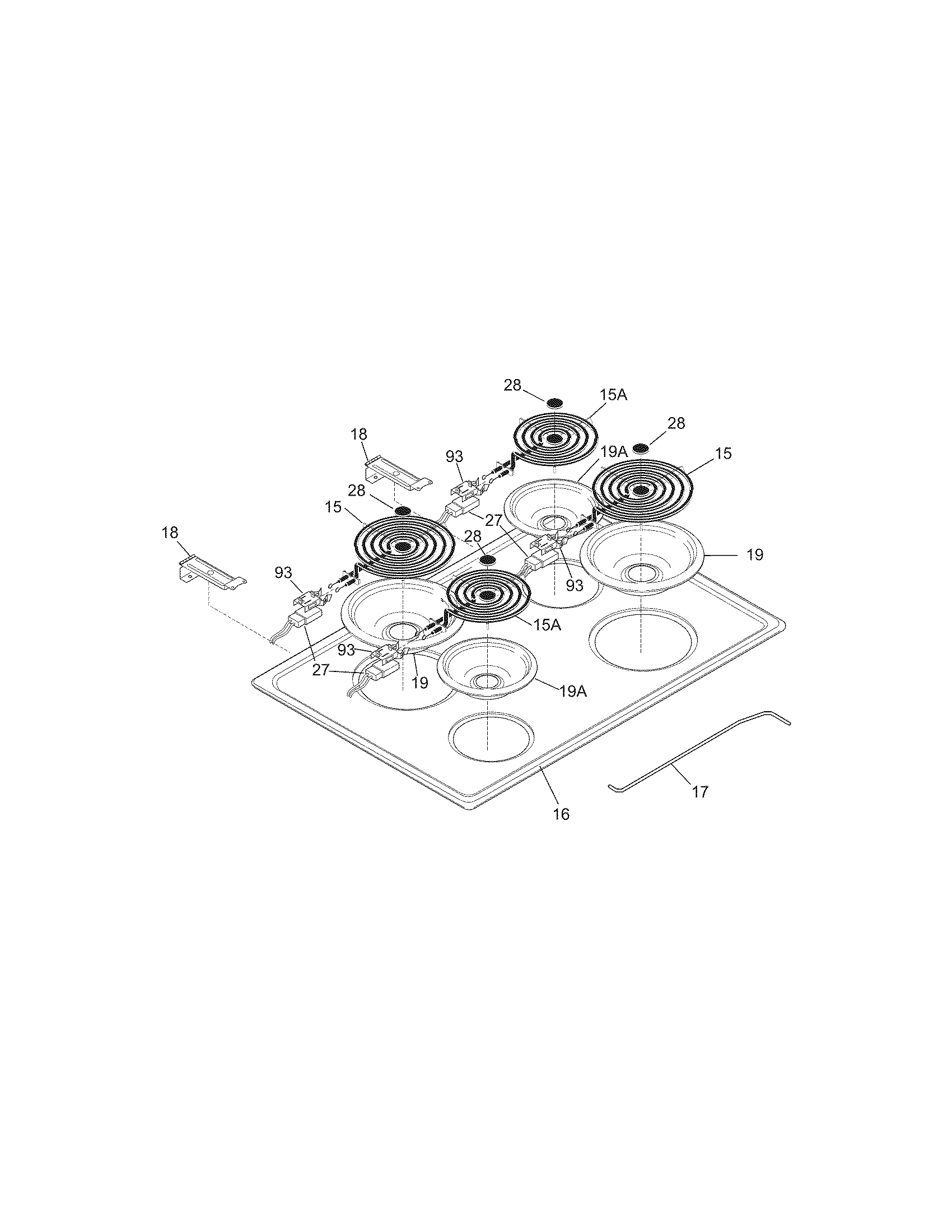

Main top diagram

Element

Part #318372214

Replaced by #316442301

?
Manufacturer substitution
This part replaces 318372214. Substitute parts can look different from the original.
BEST SELLER
$23.22 |
21% OFF Phone Price : $29.22
In Stock
Range Oven Light Bulb 5303013071
#15

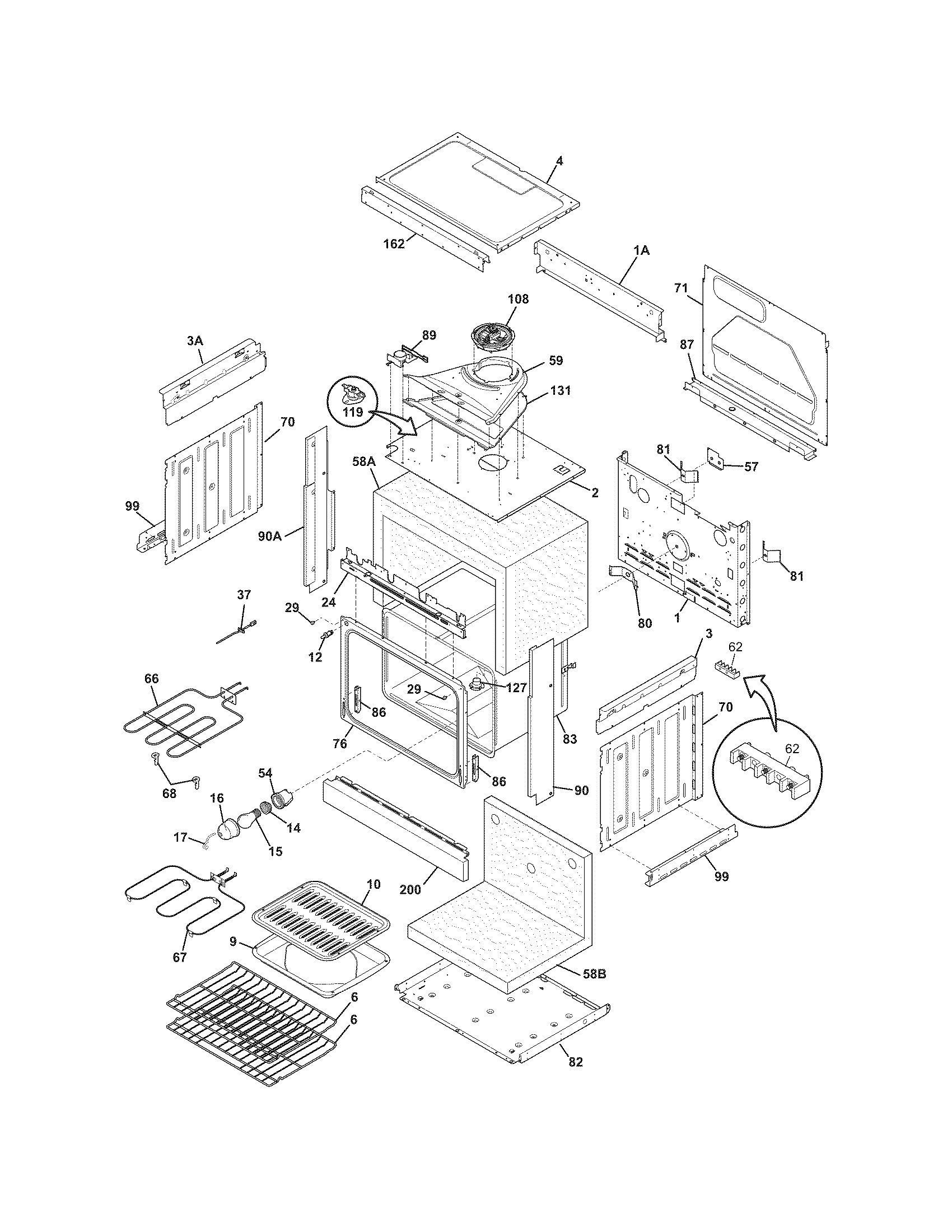

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Frigidaire Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7 316217002
#37

Body diagram

Frigidaire range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7

Part #316217002

BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
Thermostat 318578501
#119

Body diagram

Thermostat

Part #318578501

Replaced by #318578506

?
Manufacturer substitution
This part replaces 318578501. Substitute parts can look different from the original.
BEST SELLER
$38.79 |
13% OFF Phone Price : $44.79
In Stock
White-westinghouse Range Coil Element, 6-in (replaces 316439801) 318372211
#15A

Main top diagram

White-westinghouse range coil element, 6-in (replaces 316439801)

Part #318372211

BEST SELLER
$36.79 |
14% OFF Phone Price : $42.79
In Stock
Range Oven Door Inner Glass 316117500
#8

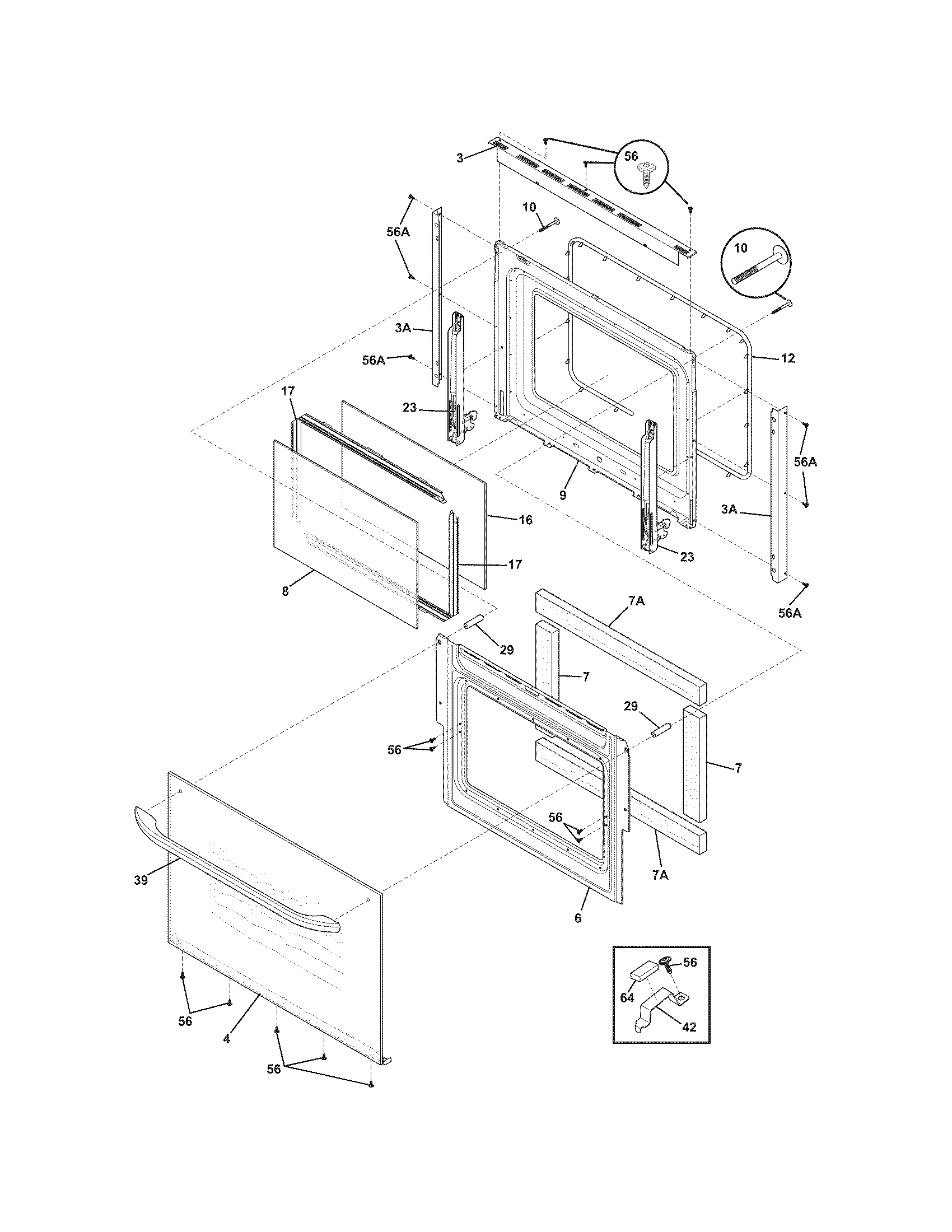

Door diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Kenmore Range Oven Control Overlay (replaces 316352004, 316419103, 316419109, 316419139, 316419142) 316419141
#NI

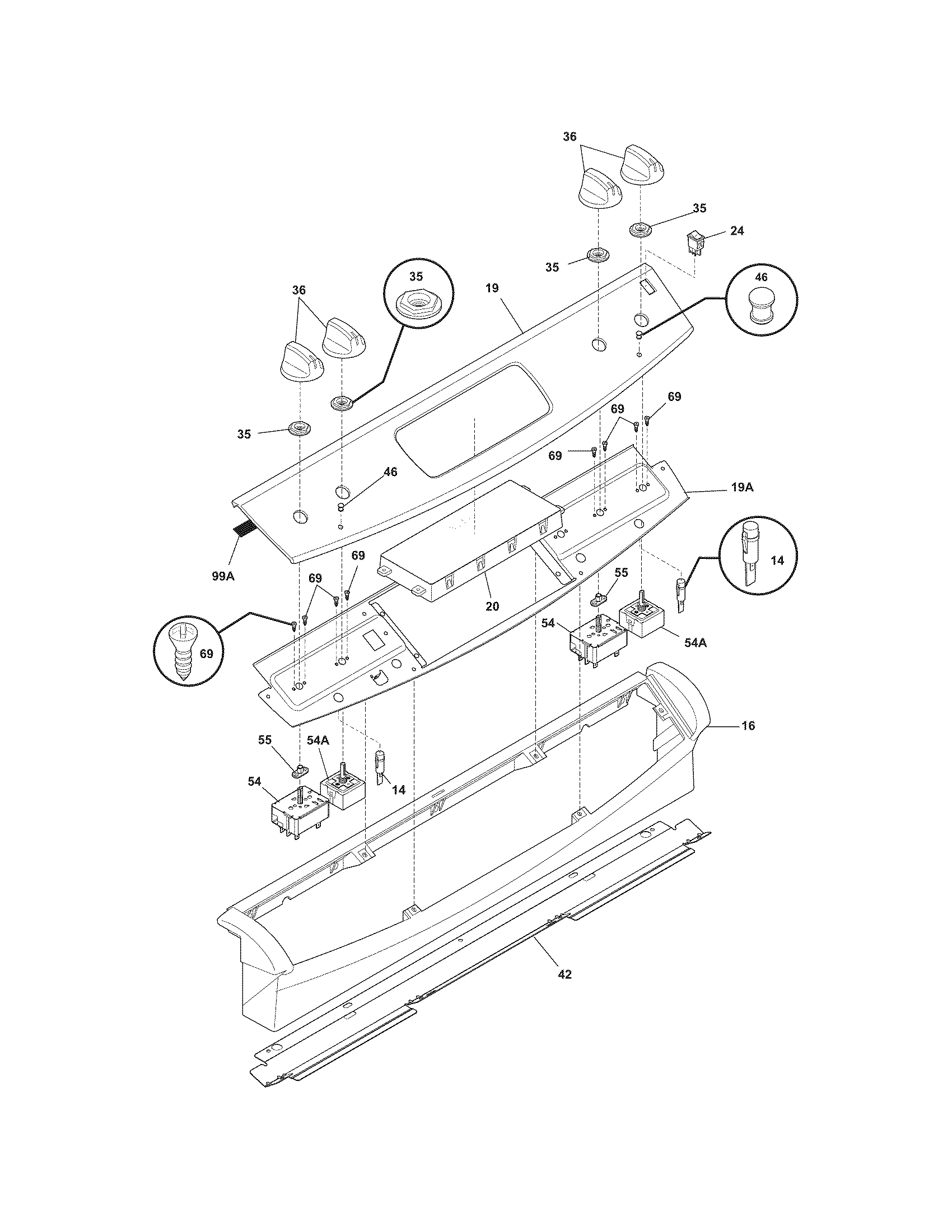

Backguard diagram

Kenmore range oven control overlay (replaces 316352004, 316419103, 316419109, 316419139, 316419142)

Part #316419141

BEST SELLER
$36.85 |
14% OFF Phone Price : $42.85
In Stock
Range Oven Control Overlay (white) (replaces 316352024, 316419104, 316419110, 316419111, 316419138, 316419143, 318214512) 316419137
#NI

Backguard diagram

Range oven control overlay (white) (replaces 316352024, 316419104, 316419110, 316419111, 316419138, 316419143, 318214512)

Part #316419137

BEST SELLER
$30.22 |
17% OFF Phone Price : $36.22
In Stock
Range Surface Element Control Switch 318293831
#54A

Backguard diagram

Range surface element control switch

Part #318293831

BEST SELLER
$67.71 |
8% OFF Phone Price : $73.71
In Stock
Range Screw 5303323134
#69

Backguard diagram

Range screw

Part #5303323134

Replaced by #5303288565

?
Manufacturer substitution
This part replaces 5303323134. Substitute parts can look different from the original.
This item is not returnable
$3.43
In Stock
