Whirlpool
Gas Cooktop

Model # WCG97US6HS05 Official Whirlpool cooktop, gas

Here are the diagrams and repair parts for Official Whirlpool WCG97US6HS05 cooktop, gas, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Screw 3196537
#21

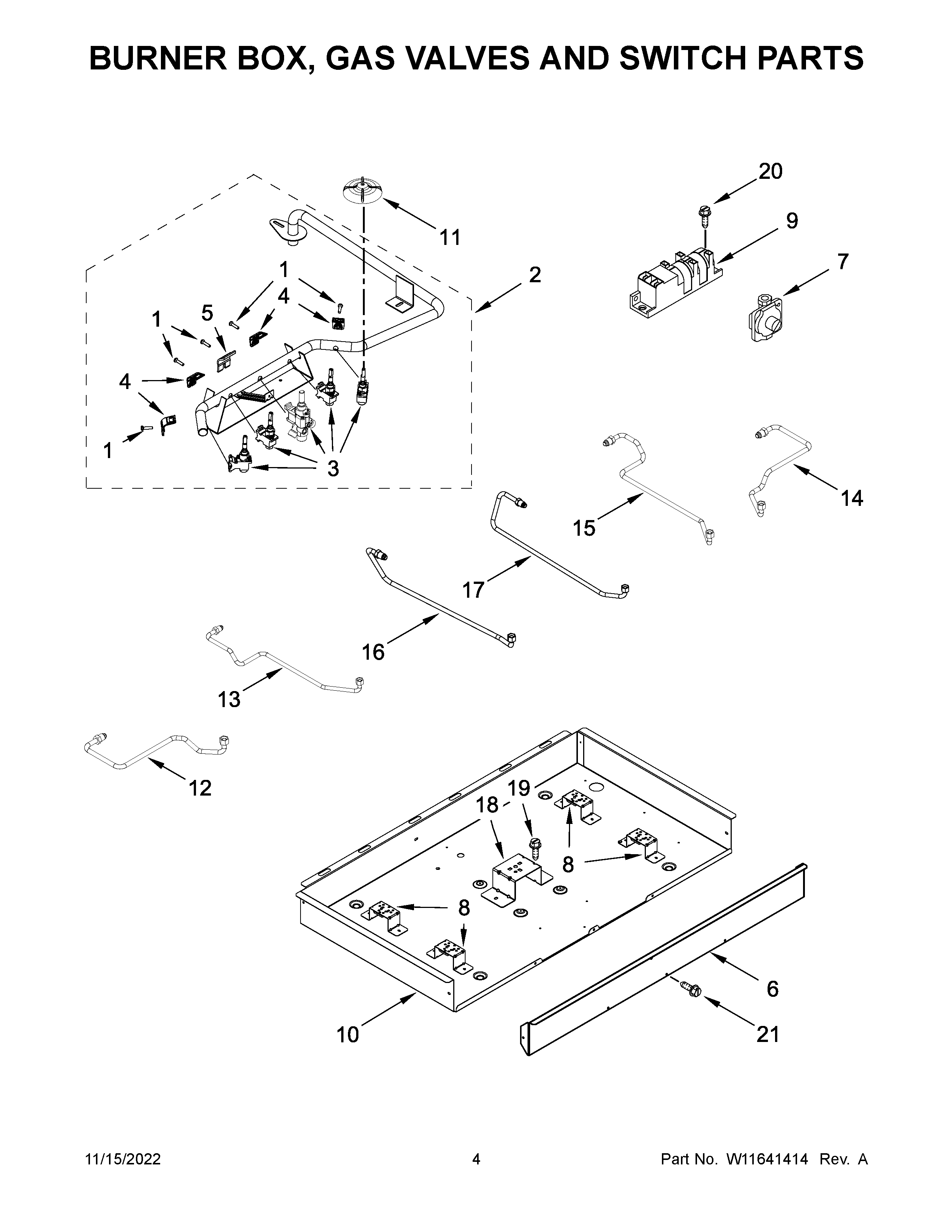

Burner box, gas valves and switch parts diagram

Screw

Part #3196537

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 3196537. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Cooktop Pressure Regulator W10449143
#7

Burner box, gas valves and switch parts diagram

Cooktop pressure regulator

Part #W10449143

Replaced by #W11087445

?
Manufacturer substitution
This part replaces W10449143. Substitute parts can look different from the original.
$130.91 |
8% OFF Phone Price : $142.91
In Stock
Cooktop Burner Head 8286814
#8

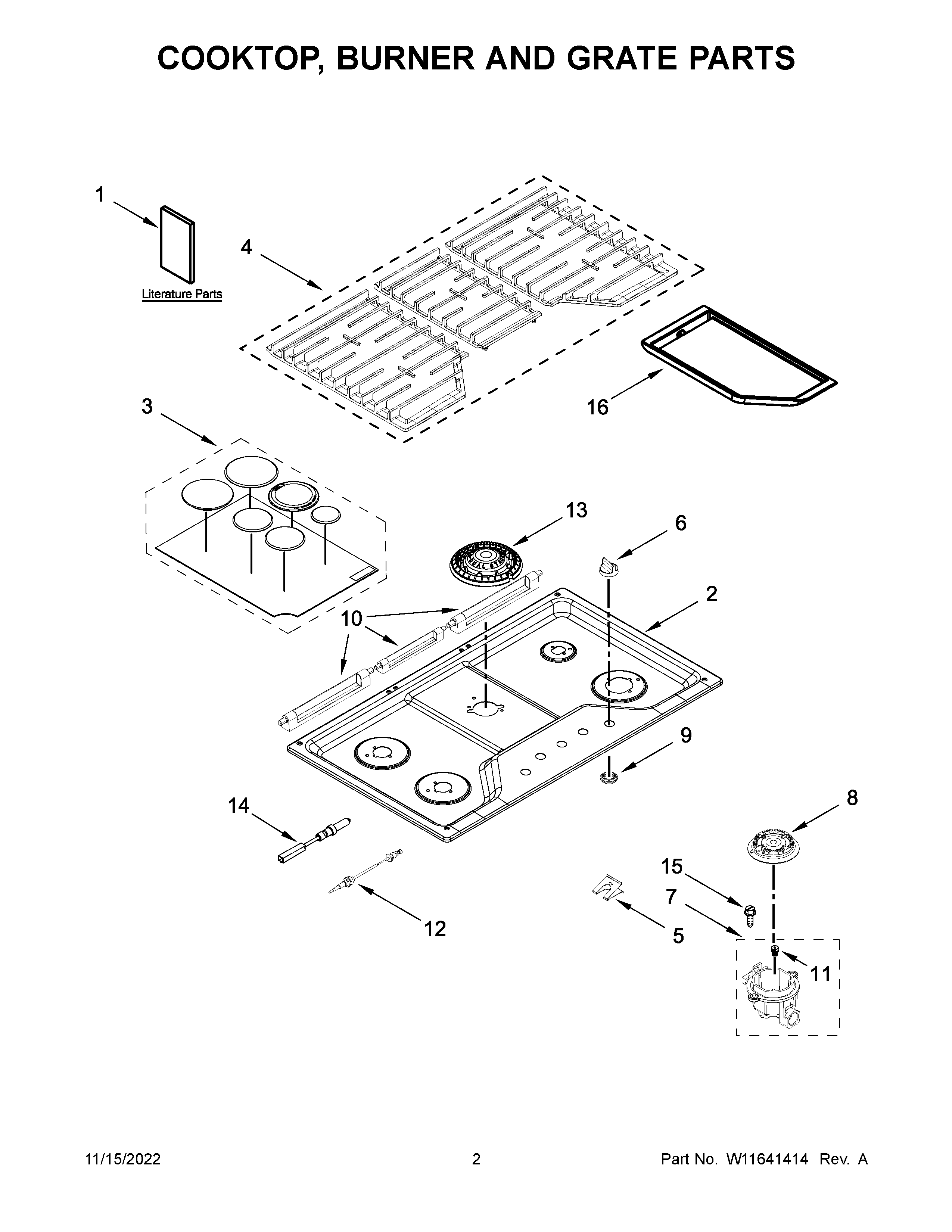

Cooktop, burner and grate parts diagram

Cooktop burner head

Part #8286814

Replaced by #WP8286814

?
Manufacturer substitution
This part replaces 8286814. Substitute parts can look different from the original.
$64.15 |
9% OFF Phone Price : $70.15
In Stock
Ikea Cooktop Griddle W10685483
#16

Cooktop, burner and grate parts diagram

Ikea cooktop griddle

Part #W10685483

$65.49 |
8% OFF Phone Price : $71.49
In Stock
Knob - Whp,w W11084624
#6

Cooktop, burner and grate parts diagram

Knob - whp,w

Part #W11084624

Replaced by #W11204451

?
Manufacturer substitution
This part replaces W11084624. Substitute parts can look different from the original.
$46.63 |
11% OFF Phone Price : $52.63
In Stock
Cap Kit W10597132
#3

Cooktop, burner and grate parts diagram

Cap kit

Part #W10597132

Replaced by #W10819916

?
Manufacturer substitution
This part replaces W10597132. Substitute parts can look different from the original.
$69.89 |
8% OFF Phone Price : $75.89
In Stock
Cooktop Burner Head 8286815
#8B

Cooktop, burner and grate parts diagram

Cooktop burner head

Part #8286815

Replaced by #WP8286815

?
Manufacturer substitution
This part replaces 8286815. Substitute parts can look different from the original.
$64.14 |
9% OFF Phone Price : $70.14
In Stock
Cooktop Burner Head 8286813
#8A

Cooktop, burner and grate parts diagram

Cooktop burner head

Part #8286813

Replaced by #WP8286813

?
Manufacturer substitution
This part replaces 8286813. Substitute parts can look different from the original.
$64.15 |
9% OFF Phone Price : $70.15
In Stock
Electrode W10763330
#14

Cooktop, burner and grate parts diagram

Electrode

Part #W10763330

Replaced by #W10852959

?
Manufacturer substitution
This part replaces W10763330. Substitute parts can look different from the original.
$29.28 |
17% OFF Phone Price : $35.28
In Stock
Grate Kit W11047088
#4

Cooktop, burner and grate parts diagram

Grate kit

Part #W11047088

Replaced by #W11204377

?
Manufacturer substitution
This part replaces W11047088. Substitute parts can look different from the original.
$215.63 |
5% OFF Phone Price : $227.63
In Stock
