Model # 165670700 Official Kenmore perk coffee maker
Here are the diagrams and repair parts for Official Kenmore 165670700 perk coffee maker, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
165670700 Perk Coffee Maker
#6

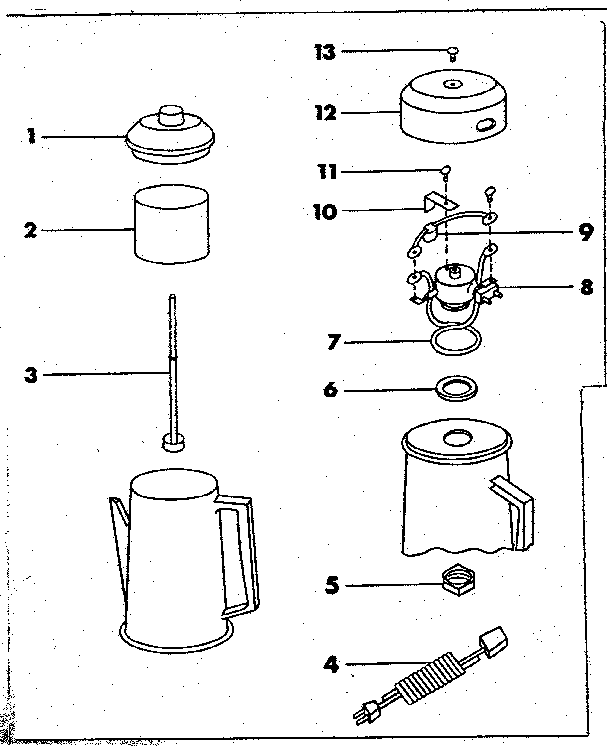

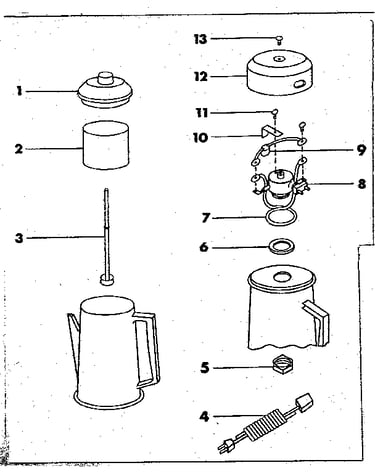

Replacement parts diagram
Gasket
Part #P32GA005
The manufacturer no longer makes this part, and there's no substitute part
#3
Replacement parts diagram
Pump
Part #M11PS022
The manufacturer no longer makes this part, and there's no substitute part
#4
Replacement parts diagram
Cord
Part #P30HC021
The manufacturer no longer makes this part, and there's no substitute part
#9
Replacement parts diagram
Thermostat
Part #P28TS027
The manufacturer no longer makes this part, and there's no substitute part
#1A
Replacement parts diagram
Cover
Part #P53PC013FE01
The manufacturer no longer makes this part, and there's no substitute part
#1B
Replacement parts diagram
Cover
Part #P53PC013YW01
The manufacturer no longer makes this part, and there's no substitute part
#10
Replacement parts diagram
Spring
Part #M23ST010
The manufacturer no longer makes this part, and there's no substitute part
#11
Replacement parts diagram
Screw
Part #P13TC010
The manufacturer no longer makes this part, and there's no substitute part
#5
Replacement parts diagram
Nut
Part #P13NT120
The manufacturer no longer makes this part, and there's no substitute part
#12
Replacement parts diagram
Base
Part #P44PB080BK
The manufacturer no longer makes this part, and there's no substitute part
