Kenmore
Downdraft Ventilation System

Model # 23359940590 Official Kenmore range hood

Here are the diagrams and repair parts for Official Kenmore 23359940590 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Range Hood Interlock Switch Assembly 97009972
#10

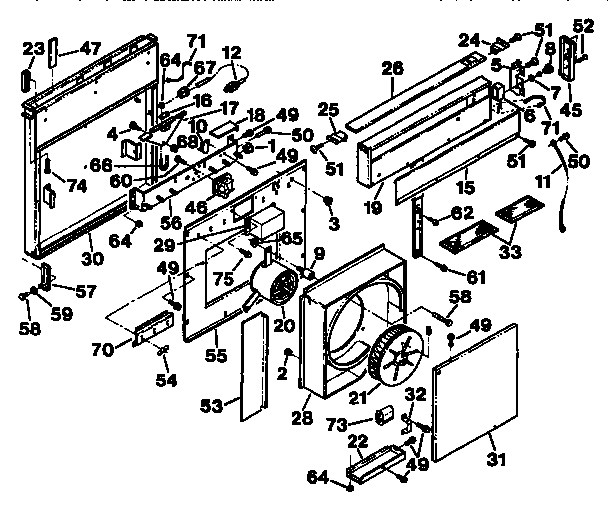

Downdraft blower system diagram

Range hood interlock switch assembly

Part #97009972

The manufacturer no longer makes this part, and there's no substitute part

Downdraft Vent Grease Filter, 2-pack 97009786
#33

Downdraft blower system diagram

Downdraft vent grease filter, 2-pack

Part #97009786

The manufacturer no longer makes this part, and there's no substitute part

Downdraft Vent Grease Filter, 2-pack 97009787
#33A

Downdraft blower system diagram

Downdraft vent grease filter, 2-pack

Part #97009787

The manufacturer no longer makes this part, and there's no substitute part

Downdraft Vent Switch Panel Trim (stainless) 97011445
#26

Downdraft blower system diagram

Downdraft vent switch panel trim (stainless)

Part #97011445

Replaced by #S97011445

?
Manufacturer substitution
This part replaces 97011445. Substitute parts can look different from the original.
$98.68 |
11% OFF Phone Price : $110.68
In Stock
Downdraft Vent Switch Panel Trim (stainless) 97011446
#26A

Downdraft blower system diagram

Downdraft vent switch panel trim (stainless)

Part #97011446

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Fan Motor Assembly 97011311

#NI

All parts diagram

Range hood fan motor assembly

Part #97011311

Replaced by #S97011311

?
Manufacturer substitution
This part replaces 97011311. Substitute parts can look different from the original.
$328.88 |
$12.00 OFF Phone Price : $340.88
In Stock
Range Hood Spacer 99710032
#23

Downdraft blower system diagram

Range hood spacer

Part #99710032

Replaced by #S99710032

?
Manufacturer substitution
This part replaces 99710032. Substitute parts can look different from the original.
$10.83
In Stock
Downdraft Vent Screw, #8 X 1/2-in 99150488
#52

Downdraft blower system diagram

Downdraft vent screw, #8 x 1/2-in

Part #99150488

Replaced by #S99150488

?
Manufacturer substitution
This part replaces 99150488. Substitute parts can look different from the original.
This item is not returnable
$3.33
In Stock
Range Hood U-bolt 99380633
#66

Downdraft blower system diagram

Range hood u-bolt

Part #99380633

Replaced by #S99380633

?
Manufacturer substitution
This part replaces 99380633. Substitute parts can look different from the original.
This item is not returnable
$5.60
In Stock
Crank 98007780
#17

Downdraft blower system diagram

Crank

Part #98007780

Replaced by #97018840

?
Manufacturer substitution
This part replaces 98007780. Substitute parts can look different from the original.
$43.53
In Stock

Most common symptoms to help you fix your downdraft ventilation systems

Choose a symptom to see related downdraft vent repairs.

View all

Why won't my downdraft vent rise up?

Main causes: lack of electrical power, up/down activation switch failure, bad vent gear motor…

Read more

Why won't my downdraft vent lower down?

Main causes: electrical power failure, up/down activation switch problems, vent gear motor failure…

Read more

Why does the downdraft vent raise and lower continuously?

Main causes: problems with the vent limit switches, up/down activation switch failure…

Read more

Why won't the fan on my downdraft vent blow air?

Main causes: fan control switch failure, bad blower fan motor, broken blower wheel, wiring failure…

Read more

Why doesn't the downdraft vent fan pull much air?

Main causes: clogged grease filters, air duct problems, fan motor failure, broken blower wheel…

Read more
