Model # 917794038A Official Craftsman super 14 hydro-trac tractor
Here are the diagrams and repair parts for Official Craftsman 917794038A super 14 hydro-trac tractor, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
917794038A Riding Mowers & Tractors
#37

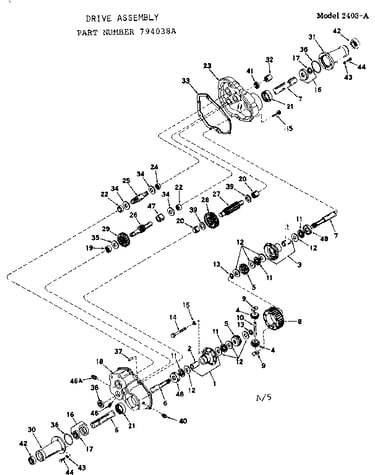

Drive assembly diagram
Pin
Part #786026
Replaced by #786026B
?
Manufacturer substitution
This part replaces 786026. Substitute parts can look different from the original.
This item is not returnable
$4.60 |
18% OFF Phone Price : $5.60
In Stock
#13
Drive assembly diagram
Ring
Part #792018
Replaced by #792018
?
Manufacturer substitution
This part replaces 792018. Substitute parts can look different from the original.
This item is not returnable
$4.37
In Stock
#42
Drive assembly diagram
Bearing
Part #780050
Replaced by #780050
?
Manufacturer substitution
This part replaces 780050. Substitute parts can look different from the original.
$47.62
In Stock
#32
Drive assembly diagram
Coupling
Part #786038
Replaced by #786038
?
Manufacturer substitution
This part replaces 786038. Substitute parts can look different from the original.
$24.31
In Stock
#28
Drive assembly diagram
Gear
Part #778036
Replaced by #778036
?
Manufacturer substitution
This part replaces 778036. Substitute parts can look different from the original.
$70.64
In Stock
#8
Drive assembly diagram
Gear
Part #778033A
Replaced by #778033A
?
Manufacturer substitution
This part replaces 778033A. Substitute parts can look different from the original.
$119.52
In Stock
#10
Drive assembly diagram
Pin
Part #786019
Replaced by #786019
?
Manufacturer substitution
This part replaces 786019. Substitute parts can look different from the original.
This item is not returnable
$15.17
In Stock
#14
Drive assembly diagram
Screw
Part #792005
Replaced by #792005
?
Manufacturer substitution
This part replaces 792005. Substitute parts can look different from the original.
This item is not returnable
$4.37
In Stock
#45
Drive assembly diagram
Screw
Part #792007
Replaced by #792007
?
Manufacturer substitution
This part replaces 792007. Substitute parts can look different from the original.
This item is not returnable
$4.37
In Stock
#39
Drive assembly diagram
Washer
Part #780052
Replaced by #780052
?
Manufacturer substitution
This part replaces 780052. Substitute parts can look different from the original.
This item is not returnable
$4.49
In Stock
