Kenmore
Wall Oven/Microwave Combo

Model # 79048849901 Official Kenmore wall oven/microwave combo

Here are the diagrams and repair parts for Official Kenmore 79048849901 wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

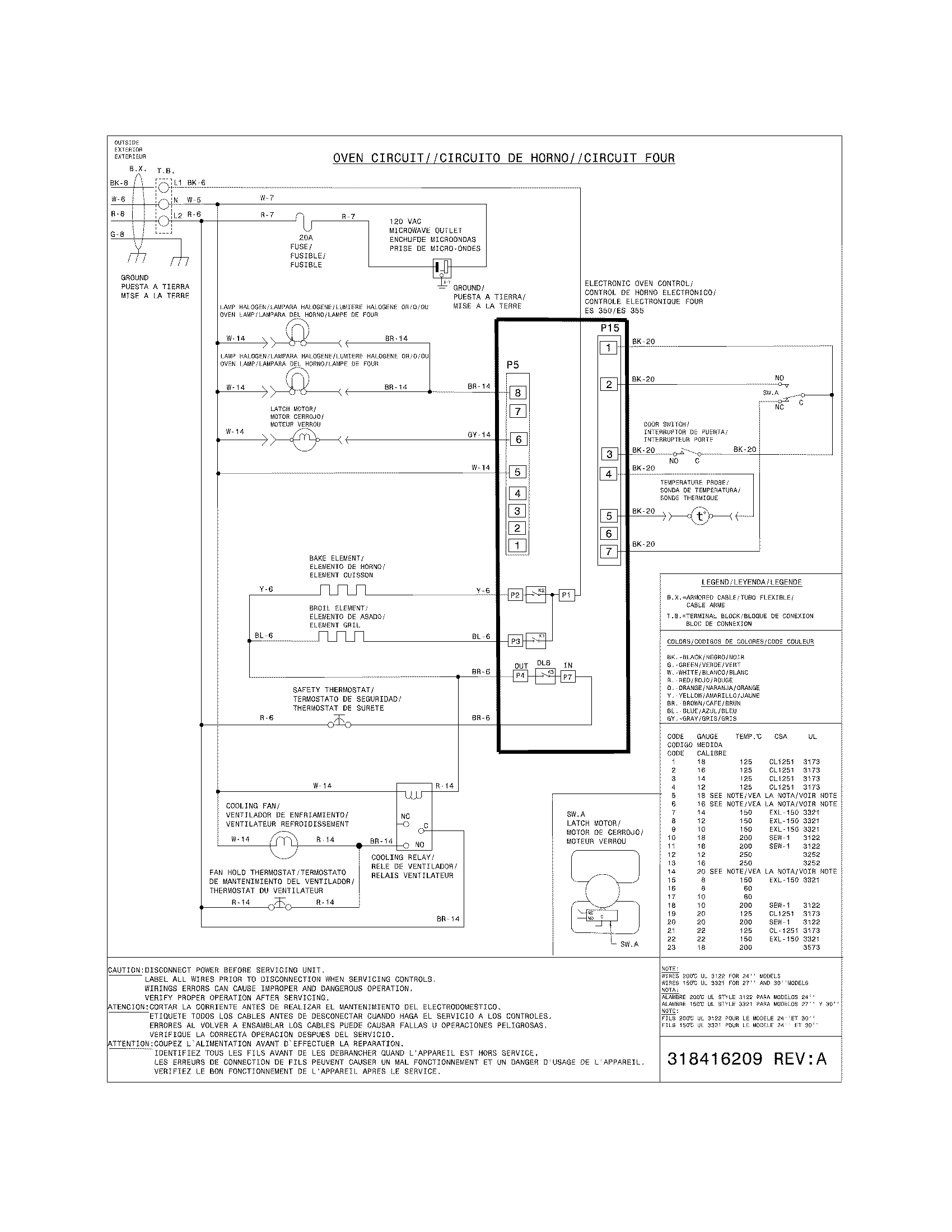

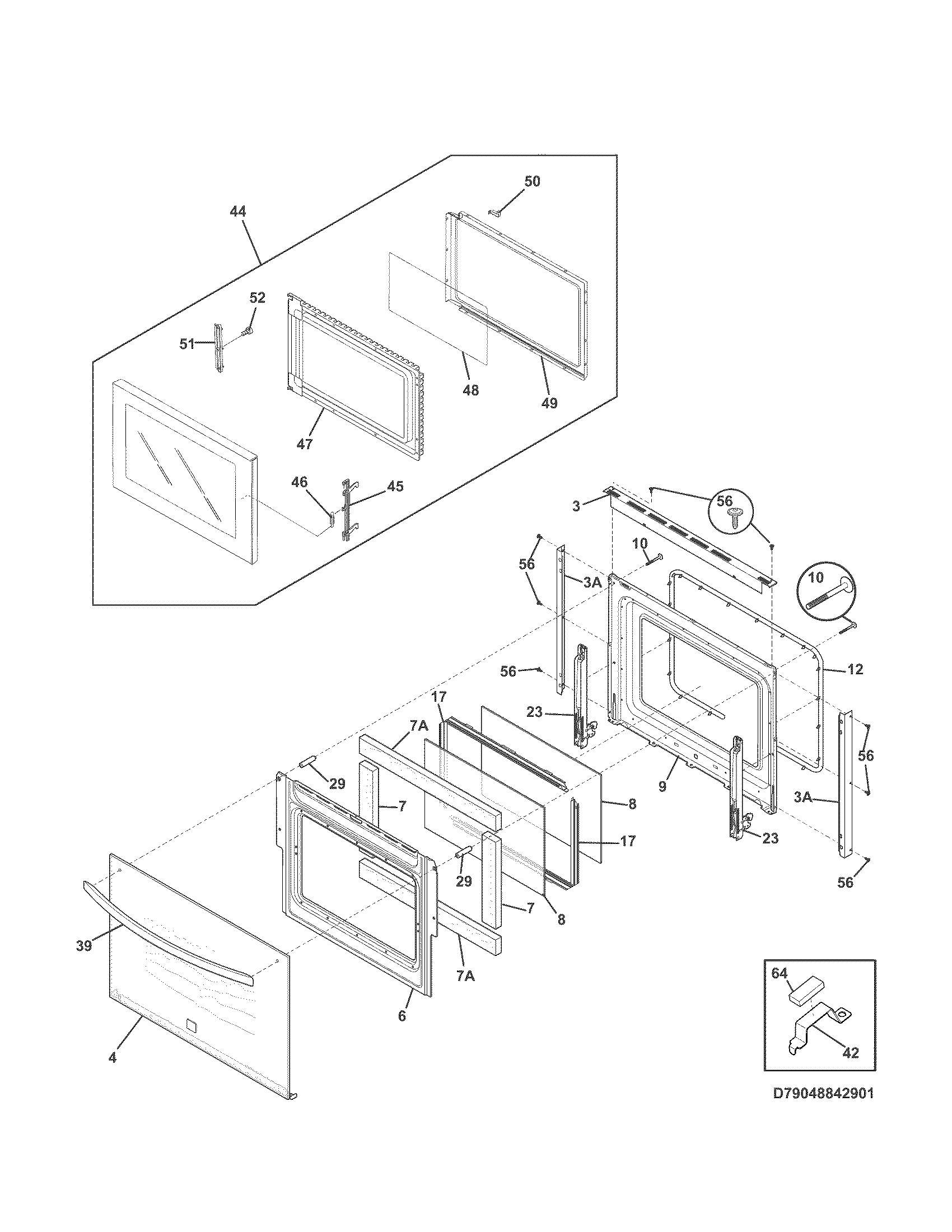

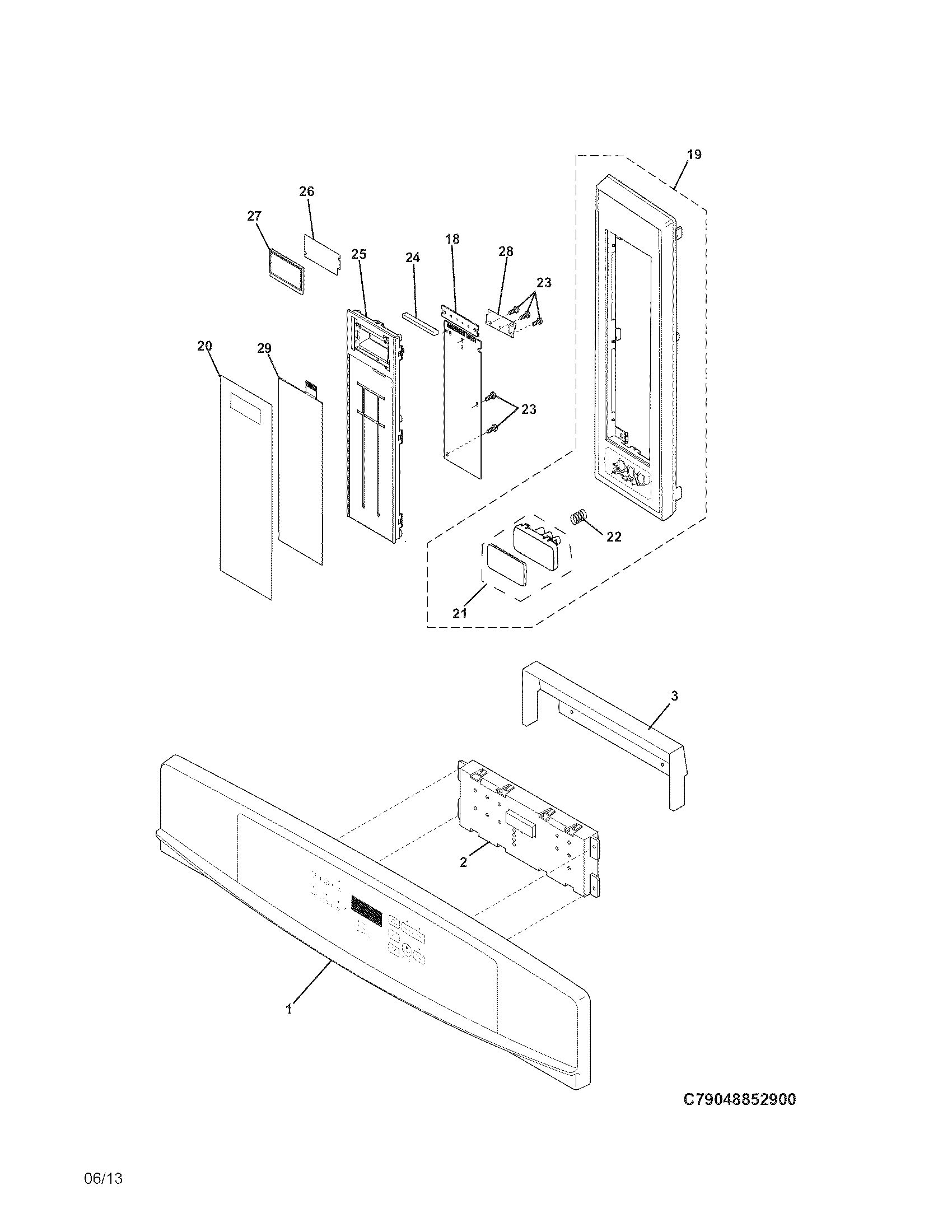

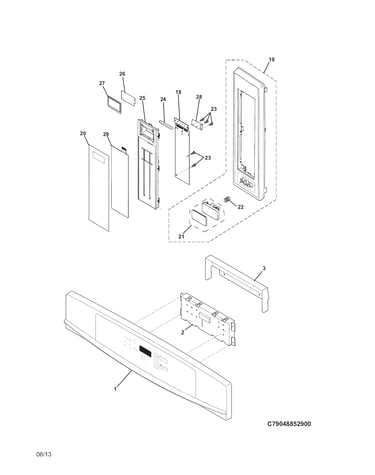

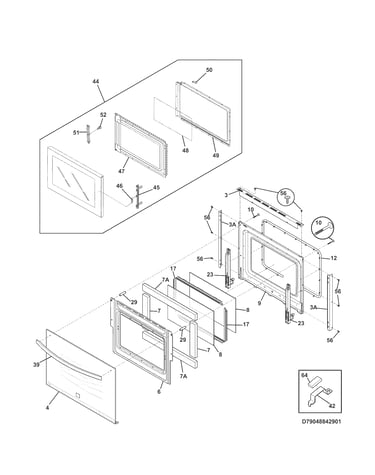

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 189 parts  |
Range Oven Temperature Sensor 318562500
#37

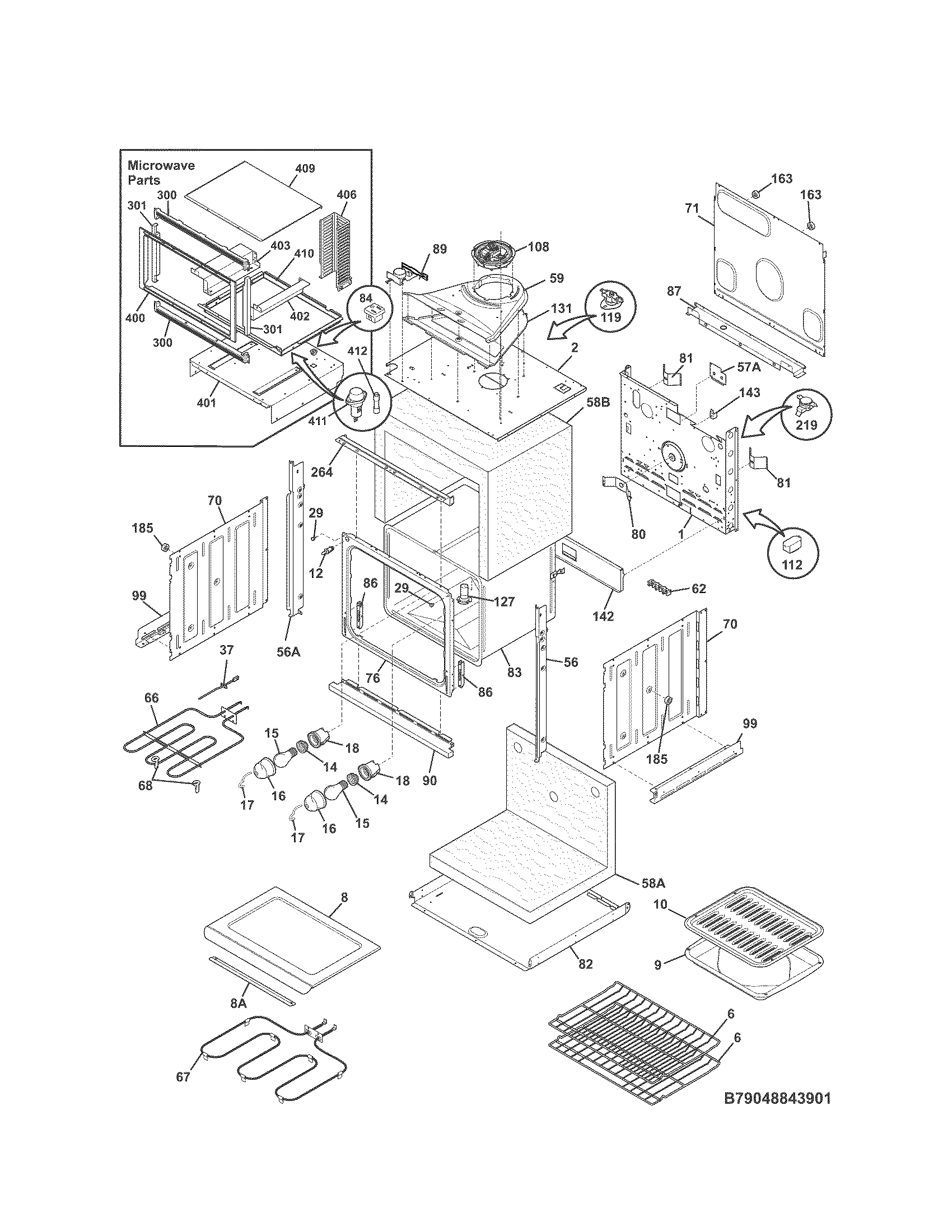

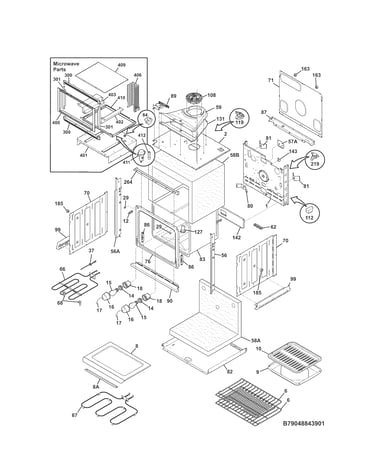

Lower oven diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$32.51 |
16% OFF Phone Price : $38.51
In Stock
Appliance Light Bulb, 40-watt 316538901
#15

Lower oven diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Kenmore Pro Range High-limit Thermostat (replaces 318578501) 318578506
#119

Lower oven diagram

Kenmore pro range high-limit thermostat (replaces 318578501)

Part #318578506

BEST SELLER
$38.79 |
13% OFF Phone Price : $44.79
In Stock
Microwave Door Interlock Switch 5304440026
#6

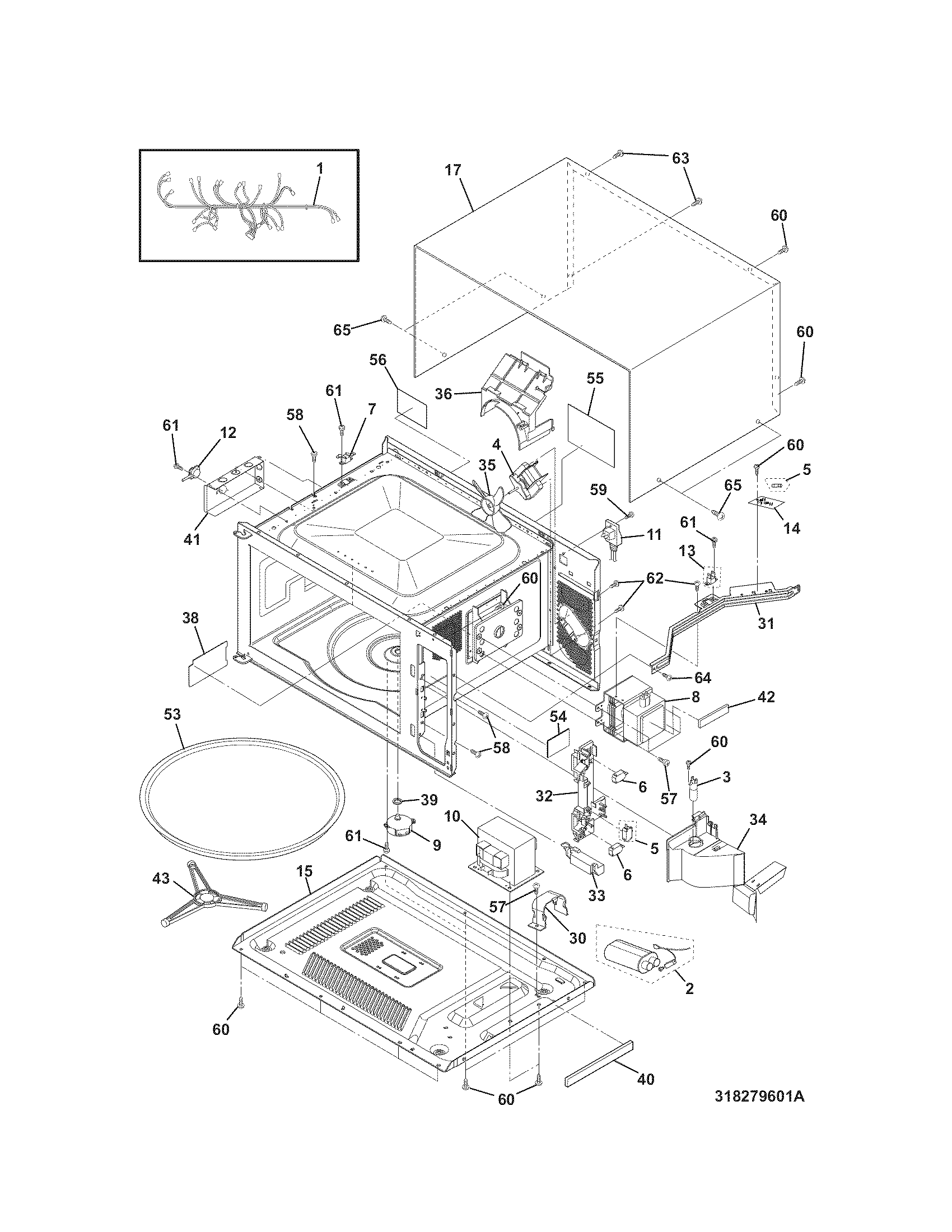

Microwave diagram

Microwave door interlock switch

Part #5304440026

Replaced by #5304493153

?
Manufacturer substitution
This part replaces 5304440026. Substitute parts can look different from the original.
BEST SELLER
$28.60 |
17% OFF Phone Price : $34.60
In Stock
Terminal Block 316056000
#62

Lower oven diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Wall Oven Microwave Magnetron 5304472253
#8

Microwave diagram

Wall oven microwave magnetron

Part #5304472253

Replaced by #5304521745

?
Manufacturer substitution
This part replaces 5304472253. Substitute parts can look different from the original.
BEST SELLER
$144.88 |
8% OFF Phone Price : $156.88
In Stock
Capacitor 5304462258
#2

Microwave diagram

Capacitor

Part #5304462258

Replaced by #5304487566

?
Manufacturer substitution
This part replaces 5304462258. Substitute parts can look different from the original.
BEST SELLER
$102.75 |
10% OFF Phone Price : $114.75
In Stock
Range Oven Light Lens 318406100
#16

Lower oven diagram

Range oven light lens

Part #318406100

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 318406100. Substitute parts can look different from the original.
BEST SELLER
$13.90 |
13% OFF Phone Price : $15.90
In Stock
Electrolux Microwave Rectifier 5304468869
#2A

Microwave diagram

Electrolux microwave rectifier

Part #5304468869

BEST SELLER
$75.09 |
7% OFF Phone Price : $81.09
In Stock
Range Screw 5304454881
#NI

Lower oven diagram

Range screw

Part #5304454881

Replaced by #131243700

?
Manufacturer substitution
This part replaces 5304454881. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
