Model # PWP465 (5HCF) Official Smith Corona word processor

Here are the diagrams and repair parts for Official Smith Corona PWP465-5HCF word processor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

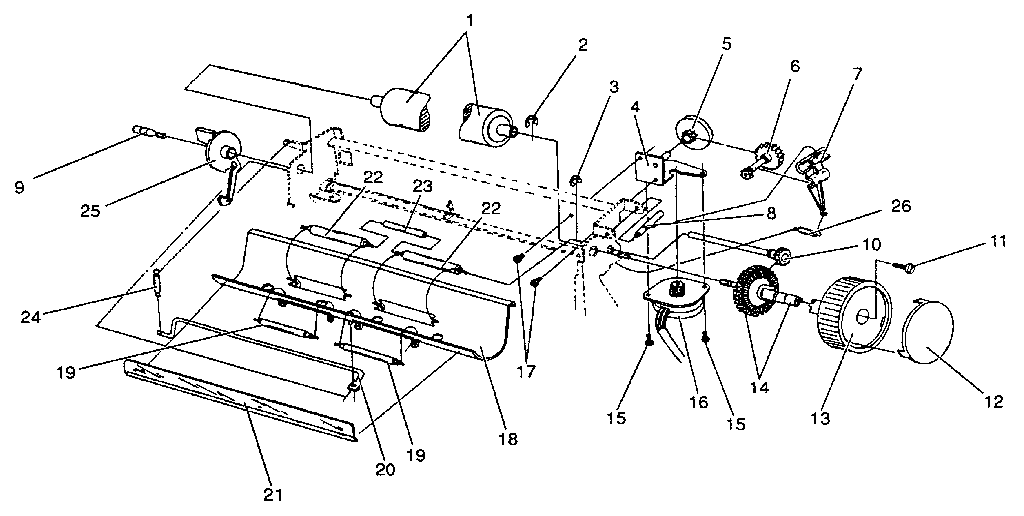

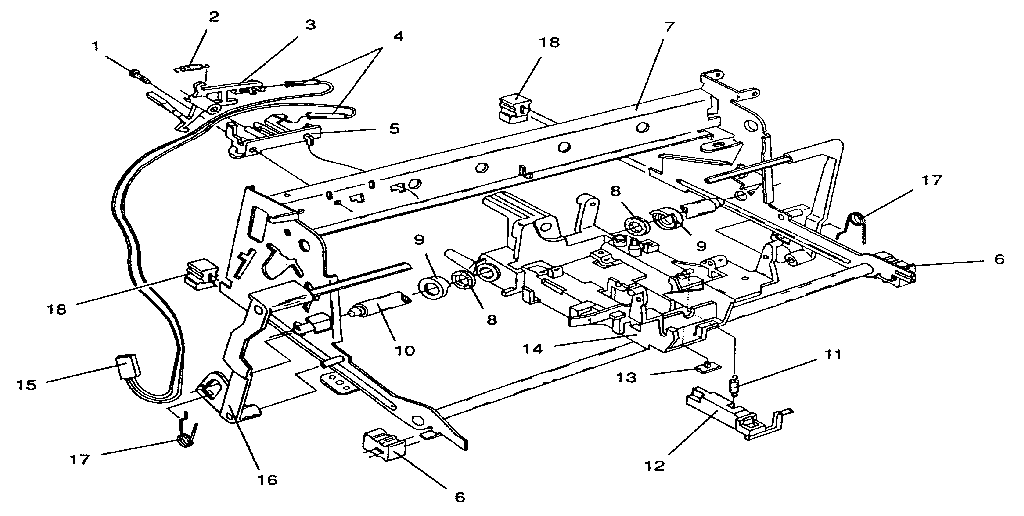

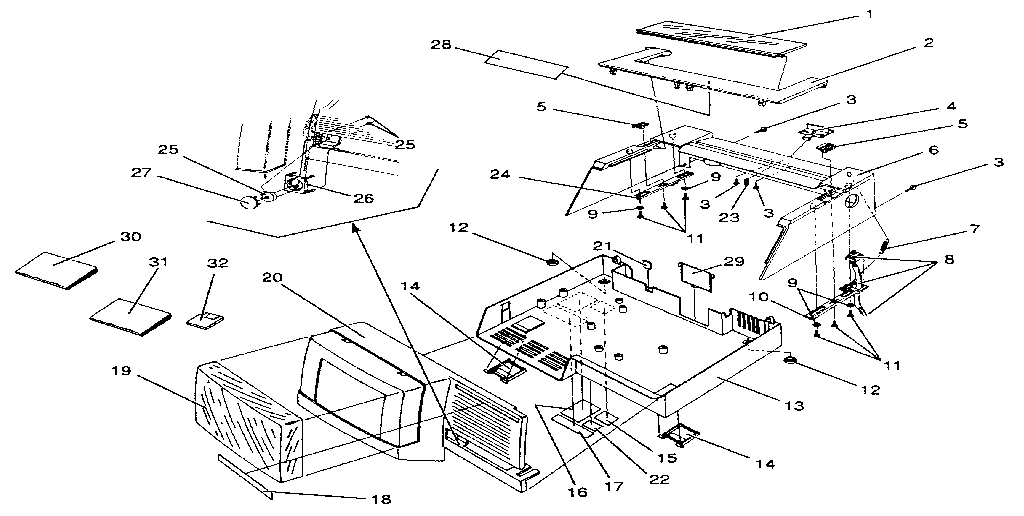

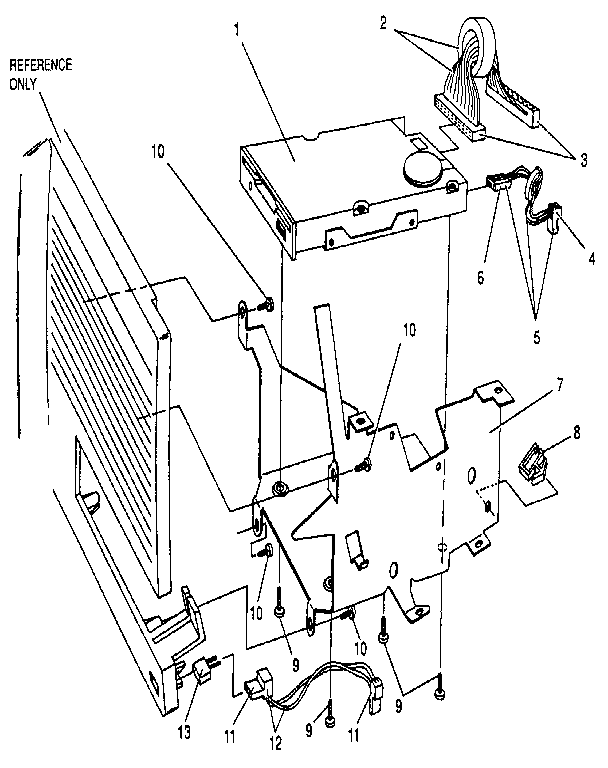

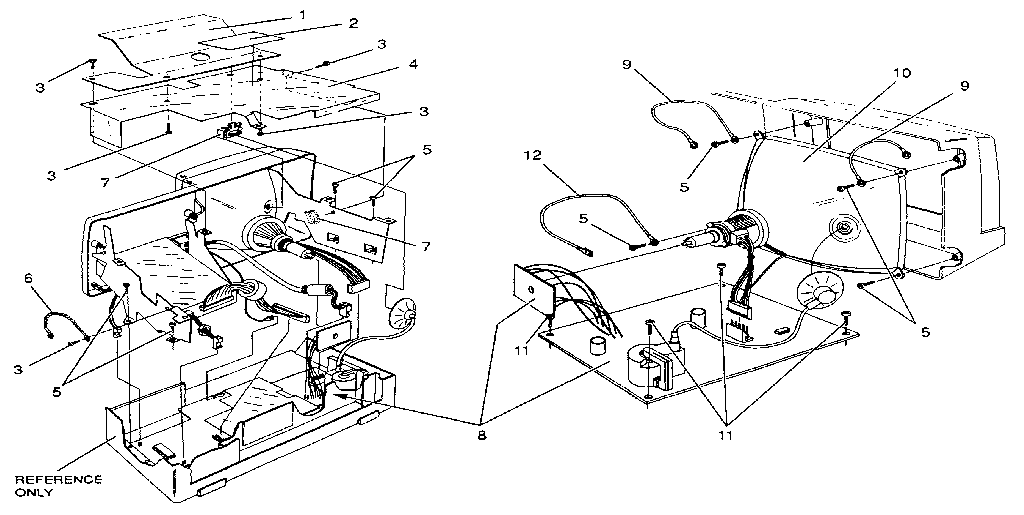

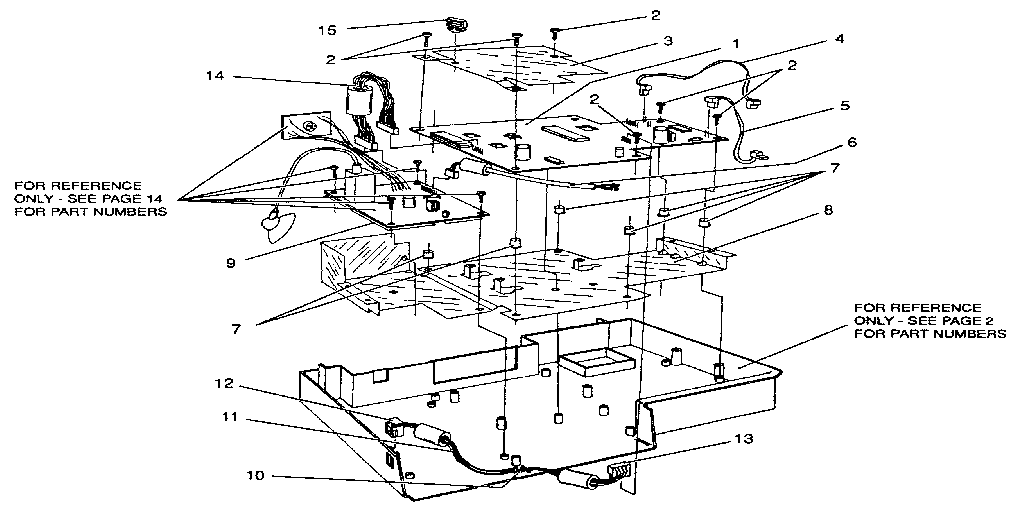

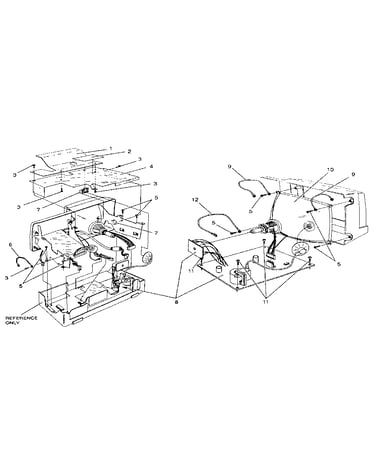

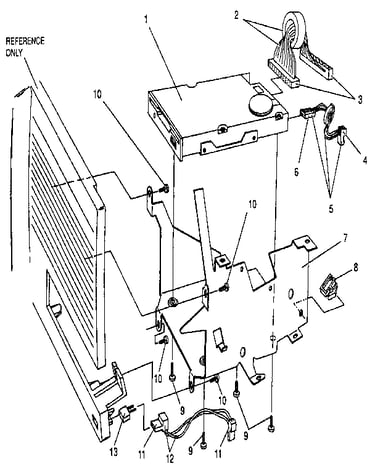

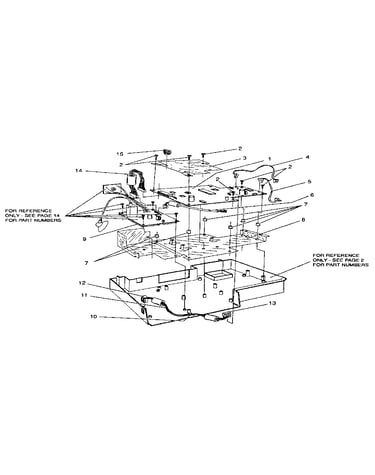

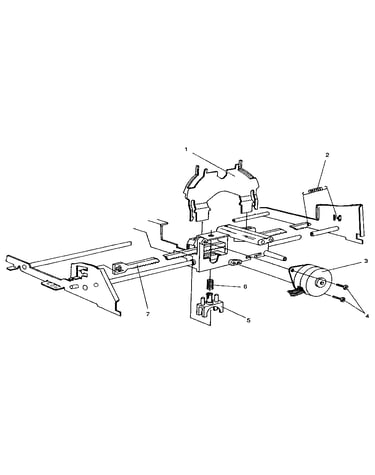

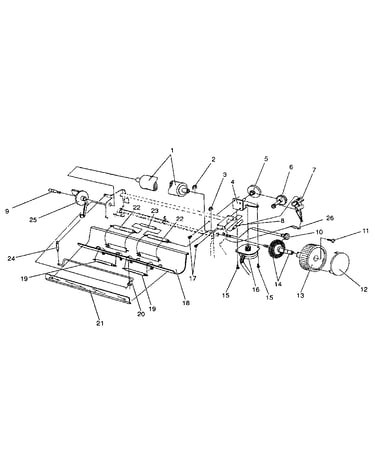

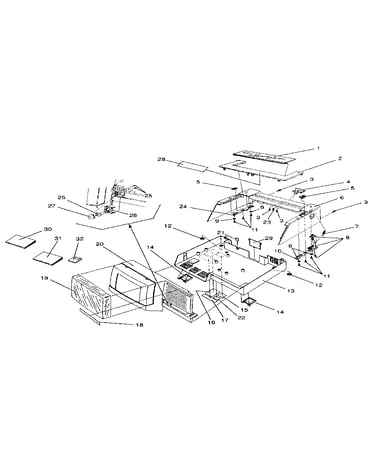

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 271 parts  |
Retainer 770317
#12

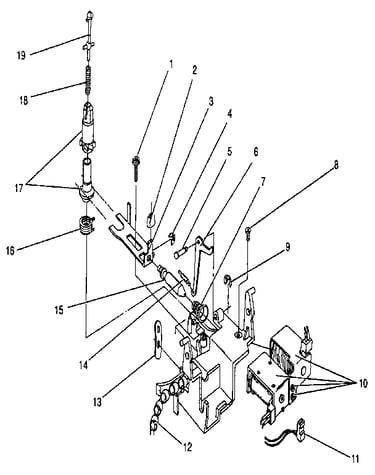

Ribbon drive diagram

Retainer

Part #770317

The manufacturer no longer makes this part, and there's no substitute part

Elem Shaft 740004
#10

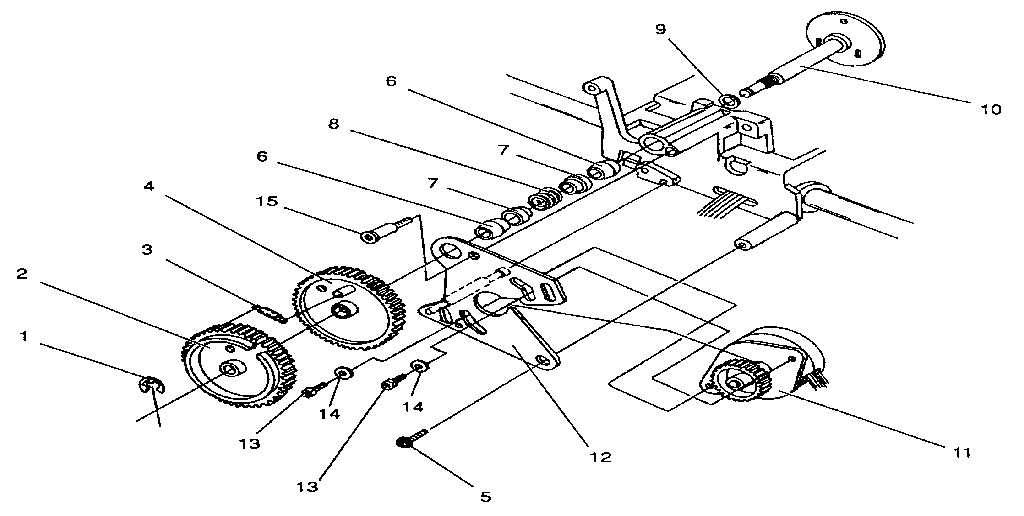

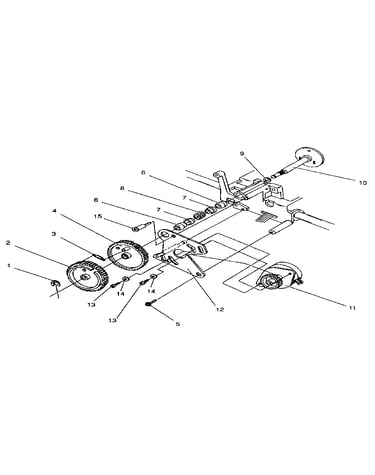

Element drive diagram

Elem shaft

Part #740004

The manufacturer no longer makes this part, and there's no substitute part

Lid Switch Holder 922030
#14

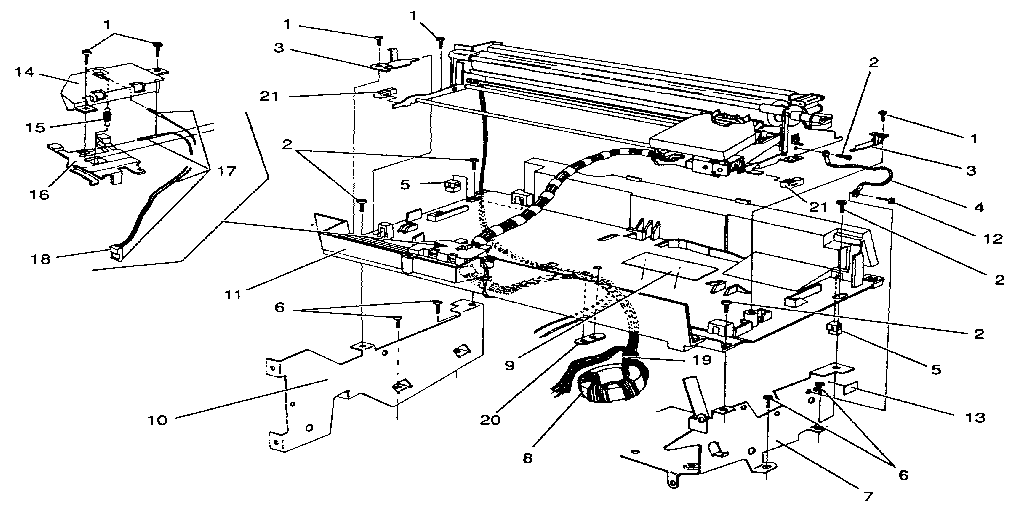

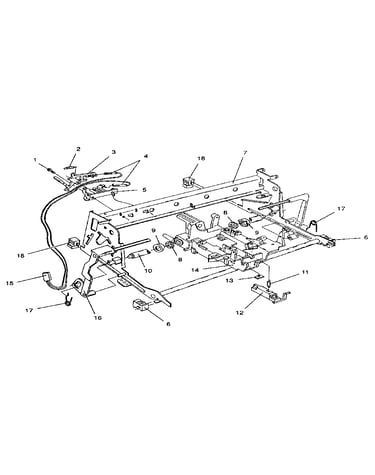

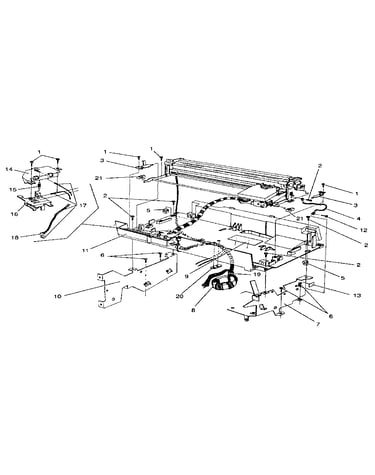

Carrier support & side frames diagram

Lid switch holder

Part #922030

The manufacturer no longer makes this part, and there's no substitute part

A 930028
#29

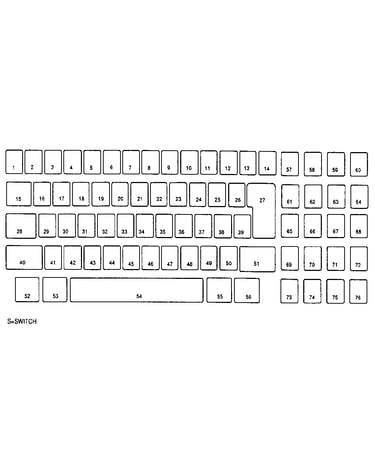

Keybutton reference chart diagram

A

Part #930028

The manufacturer no longer makes this part, and there's no substitute part

Screw 781952
#9

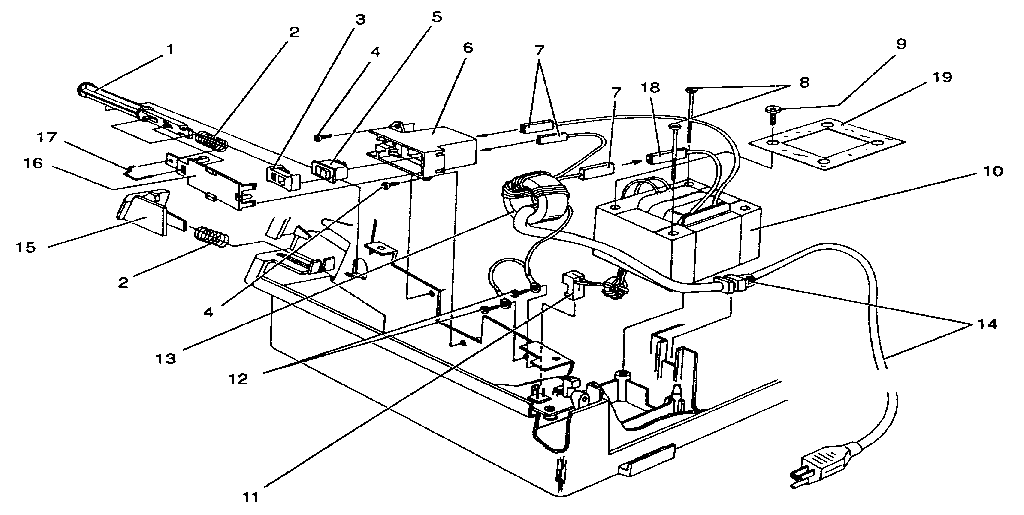

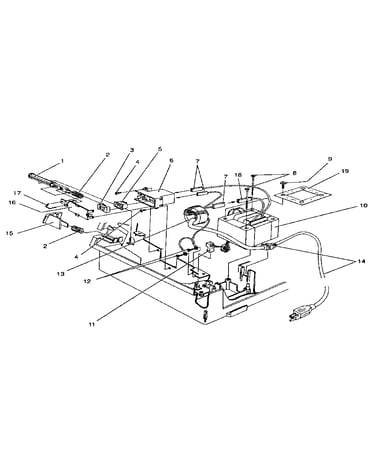

On-off switch & transformer assembly diagram

Screw

Part #781952

The manufacturer no longer makes this part, and there's no substitute part

Feed Pawl 770288
#8

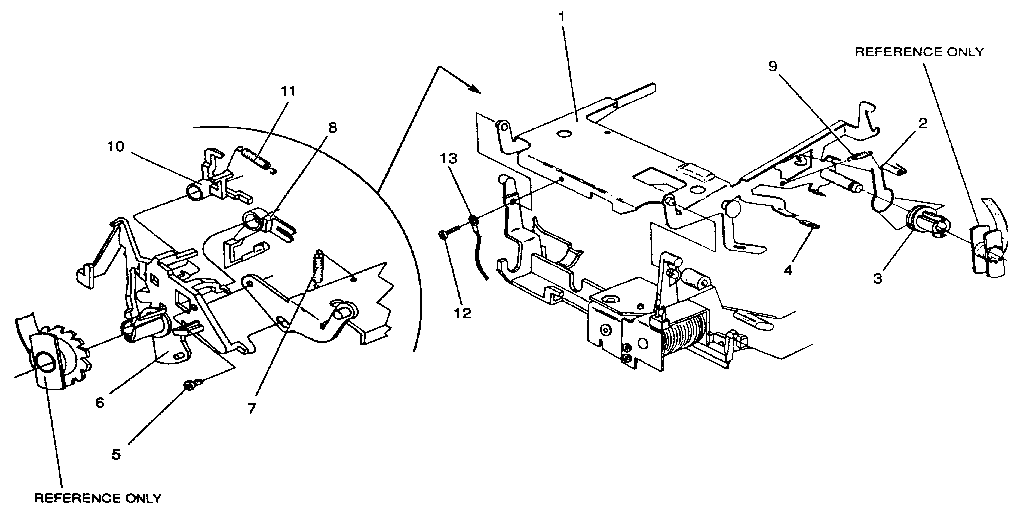

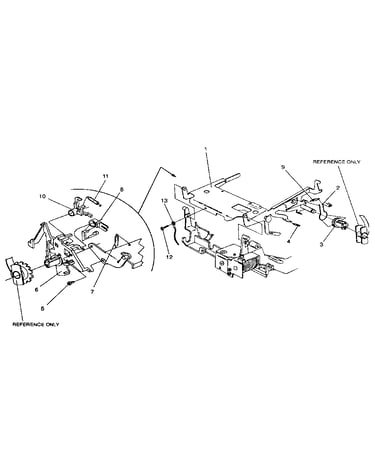

Ribbon cassette & spool correction ribbon diagram

Feed pawl

Part #770288

The manufacturer no longer makes this part, and there's no substitute part

Gear Spring 745060
#3

Element drive diagram

Gear spring

Part #745060

The manufacturer no longer makes this part, and there's no substitute part

Transformer 922041
#10

On-off switch & transformer assembly diagram

Transformer

Part #922041

The manufacturer no longer makes this part, and there's no substitute part

Pivot Screw 771794
#7

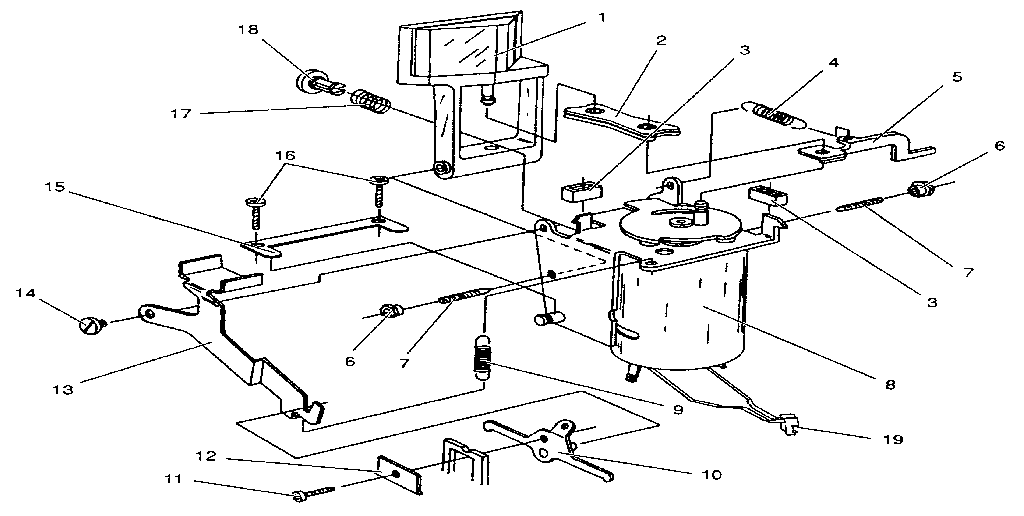

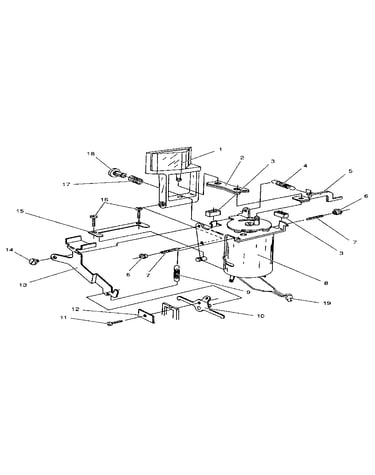

Hammer diagram

Pivot screw

Part #771794

The manufacturer no longer makes this part, and there's no substitute part

Kb Mask 921643
#2

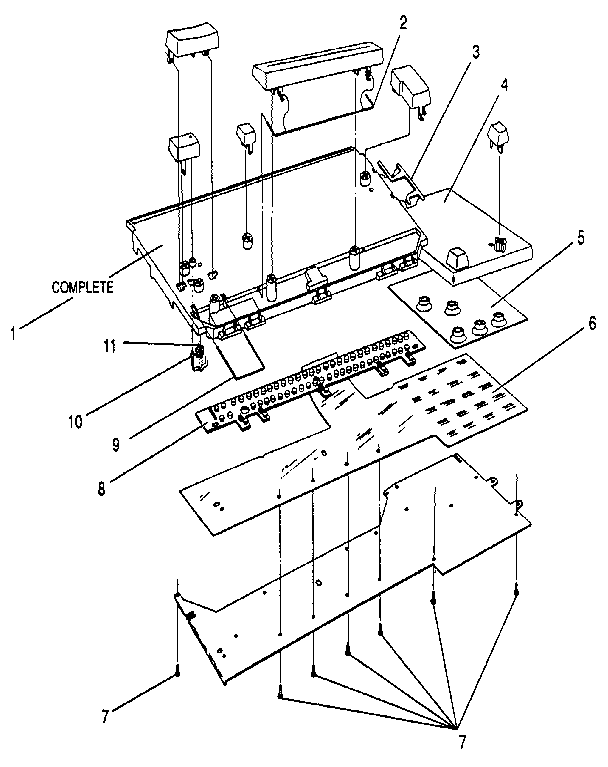

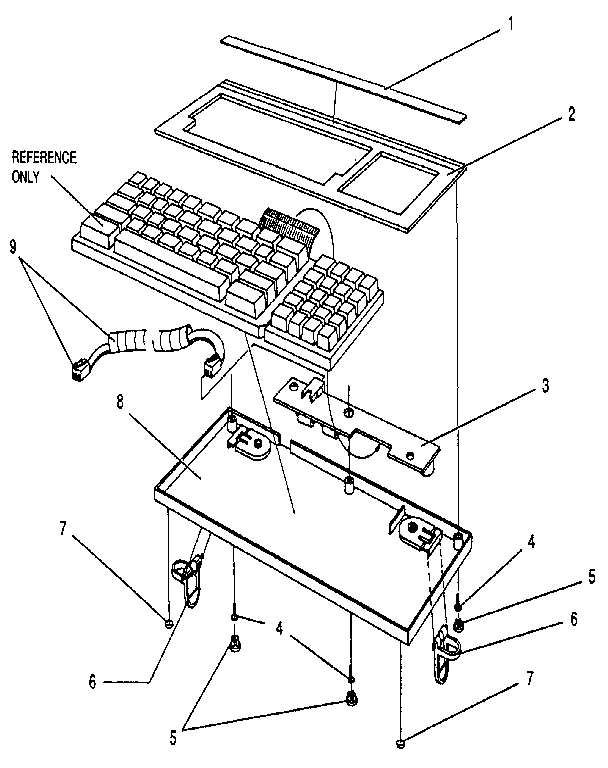

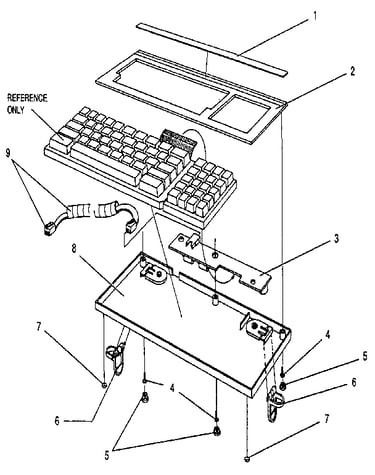

Keyboard jackets & pc board diagram

Kb mask

Part #921643

The manufacturer no longer makes this part, and there's no substitute part
