Whirlpool
Countertop Microwave

Model # MT1850XW1 Official Whirlpool microwave

Here are the diagrams and repair parts for Official Whirlpool MT1850XW1 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

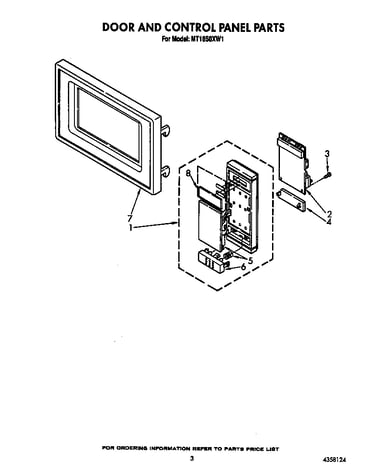

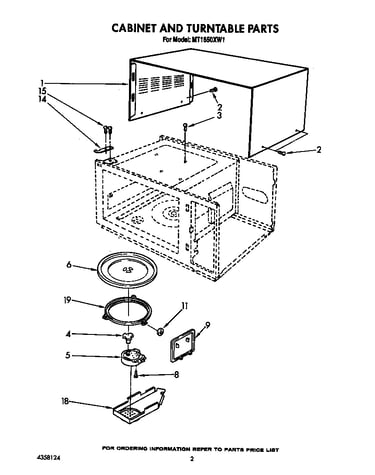

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Screw 4158076
Screw

Part #4158076

Replaced by #8169474

?
Manufacturer substitution
This part replaces 4158076. Substitute parts can look different from the original.
This item is not returnable
$5.24
In Stock
Fan Blade 4158758
#10

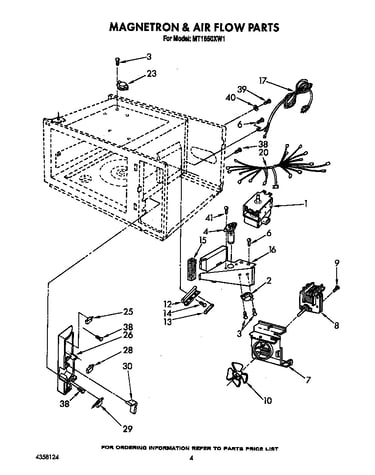

Magnetron and air flow diagram

Fan blade

Part #4158758

Replaced by #8184292

?
Manufacturer substitution
This part replaces 4158758. Substitute parts can look different from the original.
$36.16
In Stock
Screw 4158747
Screw

Part #4158747

Replaced by #WP3400094

?
Manufacturer substitution
This part replaces 4158747. Substitute parts can look different from the original.
This item is not returnable
$3.95 |
20% OFF Phone Price : $4.95
In Stock
Switch 4158793
#28

Magnetron and air flow diagram

Switch

Part #4158793

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4158793. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Screw 4158071
Screw

Part #4158071

Replaced by #W11380570

?
Manufacturer substitution
This part replaces 4158071. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Switch 4158600
#25

Magnetron and air flow diagram

Switch

Part #4158600

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4158600. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Foam Seal 4358123
#5

Magnetron and air flow diagram

Foam seal

Part #4358123

The manufacturer no longer makes this part, and there's no substitute part

Diode 4158897
#5

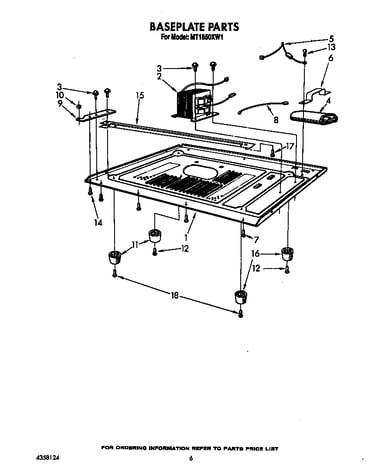

Baseplate diagram

Diode

Part #4158897

The manufacturer no longer makes this part, and there's no substitute part

Light Bulb 4158586
#4

Magnetron and air flow diagram

Light bulb

Part #4158586

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bracket 4158792
#26

Magnetron and air flow diagram

Mounting bracket

Part #4158792

The manufacturer no longer makes this part, and there's no substitute part
