Model # RJCT4868A Official Jade cooktop

Here are the diagrams and repair parts for Official Jade RJCT4868A cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |

Cleaner 20000008
#40

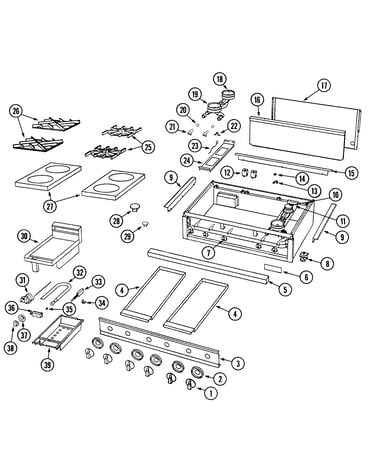

Top assembly/gas controls diagram

Cleaner

Part #20000008

The manufacturer no longer makes this part, and there's no substitute part

Igniter Hood 70001037
#22

Top assembly/gas controls diagram

Igniter hood

Part #70001037

The manufacturer no longer makes this part, and there's no substitute part

Igniter Bracket 70001102
#34

Top assembly/gas controls diagram

Igniter bracket

Part #70001102

The manufacturer no longer makes this part, and there's no substitute part

Grid Burner 70001076
#32

Top assembly/gas controls diagram

Grid burner

Part #70001076

The manufacturer no longer makes this part, and there's no substitute part

Spark Module 70001044
#12

Top assembly/gas controls diagram

Spark module

Part #70001044

The manufacturer no longer makes this part, and there's no substitute part

Trim 70001651
#5

Top assembly/gas controls diagram

Trim

Part #70001651

The manufacturer no longer makes this part, and there's no substitute part

Hanger Burner 70001054
#24

Top assembly/gas controls diagram

Hanger burner

Part #70001054

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Burner 70001012
#10

Top assembly/gas controls diagram

Cooktop burner

Part #70001012

The manufacturer no longer makes this part, and there's no substitute part

Clip 70001229
#13

Top assembly/gas controls diagram

Clip

Part #70001229

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Spark Switch 70001058
#7

Top assembly/gas controls diagram

Cooktop spark switch

Part #70001058

The manufacturer no longer makes this part, and there's no substitute part
