Model # VCD-15 Official Toro dethatcher

Here are the diagrams and repair parts for Official Toro VCD-15 dethatcher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Bolt Spacer 436531
#21

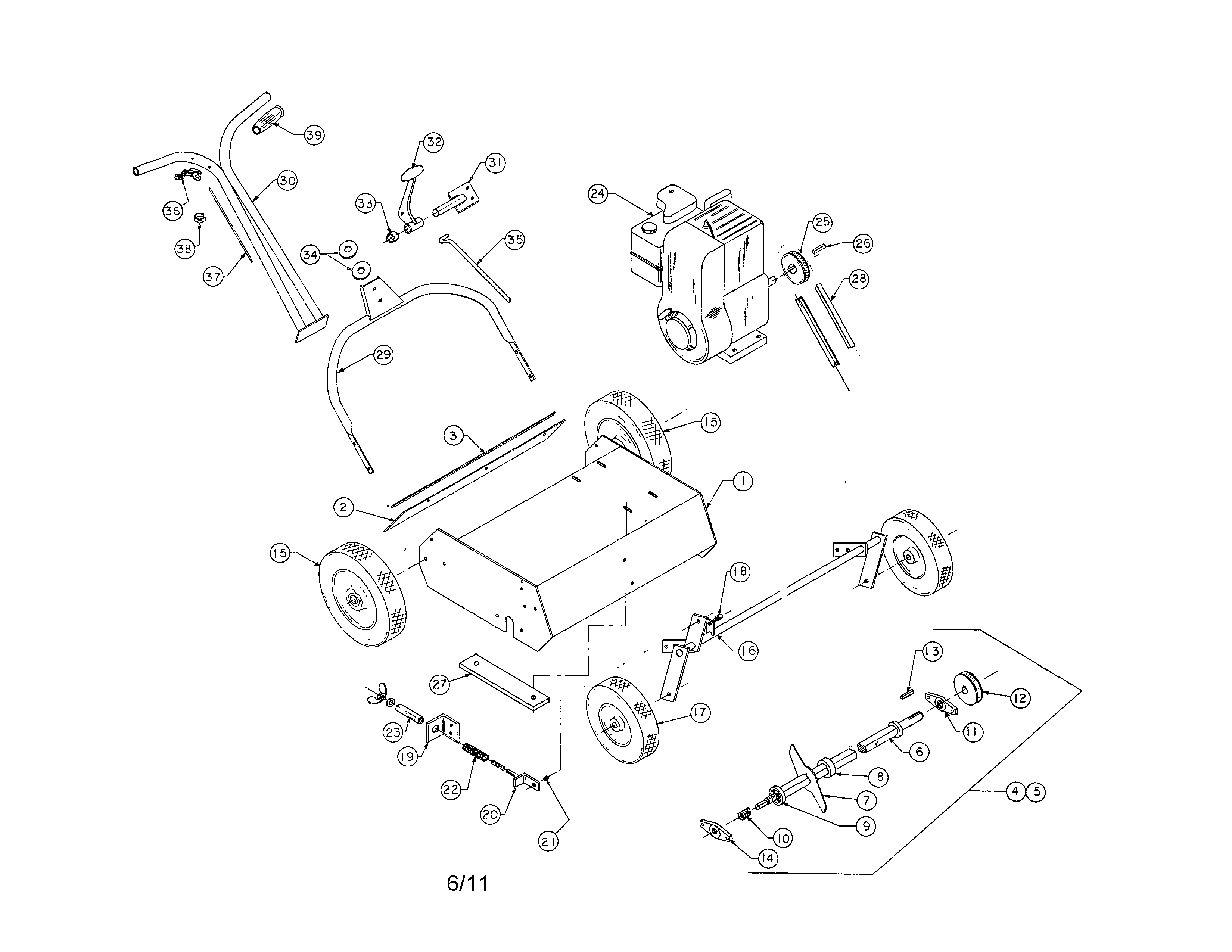

Dethatcher diagram

Bolt spacer

Part #436531

This item is not returnable
$5.46
In Stock
Washer 356303
#34

Dethatcher diagram

Washer

Part #356303

$27.96
In Stock
Spring - Depth Adj. 338342
#22

Dethatcher diagram

Spring - depth adj.

Part #338342

The manufacturer no longer makes this part, and there's no substitute part

Collar - Clutch Handle 721943
#33

Dethatcher diagram

Collar - clutch handle

Part #721943

The manufacturer no longer makes this part, and there's no substitute part

Bearing - Flange (r.h.) 307255
#14

Dethatcher diagram

Bearing - flange (r.h.)

Part #307255

The manufacturer no longer makes this part, and there's no substitute part

Reel Assembly (complete) 492982
#4

Dethatcher diagram

Reel assembly (complete)

Part #492982

The manufacturer no longer makes this part, and there's no substitute part

Wheel - Rear (2) 484501
#15

Dethatcher diagram

Wheel - rear (2)

Part #484501

The manufacturer no longer makes this part, and there's no substitute part

Handle Bow Tube Assembly-lower 682328
#29

Dethatcher diagram

Handle bow tube assembly-lower

Part #682328

The manufacturer no longer makes this part, and there's no substitute part

Stud - Adjusting 431091
#18

Dethatcher diagram

Stud - adjusting

Part #431091

The manufacturer no longer makes this part, and there's no substitute part

Adapter-water Nozzle N/P
Adapter-water nozzle

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part
