Model # FDH30J1 Official Frigidaire dehumidifier

Here are the diagrams and repair parts for Official Frigidaire FDH30J1 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

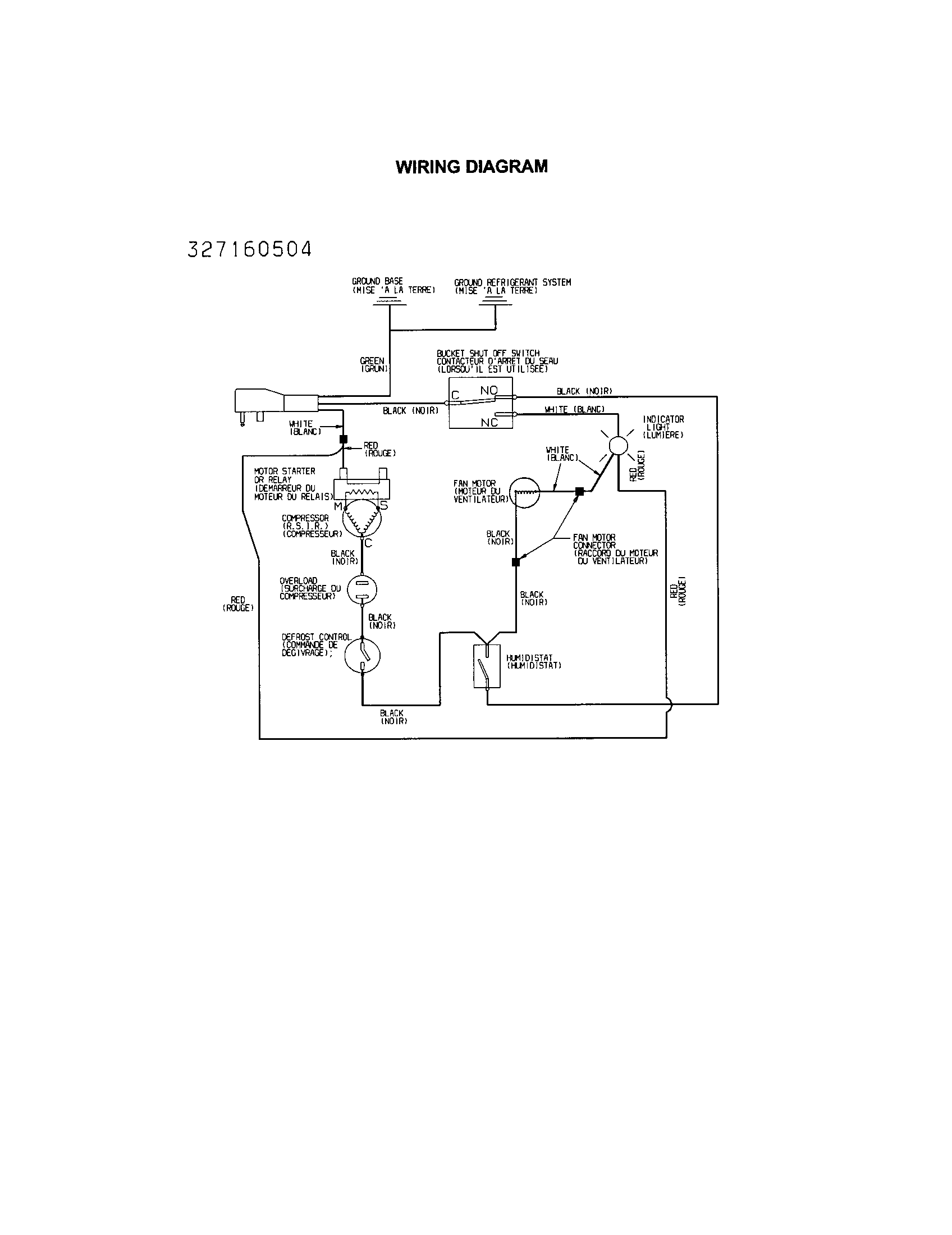

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Compressor 327603702
#34

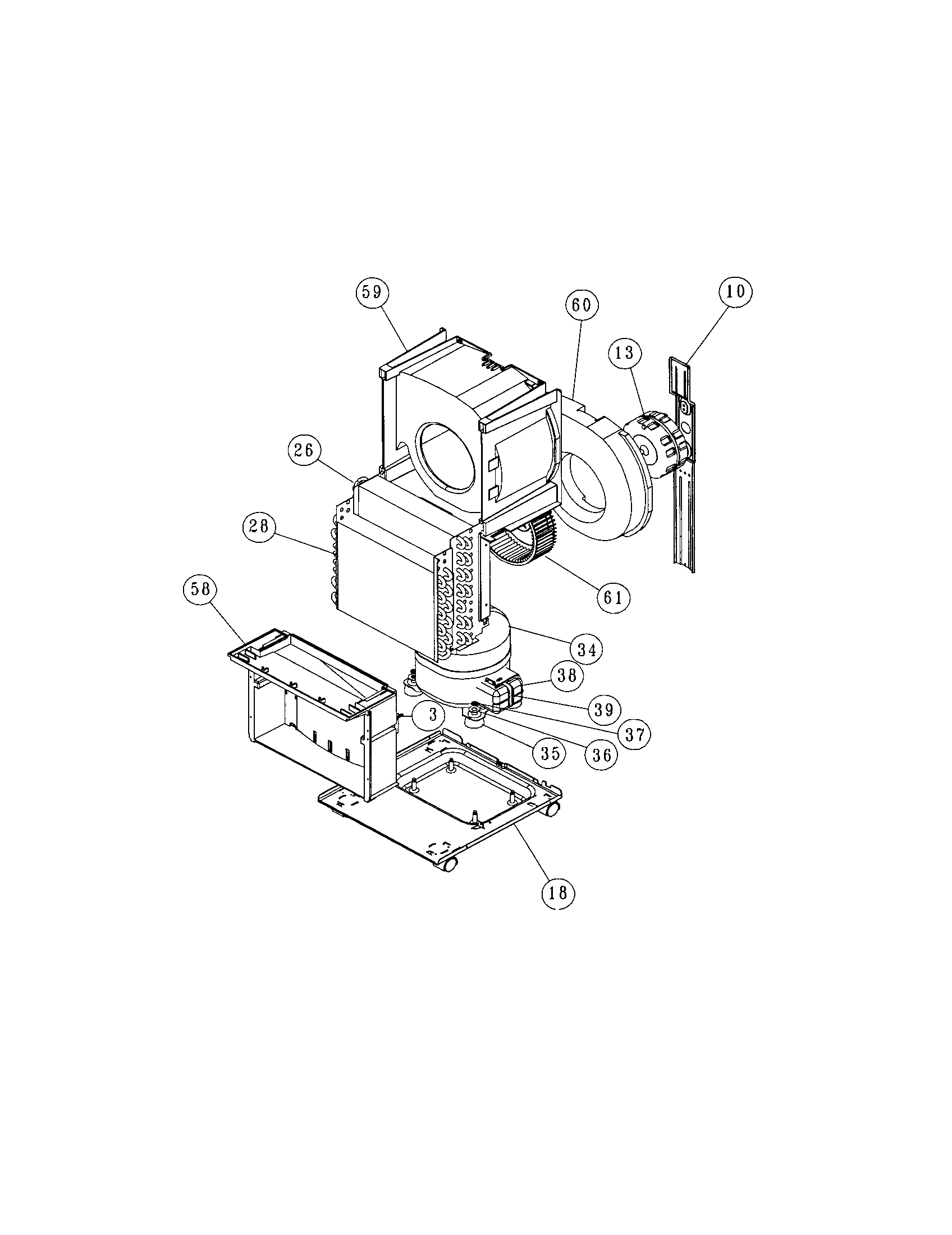

System parts diagram

Compressor

Part #327603702

$168.49
In Stock
Light Harness 327160712

#NI

All parts diagram

Light harness

Part #327160712

$40.37
In Stock
Kelvinator Room Air Conditioner Lock Nut 08007481

#NI

All parts diagram

Kelvinator room air conditioner lock nut

Part #08007481

This item is not returnable
$5.74
In Stock
Overlay 327360502
#5

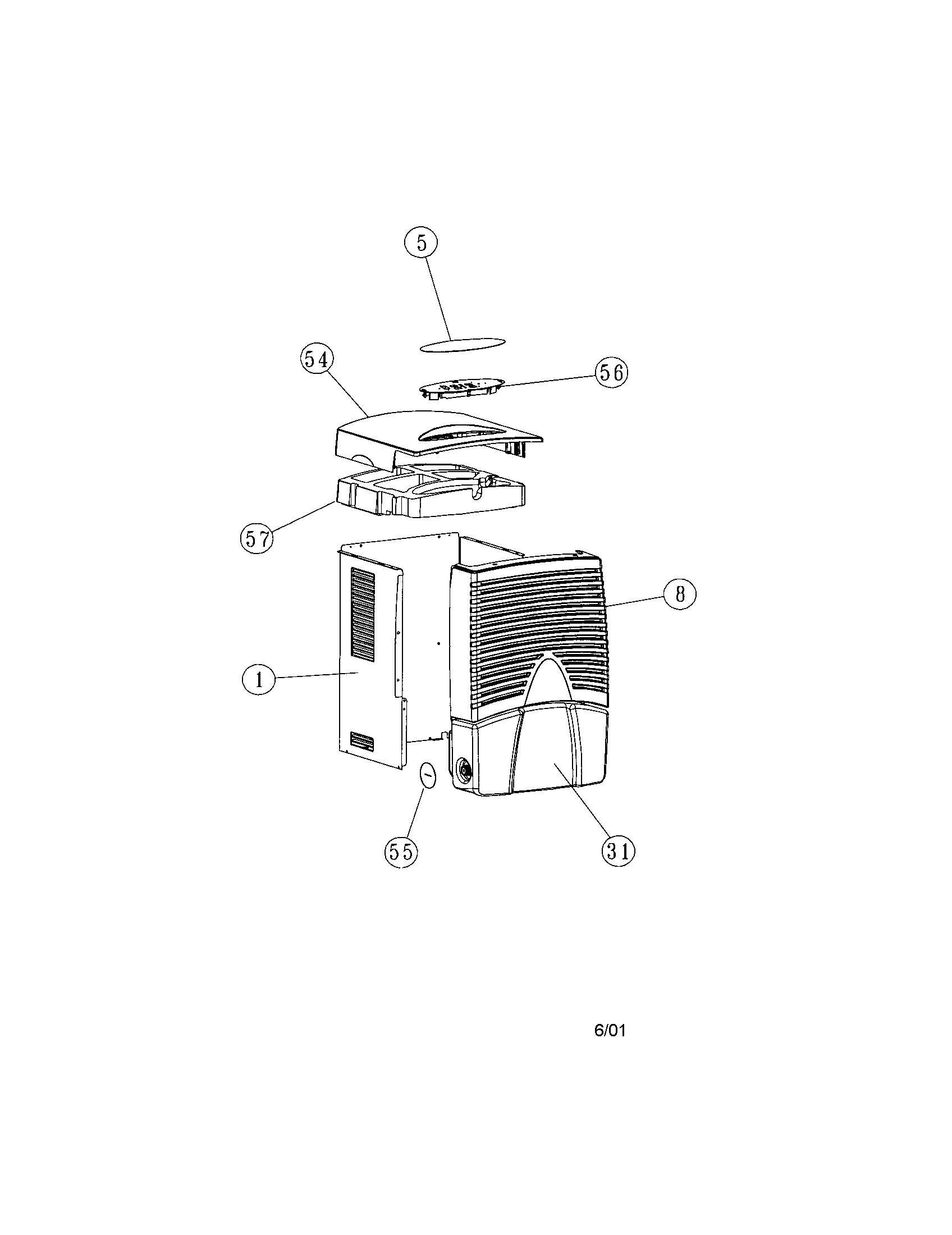

Wrapper diagram

Overlay

Part #327360502

The manufacturer no longer makes this part, and there's no substitute part

Bracket 327362101
#10

System parts diagram

Bracket

Part #327362101

The manufacturer no longer makes this part, and there's no substitute part

Base Stud 327660307
#18

System parts diagram

Base stud

Part #327660307

The manufacturer no longer makes this part, and there's no substitute part

Knob 309307013

#NI

All parts diagram

Knob

Part #309307013

The manufacturer no longer makes this part, and there's no substitute part

Nut 08006948
#37

System parts diagram

Nut

Part #08006948

The manufacturer no longer makes this part, and there's no substitute part

Tubing 5304410096

#NI

All parts diagram

Tubing

Part #5304410096

The manufacturer no longer makes this part, and there's no substitute part

Terminal Cover 327101603

#NI

All parts diagram

Terminal cover

Part #327101603

The manufacturer no longer makes this part, and there's no substitute part
