Model # DWL3025DBWW Official Haier dishwasher

Here are the diagrams and repair parts for Official Haier DWL3025DBWW dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Dishwasher Door Cable DW-1302-11
#7

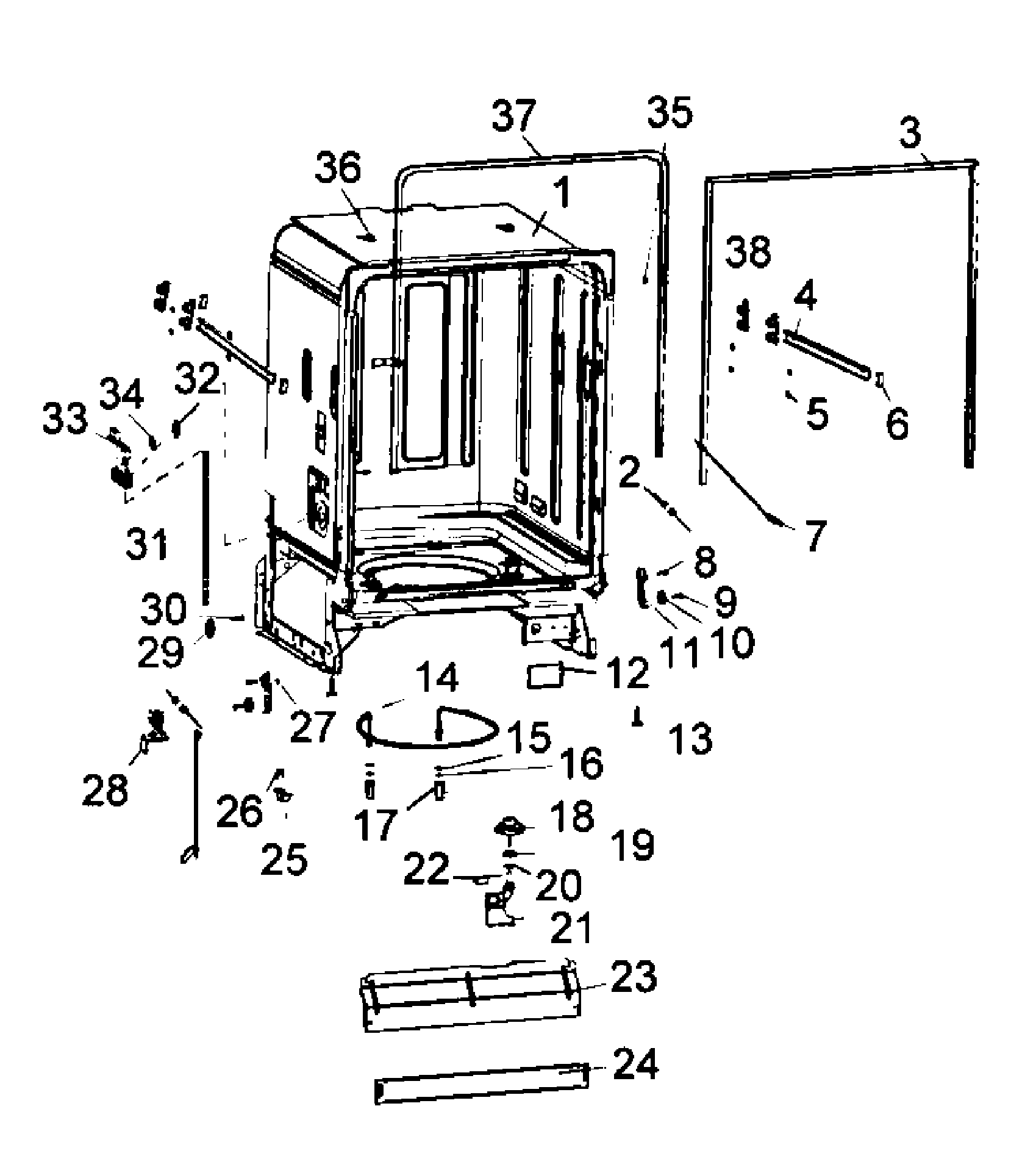

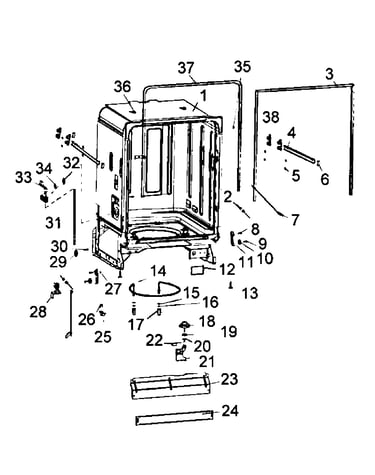

Cabinet assy diagram

Dishwasher door cable

Part #DW-1302-11

$8.99
In Stock
Dishwasher Door Seal DW-3100-18
#37

Cabinet assy diagram

Dishwasher door seal

Part #DW-3100-18

$25.71
In Stock
Arm DW-0100-02
#70

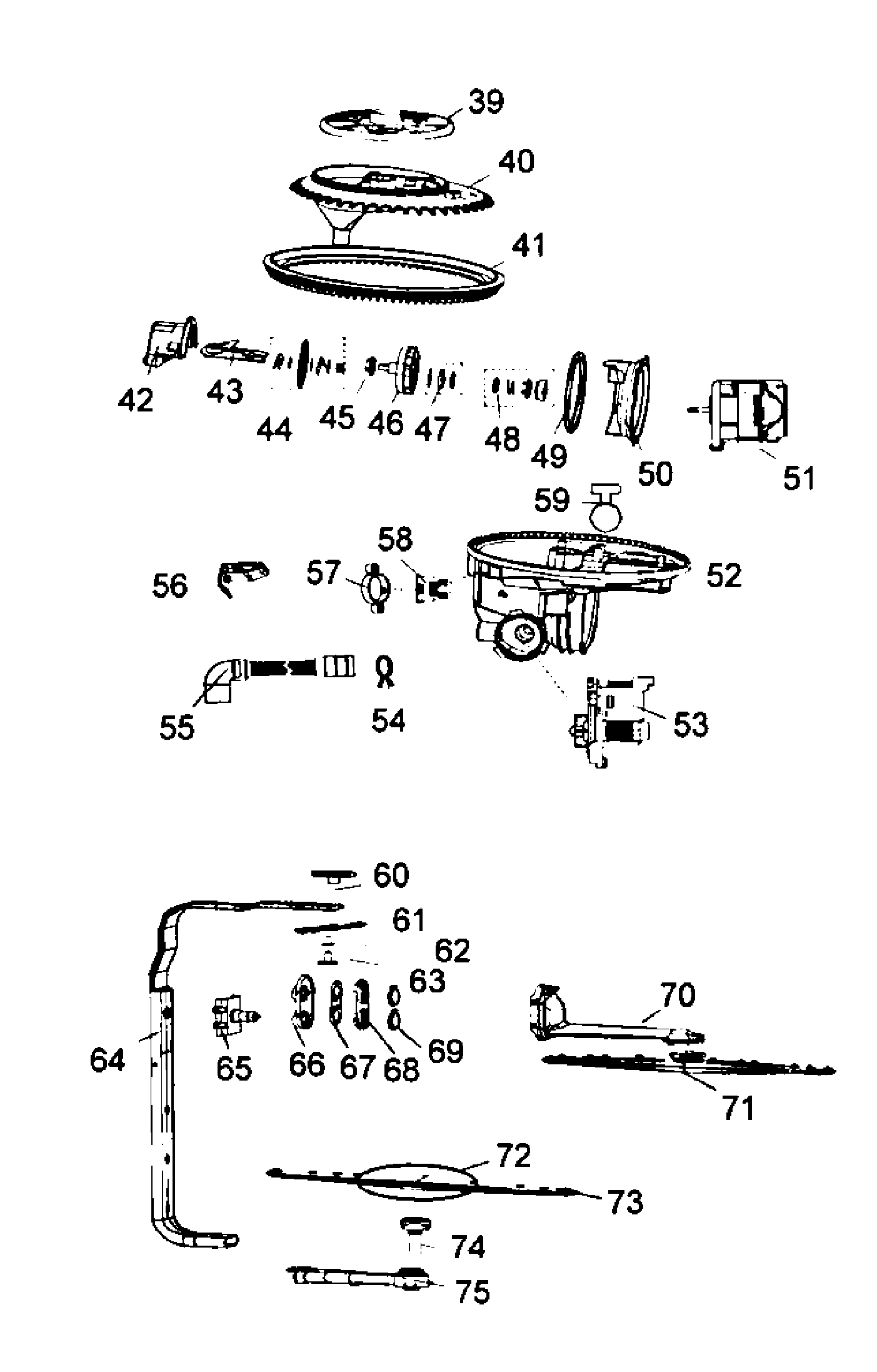

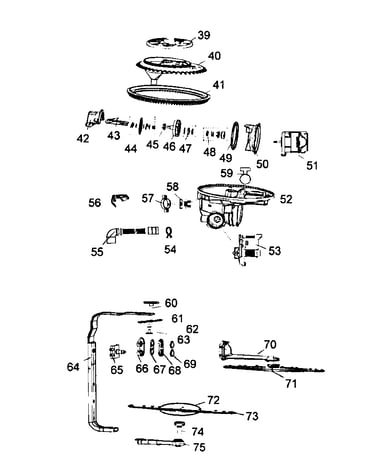

Pump assy diagram

Arm

Part #DW-0100-02

$8.99
In Stock
Bracket DW-0850-15
#11

Cabinet assy diagram

Bracket

Part #DW-0850-15

This item is not returnable
$2.99
In Stock
Clip DW-1650-05
#56

Pump assy diagram

Clip

Part #DW-1650-05

This item is not returnable
$4.99
In Stock
Impeller DW-3768-02
Impeller

Part #DW-3768-02

$24.15
In Stock
Dishwasher Door Wire Harness DW-8071-01
#107

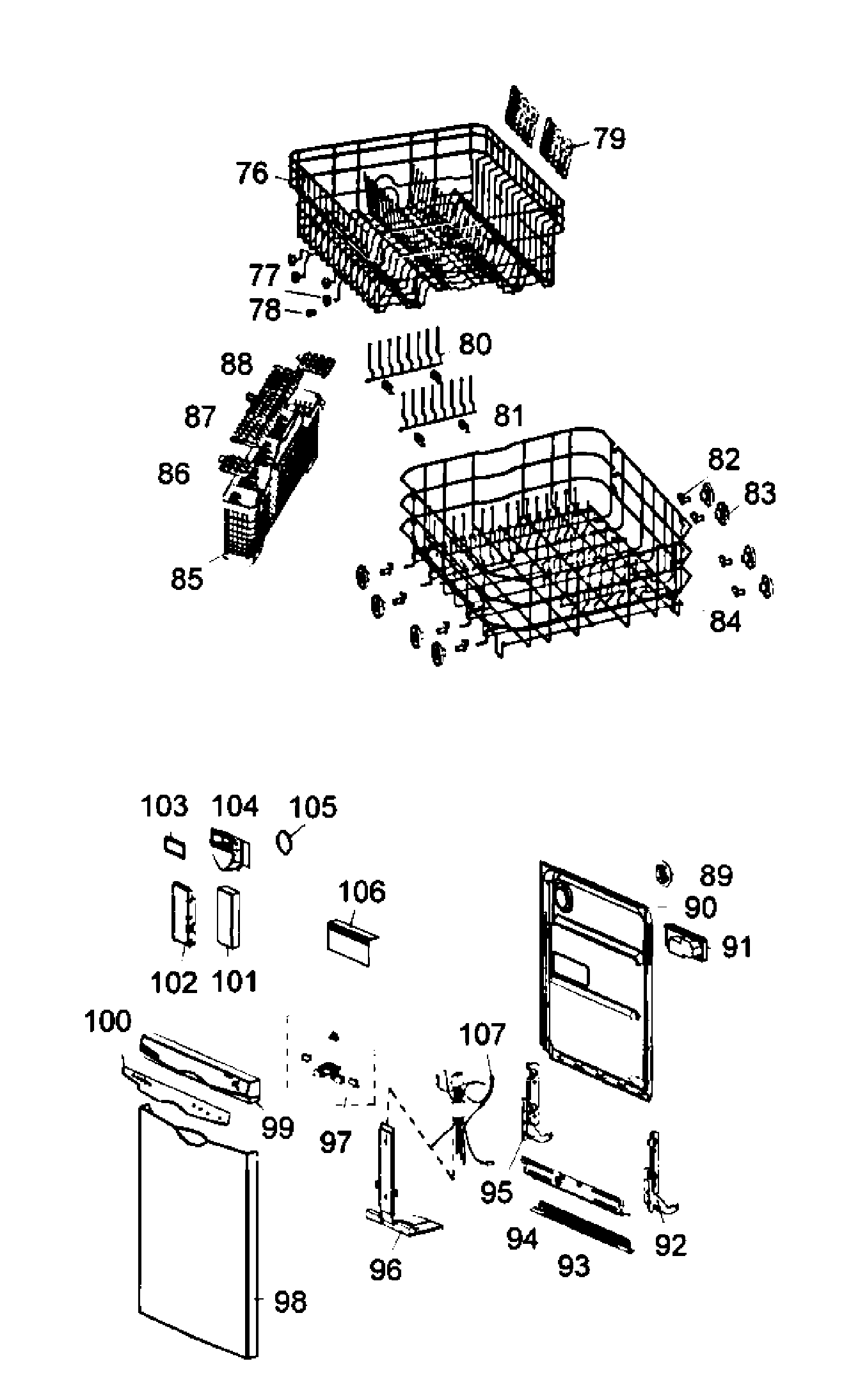

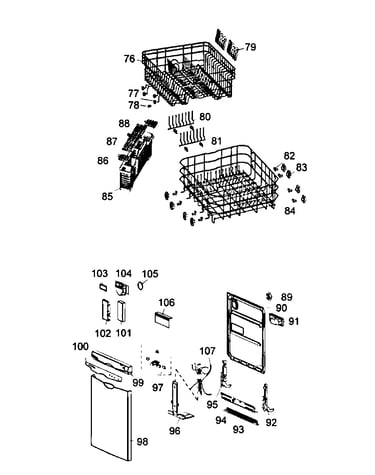

Rack-door diagram

Dishwasher door wire harness

Part #DW-8071-01

$69.99
In Stock
Screw DW-6150-25
#9

Cabinet assy diagram

Screw

Part #DW-6150-25

This item is not returnable
$2.99
In Stock
Nut DW-4720-11
#45

Pump assy diagram

Nut

Part #DW-4720-11

This item is not returnable
$2.49
In Stock
Ring DW-5800-03
#5

Cabinet assy diagram

Ring

Part #DW-5800-03

This item is not returnable
$2.99
In Stock
