Model # GNT15M82/CF15A Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag GNT15M82-CF15A refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

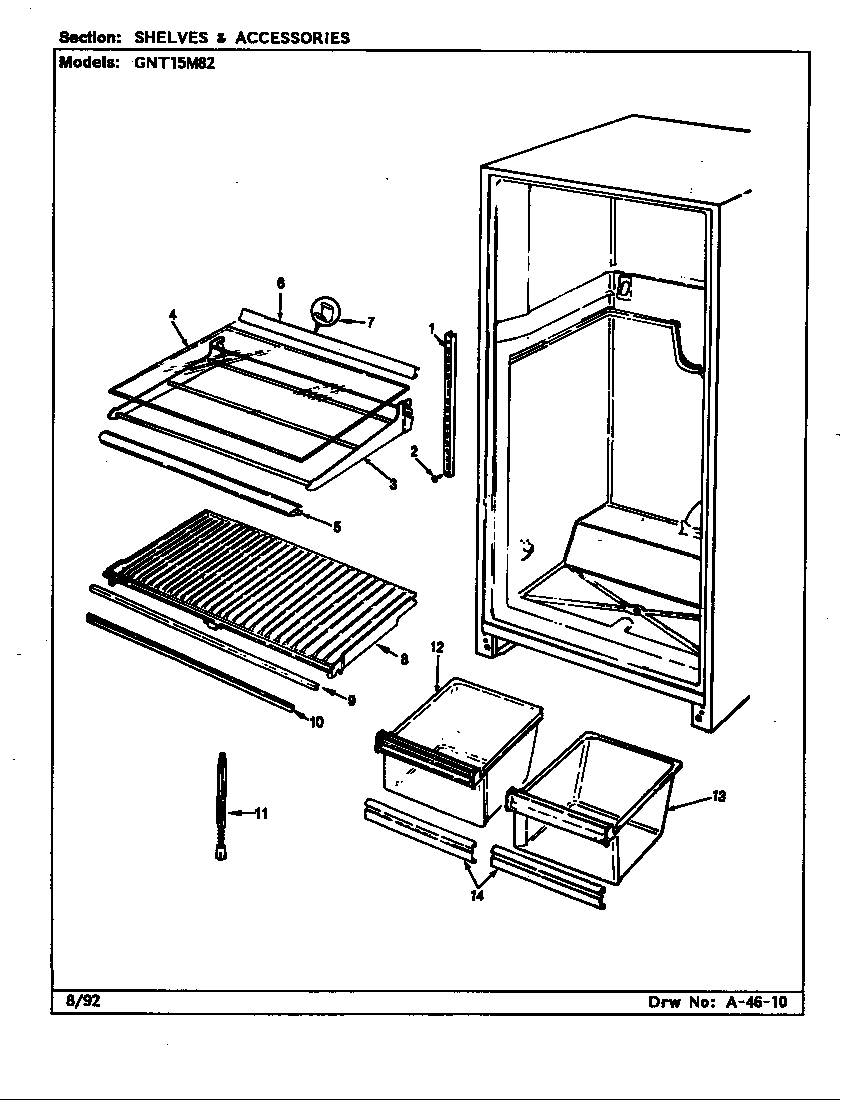

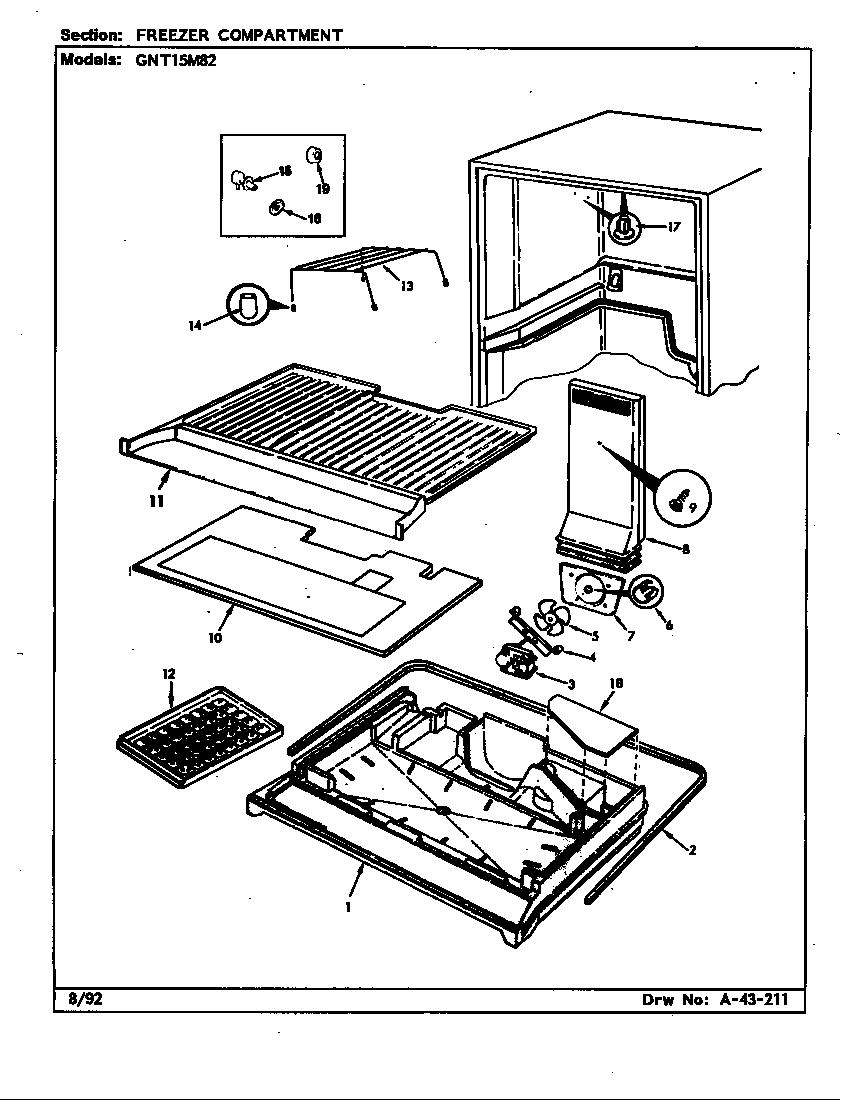

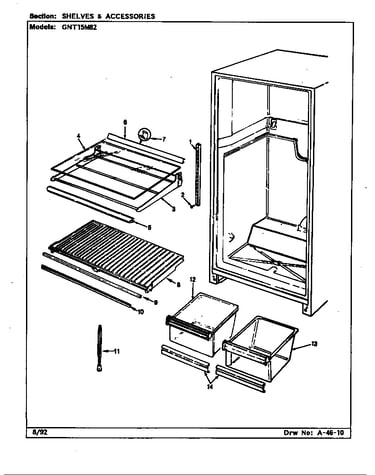

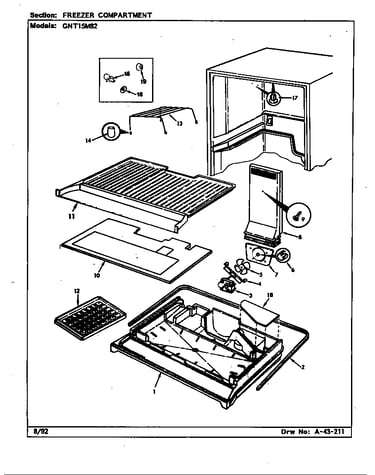

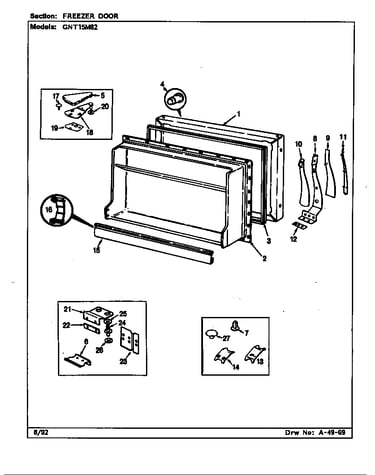

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 220 parts  |
Drier 13900
#13

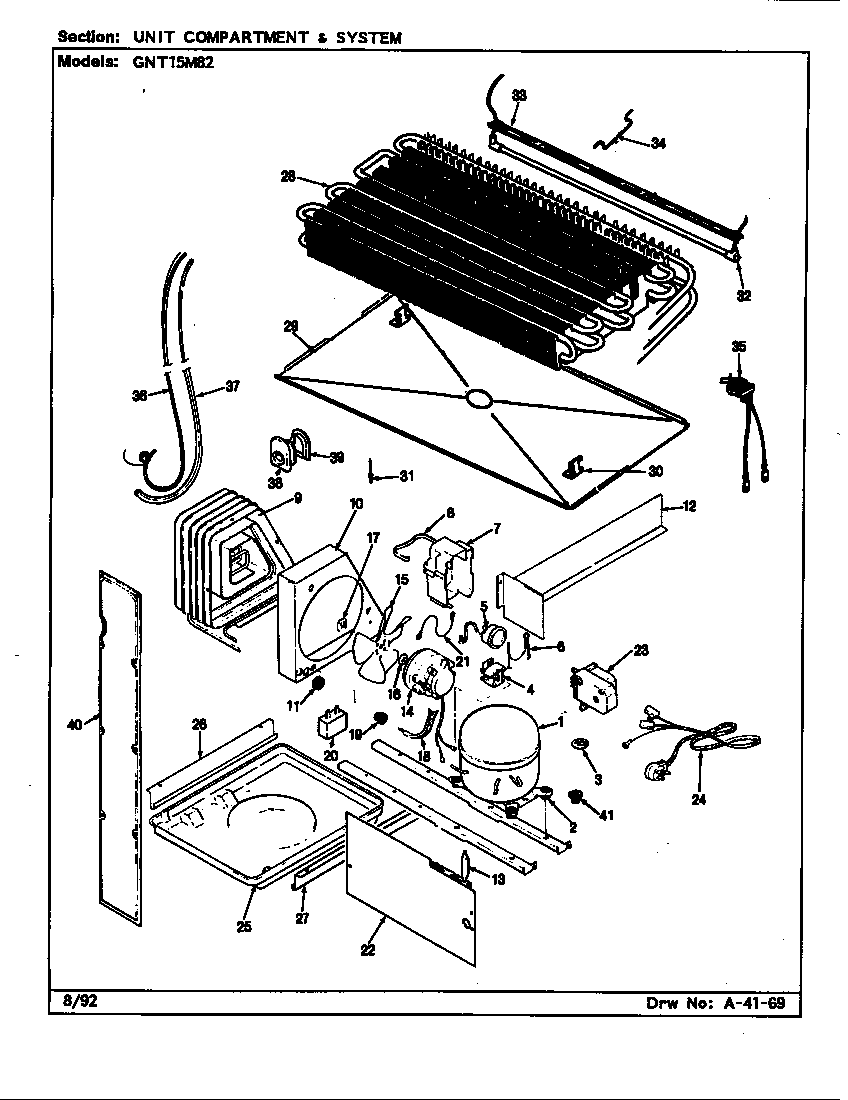

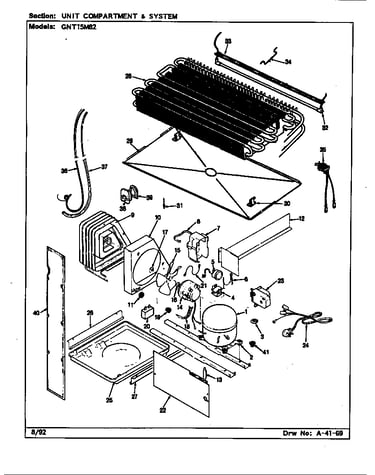

Unit compartment & system diagram

Drier

Part #13900

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Light Switch 66987-1
#23

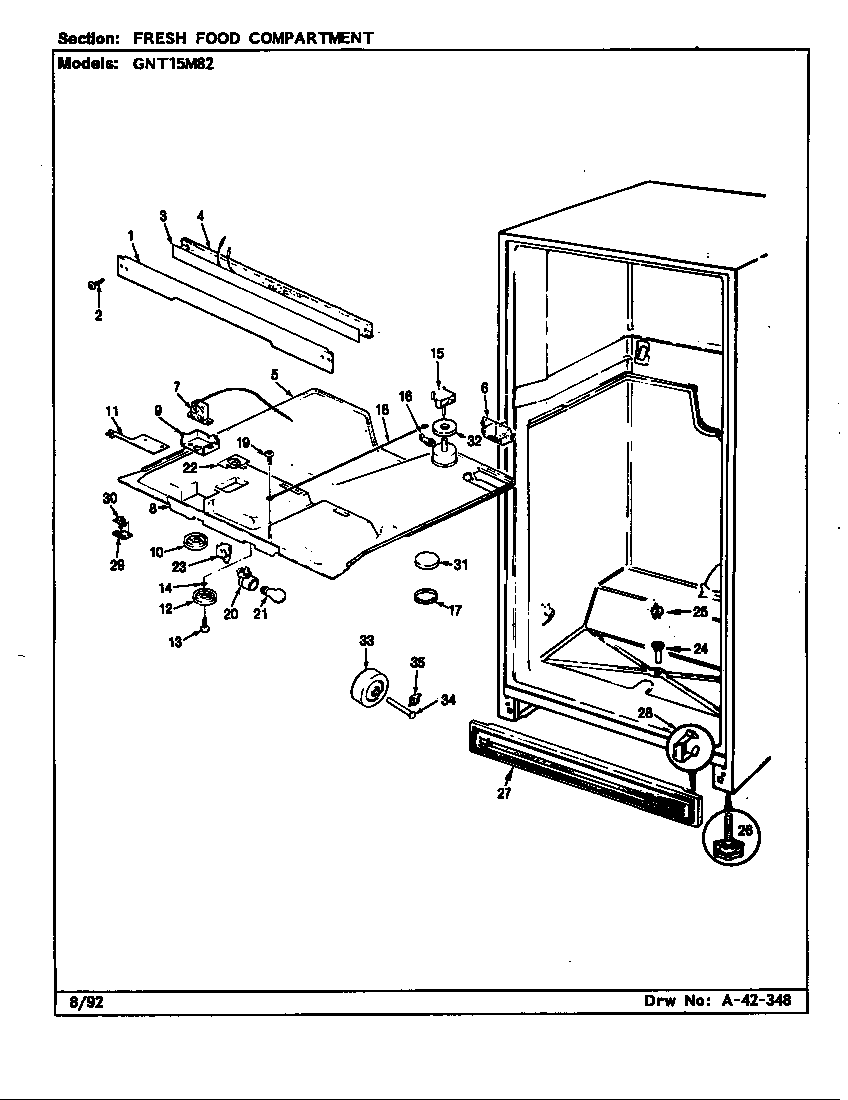

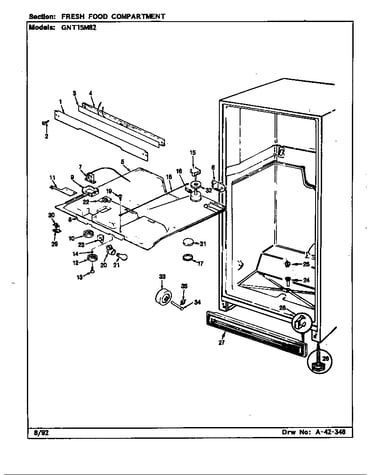

Fresh food compartment diagram

Light switch

Part #66987-1

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 66987-1. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Screw 400017-1
Screw

Part #400017-1

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 400017-1. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Screw 95106-1
#8

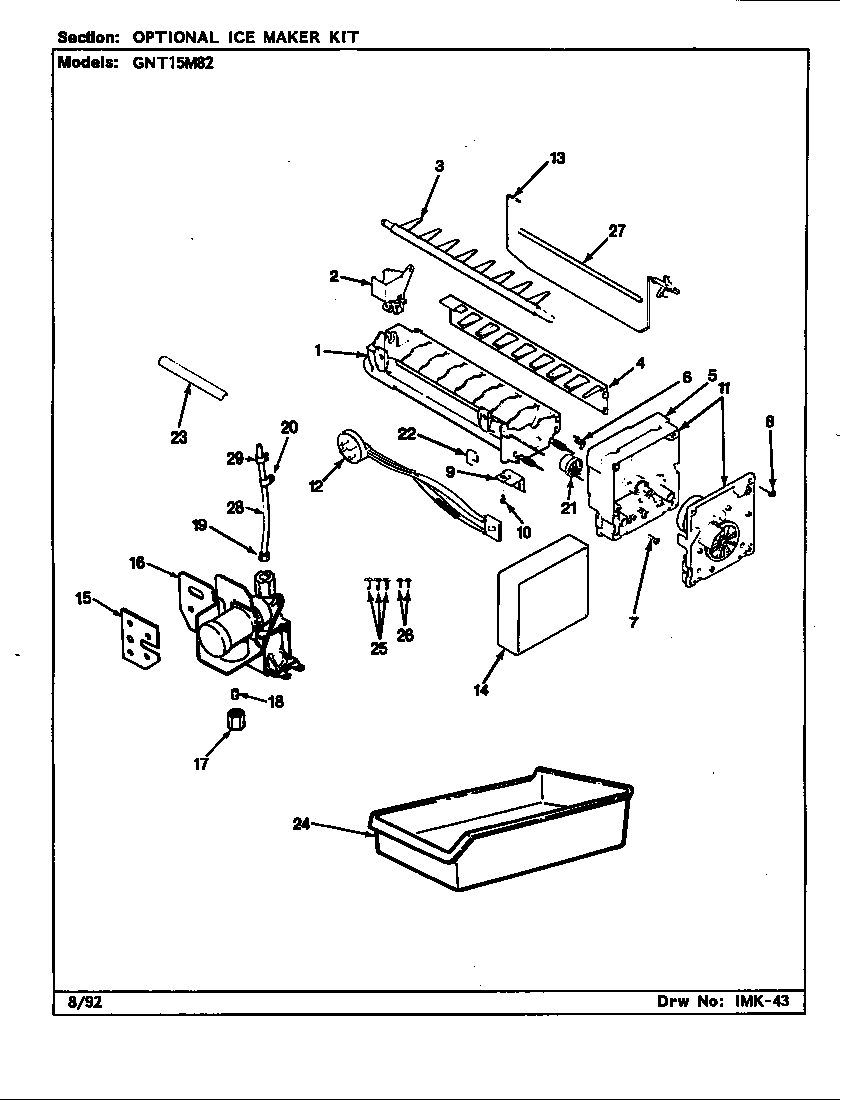

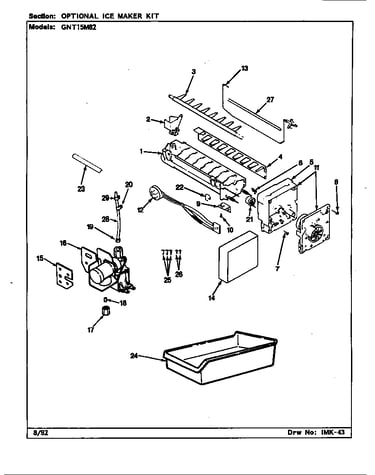

Optional ice maker kit diagram

Refrigerator screw

Part #95106-1

Replaced by #WP681249

?
Manufacturer substitution
This part replaces 95106-1. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Support Module 95103-1
#5

Optional ice maker kit diagram

Support module

Part #95103-1

Replaced by #WP2195914

?
Manufacturer substitution
This part replaces 95103-1. Substitute parts can look different from the original.
$40.73 |
13% OFF Phone Price : $46.73
In Stock
Refrigerator Water Tube Fitting 69583-1
#19

Optional ice maker kit diagram

Refrigerator water tube fitting

Part #69583-1

Replaced by #WP627018

?
Manufacturer substitution
This part replaces 69583-1. Substitute parts can look different from the original.
This item is not returnable
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Tubing Valve 67579-7
#28

Optional ice maker kit diagram

Tubing valve

Part #67579-7

Replaced by #WPB5705307

?
Manufacturer substitution
This part replaces 67579-7. Substitute parts can look different from the original.
This item is not returnable
$10.02 |
17% OFF Phone Price : $12.02
In Stock
Refrigerator Screw 95108-1
#10

Optional ice maker kit diagram

Refrigerator screw

Part #95108-1

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 95108-1. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Refrigerator Ice Ejector 95101-1
#3

Optional ice maker kit diagram

Refrigerator ice ejector

Part #95101-1

Replaced by #WP627843

?
Manufacturer substitution
This part replaces 95101-1. Substitute parts can look different from the original.
$32.89 |
15% OFF Phone Price : $38.89
In Stock
Egg Tray 60066-1
#18

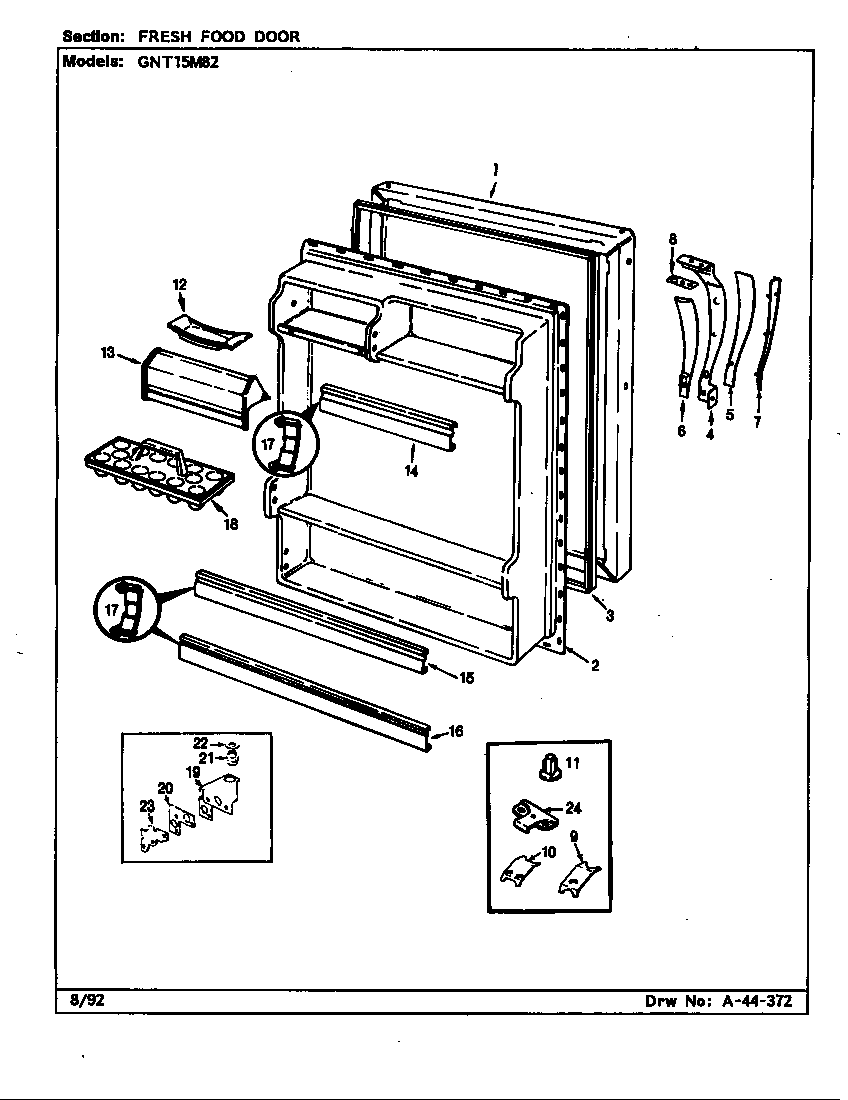

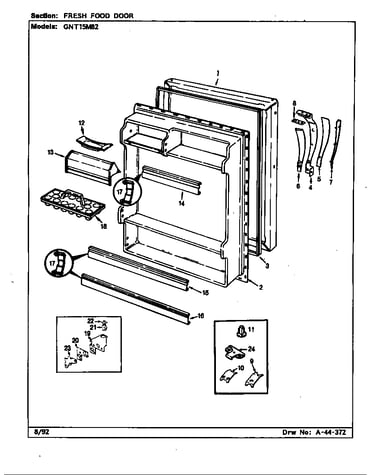

Fresh food door diagram

Egg tray

Part #60066-1

Replaced by #WP67004411

?
Manufacturer substitution
This part replaces 60066-1. Substitute parts can look different from the original.
This item is not returnable
$5.95 |
14% OFF Phone Price : $6.95
In Stock
