Model # FAX-290MC Official Brother fax machine

Here are the diagrams and repair parts for Official Brother FAX-290MC fax machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Label 2, Tfe/templates/s/t/communications/help Files, For Nb-60/nb-80c Nsp N/P

#NI

All parts diagram

Label 2, tfe/templates/s/t/communications/help files, for nb-60/nb-80c nsp

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Battery Assembly UG3188001
#37

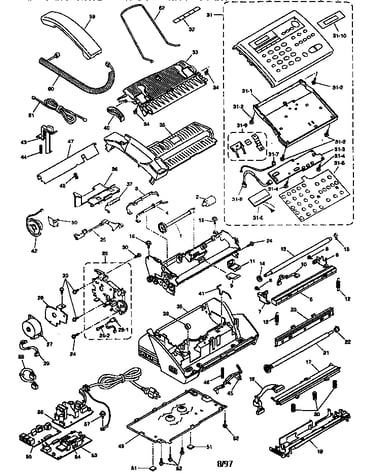

Unit diagram

Battery assembly

Part #UG3188001

The manufacturer no longer makes this part, and there's no substitute part

Panel Pcb UF8786001
#31-3

Unit diagram

Panel pcb

Part #UF8786001

The manufacturer no longer makes this part, and there's no substitute part

Roller UF6620000
#14

Unit diagram

Roller

Part #UF6620000

The manufacturer no longer makes this part, and there's no substitute part

Harness UG3616001
#31-8

Unit diagram

Harness

Part #UG3616001

The manufacturer no longer makes this part, and there's no substitute part

Plate UF6681001
#31-9

Unit diagram

Plate

Part #UF6681001

The manufacturer no longer makes this part, and there's no substitute part

Actuator F UF6625001
#3

Unit diagram

Actuator f

Part #UF6625001

The manufacturer no longer makes this part, and there's no substitute part

Guide UF8767001

#NI

All parts diagram

Guide

Part #UF8767001

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly UF6981047
#55

Unit diagram

Pcb assembly

Part #UF6981047

The manufacturer no longer makes this part, and there's no substitute part

Link Lock UF6753000
#40

Unit diagram

Link lock

Part #UF6753000

The manufacturer no longer makes this part, and there's no substitute part
