Model # HAV1200ARW Official Hoover washer

Here are the diagrams and repair parts for Official Hoover HAV1200ARW washer, as well as links to manuals and error code tables, if available.

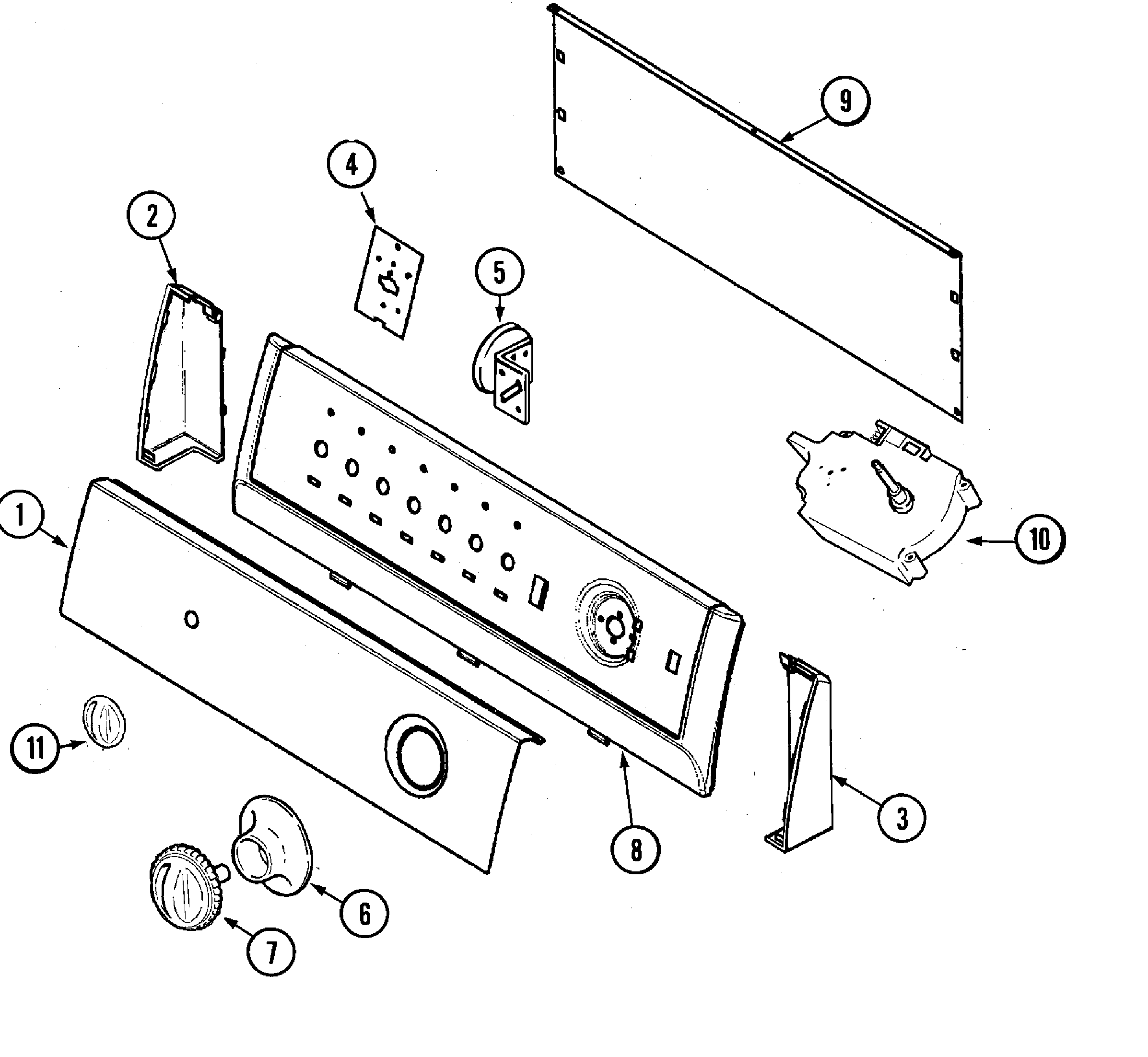

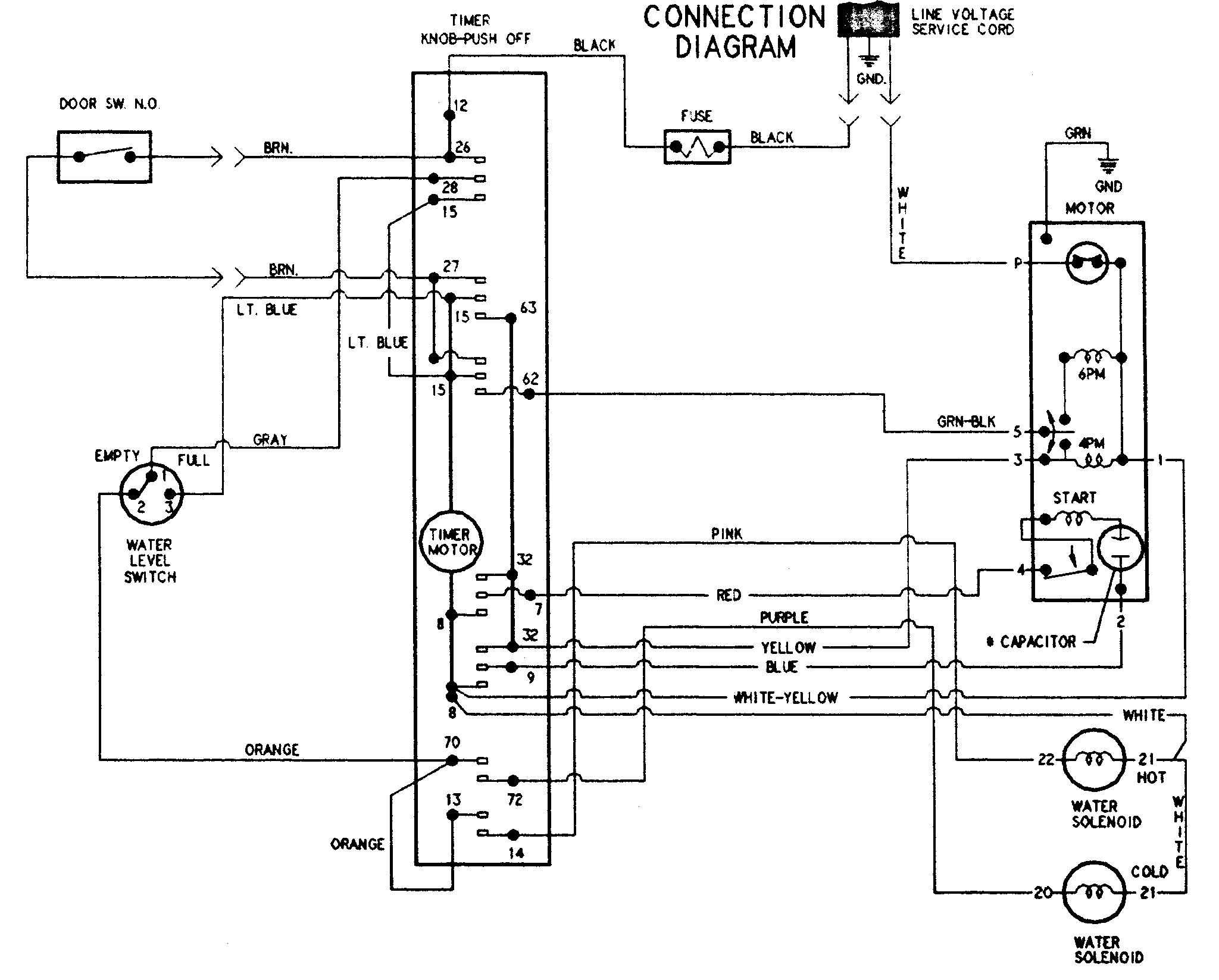

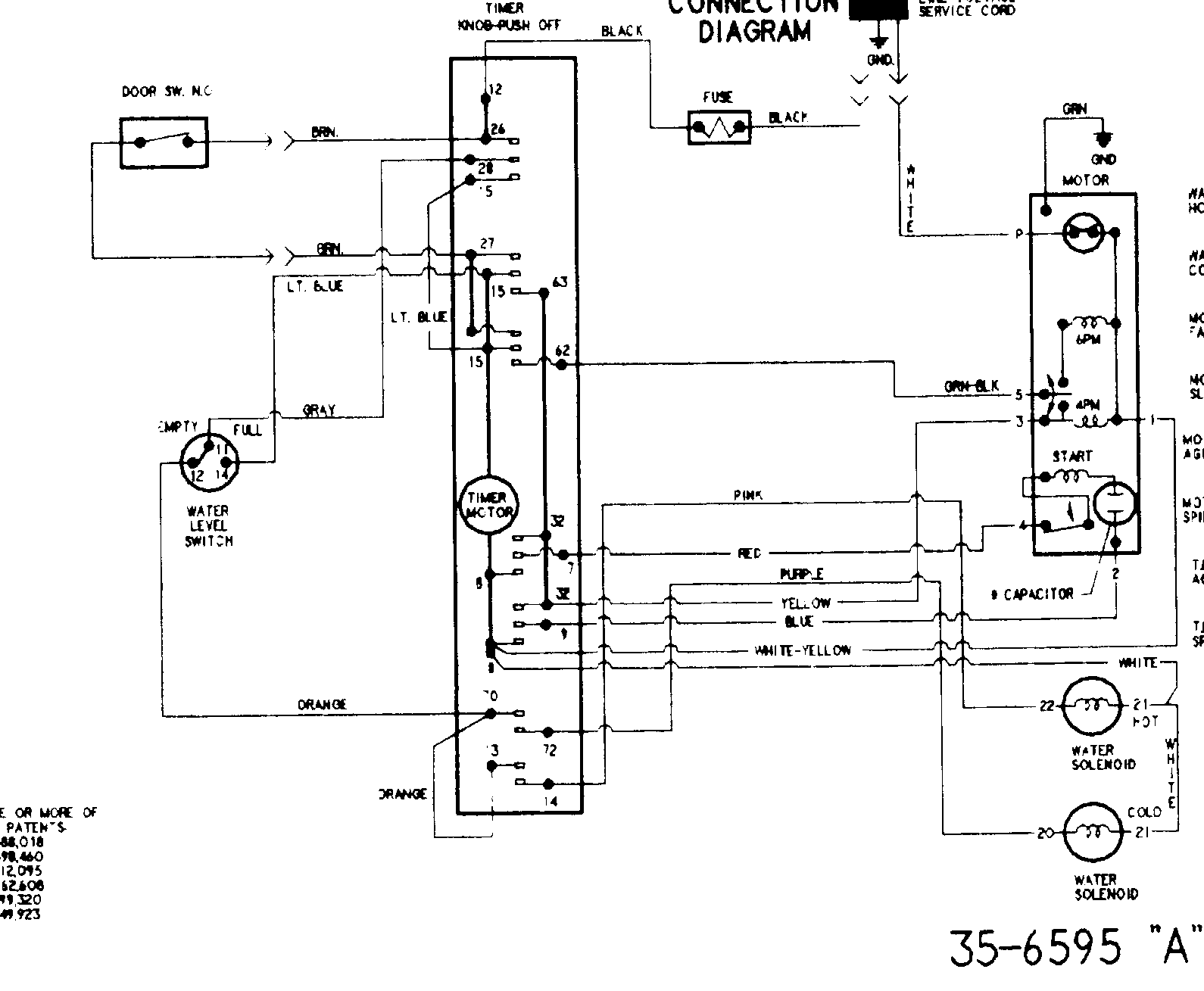

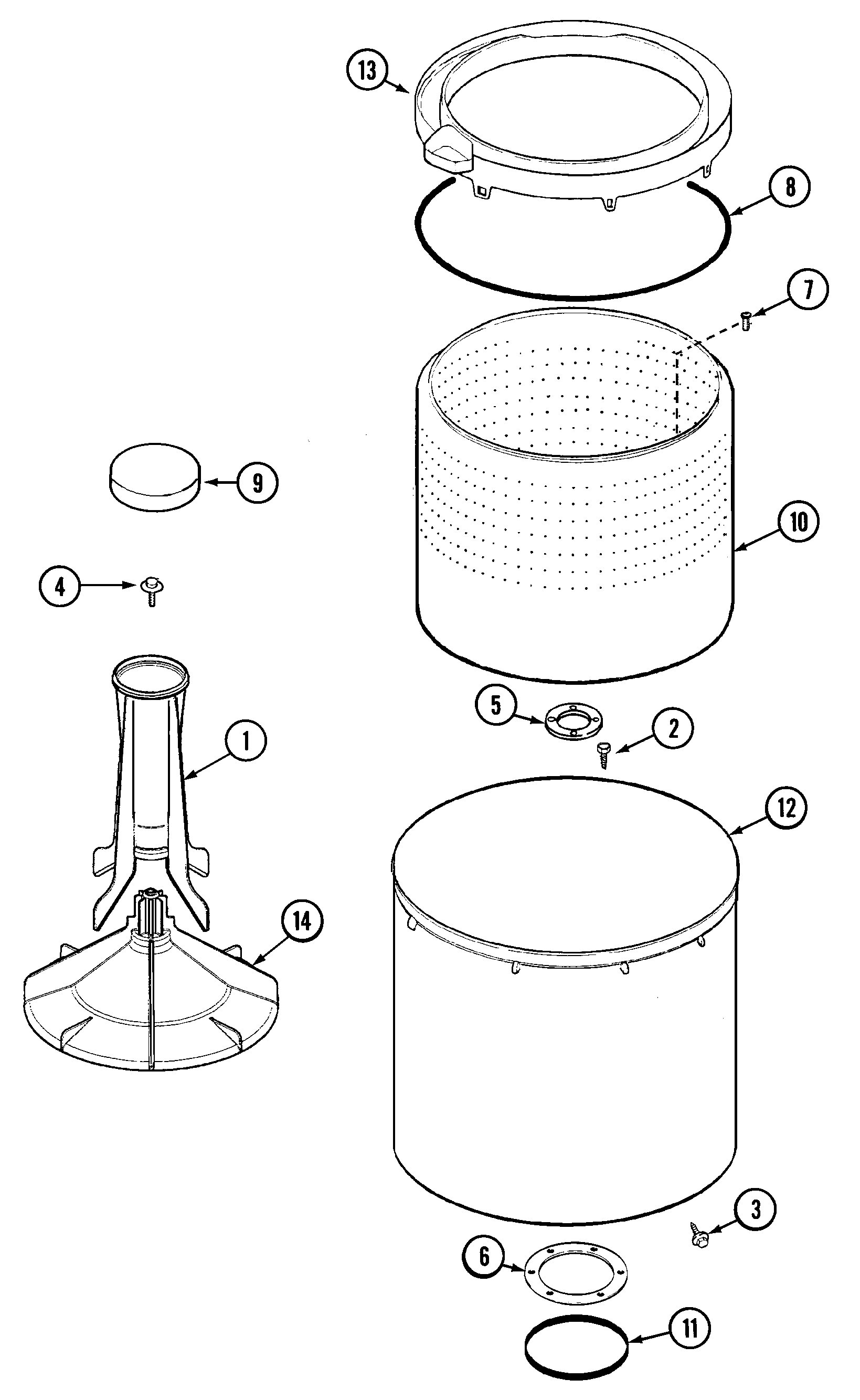

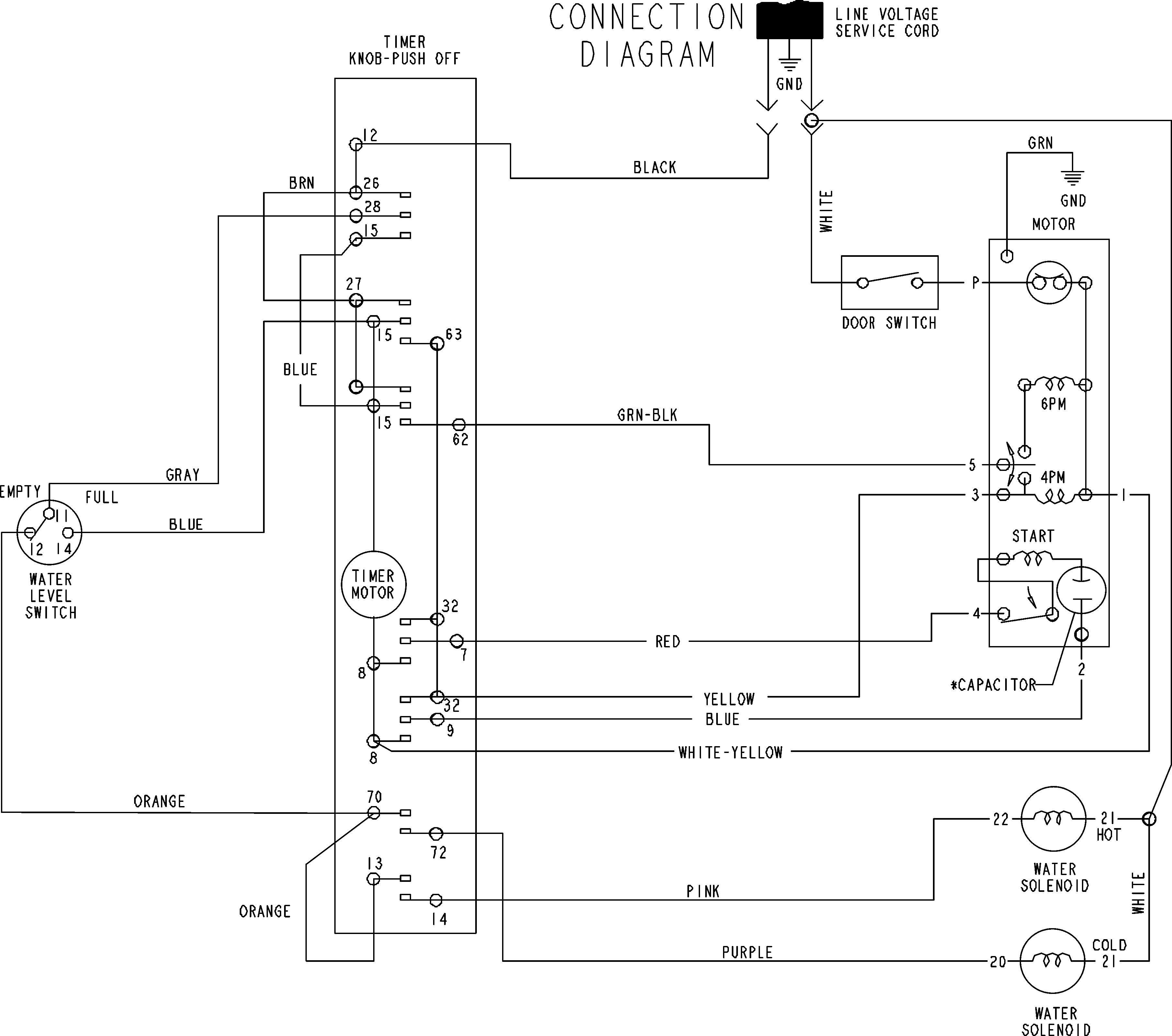

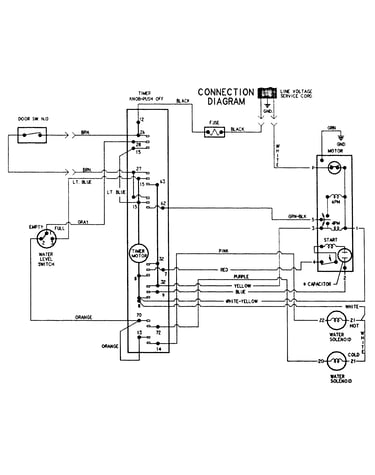

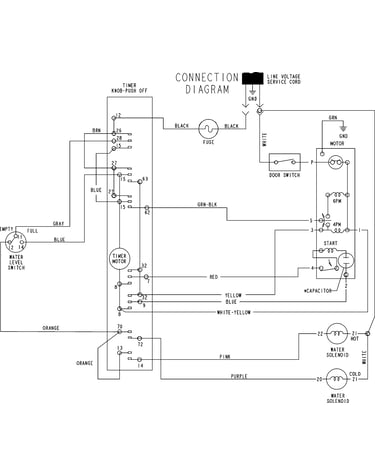

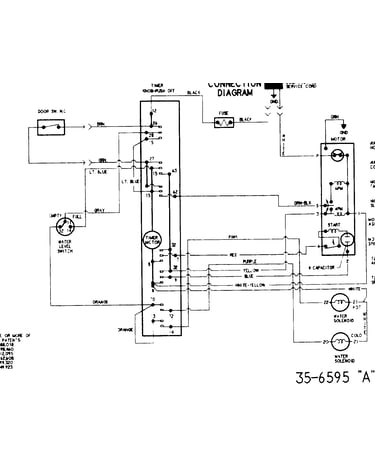

By Schematic
By Part

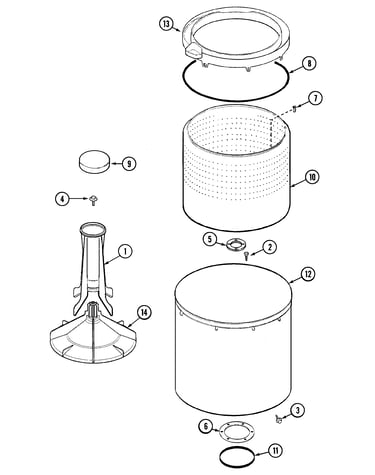

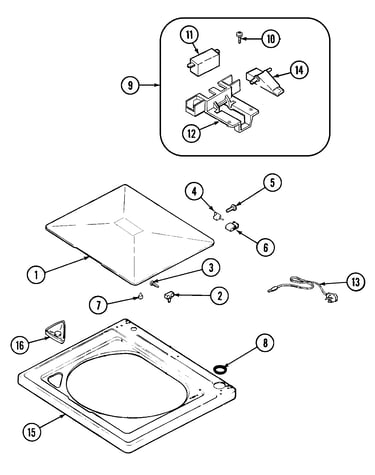

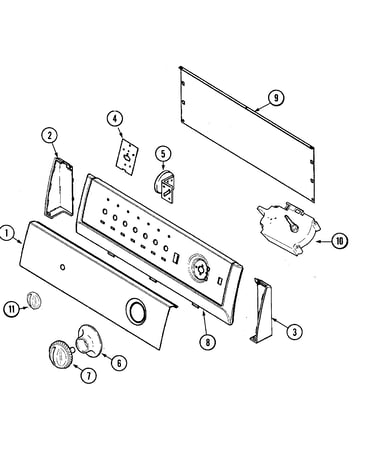

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forHAV1200ARW Washer

  • Clamp, Pressure Switch Hose 25-7796
    Clamp, pressure switch hose

    Part #25-7796

    Replaced by #WP596669

    ?
    Manufacturer substitution
    This part replaces 25-7796. Substitute parts can look different from the original.
    3 (2)
    BEST SELLER
    This item is not returnable
    $4.31 |
    19% OFF Phone Price : $5.31
    In Stock
  • Hose Clamp 25-7867
    Hose clamp

    Part #25-7867

    Replaced by #WP596669

    ?
    Manufacturer substitution
    This part replaces 25-7867. Substitute parts can look different from the original.
    3 (2)
    BEST SELLER
    This item is not returnable
    $4.31 |
    19% OFF Phone Price : $5.31
    In Stock
  • Hose Clamp 21001875
    #8

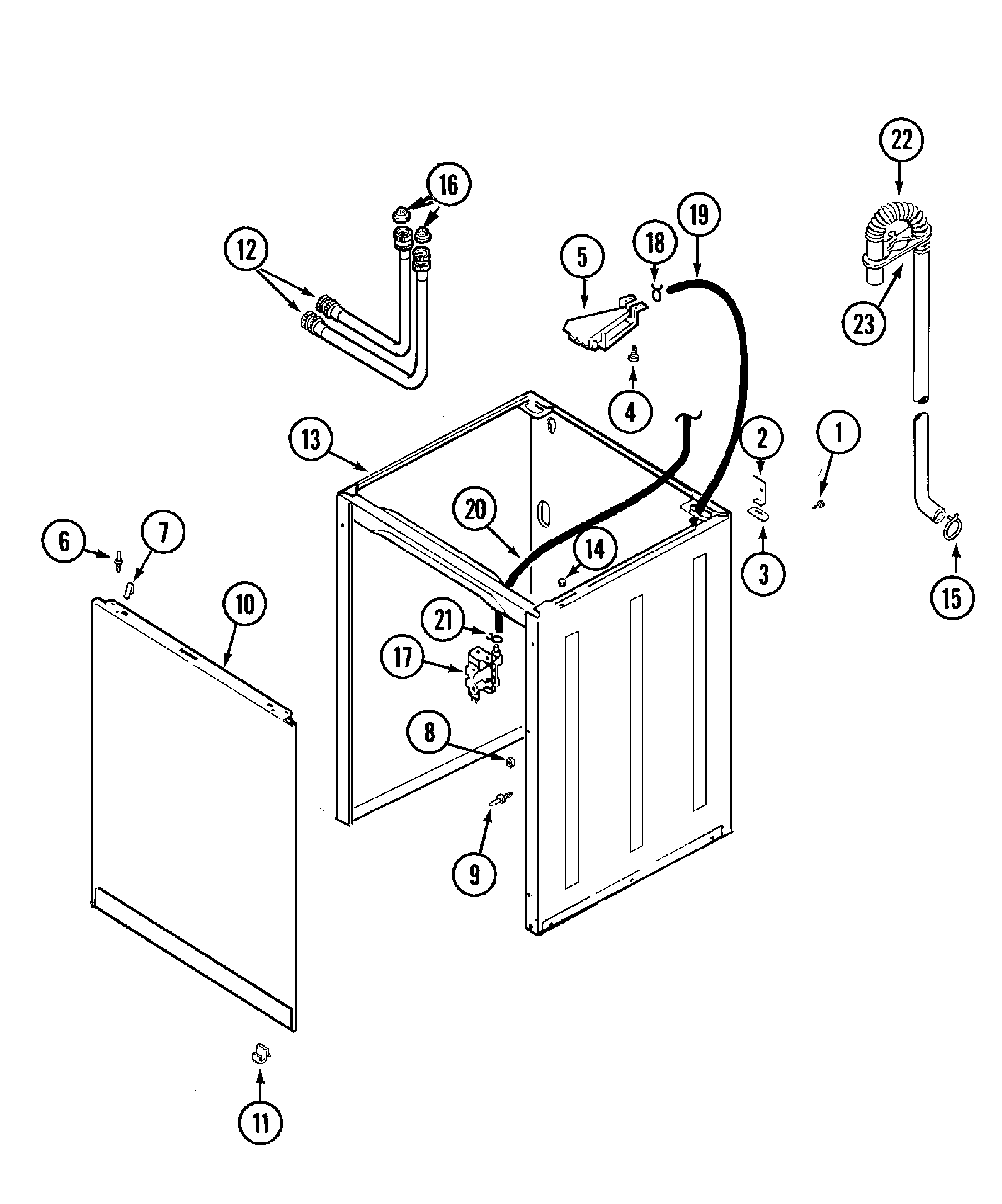

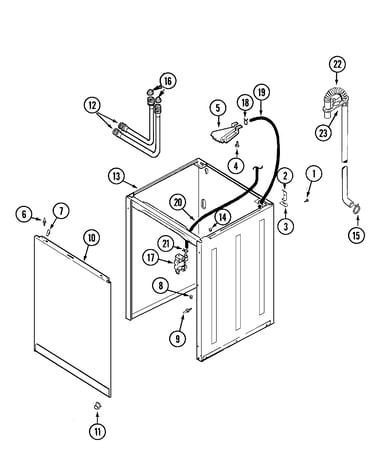

    Cabinet (series 16) diagram

    Hose clamp

    Part #21001875

    Replaced by #WP285655

    ?
    Manufacturer substitution
    This part replaces 21001875. Substitute parts can look different from the original.
    3 (2)
    BEST SELLER
    This item is not returnable
    $6.36 |
    14% OFF Phone Price : $7.36
    In Stock
  • Clamp, Singl 21002254
    Clamp, singl

    Part #21002254

    Replaced by #WP285655

    ?
    Manufacturer substitution
    This part replaces 21002254. Substitute parts can look different from the original.
    3 (2)
    BEST SELLER
    This item is not returnable
    $6.36 |
    14% OFF Phone Price : $7.36
    In Stock
  • Discharge Clamp 25-7080
    #15

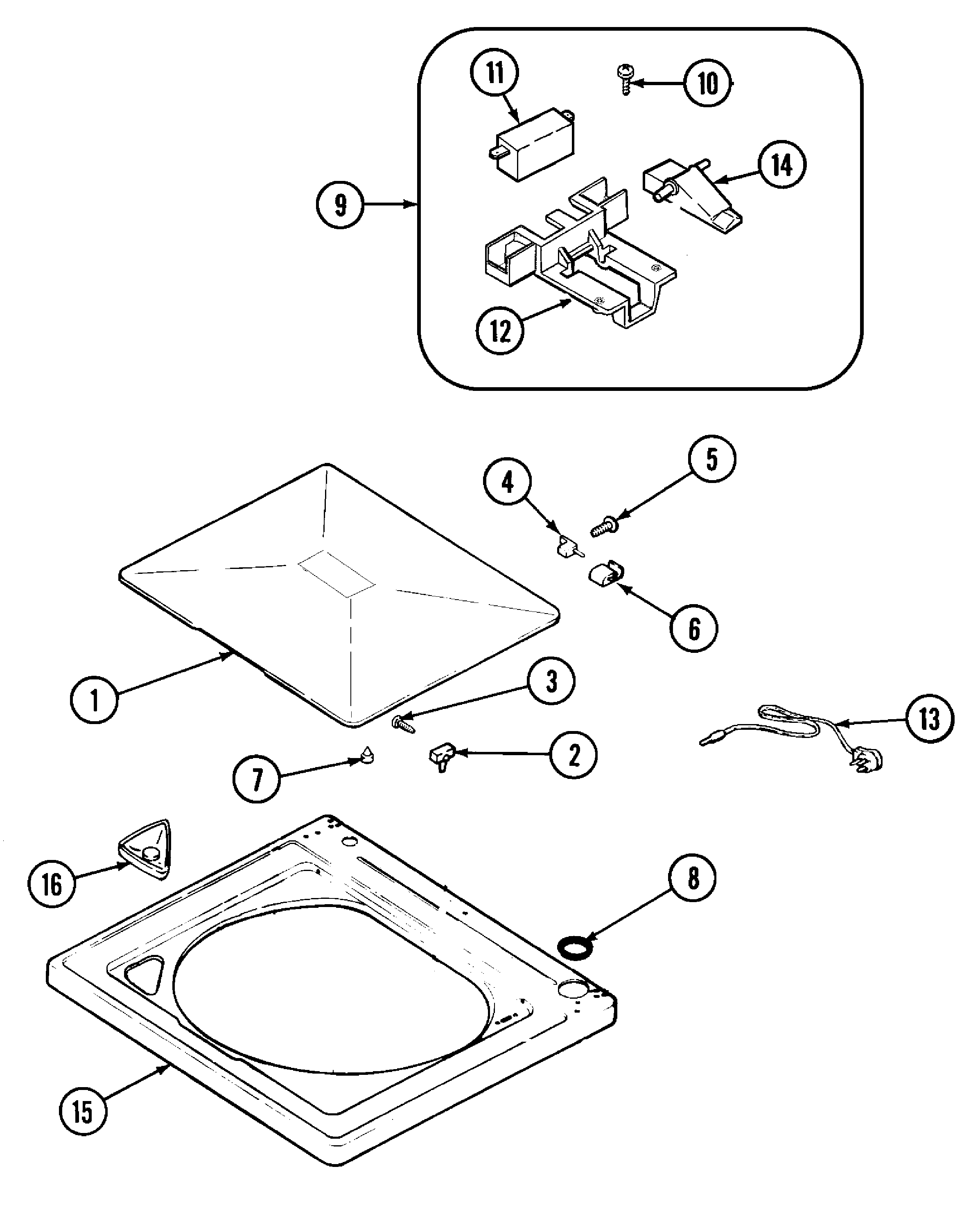

    Cabinet diagram

    Discharge clamp

    Part #25-7080

    Replaced by #WP285655

    ?
    Manufacturer substitution
    This part replaces 25-7080. Substitute parts can look different from the original.
    3 (2)
    BEST SELLER
    This item is not returnable
    $6.36 |
    14% OFF Phone Price : $7.36
    In Stock
  • Hose Clamp 25-6068
    Hose clamp

    Part #25-6068

    Replaced by #WP285655

    ?
    Manufacturer substitution
    This part replaces 25-6068. Substitute parts can look different from the original.
    3 (2)
    BEST SELLER
    This item is not returnable
    $6.36 |
    14% OFF Phone Price : $7.36
    In Stock
  • Pump 21002219
    #4A

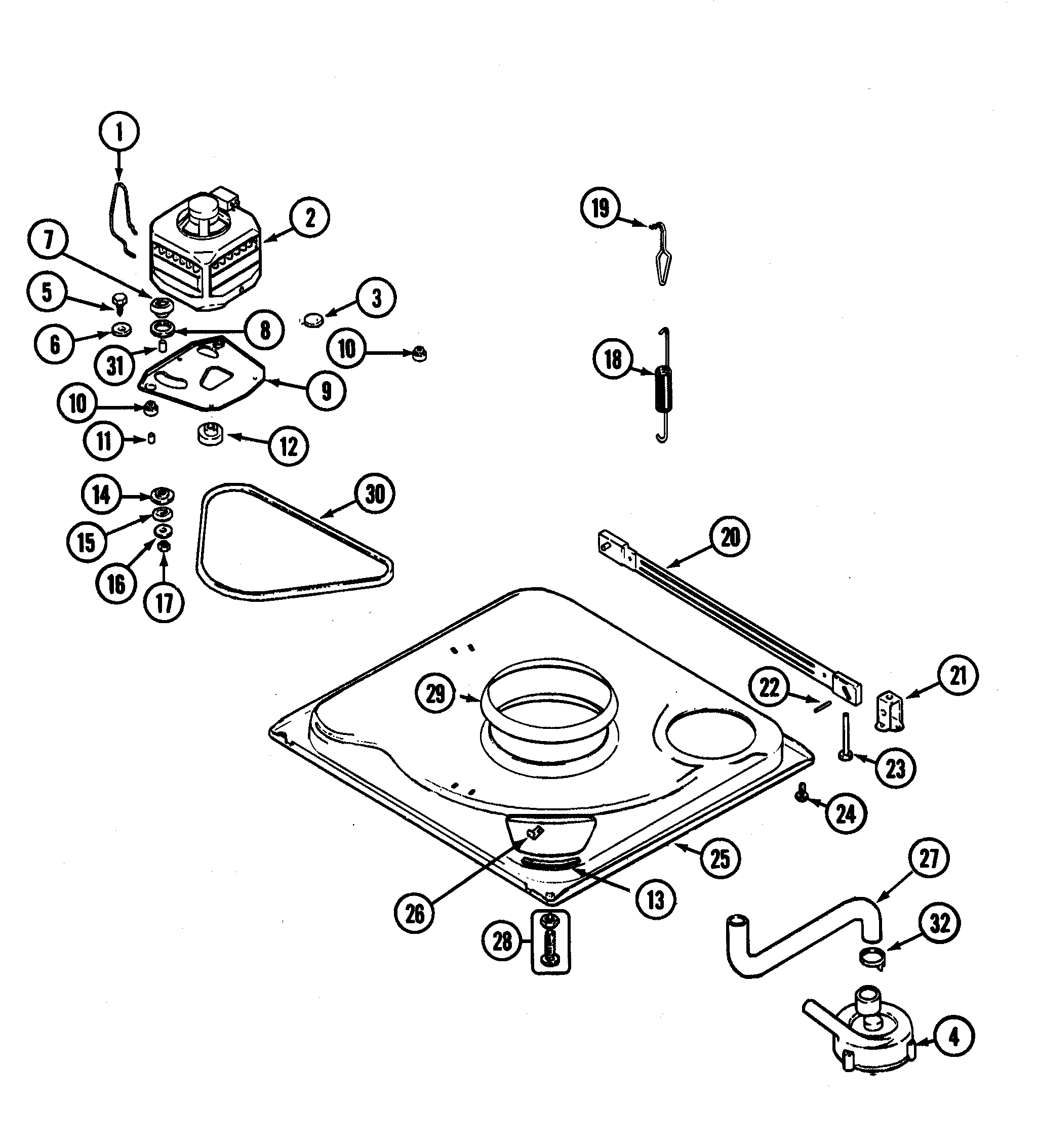

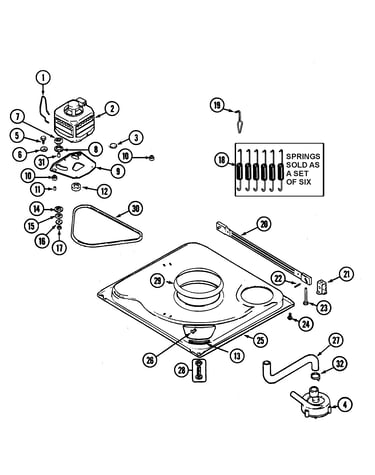

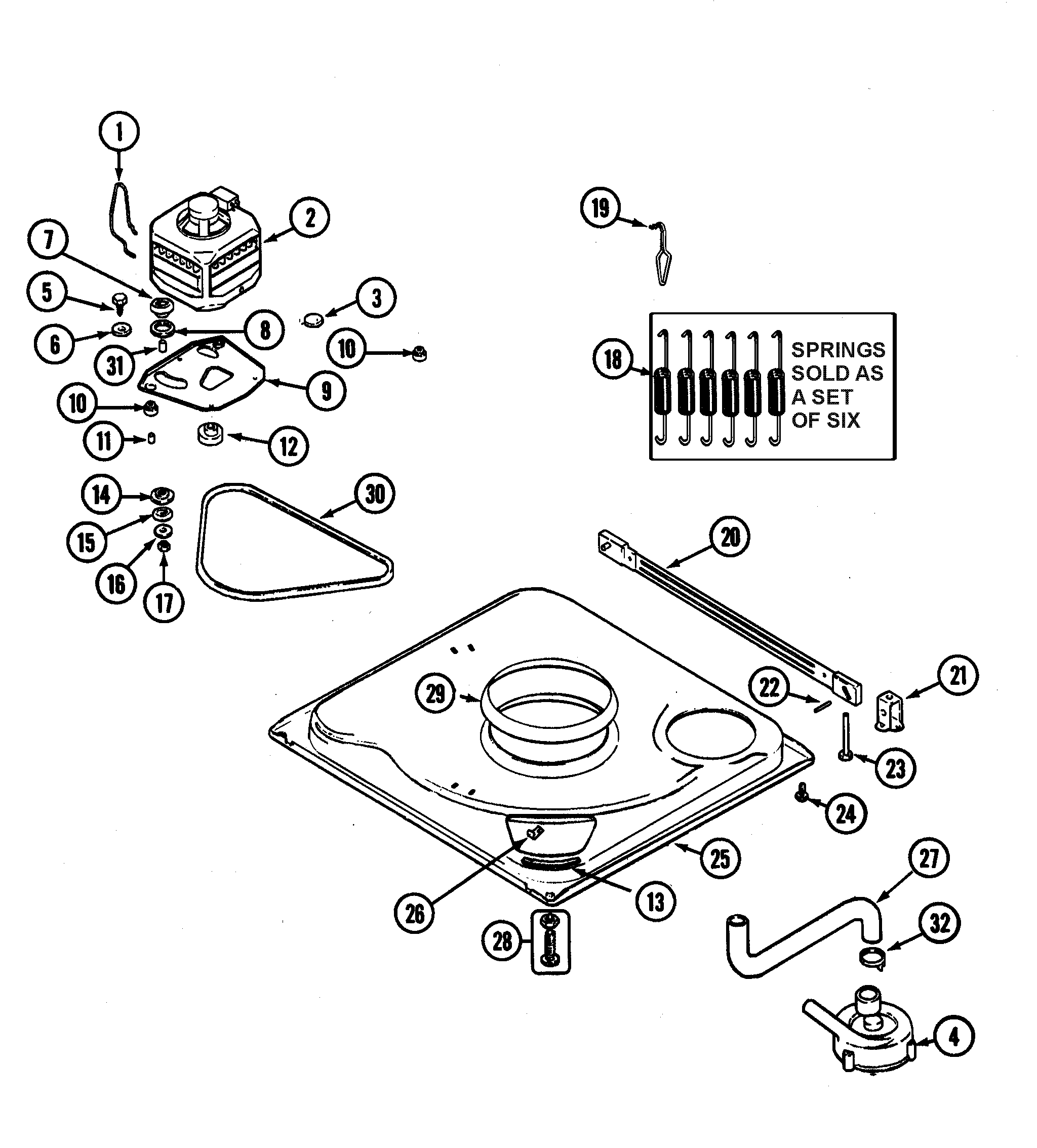

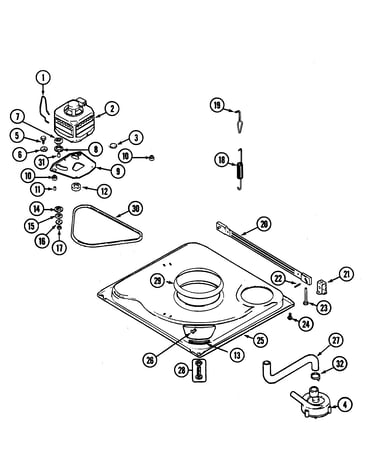

    Base (series 19) diagram

    Pump

    Part #21002219

    Replaced by #WP35-6780

    ?
    Manufacturer substitution
    This part replaces 21002219. Substitute parts can look different from the original.
    4.3 (6)
    BEST SELLER
    $100.37 |
    11% OFF Phone Price : $112.37
    In Stock
  • Pump 21001873
    Pump

    Part #21001873

    Replaced by #WP35-6780

    ?
    Manufacturer substitution
    This part replaces 21001873. Substitute parts can look different from the original.
    4.3 (6)
    BEST SELLER
    $100.37 |
    11% OFF Phone Price : $112.37
    In Stock

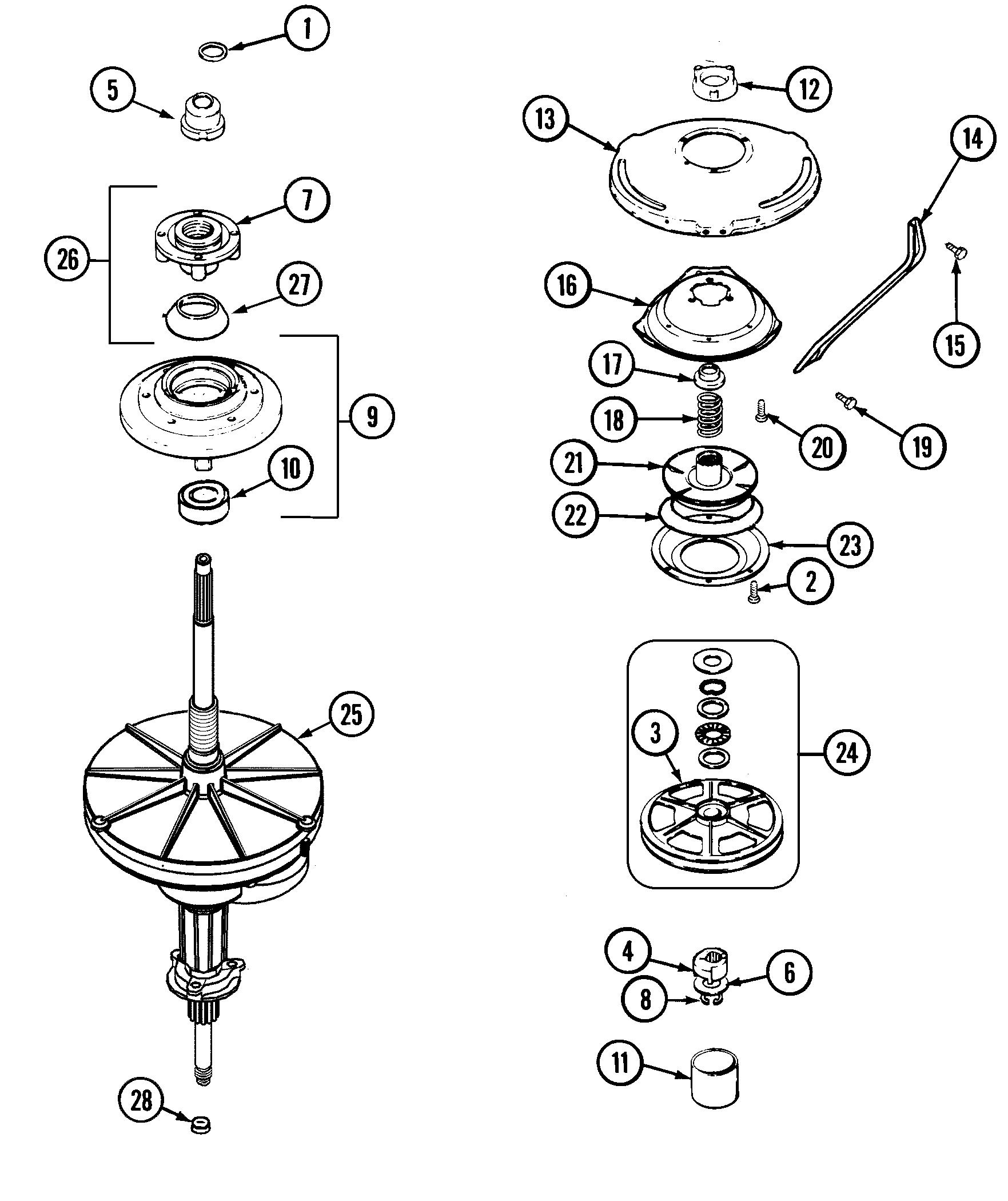

  • Washer Snubber Ring 21002026
    Washer snubber ring

    Part #21002026

    Replaced by #WP21002026

    ?
    Manufacturer substitution
    This part replaces 21002026. Substitute parts can look different from the original.
    1 (1)
    This item is not returnable
    $7.12 |
    12% OFF Phone Price : $8.12
    In Stock
  • Snubber 21001161
    Snubber

    Part #21001161

    Replaced by #WP21002026

    ?
    Manufacturer substitution
    This part replaces 21001161. Substitute parts can look different from the original.
    1 (1)
    This item is not returnable
    $7.12 |
    12% OFF Phone Price : $8.12
    In Stock
