Model # RC224RDA/DS37B Official Magic Chef refrigerator

Here are the diagrams and repair parts for Official Magic Chef RC224RDA-DS37B refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

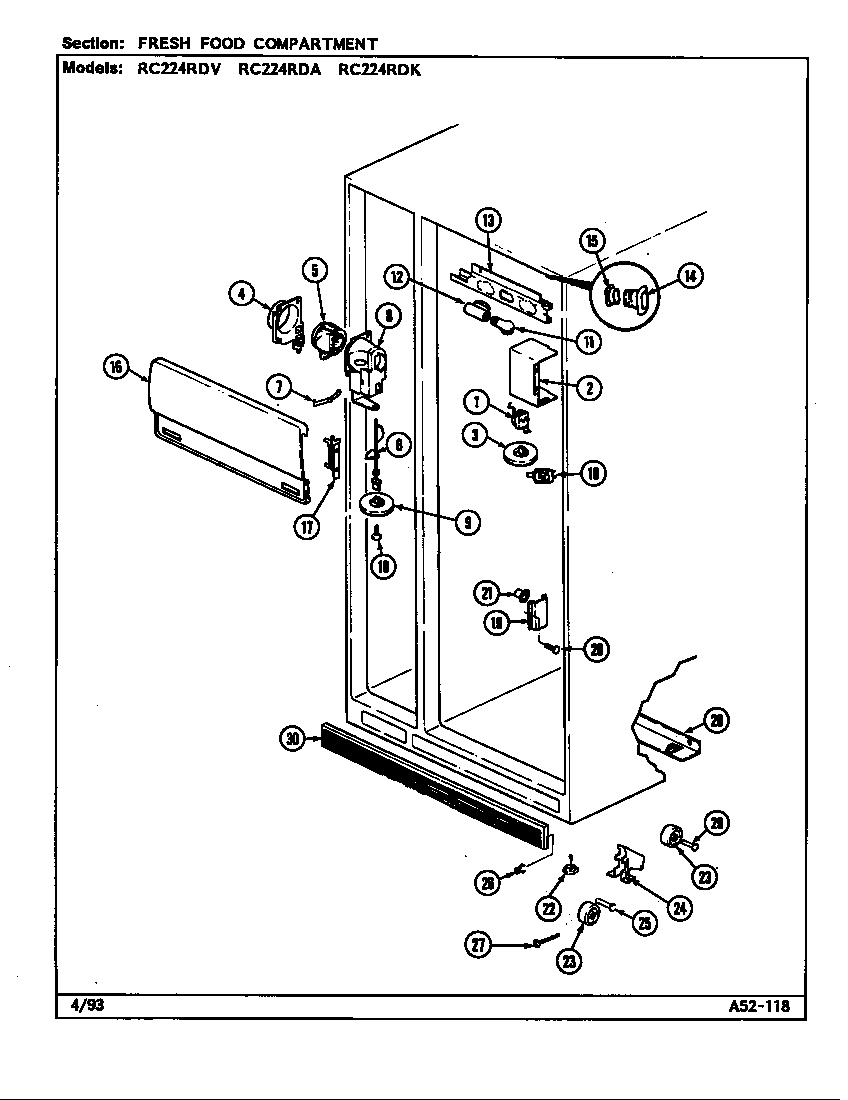

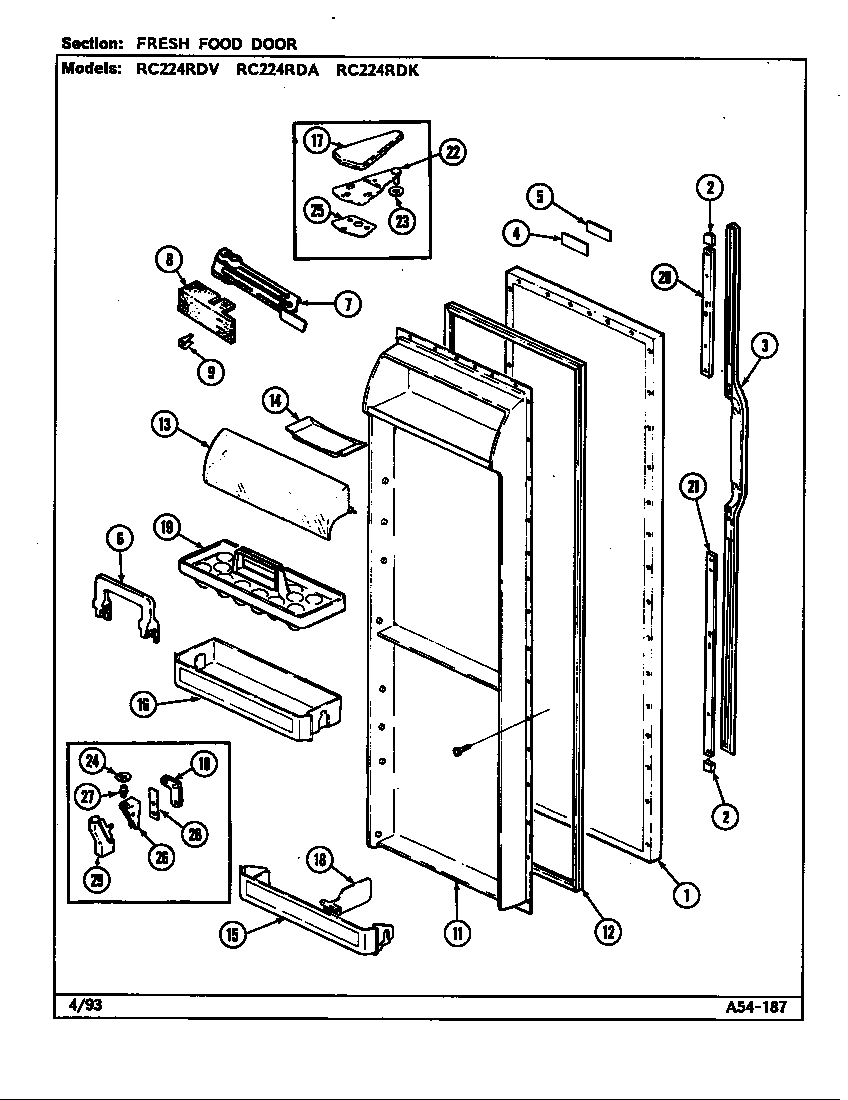

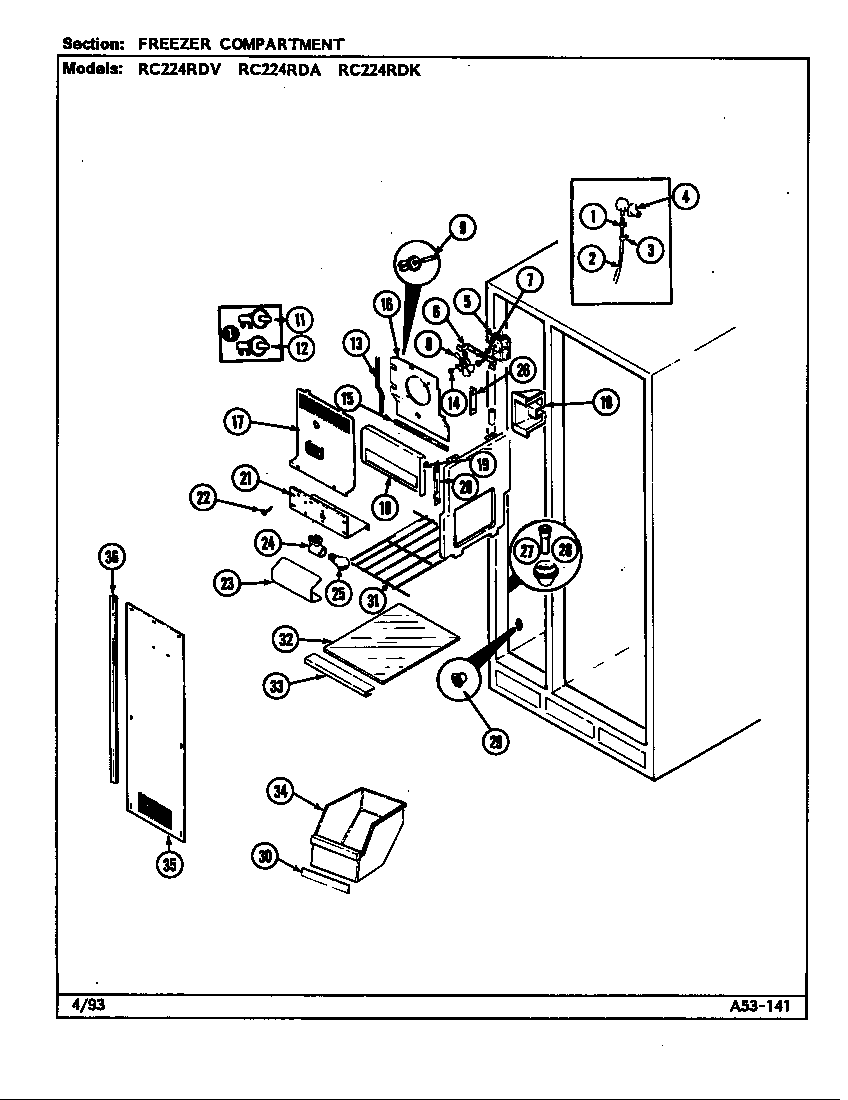

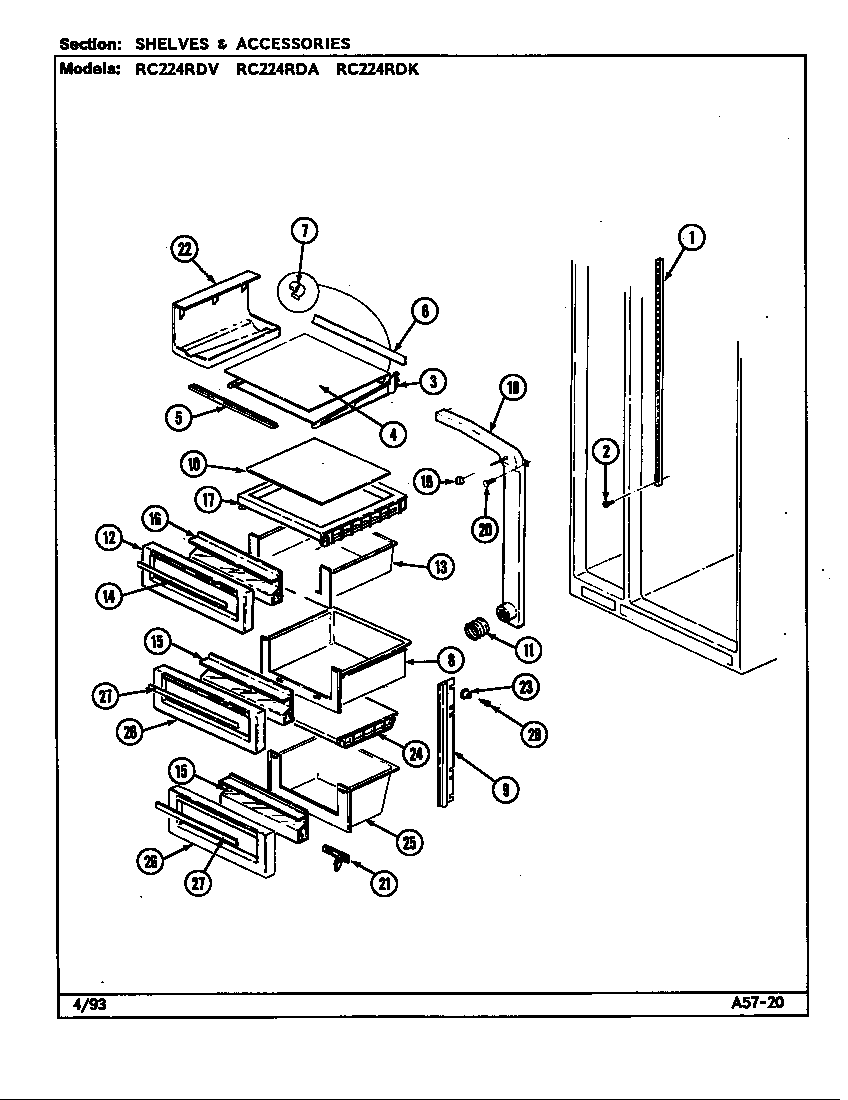

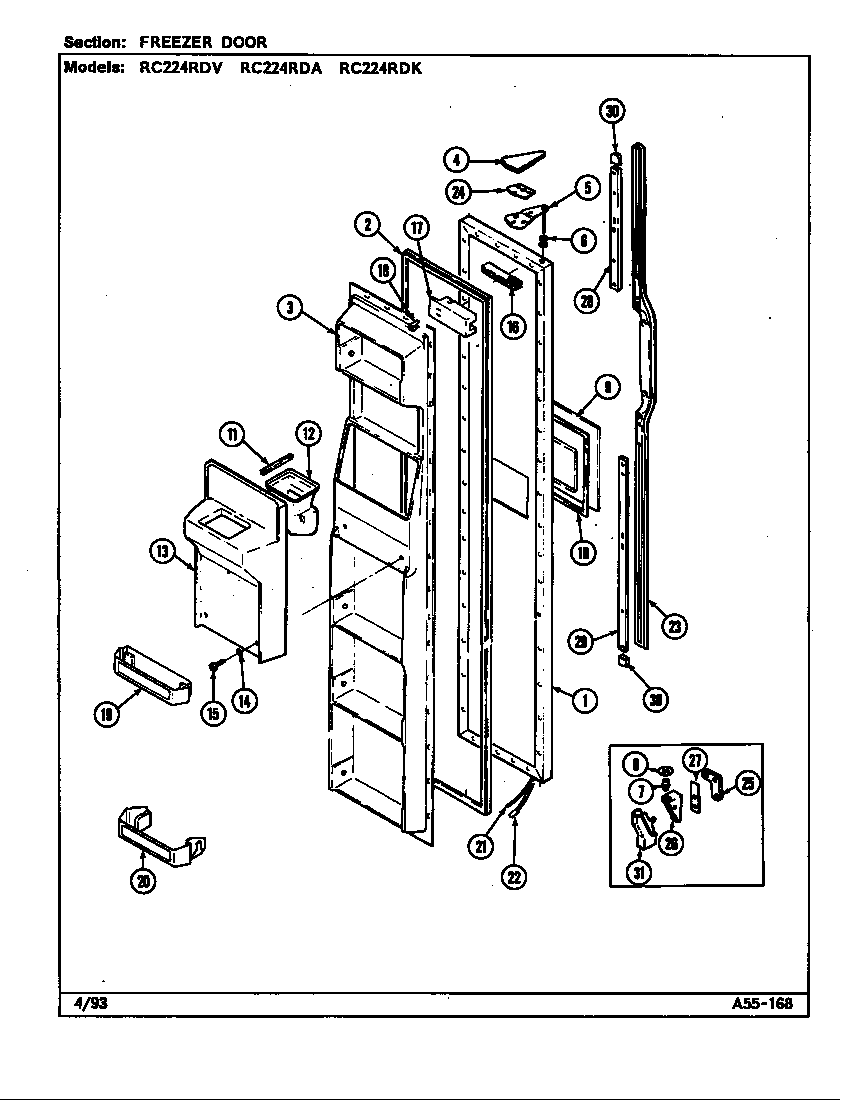

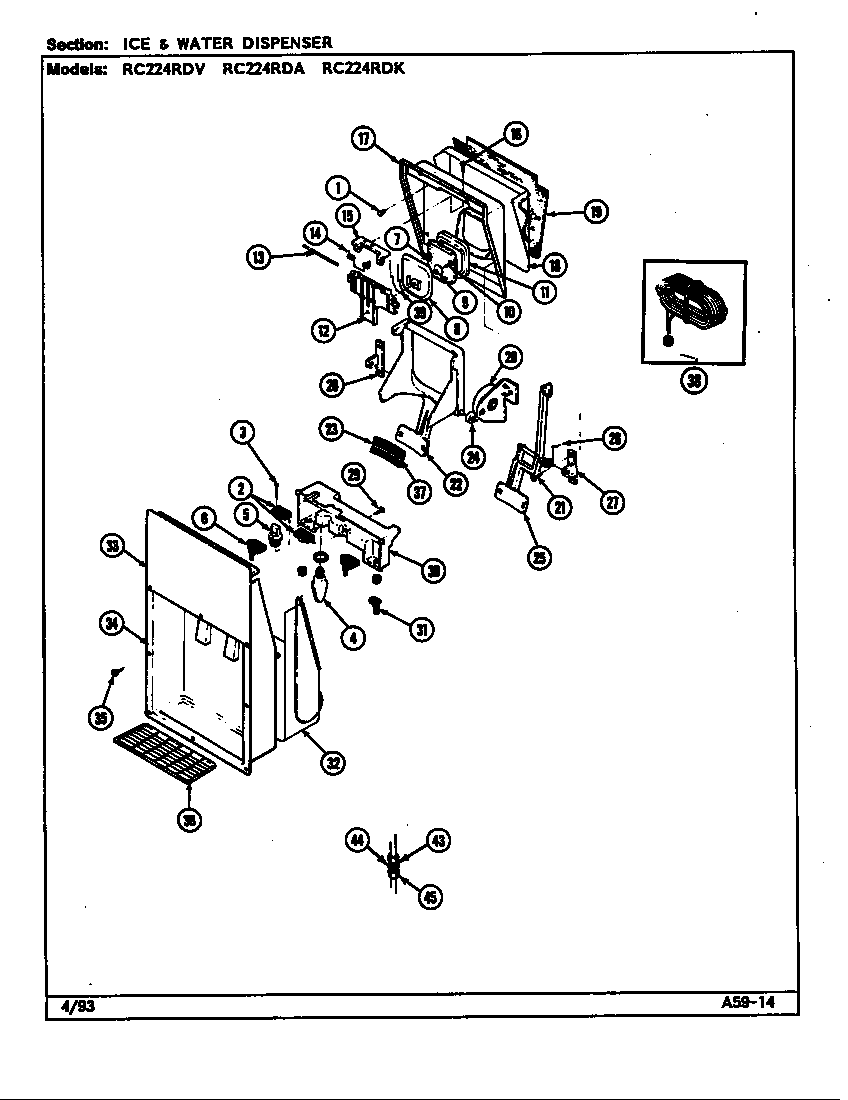

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 301 parts  |
Drier 13900
#28

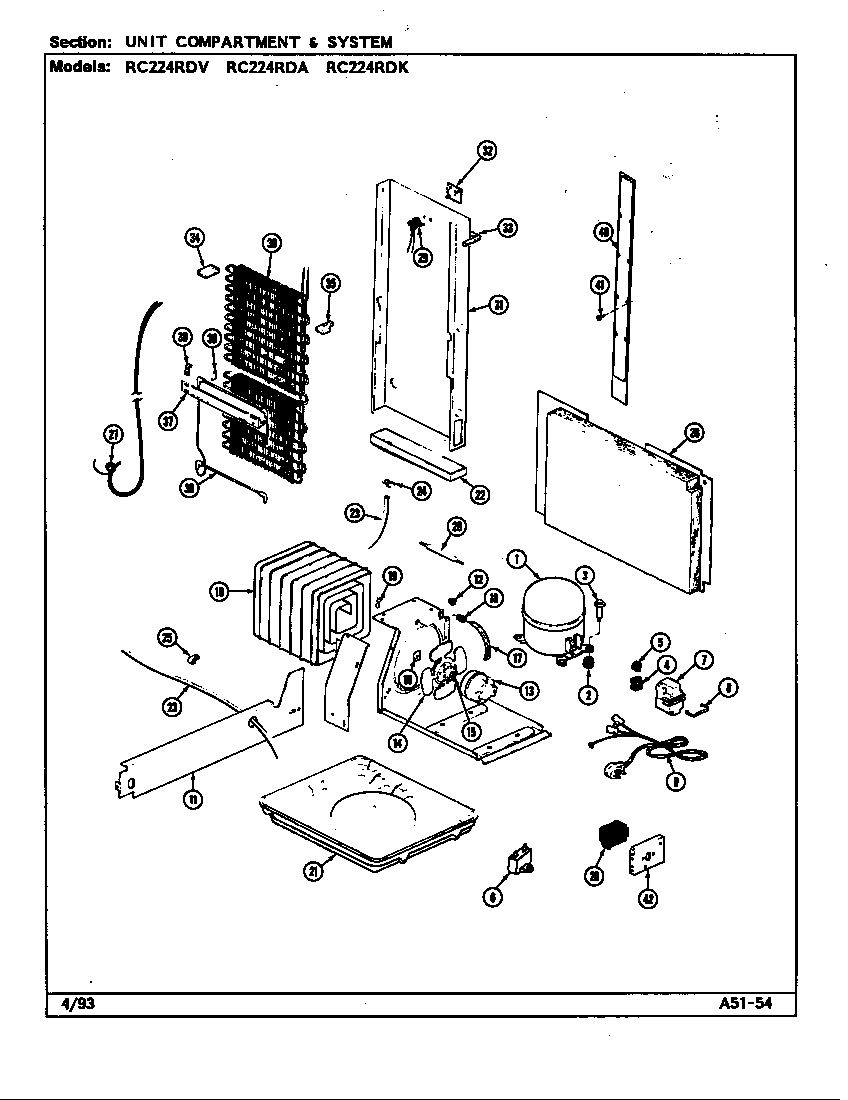

Unit compartment & system (rc224rda/ds37a) (rc224rda/ds37b) (rc224rdk/ds35a) (rc224rdv/ds36a) (rc224rdv/ds36b) diagram

Drier

Part #13900

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Ice Maker Module 95109-1
#27

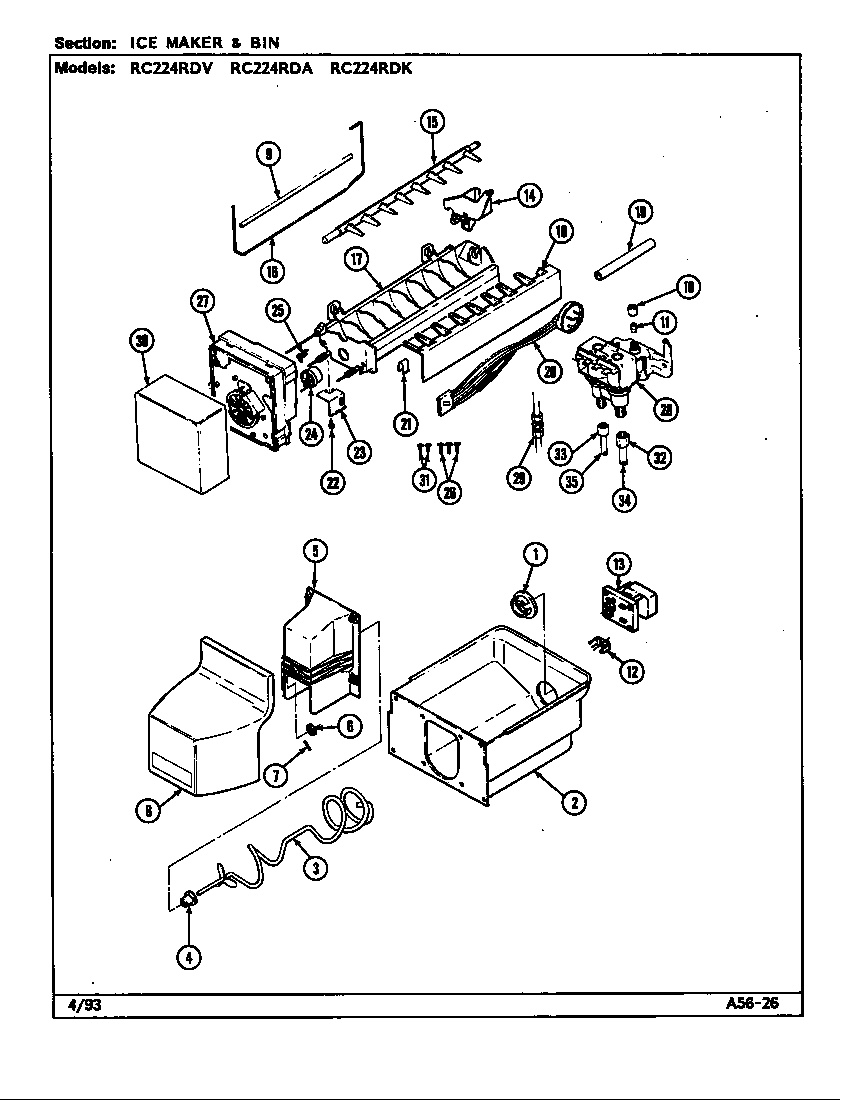

Ice maker & bin (rc224rda/ds37a) (rc224rda/ds37b) (rc224rdk/ds35a) (rc224rdv/ds36a) (rc224rdv/ds36b) diagram

Refrigerator ice maker module

Part #95109-1

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Mold And Heater 95098-1
#17

Ice maker & bin (rc224rda/ds37a) (rc224rda/ds37b) (rc224rdk/ds35a) (rc224rdv/ds36a) (rc224rdv/ds36b) diagram

Refrigerator mold and heater

Part #95098-1

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces 95098-1. Substitute parts can look different from the original.
BEST SELLER
$80.74 |
7% OFF Phone Price : $86.74
In Stock
Refrigerator Light Bulb 31956-1
Refrigerator light bulb

Part #31956-1

Replaced by #40A15

?
Manufacturer substitution
This part replaces 31956-1. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Light Switch 66987-1
Light switch

Part #66987-1

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 66987-1. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Drain Hose Clamp 9602-3
#24

Unit compartment & system (rc224rda/ds37a) (rc224rda/ds37b) (rc224rdk/ds35a) (rc224rdv/ds36a) (rc224rdv/ds36b) diagram

Drain hose clamp

Part #9602-3

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 9602-3. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Condenser Fan Motor 68445-6
#13

Unit compartment & system (rc224rda/ds37a) (rc224rda/ds37b) (rc224rdk/ds35a) (rc224rdv/ds36a) (rc224rdv/ds36b) diagram

Refrigerator condenser fan motor

Part #68445-6

Replaced by #833697

?
Manufacturer substitution
This part replaces 68445-6. Substitute parts can look different from the original.
BEST SELLER
$62.30 |
9% OFF Phone Price : $68.30
In Stock
Screw 9986-45
Screw

Part #9986-45

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 9986-45. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 400017-1
Screw

Part #400017-1

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 400017-1. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Screw 95106-1
#30B

Ice maker & bin (rc224rda/ds37a) (rc224rda/ds37b) (rc224rdk/ds35a) (rc224rdv/ds36a) (rc224rdv/ds36b) diagram

Refrigerator screw

Part #95106-1

Replaced by #WP681249

?
Manufacturer substitution
This part replaces 95106-1. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
