Model # WFMC640SUC/07 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WFMC640SUC-07 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

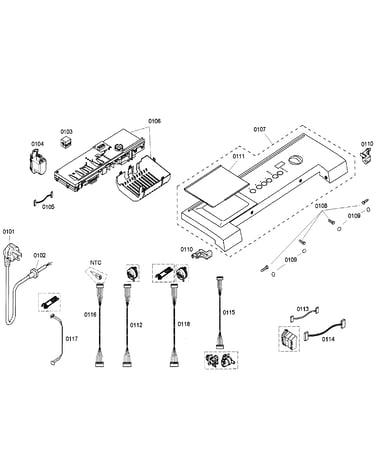

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Washer Damper 00642112
#329

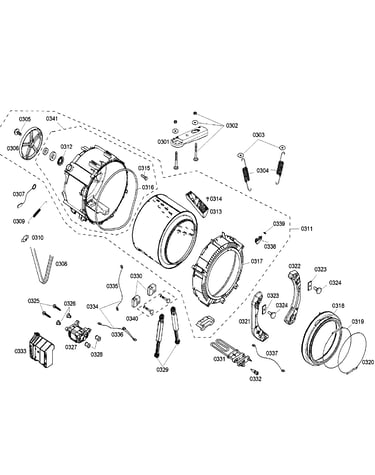

Drum diagram

Washer damper

Part #00642112

$68.79 |
8% OFF Phone Price : $74.79
In Stock
Washer Drive Motor (replaces 660487) 00660487
#327

Drum diagram

Washer drive motor (replaces 660487)

Part #00660487

$255.29 |
$12.00 OFF Phone Price : $267.29
In Stock
Washer Outer Tub And Basket Assembly 00245703
#311

Drum diagram

Washer outer tub and basket assembly

Part #00245703

The manufacturer no longer makes this part, and there's no substitute part

Washer Door Hinge Bushing 00422204
#221

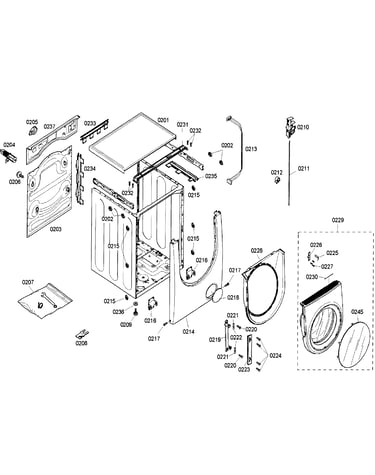

Cabinet diagram

Washer door hinge bushing

Part #00422204

This item is not returnable
$6.63
In Stock
Washer Door Hinge 00491646
#219

Cabinet diagram

Washer door hinge

Part #00491646

Replaced by #00651004

?
Manufacturer substitution
This part replaces 00491646. Substitute parts can look different from the original.
$38.99 |
13% OFF Phone Price : $44.99
In Stock
Clamp Spring 00491625
#319

Drum diagram

Clamp spring

Part #00491625

Replaced by #00648264

?
Manufacturer substitution
This part replaces 00491625. Substitute parts can look different from the original.
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Washer Shock Absorber Mounting Bracket 00491695
#330

Drum diagram

Washer shock absorber mounting bracket

Part #00491695

$45.07
In Stock
Washer Counterweight, Left 00143681
#321

Drum diagram

Washer counterweight, left

Part #00143681

$100.05 |
11% OFF Phone Price : $112.05
In Stock
Washer Door Hinge Screw (replaces 422242) 00422242
#220

Cabinet diagram

Washer door hinge screw (replaces 422242)

Part #00422242

This item is not returnable
$2.80
In Stock
Washer Water-level Pressure Switch 00491681
#420

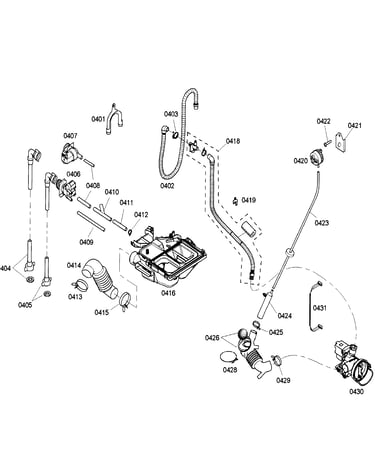

Pump diagram

Washer water-level pressure switch

Part #00491681

$67.79 |
8% OFF Phone Price : $73.79
In Stock
