Model # FRS24AGGW3 Official Frigidaire side-by-side refrigerator - p5995328225

Here are the diagrams and repair parts for Official Frigidaire FRS24AGGW3 side-by-side refrigerator - p5995328225, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

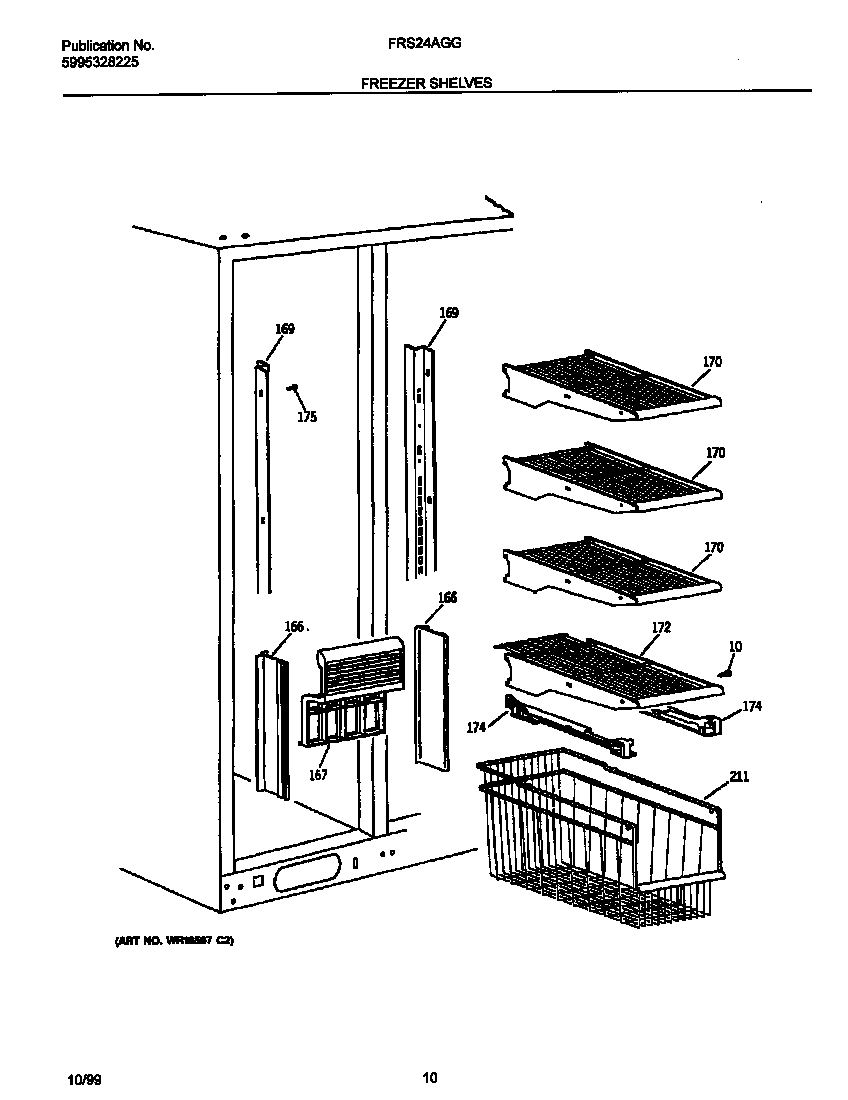

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 337 parts  |

Hanger-snack 5304406617
#473A

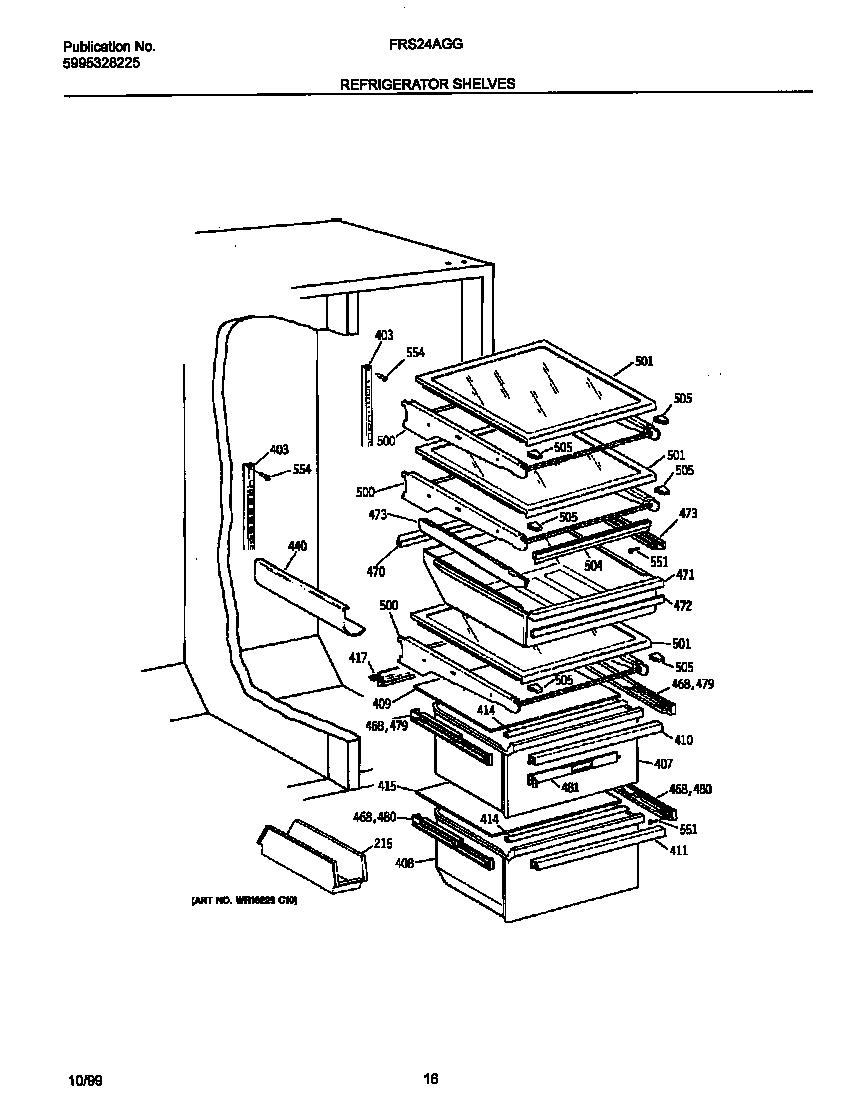

Refr shelves diagram

Hanger-snack

Part #5304406617

In Stock
Relay Cover 5304406337
#734

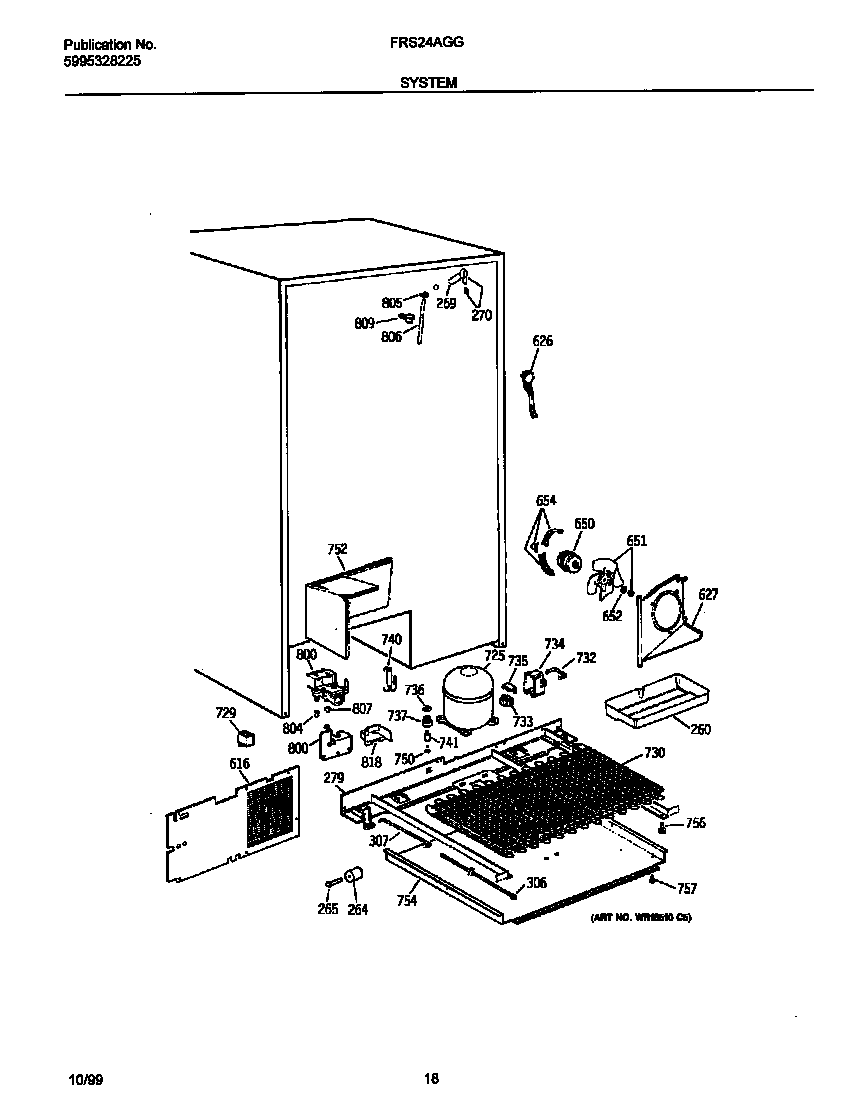

System diagram

Relay cover

Part #5304406337

In Stock
Refrigerator Dispenser Spring 5304406423
#63

Ice & water dispenser diagram

Refrigerator dispenser spring

Part #5304406423

In Stock

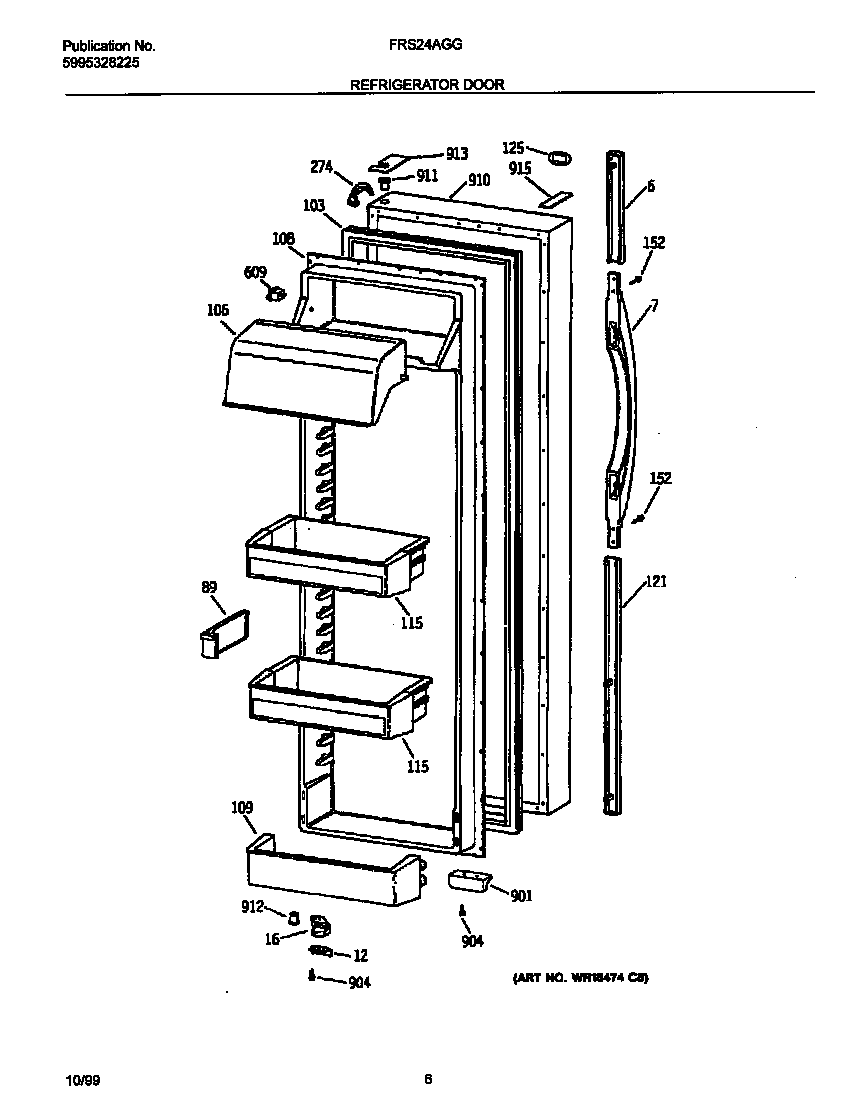

Refrigerator Door Handle 5304406666
Refrigerator door handle

Part #5304406666

In Stock
Light Grille 5304406591
#446

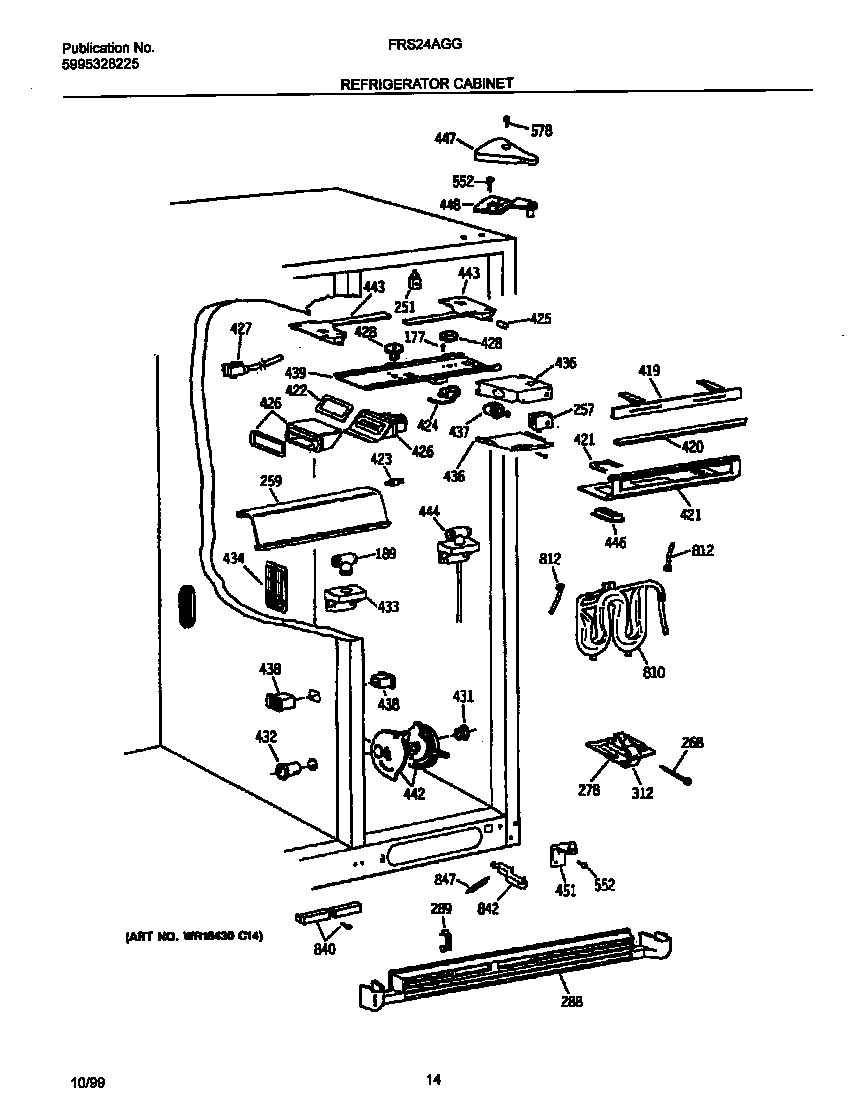

Refr cabinet diagram

Light grille

Part #5304406591

In Stock
Housing Dispenser 5304406401
#32

Ice & water dispenser diagram

Housing dispenser

Part #5304406401

In Stock
Heater Dispenser 5304406402
#33

Ice & water dispenser diagram

Heater dispenser

Part #5304406402

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Light Shield 5304413808
#421B

Refr cabinet diagram

Refrigerator light shield

Part #5304413808

The manufacturer no longer makes this part, and there's no substitute part

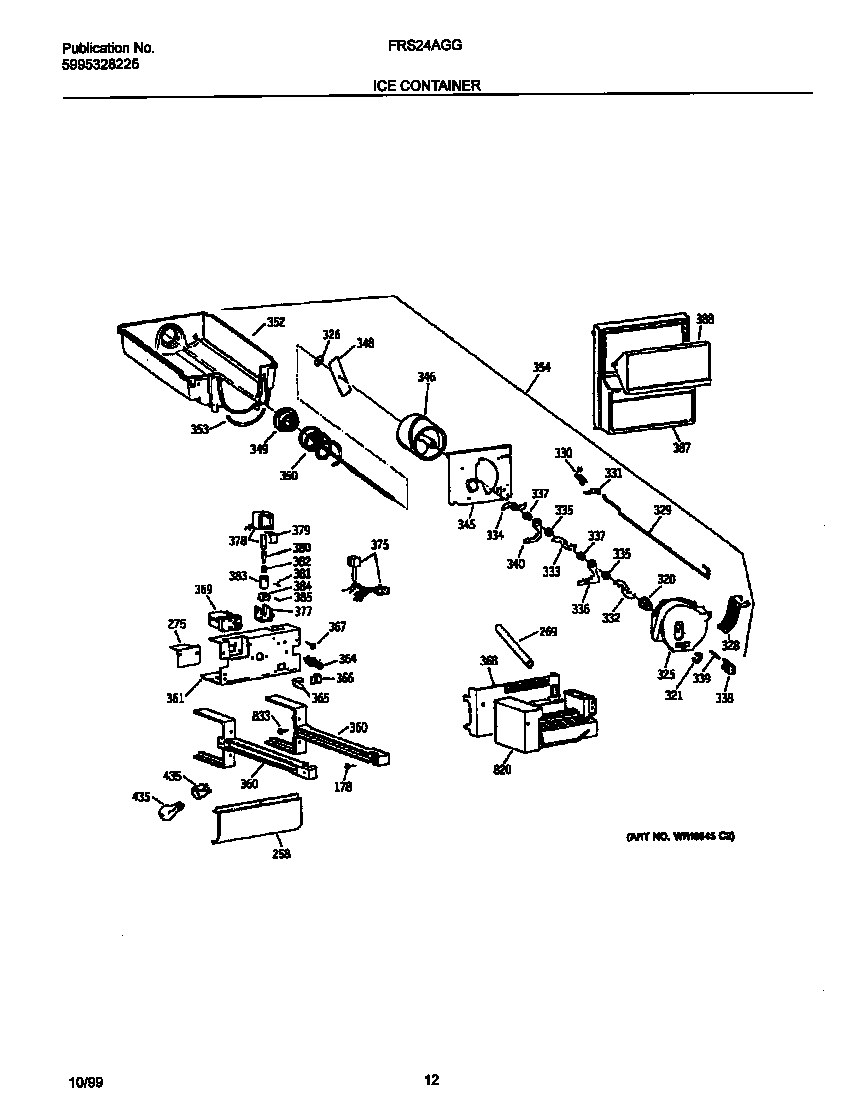

Ice Stripper 5304413765
#865

Ice maker diagram

Ice stripper

Part #5304413765

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Closure 5304406364
#15

Freezer door diagram

Refrigerator door closure

Part #5304406364

The manufacturer no longer makes this part, and there's no substitute part
