Kenmore
Gas Water Heater

Model # 153337514 Official Kenmore gas water heater

Here are the diagrams and repair parts for Official Kenmore 153337514 gas water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Thermocouple 42-33900
#6

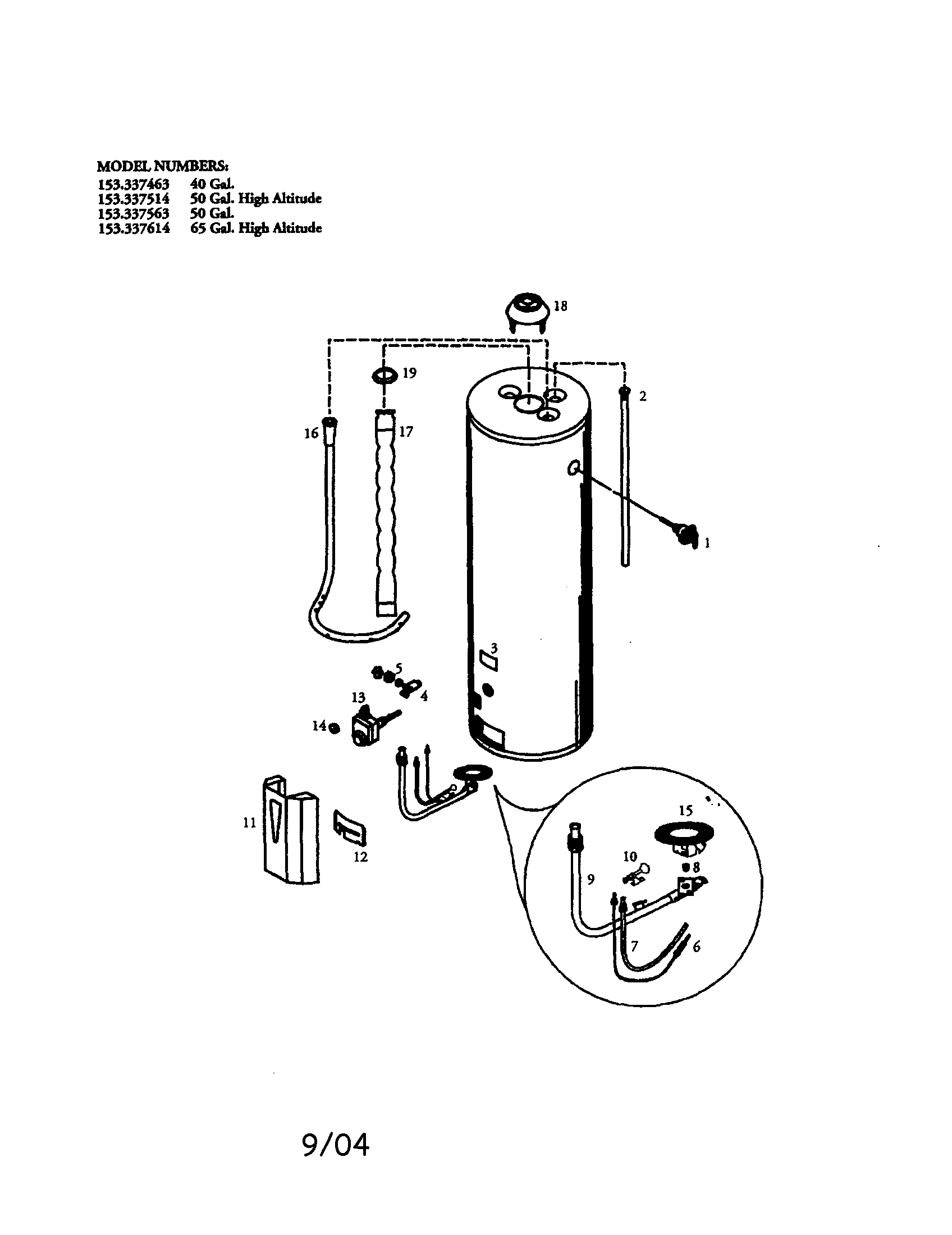

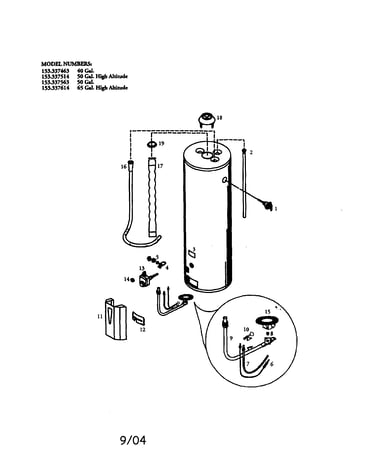

Gas water heater diagram

Thermocouple

Part #42-33900

Replaced by #H06E-36

?
Manufacturer substitution
This part replaces 42-33900. Substitute parts can look different from the original.
This item is not returnable
$14.52 |
12% OFF Phone Price : $16.52
Back Order
Water Heater Gas Valve Assembly F145-1278
#13

Gas water heater diagram

Water heater gas valve assembly

Part #F145-1278

The manufacturer no longer makes this part, and there's no substitute part

Water Heater Manifold Inner Door 9000281
#12

Gas water heater diagram

Water heater manifold inner door

Part #9000281

$17.69 |
10% OFF Phone Price : $19.69
In Stock
Water Heater Gas Control Valve Knob F145-1280
#14

Gas water heater diagram

Water heater gas control valve knob

Part #F145-1280

The manufacturer no longer makes this part, and there's no substitute part

Flue Baffle 9002496
#17B

Gas water heater diagram

Flue baffle

Part #9002496

$35.99
In Stock
Flue Baffle 9000419
#17C

Gas water heater diagram

Flue baffle

Part #9000419

$17.85
In Stock
Dip Tube 9001698
#16

Gas water heater diagram

Dip tube

Part #9001698

Replaced by #100108709

?
Manufacturer substitution
This part replaces 9001698. Substitute parts can look different from the original.
$26.67
In Stock
Manifold 9002615
#9

Gas water heater diagram

Manifold

Part #9002615

Replaced by #100108876

?
Manufacturer substitution
This part replaces 9002615. Substitute parts can look different from the original.
$57.78
In Stock
Water Heater Burner Tube 9002617
#9A

Gas water heater diagram

Water heater burner tube

Part #9002617

Replaced by #100108878

?
Manufacturer substitution
This part replaces 9002617. Substitute parts can look different from the original.
$54.44
In Stock
Water Heater Pilot Tube Assembly (replaces Std317025, Std317255) 9000278
#7

Gas water heater diagram

Water heater pilot tube assembly (replaces std317025, std317255)

Part #9000278

Replaced by #100108370

?
Manufacturer substitution
This part replaces 9000278. Substitute parts can look different from the original.
$36.67
In Stock
