Model # PM250 Official Broan range hood

Here are the diagrams and repair parts for Official Broan PM250 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
Range Hood Light Socket B02300280
#28

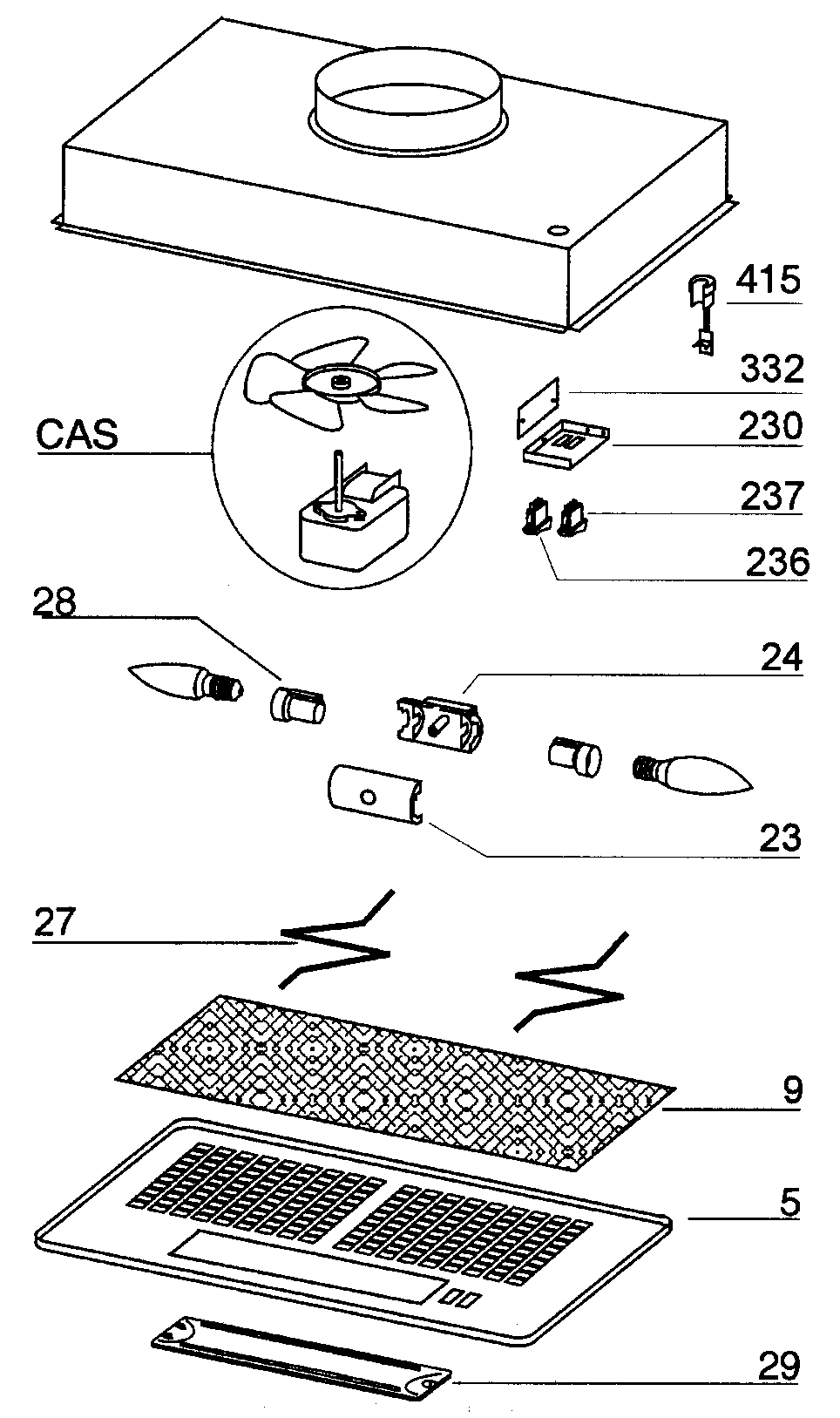

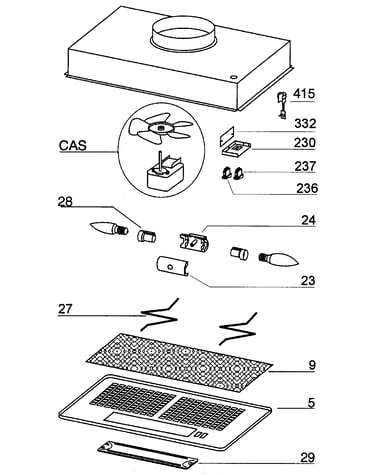

Range hood diagram

Range hood light socket

Part #B02300280

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Fan Motor Assembly R730090
#CAS

Range hood diagram

Range hood fan motor assembly

Part #R730090

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Light Switch B02300823
#237

Range hood diagram

Range hood light switch

Part #B02300823

Replaced by #SB02300823

?
Manufacturer substitution
This part replaces B02300823. Substitute parts can look different from the original.
This item is not returnable
$2.88
In Stock
Range Hood Light Bulb B02300264
#NI

Range hood diagram

Range hood light bulb

Part #B02300264

Replaced by #SB02300264

?
Manufacturer substitution
This part replaces B02300264. Substitute parts can look different from the original.
$20.29 |
23% OFF Phone Price : $26.29
In Stock
Range Hood Non-ducted Filter Kit B08999040
#NI

Range hood diagram

Range hood non-ducted filter kit

Part #B08999040

Replaced by #SB08999040

?
Manufacturer substitution
This part replaces B08999040. Substitute parts can look different from the original.
$26.99 |
18% OFF Phone Price : $32.99
In Stock
Ctrlsclose BE3348475
#230

Range hood diagram

Ctrlsclose

Part #BE3348475

Replaced by #SBE3348475

?
Manufacturer substitution
This part replaces BE3348475. Substitute parts can look different from the original.
$21.21
In Stock
Range Hood Blower Switch B02300822
#236

Range hood diagram

Range hood blower switch

Part #B02300822

Replaced by #SB02300822

?
Manufacturer substitution
This part replaces B02300822. Substitute parts can look different from the original.
This item is not returnable
$4.52
In Stock
Lamphldr-u B03295095
#23

Range hood diagram

Lamphldr-u

Part #B03295095

Replaced by #SB03295095

?
Manufacturer substitution
This part replaces B03295095. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Range Hood Light Socket Housing, Lower B03295094
#24

Range hood diagram

Range hood light socket housing, lower

Part #B03295094

Replaced by #SB03295094

?
Manufacturer substitution
This part replaces B03295094. Substitute parts can look different from the original.
This item is not returnable
$3.37
In Stock
Grease Filter B08087922
#9

Range hood diagram

Grease filter

Part #B08087922

The manufacturer no longer makes this part, and there's no substitute part
