Kelvinator
Gas Range

Model # CG200SP2D1 Official Kelvinator gas range - 5995220687

Here are the diagrams and repair parts for Official Kelvinator CG200SP2D1 gas range - 5995220687, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

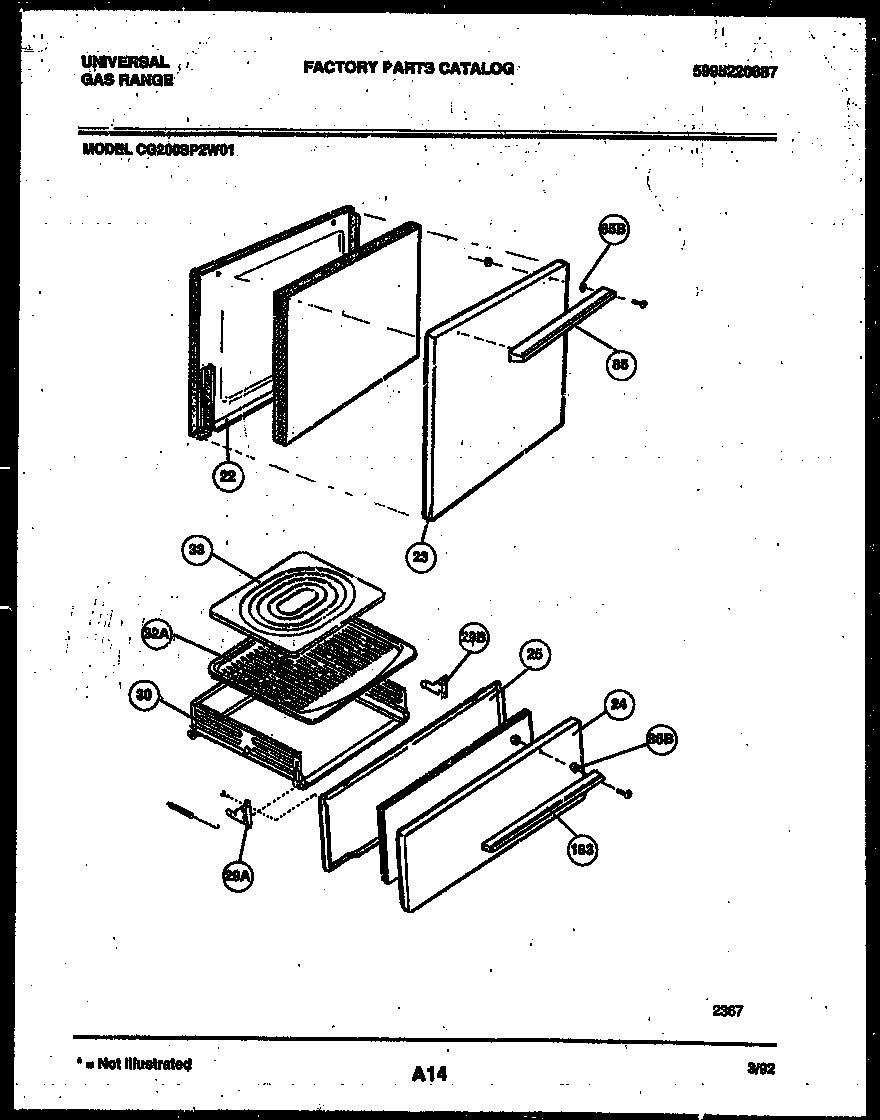

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Insulation 5303285920

#NI

All parts diagram

Insulation

Part #5303285920

$11.49
In Stock
Leg Leveler 5303285762
#103

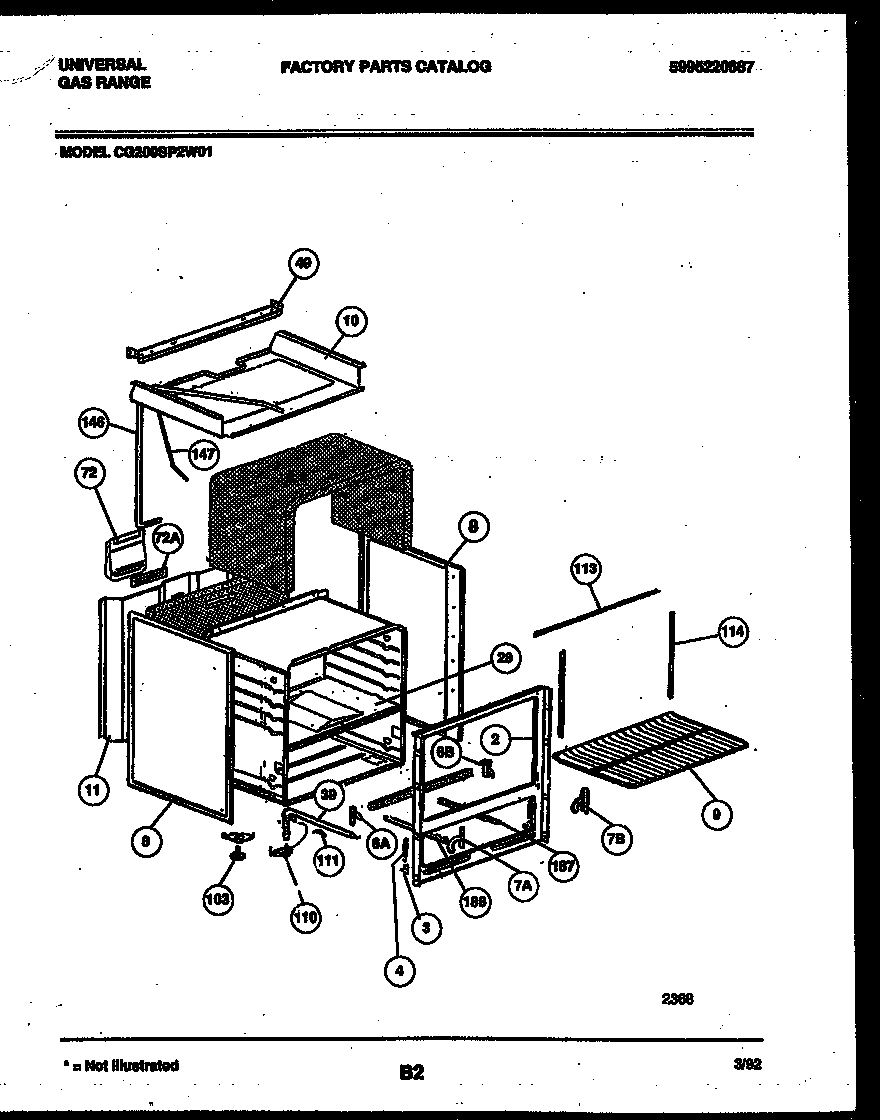

Body parts diagram

Leg leveler

Part #5303285762

$26.90
In Stock
Manifold Pipe 5303285723
#68

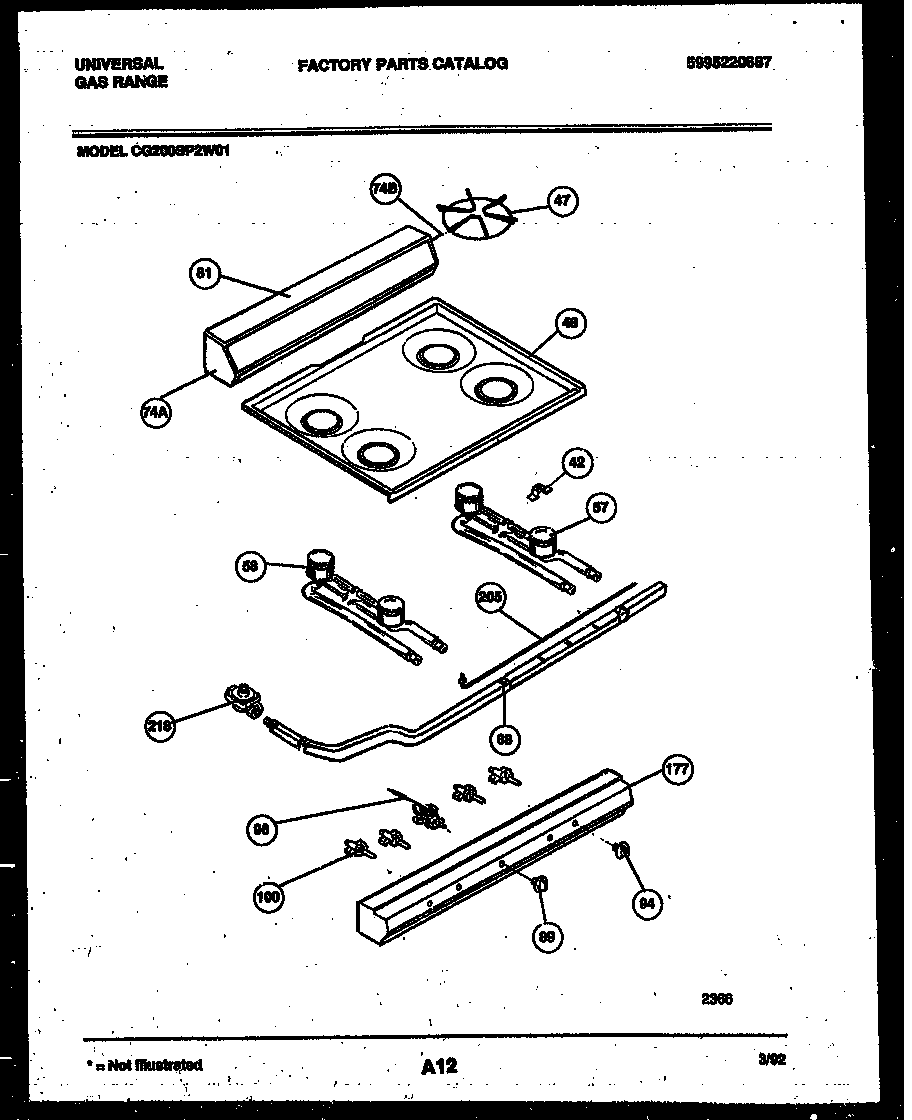

Backguard, cooktop and burner parts diagram

Manifold pipe

Part #5303285723

$107.08
In Stock
Control Panel 5303285858
#177

Backguard, cooktop and burner parts diagram

Control panel

Part #5303285858

$81.49
In Stock
Insulation 5303285921

#NI

All parts diagram

Insulation

Part #5303285921

$37.49
In Stock
Vent Box Assembly 5303285760
#72

Body parts diagram

Vent box assembly

Part #5303285760

$45.49
In Stock
Main 5303285853
#48

Backguard, cooktop and burner parts diagram

Main

Part #5303285853

$106.49 |
10% OFF Phone Price : $118.49
In Stock
Insulation 5303285919

#NI

All parts diagram

Insulation

Part #5303285919

$26.99
In Stock
Spring 5303285924
#4

Body parts diagram

Spring

Part #5303285924

$20.21
In Stock
Regulator 5303285729
#218

Backguard, cooktop and burner parts diagram

Regulator

Part #5303285729

Replaced by #5308007974

?
Manufacturer substitution
This part replaces 5303285729. Substitute parts can look different from the original.
$186.45 |
6% OFF Phone Price : $198.45
In Stock
