Gas Range

Model # SF3020EWW3 Official Whirlpool 30" gas freestanding range with electronic ignition

Here are the diagrams and repair parts for Official Whirlpool SF3020EWW3 30" gas freestanding range with electronic ignition, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

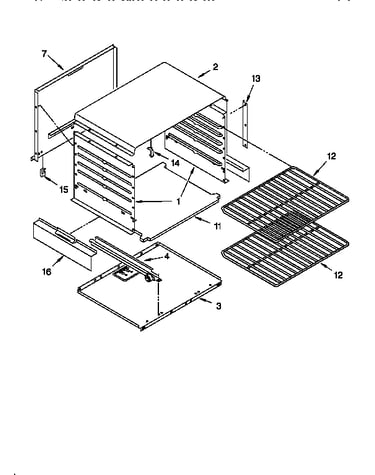

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |
Igniter Switch 4157210
#37

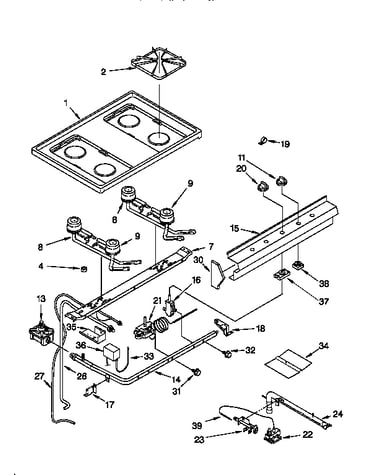

Cooktop and manifold diagram

Igniter switch

Part #4157210

Replaced by #WP878009

?
Manufacturer substitution
This part replaces 4157210. Substitute parts can look different from the original.
$43.51
In Stock
Nut 4157052
#34A

Cooktop and manifold diagram

Nut

Part #4157052

Replaced by #W10080180

?
Manufacturer substitution
This part replaces 4157052. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Broiler Pan 4315095
#19

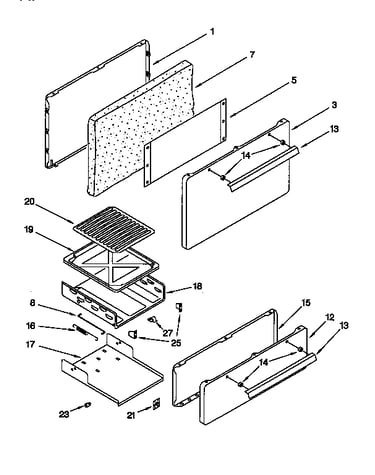

Oven door and broiler diagram

Broiler pan

Part #4315095

Replaced by #4396923

?
Manufacturer substitution
This part replaces 4315095. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Wire Tie 4315726
Wire tie

Part #4315726

Replaced by #WP3405248

?
Manufacturer substitution
This part replaces 4315726. Substitute parts can look different from the original.
This item is not returnable
$4.20
In Stock
Insulation 240132

#NI

All parts diagram

Insulation

Part #240132

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 240132. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Igniter 4157695
#33A

Cooktop and manifold diagram

Igniter

Part #4157695

Replaced by #WPY07491203

?
Manufacturer substitution
This part replaces 4157695. Substitute parts can look different from the original.
$47.09 |
11% OFF Phone Price : $53.09
In Stock
Igniter 4157694
#33B

Cooktop and manifold diagram

Igniter

Part #4157694

Replaced by #WPY07491203

?
Manufacturer substitution
This part replaces 4157694. Substitute parts can look different from the original.
$47.09 |
11% OFF Phone Price : $53.09
In Stock
Insulation 4157665
#12A

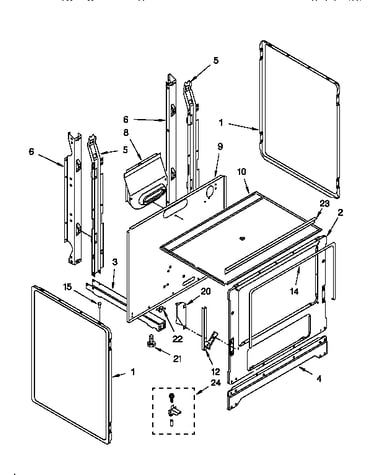

External diagram

Insulation

Part #4157665

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 4157665. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Drawer Glide 4363051
#23

Oven door and broiler diagram

Drawer glide

Part #4363051

Replaced by #W10709871

?
Manufacturer substitution
This part replaces 4363051. Substitute parts can look different from the original.
$7.96
In Stock
Range Burner Control Knob (black) 4320580
#11

Cooktop and manifold diagram

Range burner control knob (black)

Part #4320580

Replaced by #WP4320580

?
Manufacturer substitution
This part replaces 4320580. Substitute parts can look different from the original.
This item is not returnable
$9.03 |
10% OFF Phone Price : $10.03
In Stock
