Craftsman
Reciprocating Saw

Model # 90027210 Official Craftsman reciprocating saw

Here are the diagrams and repair parts for Official Craftsman 90027210 reciprocating saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |

Craftsman Washer 99360-03
#20

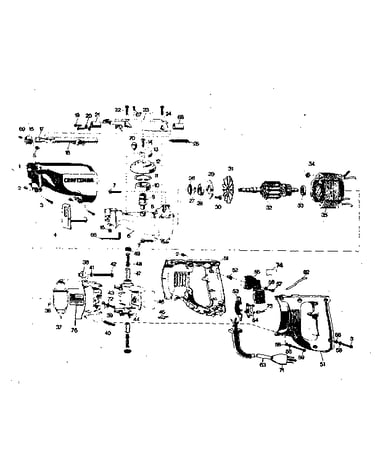

Unit parts diagram

Craftsman washer

Part #99360-03

The manufacturer no longer makes this part, and there's no substitute part

Insert 131673
#2

Unit parts diagram

Insert

Part #131673

The manufacturer no longer makes this part, and there's no substitute part

Ring 46934
#11

Unit parts diagram

Ring

Part #46934

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 418
#58

Unit parts diagram

Lock washer

Part #418

The manufacturer no longer makes this part, and there's no substitute part

Rubber Plug 30611
#36

Unit parts diagram

Rubber plug

Part #30611

The manufacturer no longer makes this part, and there's no substitute part

Washer 34063
#29

Unit parts diagram

Washer

Part #34063

The manufacturer no longer makes this part, and there's no substitute part

Screw 80440
#19

Unit parts diagram

Screw

Part #80440

The manufacturer no longer makes this part, and there's no substitute part

Seal 132503
#74

Unit parts diagram

Seal

Part #132503

The manufacturer no longer makes this part, and there's no substitute part

Plug 99586-01
#71

Unit parts diagram

Plug

Part #99586-01

The manufacturer no longer makes this part, and there's no substitute part

Washer 99361-10
#41

Unit parts diagram

Washer

Part #99361-10

The manufacturer no longer makes this part, and there's no substitute part
