Model # RNB23EY-3A/5C80A Official Magic Chef refrigerator

Here are the diagrams and repair parts for Official Magic Chef RNB23EY-3A/5C80A refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
RNB23EY-3A/5C80A Refrigerator
Drier 13900
#17

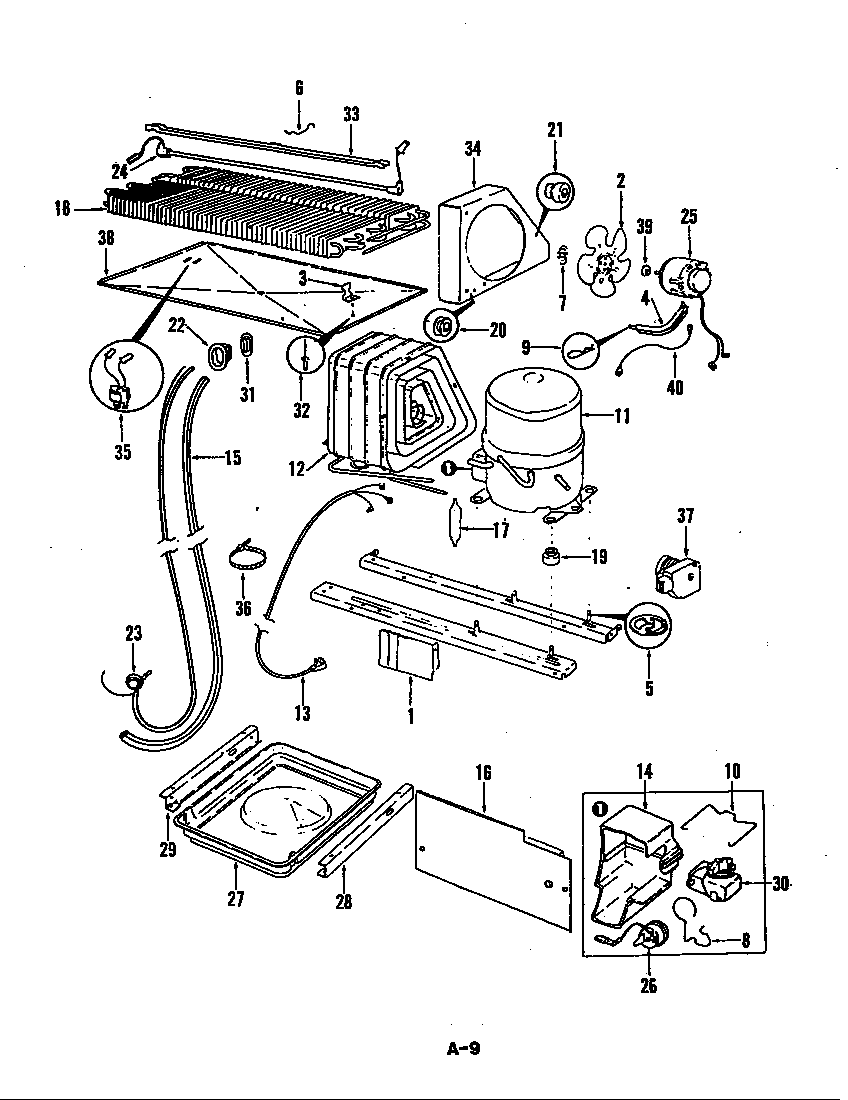

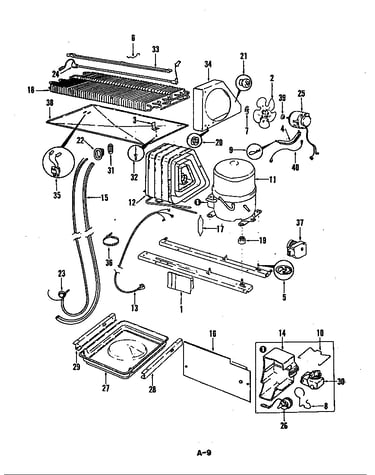

Unit compartment & system diagram

Drier

Part #13900

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Light Bulb 31956
#32

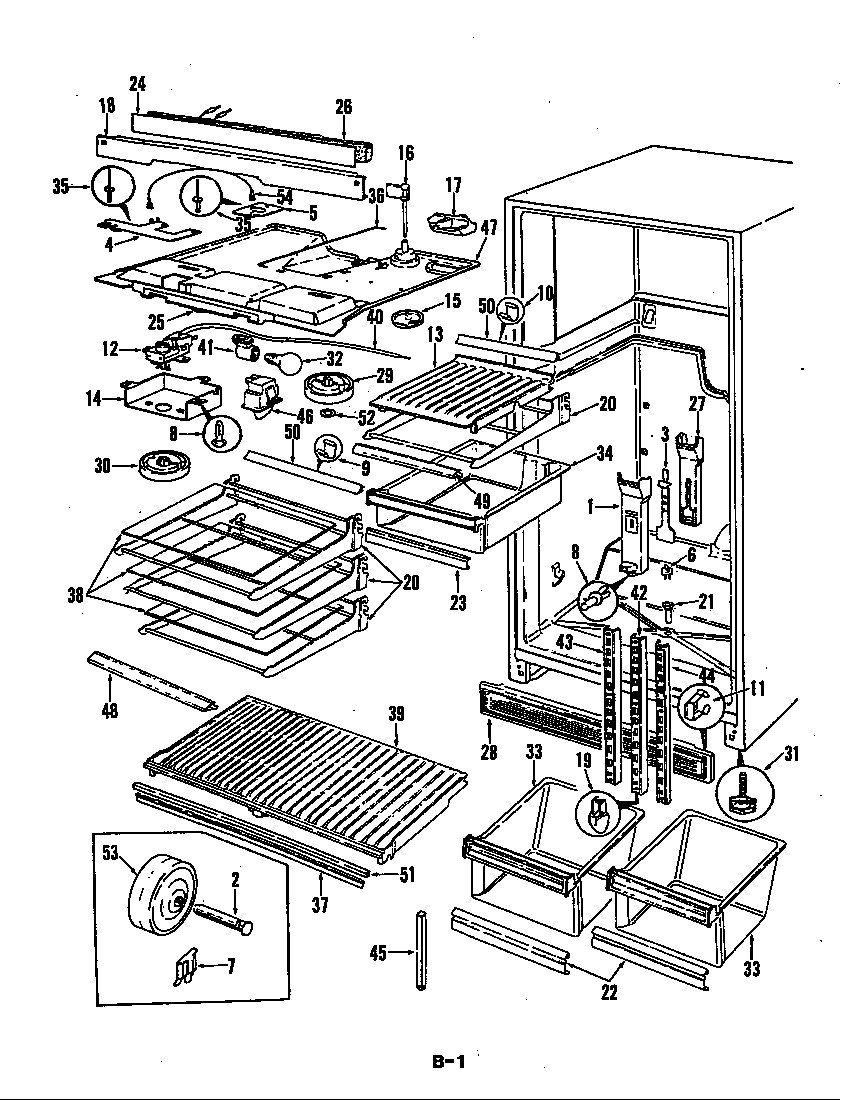

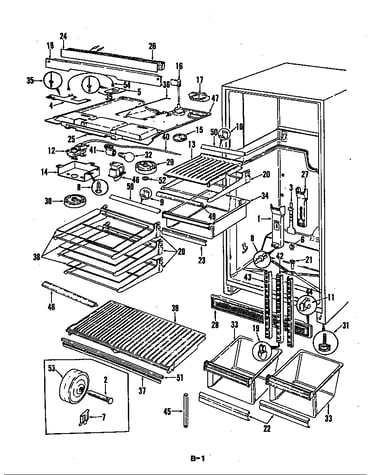

Fresh food compartment diagram

Light bulb

Part #31956

Replaced by #40A15

?
Manufacturer substitution
This part replaces 31956. Substitute parts can look different from the original.
BEST SELLER
$15.31 |
12% OFF Phone Price : $17.31
In Stock
Screw 400015-12
#15A

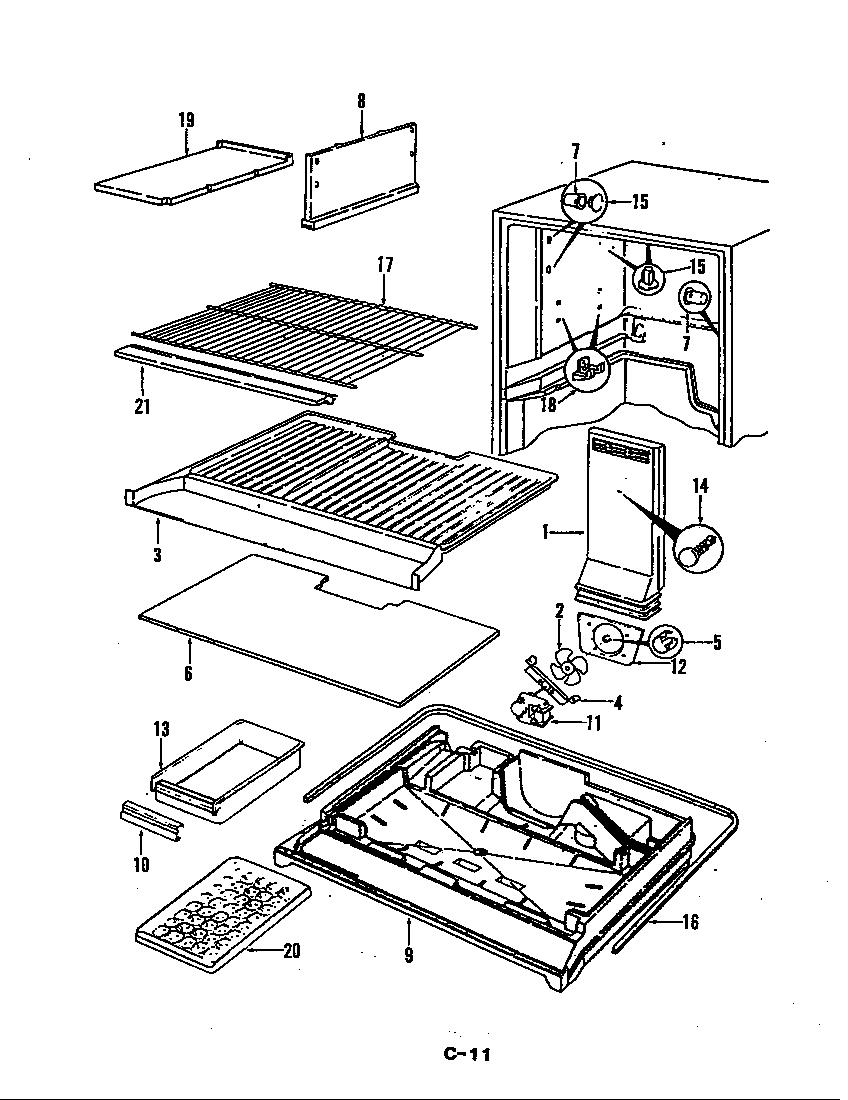

Freezer compartment diagram

Screw

Part #400015-12

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 400015-12. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 400017-1
#32A

Unit compartment & system diagram

Screw

Part #400017-1

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 400017-1. Substitute parts can look different from the original.
This item is not returnable
$3.95 |
20% OFF Phone Price : $4.95
In Stock
Refrigerator Temperature Control 52881-45
#12

Fresh food compartment diagram

Refrigerator temperature control

Part #52881-45

Replaced by #WP68601-6

?
Manufacturer substitution
This part replaces 52881-45. Substitute parts can look different from the original.
$127.63 |
9% OFF Phone Price : $139.63
In Stock
Thermostat 52085-24
#35

Unit compartment & system diagram

Thermostat

Part #52085-24

Replaced by #WP52085-28

?
Manufacturer substitution
This part replaces 52085-24. Substitute parts can look different from the original.
$60.29 |
9% OFF Phone Price : $66.29
In Stock
Evaporator Motor 54482-10
#11

Freezer compartment diagram

Evaporator motor

Part #54482-10

Replaced by #WP61004888

?
Manufacturer substitution
This part replaces 54482-10. Substitute parts can look different from the original.
$88.99 |
6% OFF Phone Price : $94.99
In Stock
Defrost Timer 65322-1
#37

Unit compartment & system diagram

Defrost timer

Part #65322-1

Replaced by #WP4391974

?
Manufacturer substitution
This part replaces 65322-1. Substitute parts can look different from the original.
$79.52 |
7% OFF Phone Price : $85.52
In Stock
Low Bushing 66034-1
#2

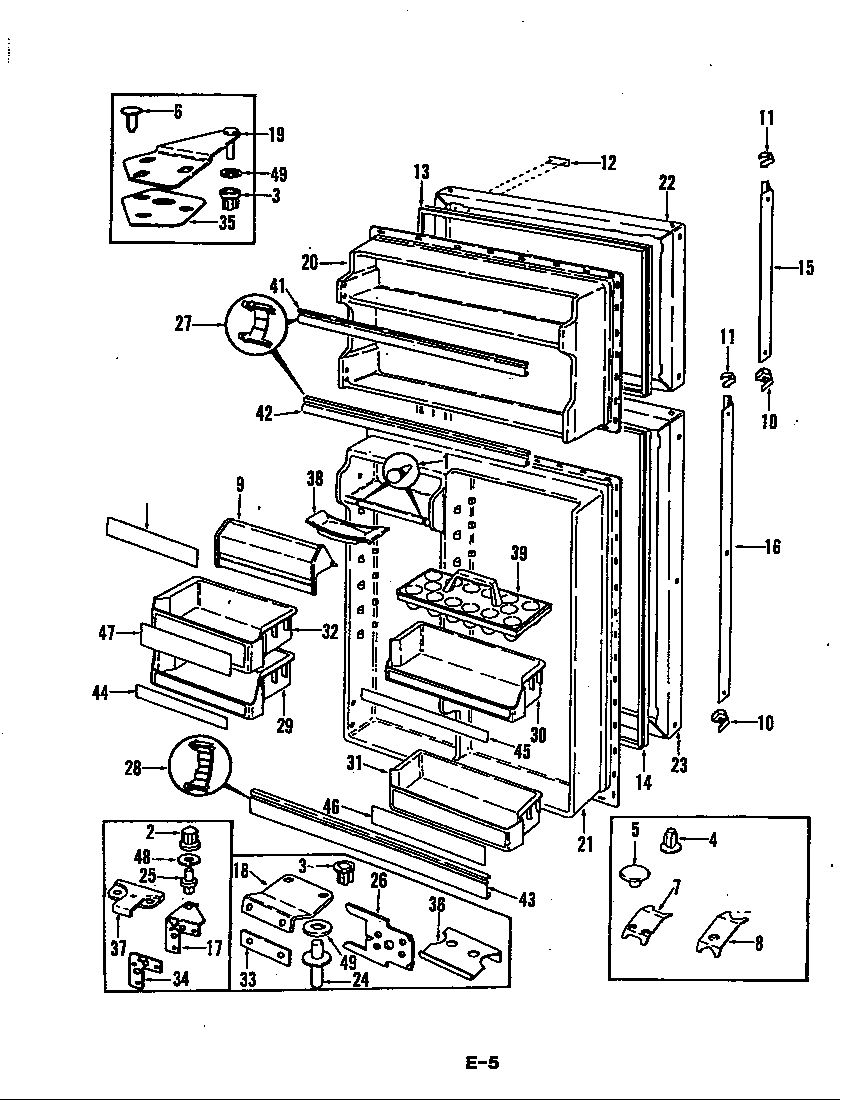

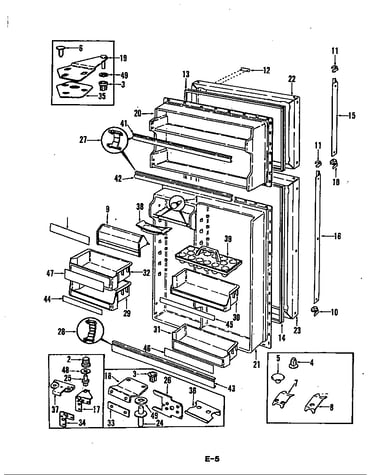

Fresh food & freezer door diagram

Low bushing

Part #66034-1

$14.69
In Stock
Drain Pan 29839-4
#27

Unit compartment & system diagram

Drain pan

Part #29839-4

Replaced by #WP68236-1

?
Manufacturer substitution
This part replaces 29839-4. Substitute parts can look different from the original.
$89.54 |
6% OFF Phone Price : $95.54
