Criterion
Bottom-Mount Refrigerator

Model # CFRR261WD1B Official Criterion bottom-mount refrigerator

Here are the diagrams and repair parts for Official Criterion CFRR261WD1B bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

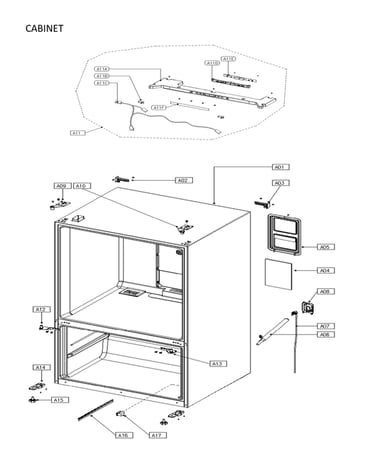

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 171 parts  |
Refrigerator Defrost Sensor (replaces 3014808900) 60148-0003400-01
#C02D

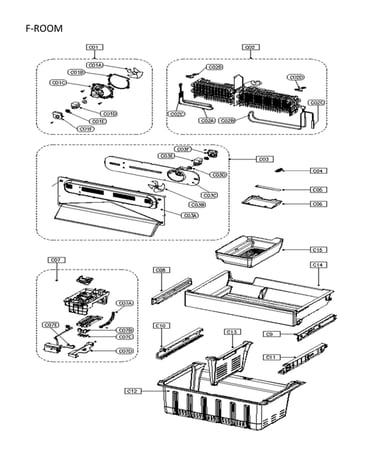

Freezer room diagram

Refrigerator defrost sensor (replaces 3014808900)

Part #60148-0003400-01

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Evaporator Fan Motor Assembly 30120-0030100-01
#C01

Freezer room diagram

Refrigerator evaporator fan motor assembly

Part #30120-0030100-01

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator 10-cube Ice Maker Assembly (replaces 3011483700, 30122-0041900-02) 30122-0041901-00
Refrigerator 10-cube ice maker assembly (replaces 3011483700, 30122-0041900-02)

Part #30122-0041901-00

The manufacturer no longer makes this part, and there's no substitute part

Cover Sens I/maker (10 Cube Icemaker)(not Replaceable)(model: 111.7302*711) 3011483700
#C07C

Freezer room diagram

Cover sens i/maker (10 cube icemaker)(not replaceable)(model: 111.7302*711)

Part #3011483700

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Evaporator Fan Motor 3015924900
#C01D

Freezer room diagram

Refrigerator evaporator fan motor

Part #3015924900

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Temperature Sensor 3014808400
#D04E

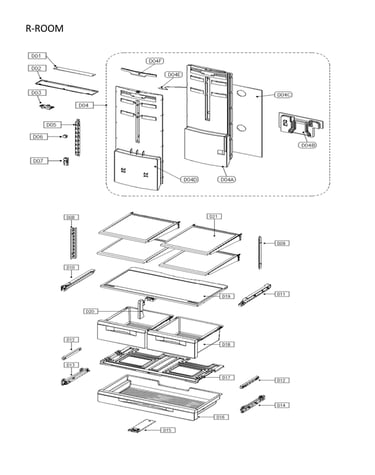

Refrigerator room diagram

Refrigerator temperature sensor

Part #3014808400

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Water Inlet Valve 60154-0004601-01
#B13A

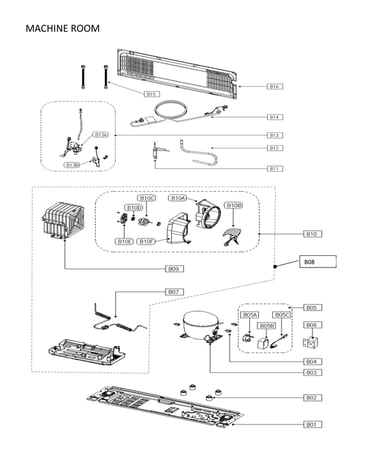

Machine room diagram

Refrigerator water inlet valve

Part #60154-0004601-01

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Condenser Fan Motor 3015920000
#B10C

Machine room diagram

Refrigerator condenser fan motor

Part #3015920000

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Freezer Door Slide Rail Assembly, Left 30122-0041200-01
#E08B

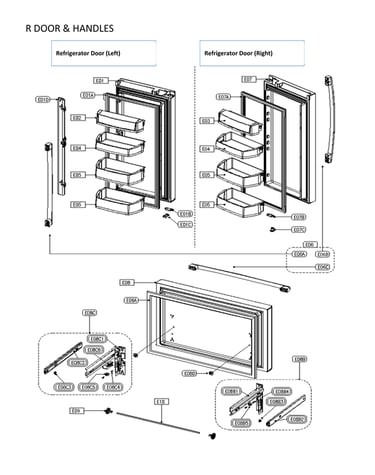

Refrig and frz doors & handles diagram

Refrigerator freezer door slide rail assembly, left

Part #30122-0041200-01

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Condenser Fan Motor Assembly (replaces 30185-0000900-01) 30185-0000900-03
#B10

Machine room diagram

Refrigerator condenser fan motor assembly (replaces 30185-0000900-01)

Part #30185-0000900-03

The manufacturer no longer makes this part, and there's no substitute part
