Craftsman
Front-Engine Lawn Tractor

Model # 917257740 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 917257740 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

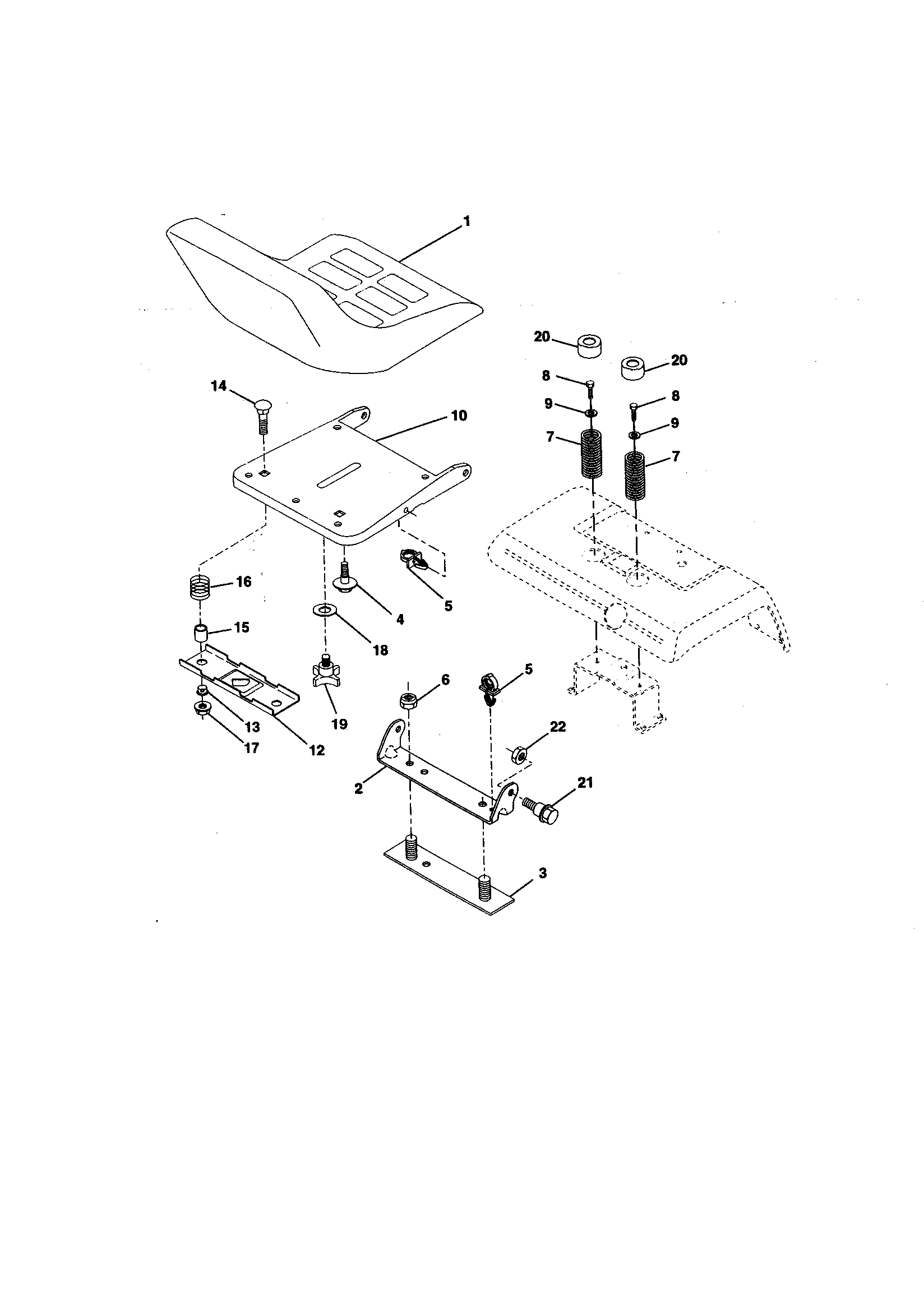

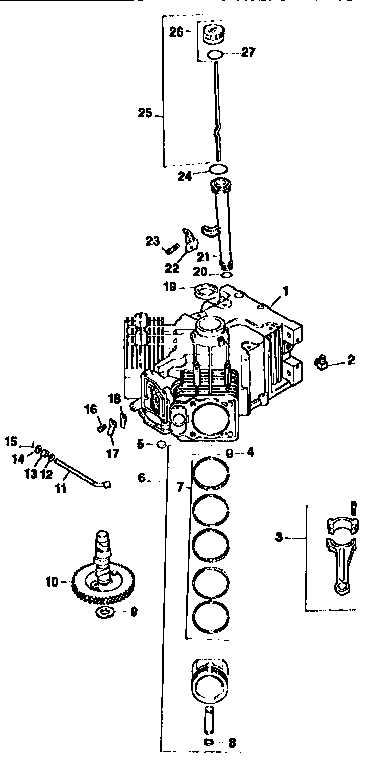

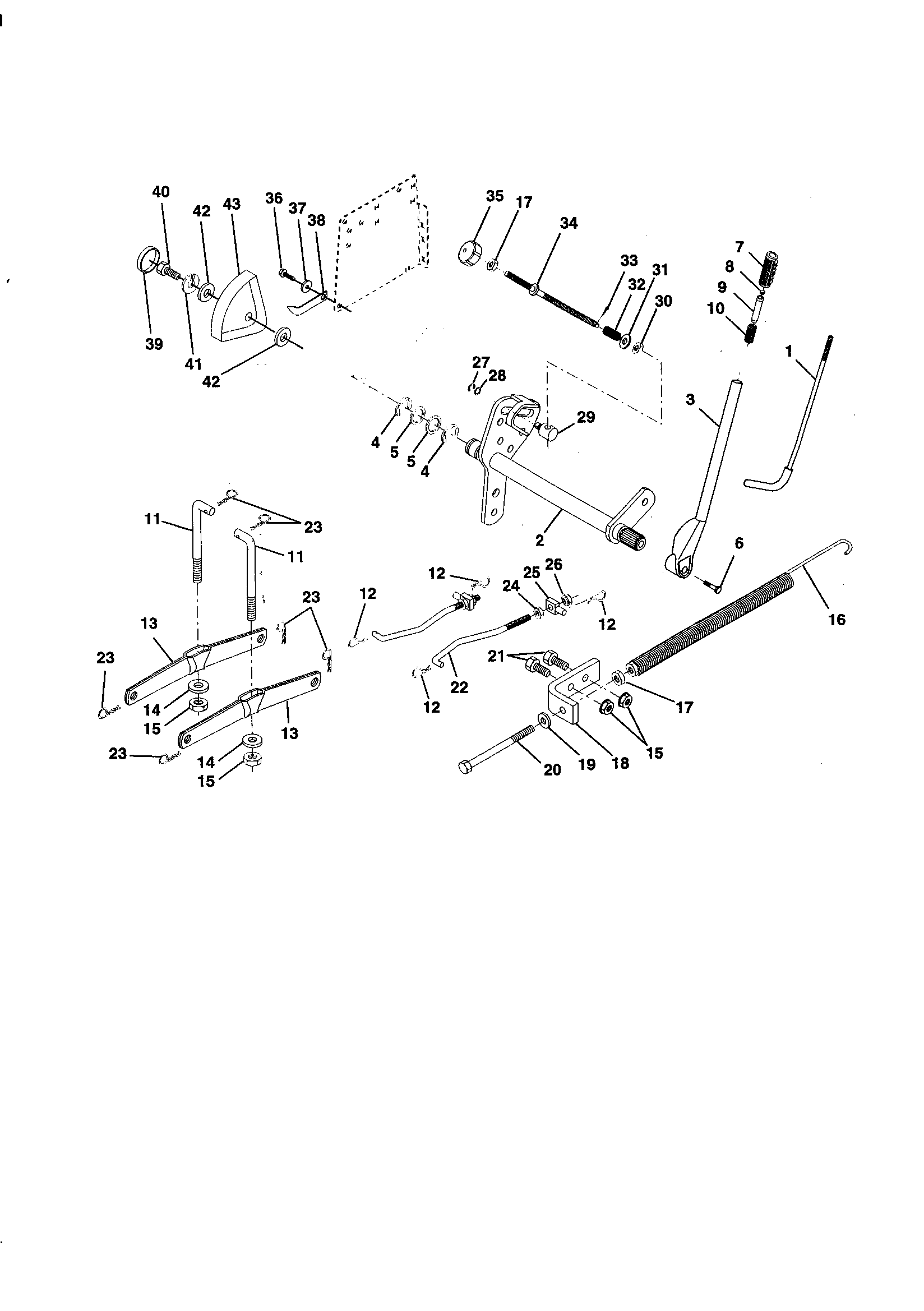

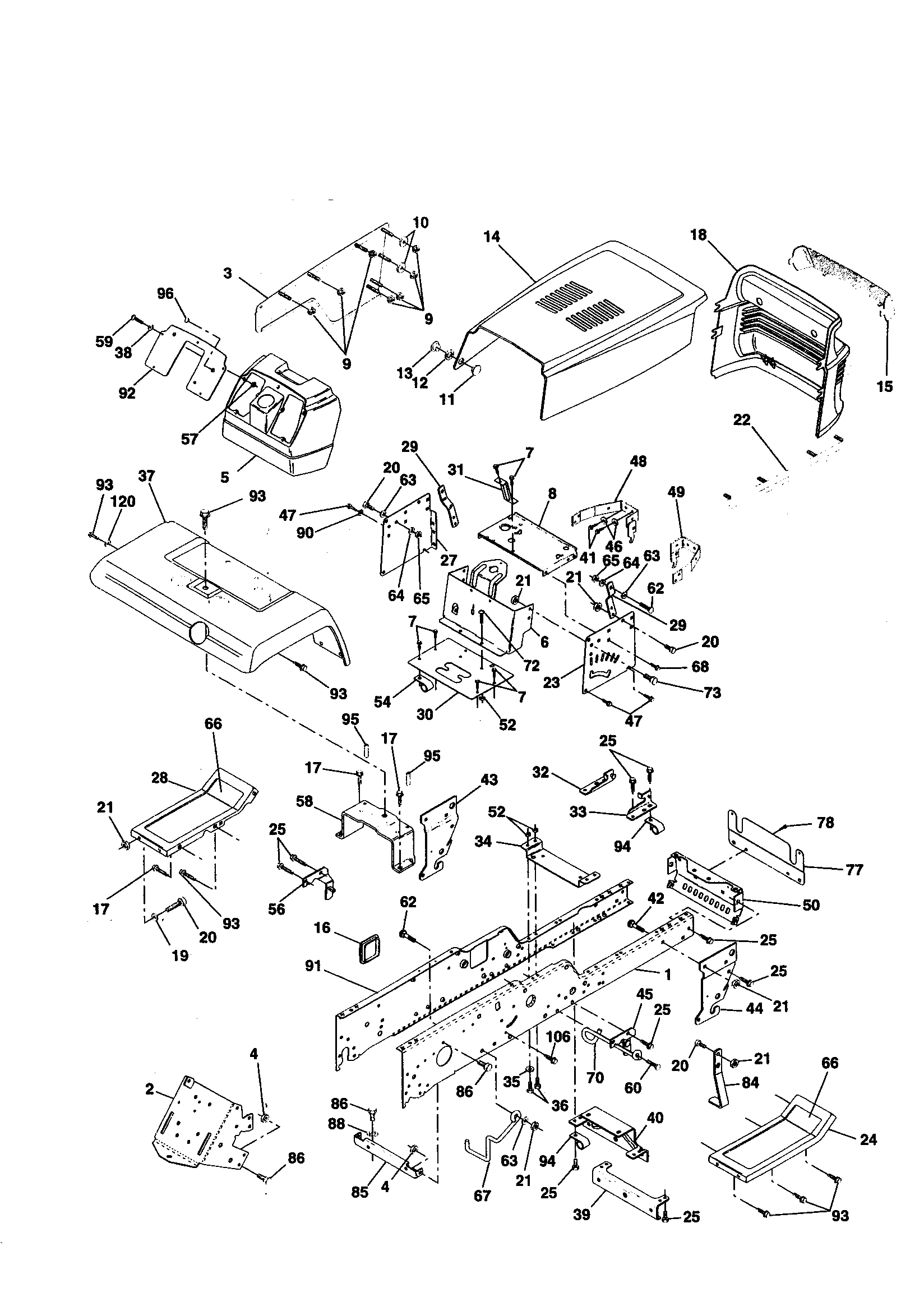

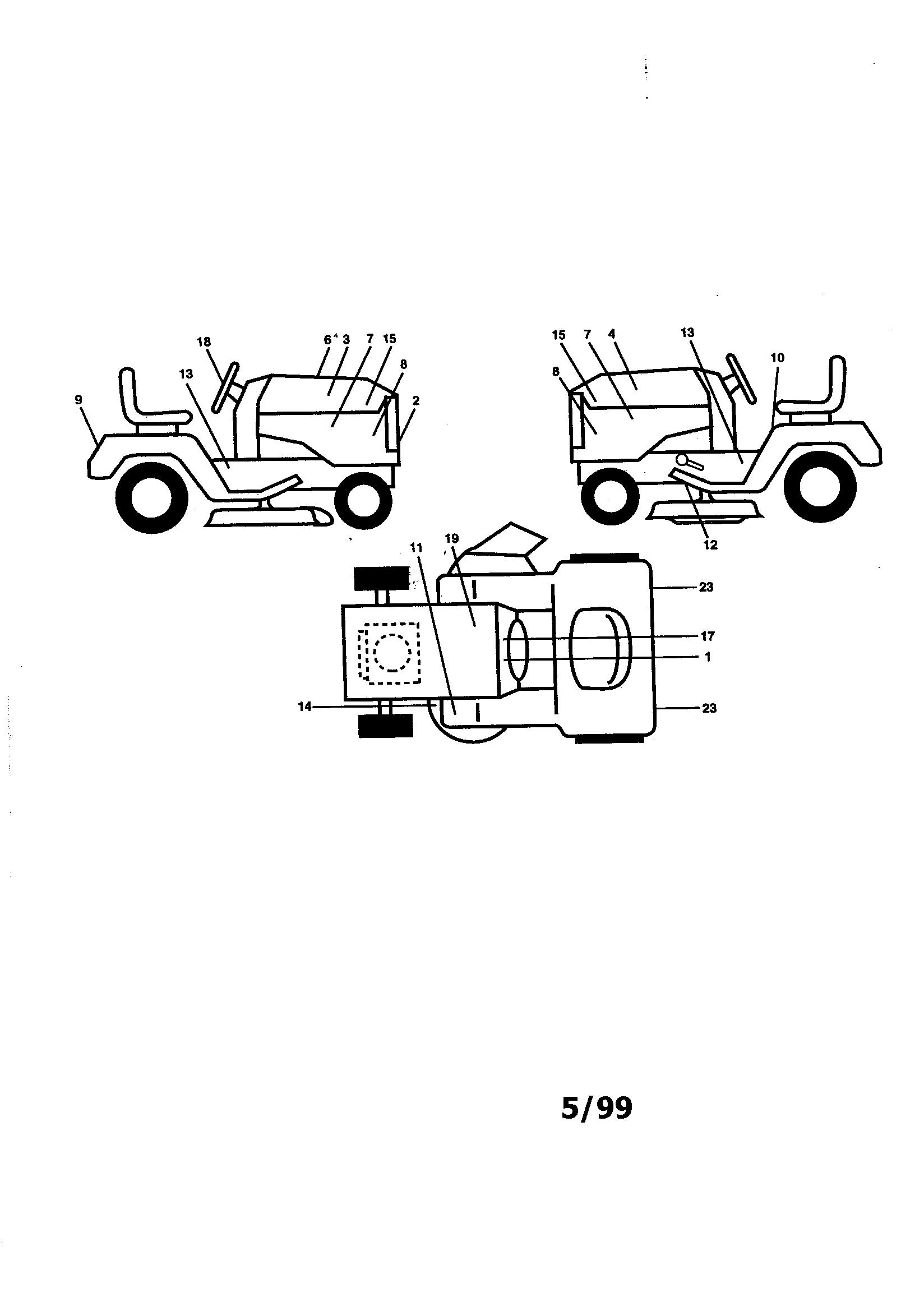

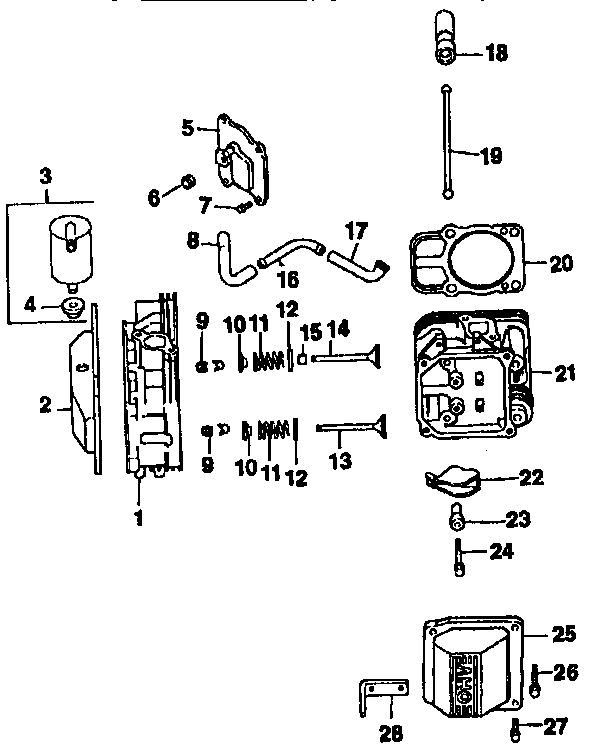

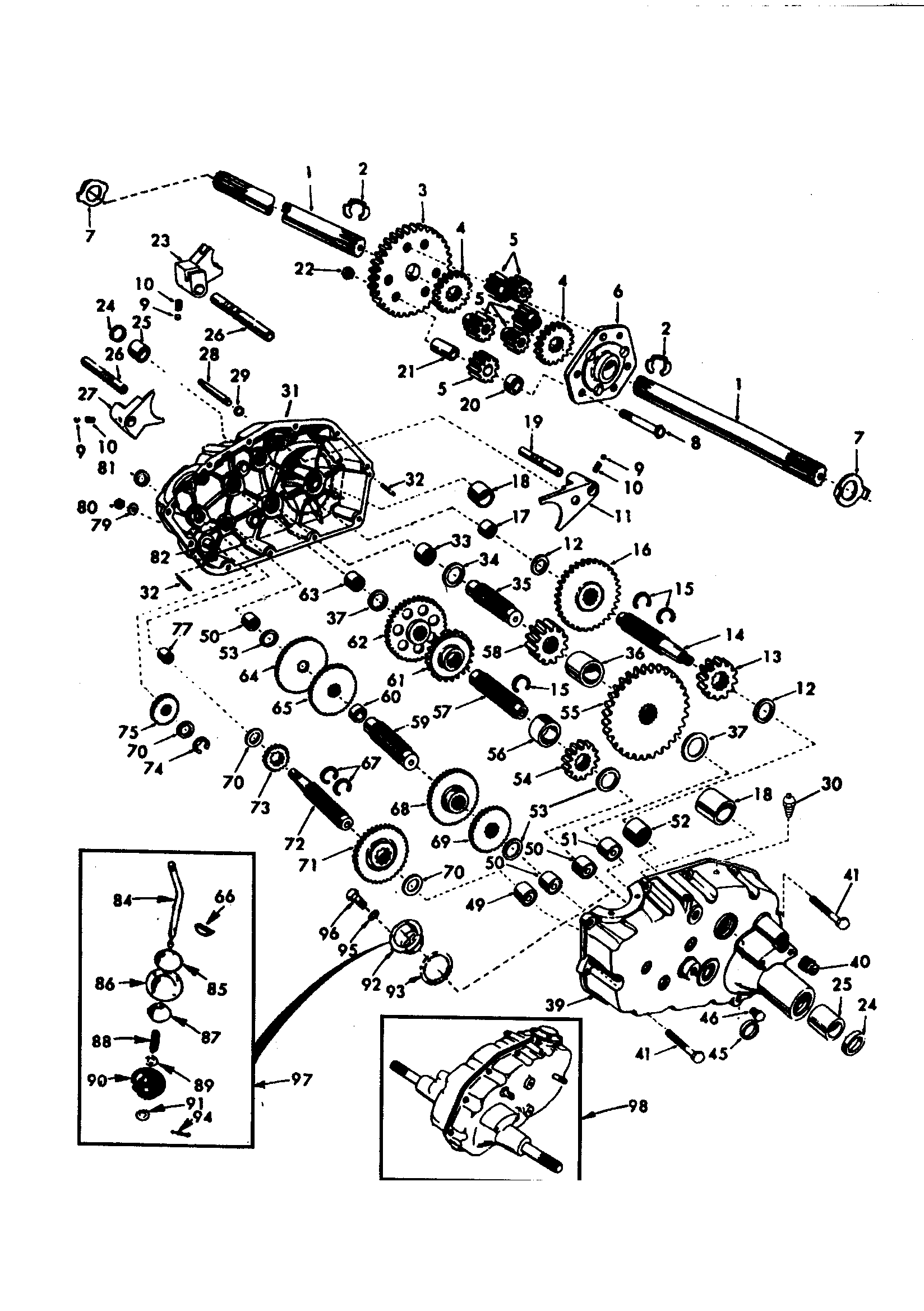

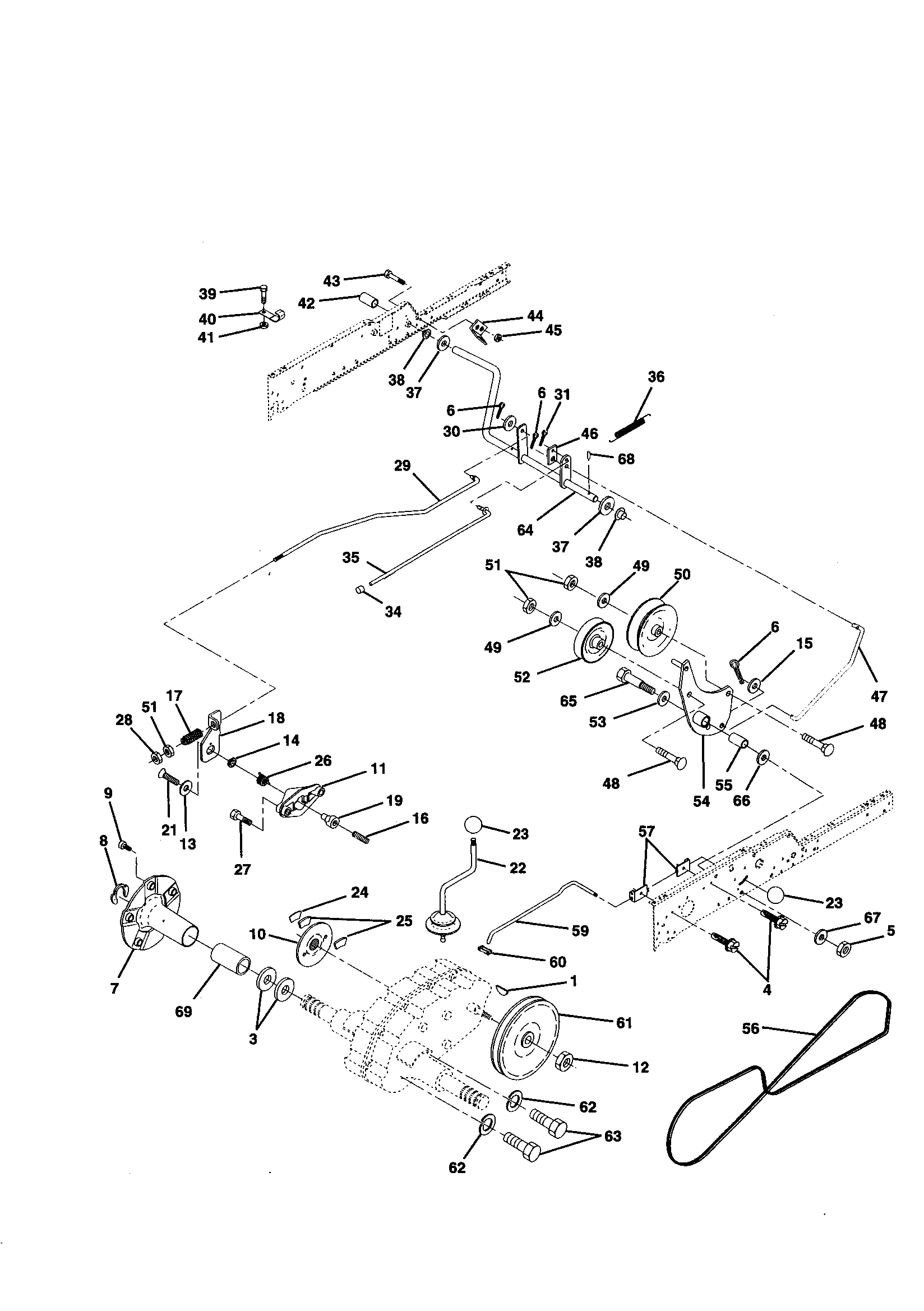

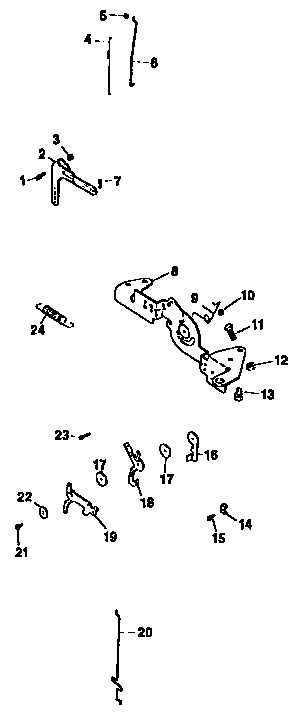

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 667 parts  |
Hub Cap 104757X
#8

Wheels and tires diagram

Hub cap

Part #104757X

Replaced by #532104757

?
Manufacturer substitution
This part replaces 104757X. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Wizard Lawn Tractor Axle Flange Bearing (replaces 532009040, 5320090-40, 532124959, 577203109, 5920h, 5920h1, P-1246, P-1622) 9040H
#7

Wheels and tires diagram

Wizard lawn tractor axle flange bearing (replaces 532009040, 5320090-40, 532124959, 577203109, 5920h, 5920h1, p-1246, p-1622)

Part #9040H

BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Screw 138776
#30

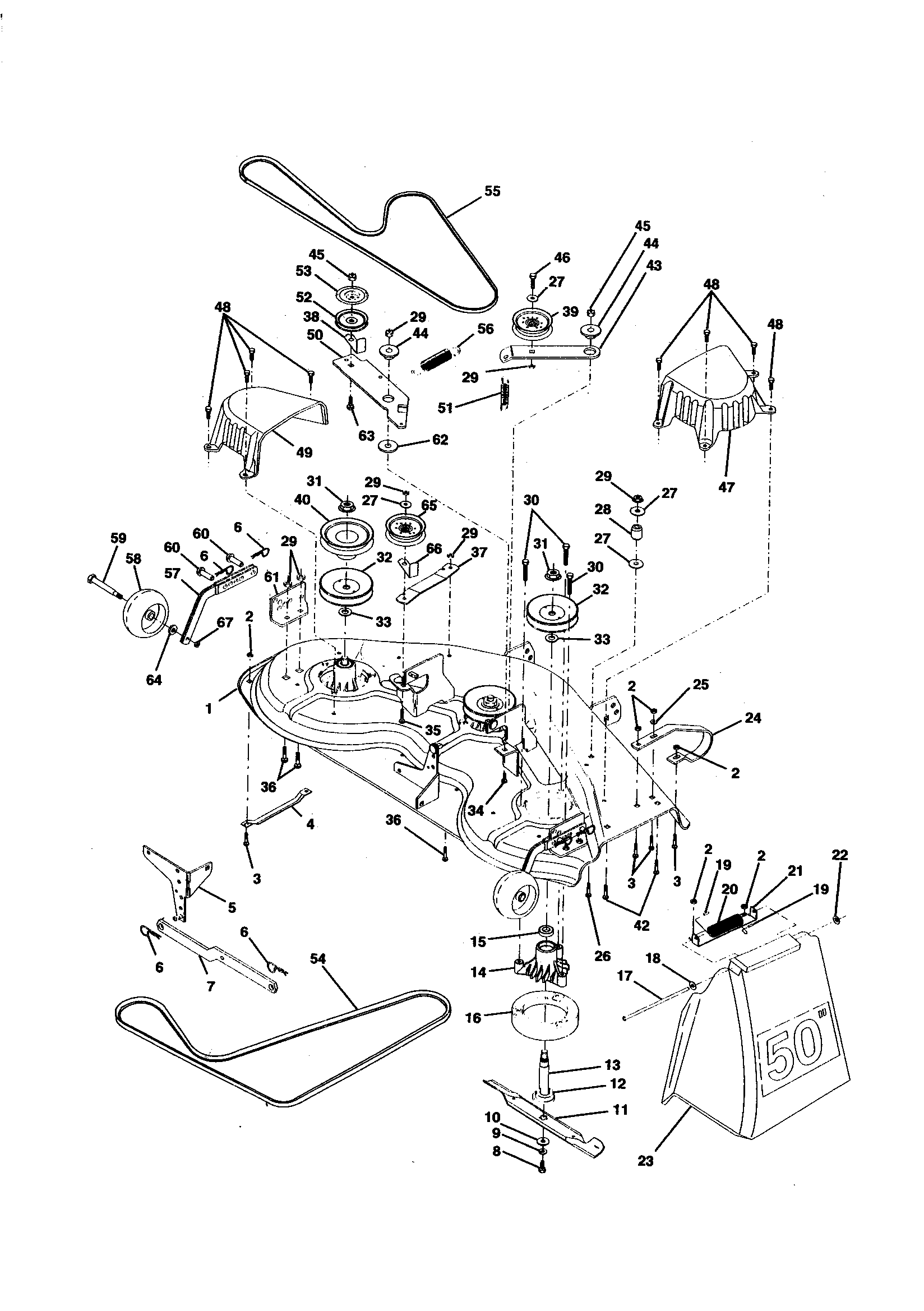

50" mower deck diagram

Screw

Part #138776

Replaced by #584953901

?
Manufacturer substitution
This part replaces 138776. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Solenoid 138406
#43

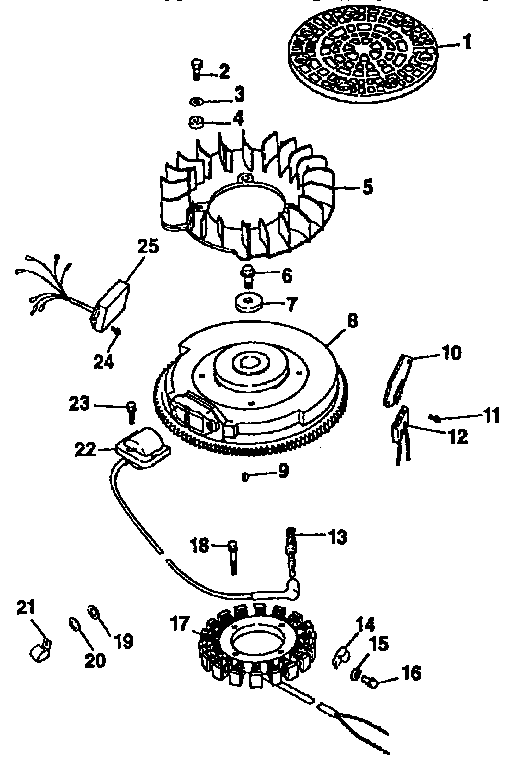

Electrical diagram

Solenoid

Part #138406

Replaced by #532146154

?
Manufacturer substitution
This part replaces 138406. Substitute parts can look different from the original.
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Switch 140404
#50

Electrical diagram

Switch

Part #140404

Replaced by #582107601

?
Manufacturer substitution
This part replaces 140404. Substitute parts can look different from the original.
BEST SELLER
$30.76 |
16% OFF Phone Price : $36.76
In Stock
Molded Ignition Key 140403
#33

Electrical diagram

Molded ignition key

Part #140403

Replaced by #532140403

?
Manufacturer substitution
This part replaces 140403. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Shoulder Bolt 137644
#59

50" mower deck diagram

Shoulder bolt

Part #137644

Replaced by #596434404

?
Manufacturer substitution
This part replaces 137644. Substitute parts can look different from the original.
BEST SELLER
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Lawn Tractor Bearing 3366R
#27

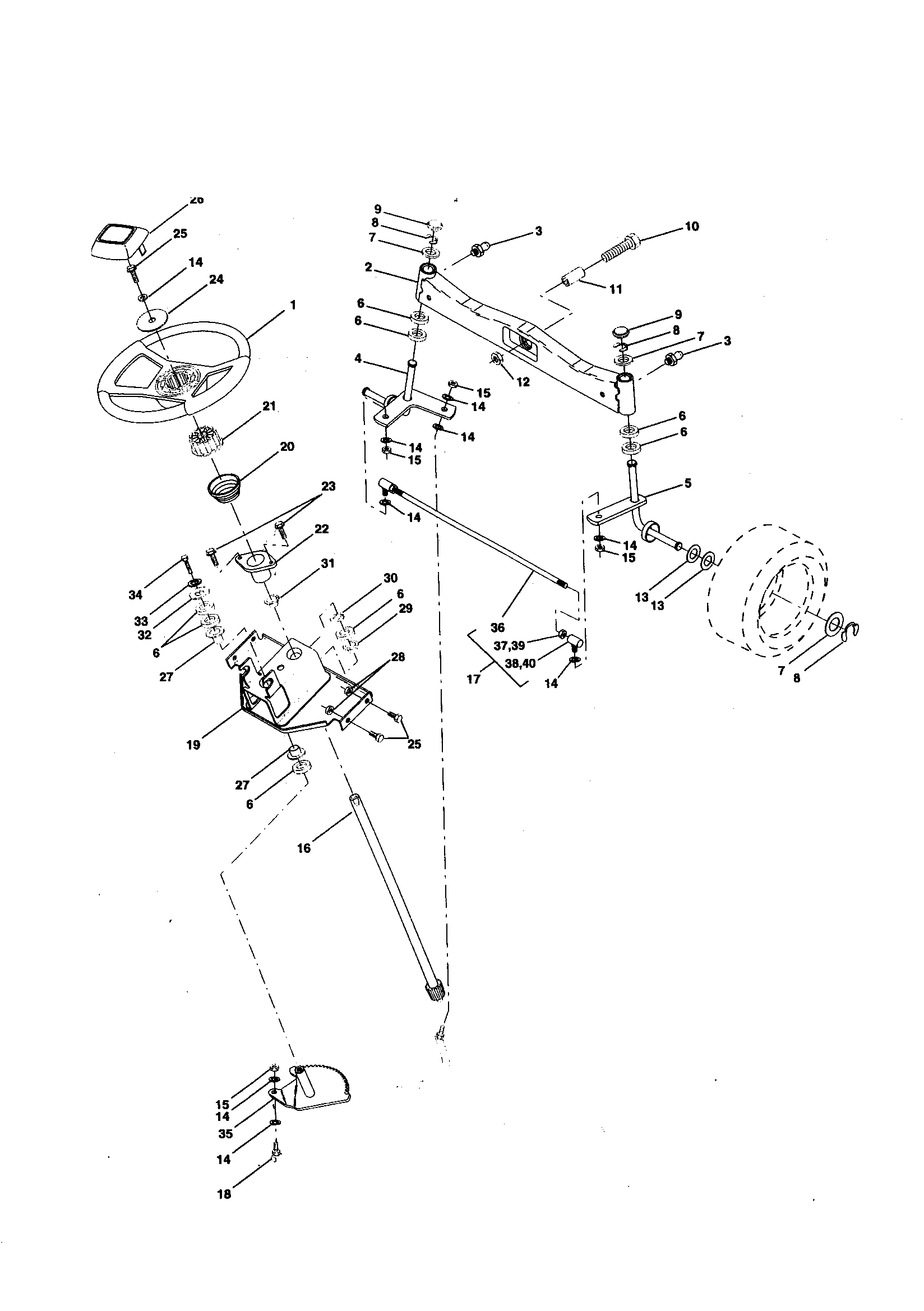

Steering assembly diagram

Lawn tractor bearing

Part #3366R

Replaced by #532003366

?
Manufacturer substitution
This part replaces 3366R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Idler Pulley 139245
#52

50" mower deck diagram

Lawn tractor idler pulley

Part #139245

Replaced by #532139245

?
Manufacturer substitution
This part replaces 139245. Substitute parts can look different from the original.
BEST SELLER
$30.45 |
16% OFF Phone Price : $36.45
In Stock

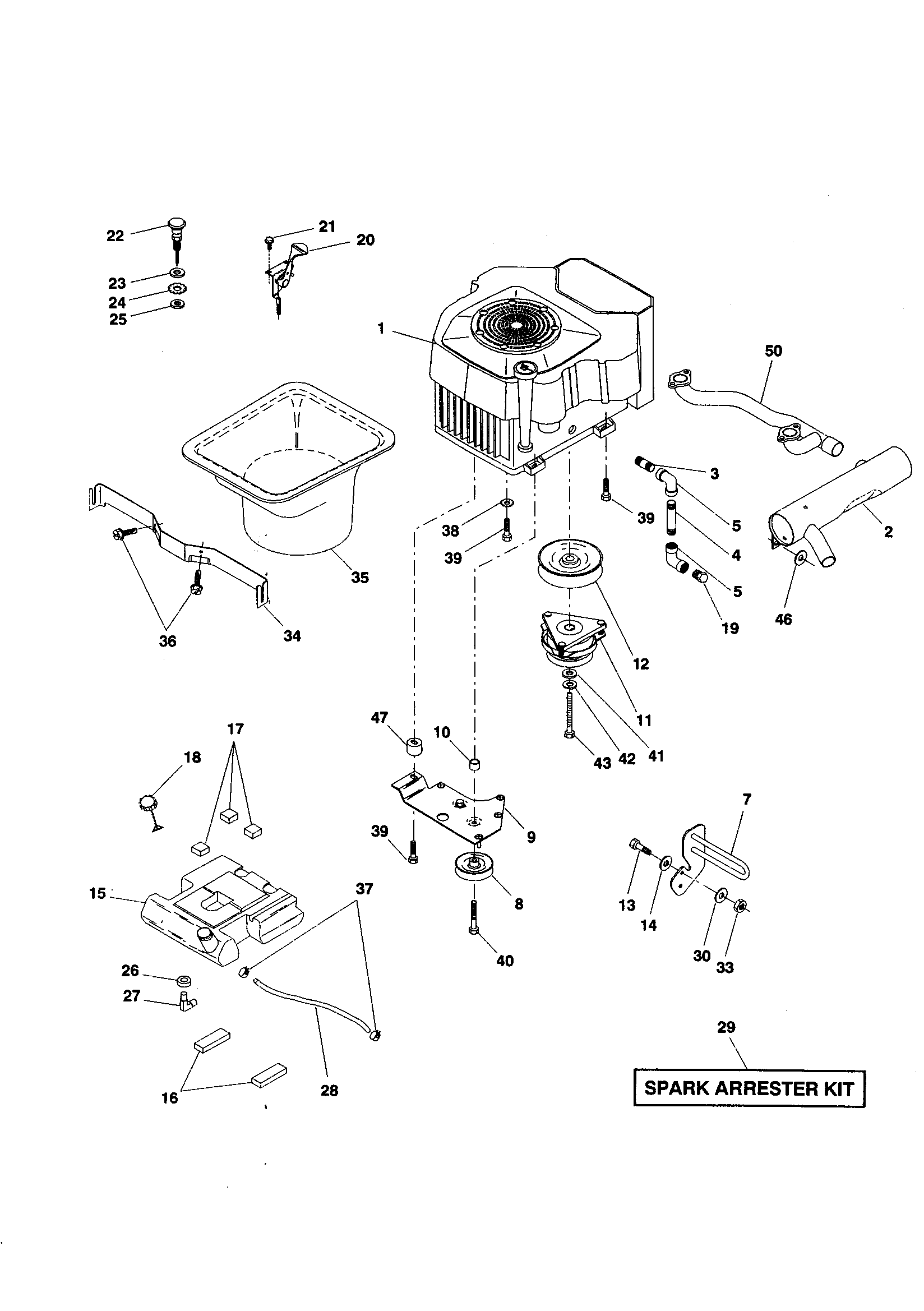

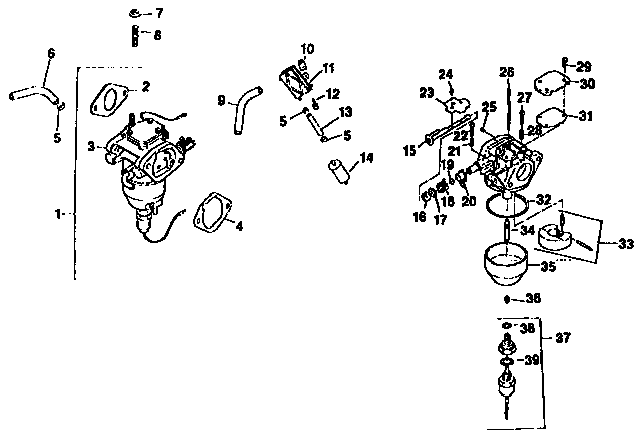

Gas Outlet Bushing 3645J
#26

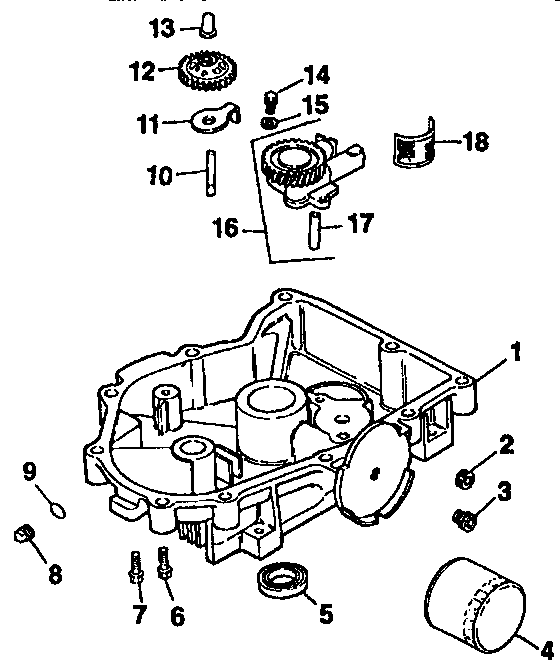

Engine diagram

Gas outlet bushing

Part #3645J

Replaced by #532003645

?
Manufacturer substitution
This part replaces 3645J. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
