Gibson
Room Air Conditioner

Model # AL05A6ESBB Official Gibson room air conditioner - lg34087090

Here are the diagrams and repair parts for Official Gibson AL05A6ESBB room air conditioner - lg34087090, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

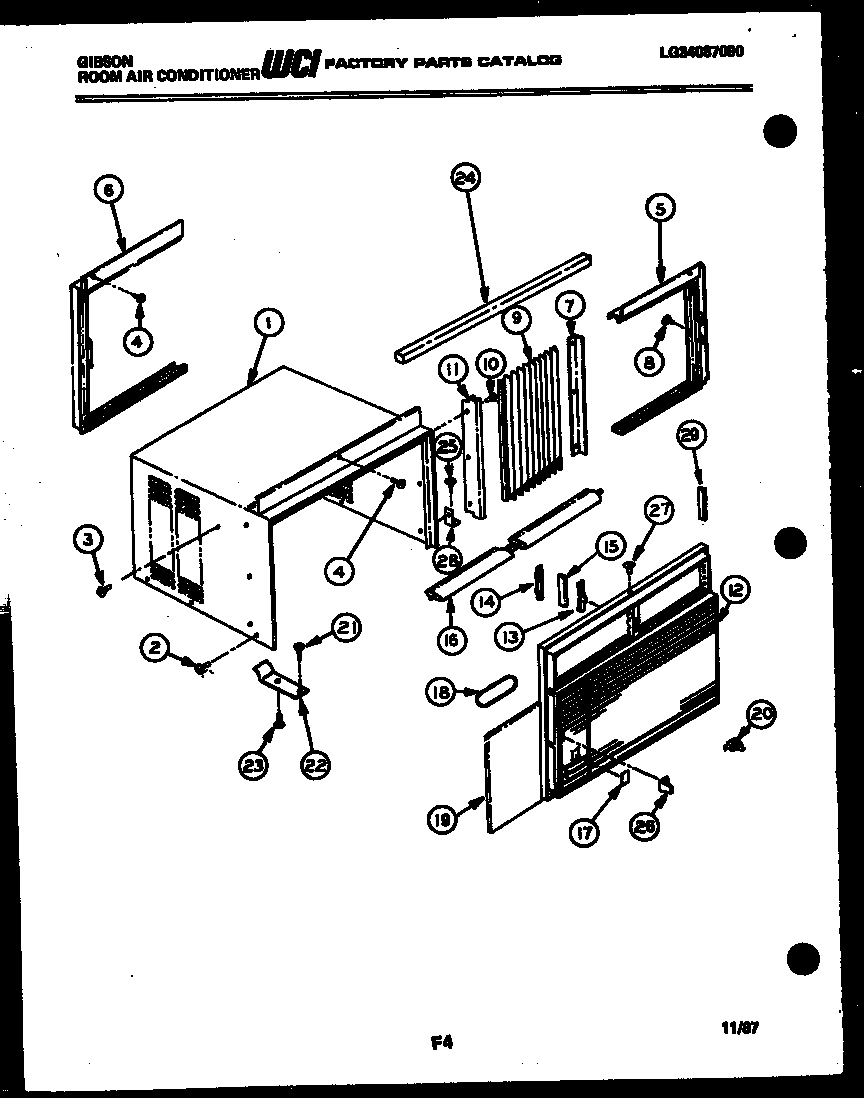

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Filter G84701
#10

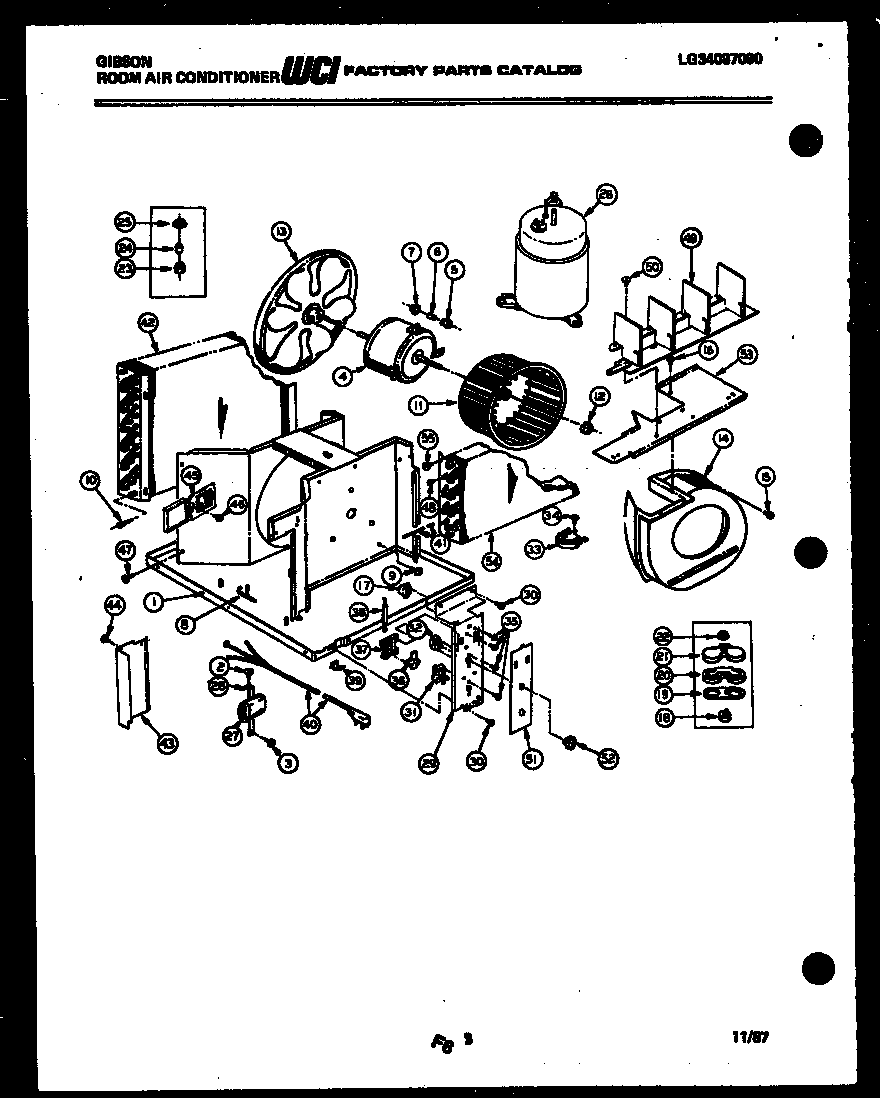

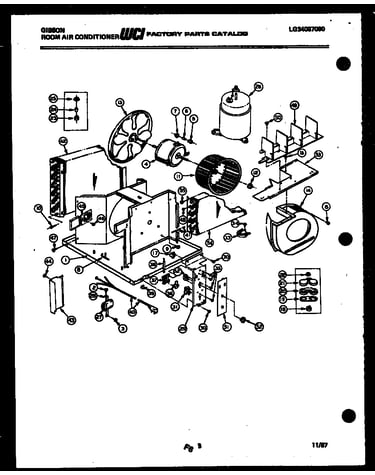

Electrical and air handling parts diagram

Filter

Part #G84701

Replaced by #5300265301

?
Manufacturer substitution
This part replaces G84701. Substitute parts can look different from the original.
$212.62
In Stock
Decor. Contrl Panl 3015307
#51

Electrical and air handling parts diagram

Decor. contrl panl

Part #3015307

The manufacturer no longer makes this part, and there's no substitute part

Condenser G516956
#42

Electrical and air handling parts diagram

Condenser

Part #G516956

The manufacturer no longer makes this part, and there's no substitute part

Switch G513350
#31

Electrical and air handling parts diagram

Switch

Part #G513350

The manufacturer no longer makes this part, and there's no substitute part

Panel G520900
#29

Electrical and air handling parts diagram

Panel

Part #G520900

The manufacturer no longer makes this part, and there's no substitute part

Guide G137178
#37

Electrical and air handling parts diagram

Guide

Part #G137178

The manufacturer no longer makes this part, and there's no substitute part

Terminal Cover G516947
#20

Electrical and air handling parts diagram

Terminal cover

Part #G516947

The manufacturer no longer makes this part, and there's no substitute part

Cord G506345-25
#40

Electrical and air handling parts diagram

Cord

Part #G506345-25

The manufacturer no longer makes this part, and there's no substitute part

Wheel G512602
#11

Electrical and air handling parts diagram

Wheel

Part #G512602

The manufacturer no longer makes this part, and there's no substitute part

Nut G522598
#25

Electrical and air handling parts diagram

Nut

Part #G522598

The manufacturer no longer makes this part, and there's no substitute part
