Model # SHX9PT55UC/D5 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHX9PT55UC/D5 dishwasher, as well as links to manuals and error code tables, if available.

By Schematic
By Part

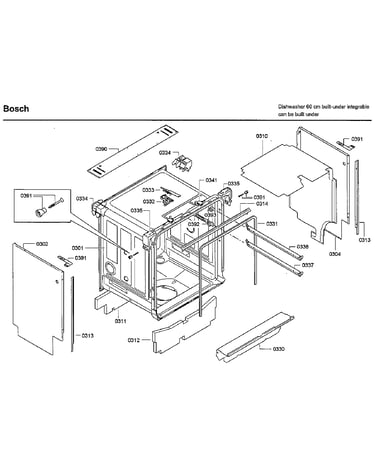

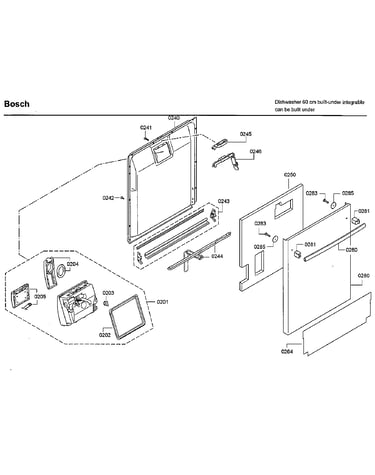

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forSHX9PT55UC/D5 Dishwasher

  • Dishwasher Hose Clamp 00172272
    #451

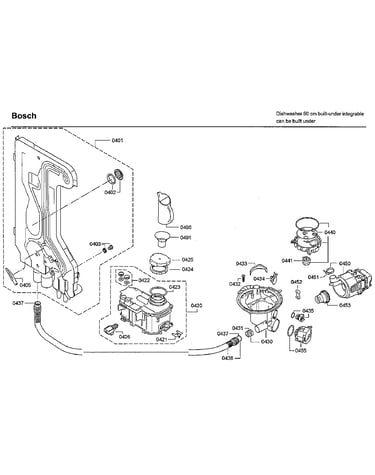

    Pump diagram

    Dishwasher hose clamp

    Part #00172272

    BEST SELLER
    $28.11 |
    18% OFF Phone Price : $34.11
    In Stock
  • Thermador Dishwasher Circulation Pump With Heater 00753351
    #450

    Pump diagram

    Thermador dishwasher circulation pump with heater

    Part #00753351

    BEST SELLER
    $240.37 |
    5% OFF Phone Price : $252.37
    In Stock
  • Dishwasher Drain Pump 00620774
    #455

    Pump diagram

    Dishwasher drain pump

    Part #00620774

    5 (1)
    BEST SELLER
    $66.09 |
    8% OFF Phone Price : $72.09
    In Stock
  • Dishwasher Dishrack Roller, Lower 00611475
    #621

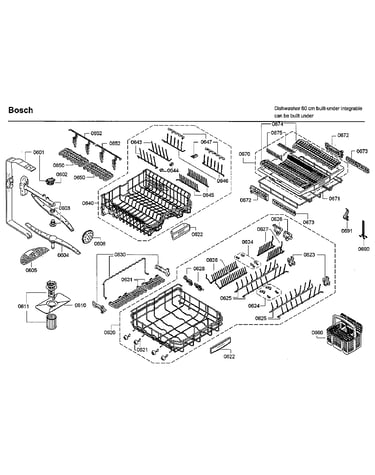

    Baskets diagram

    Dishwasher dishrack roller, lower

    Part #00611475

    4.57 (7)
    BEST SELLER
    $14.27 |
    12% OFF Phone Price : $16.27
    In Stock
  • Dishwasher Turbidity Sensor 00611323
    #435

    Pump diagram

    Dishwasher turbidity sensor

    Part #00611323

    4 (1)
    BEST SELLER
    $38.75 |
    13% OFF Phone Price : $44.75
    In Stock
  • Dishwasher Sump 00668102
    #430

    Pump diagram

    Dishwasher sump

    Part #00668102

    BEST SELLER
    $77.51 |
    5% OFF Phone Price : $81.17
    In Stock
  • Dishwasher Door Cable Roller 00623536
    #555

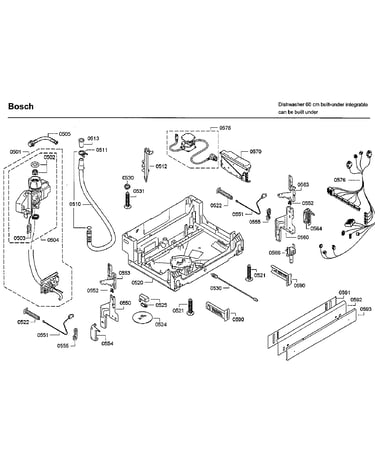

    Base diagram

    Dishwasher door cable roller

    Part #00623536

    5 (1)
    $21.44 |
    22% OFF Phone Price : $27.44
    In Stock
  • Dishwasher Sump Hose 00668104
    #436

    Pump diagram

    Dishwasher sump hose

    Part #00668104

    This item is not returnable
    $9.49 |
    10% OFF Phone Price : $10.49
    In Stock
  • Dishwasher Check Valve 00611320
    #431

    Pump diagram

    Dishwasher check valve

    Part #00611320

    This item is not returnable
    $24.20 |
    20% OFF Phone Price : $30.20
    In Stock
  • Dishwasher Circulation Pump Micro Filter 00645038
    #611

    Baskets diagram

    Dishwasher circulation pump micro filter

    Part #00645038

    5 (1)
    $37.73 |
    14% OFF Phone Price : $43.73
    In Stock
