Model # 25360722013 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 25360722013 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Filter Drier 216938601
#4

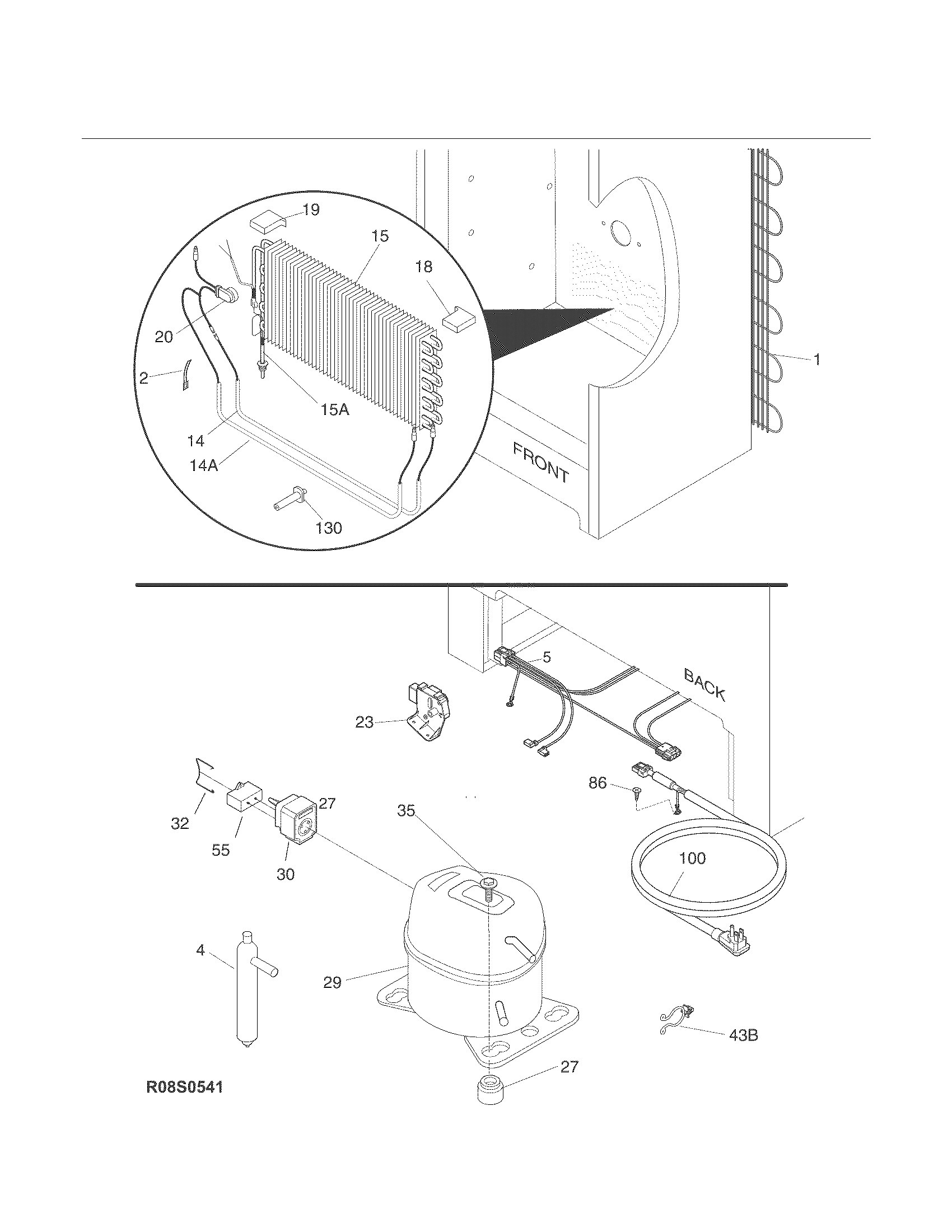

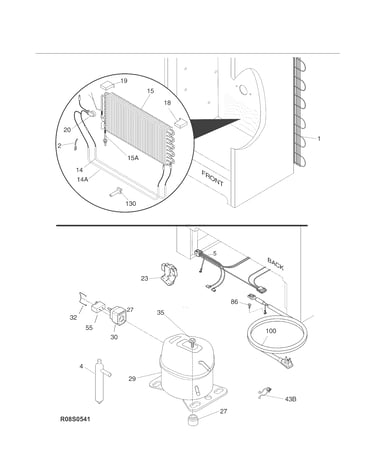

System diagram

Filter drier

Part #216938601

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216938601. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Freezer Evaporator 297414900
#15

System diagram

Freezer evaporator

Part #297414900

Replaced by #297414901

?
Manufacturer substitution
This part replaces 297414900. Substitute parts can look different from the original.
BEST SELLER
$87.43 |
6% OFF Phone Price : $93.43
In Stock
Refrigerator Heat Exchange 297440900
#15A

System diagram

Refrigerator heat exchange

Part #297440900

Replaced by #297217900

?
Manufacturer substitution
This part replaces 297440900. Substitute parts can look different from the original.
BEST SELLER
$60.21 |
9% OFF Phone Price : $66.21
In Stock
Freezer Door Gasket 216522359
#1

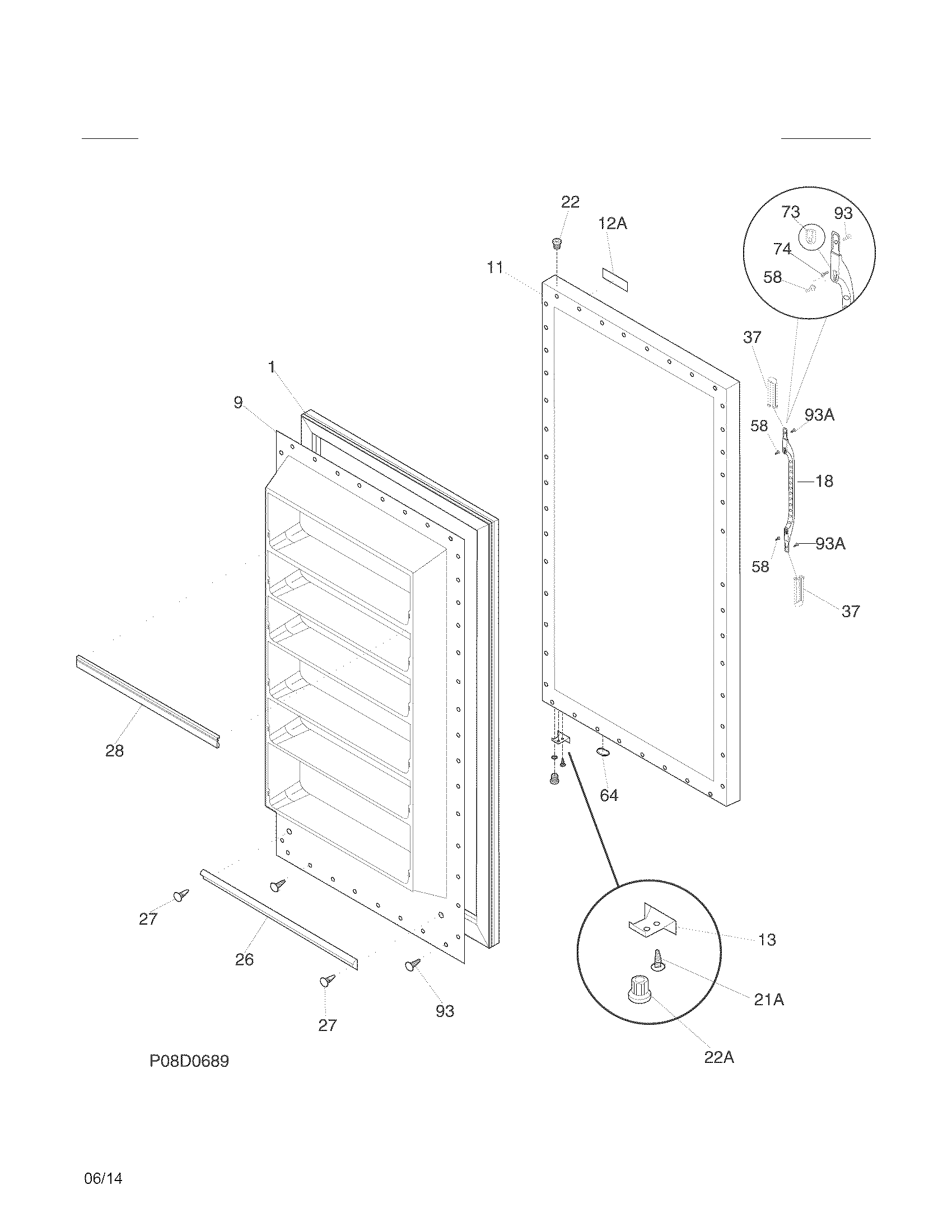

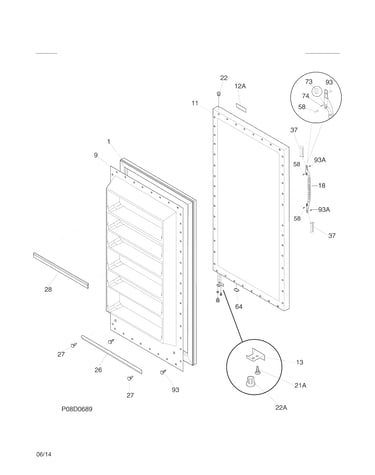

Door diagram

Freezer door gasket

Part #216522359

Replaced by #5304507200

?
Manufacturer substitution
This part replaces 216522359. Substitute parts can look different from the original.
BEST SELLER
$116.27 |
9% OFF Phone Price : $128.27
In Stock
Freezer Door Closer Bearing 216503300
#26

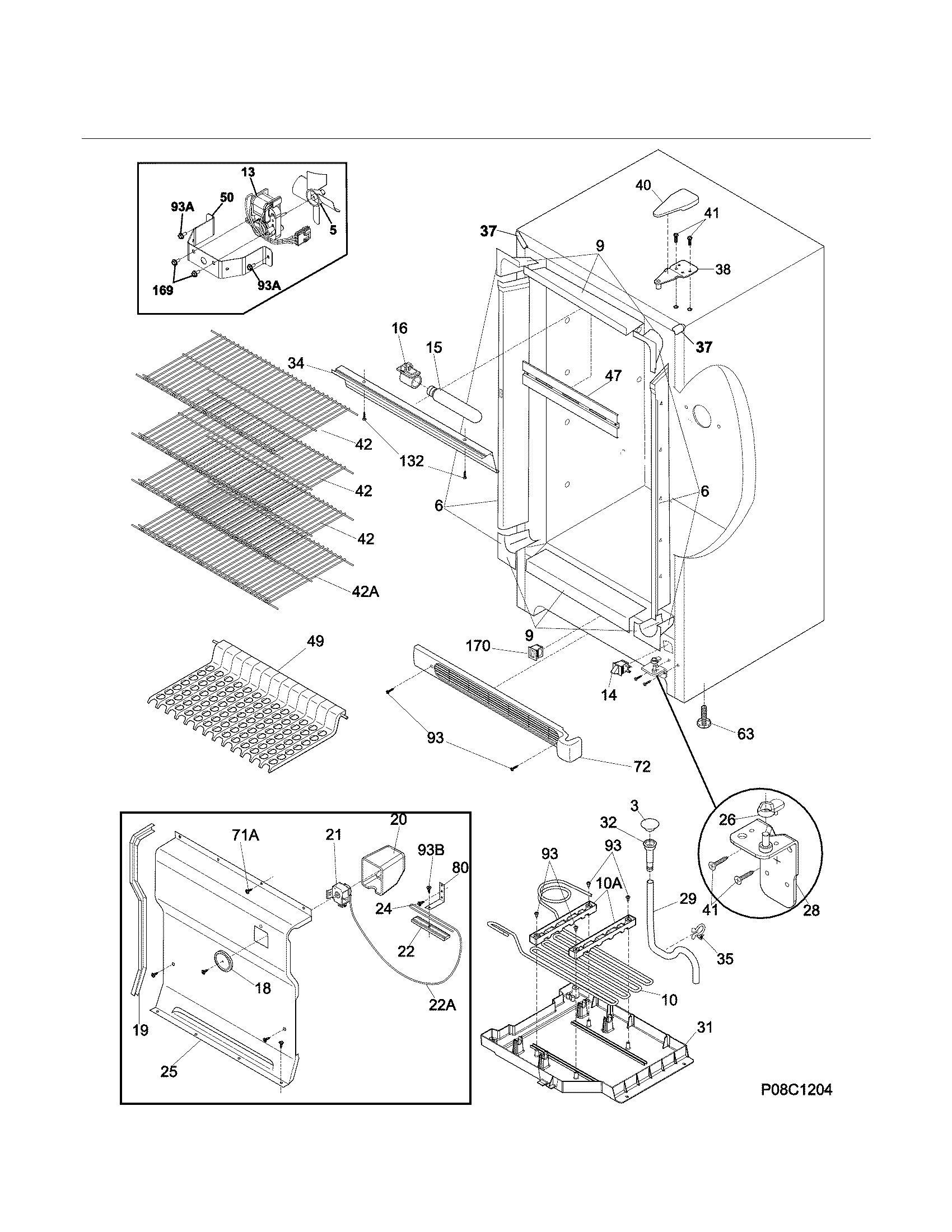

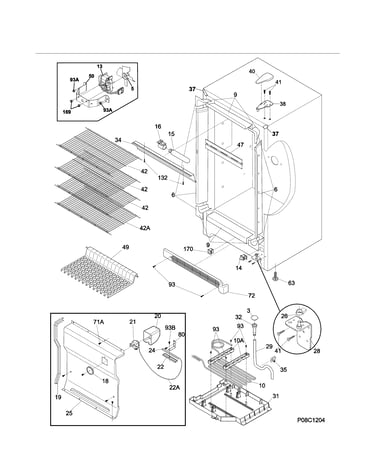

Cabinet diagram

Freezer door closer bearing

Part #216503300

BEST SELLER
This item is not returnable
$8.49 |
11% OFF Phone Price : $9.49
In Stock
Freezer Compressor 216966300
#29

System diagram

Freezer compressor

Part #216966300

Replaced by #5304507767

?
Manufacturer substitution
This part replaces 216966300. Substitute parts can look different from the original.
BEST SELLER
$362.44 |
$12.00 OFF Phone Price : $374.44
In Stock
Appliance Leveling Leg (replaces 134158000, 7216396900) 216396900
#63

Cabinet diagram

Appliance leveling leg (replaces 134158000, 7216396900)

Part #216396900

BEST SELLER
$20.04 |
23% OFF Phone Price : $26.04
In Stock
Freezer Door Hinge Bearing 216970800
#22

Door diagram

Freezer door hinge bearing

Part #216970800

Replaced by #216970802

?
Manufacturer substitution
This part replaces 216970800. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$11.09 |
15% OFF Phone Price : $13.09
In Stock
Freezer Door Hinge, Upper 297283800
#38

Cabinet diagram

Freezer door hinge, upper

Part #297283800

Replaced by #297283803

?
Manufacturer substitution
This part replaces 297283800. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$18.08 |
10% OFF Phone Price : $20.08
In Stock
Kelvinator Freezer Door Handle Mounting Block (replaces 218396701) 218396700
#73

Door diagram

Kelvinator freezer door handle mounting block (replaces 218396701)

Part #218396700

$36.46 |
14% OFF Phone Price : $42.46
In Stock
