GE
Side-By-Side Refrigerator

Model # PHG25MGTAFBB Official GE refrigerator - t series

Here are the diagrams and repair parts for Official GE PHG25MGTAFBB refrigerator - t series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

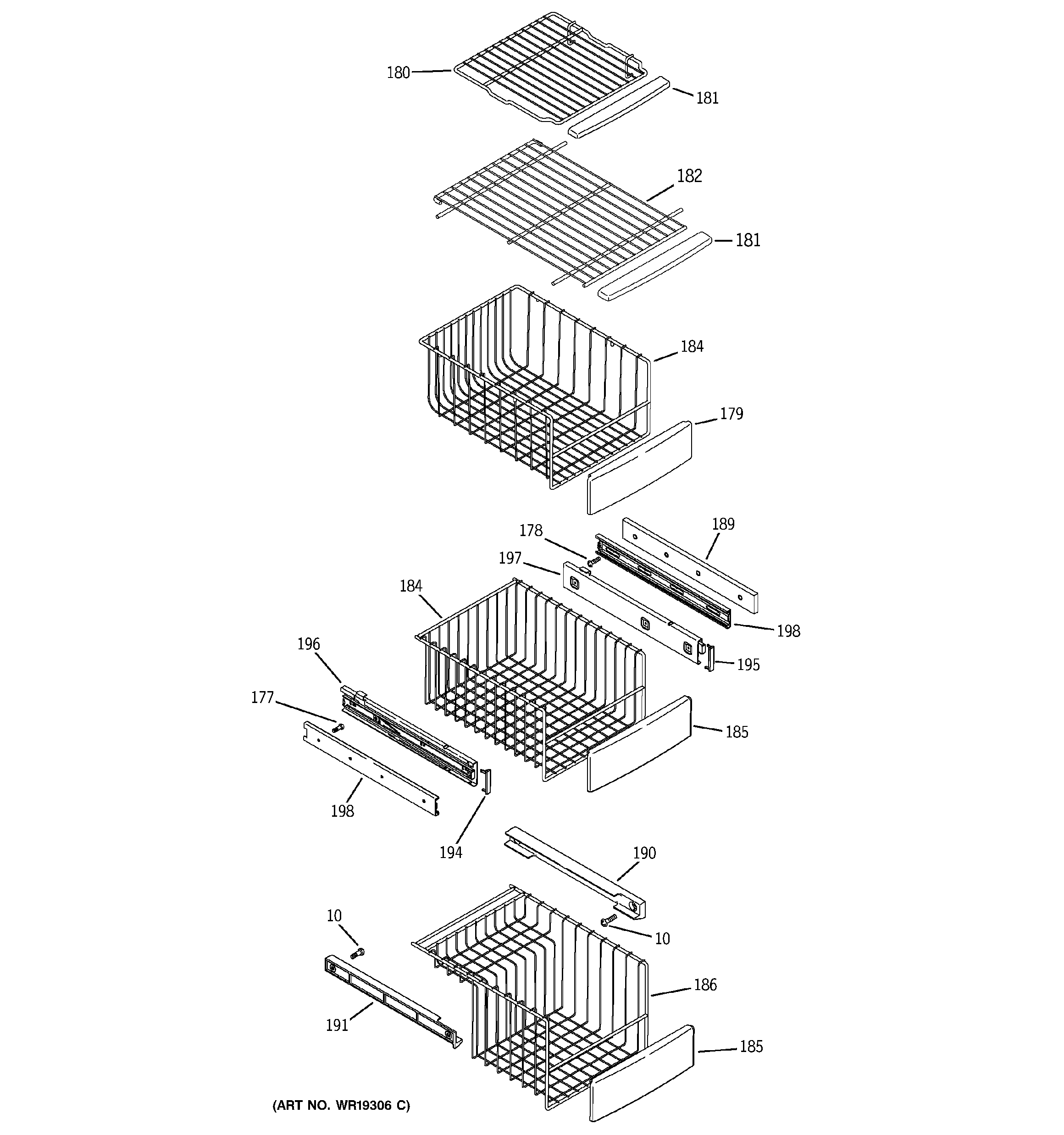

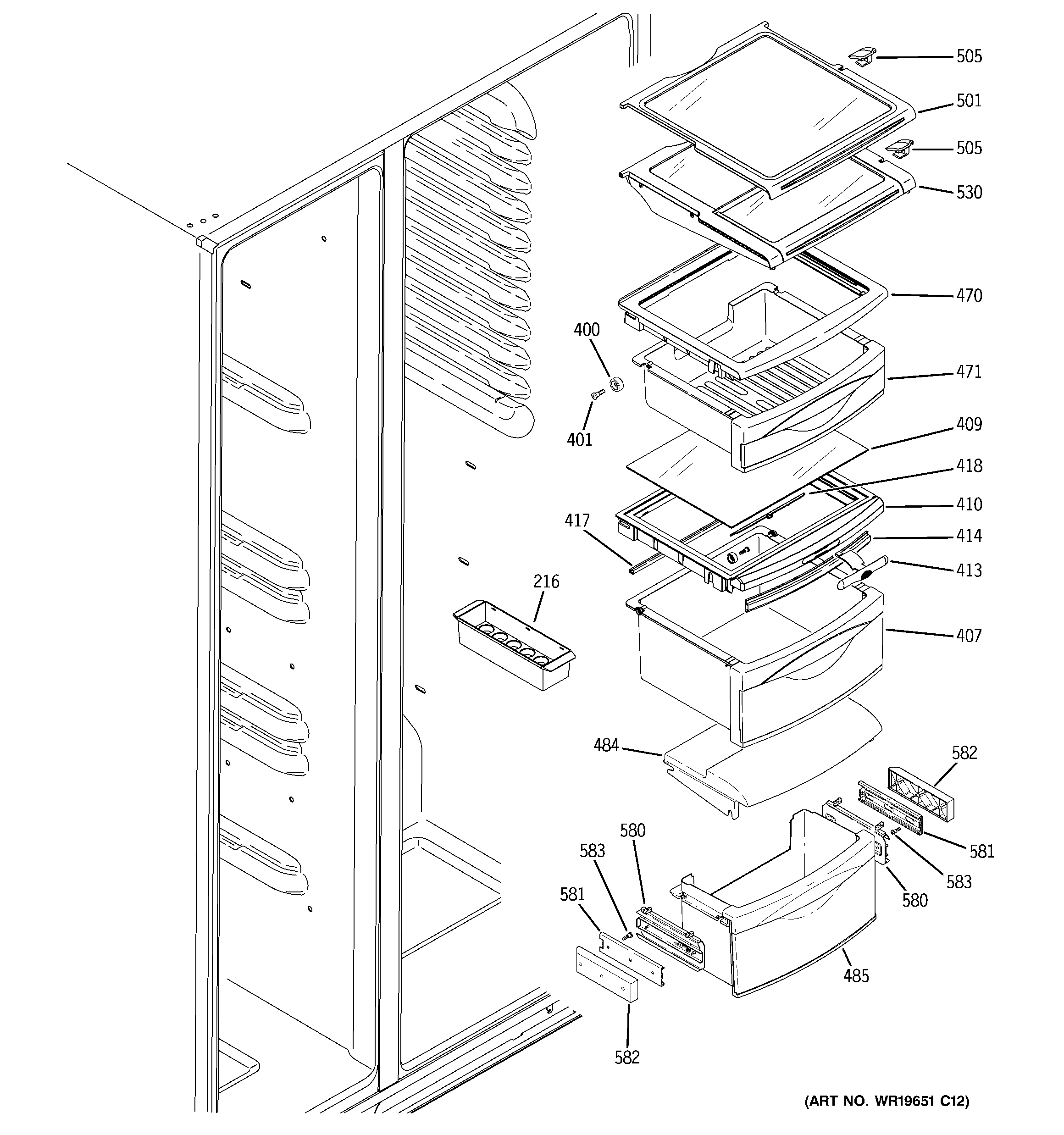

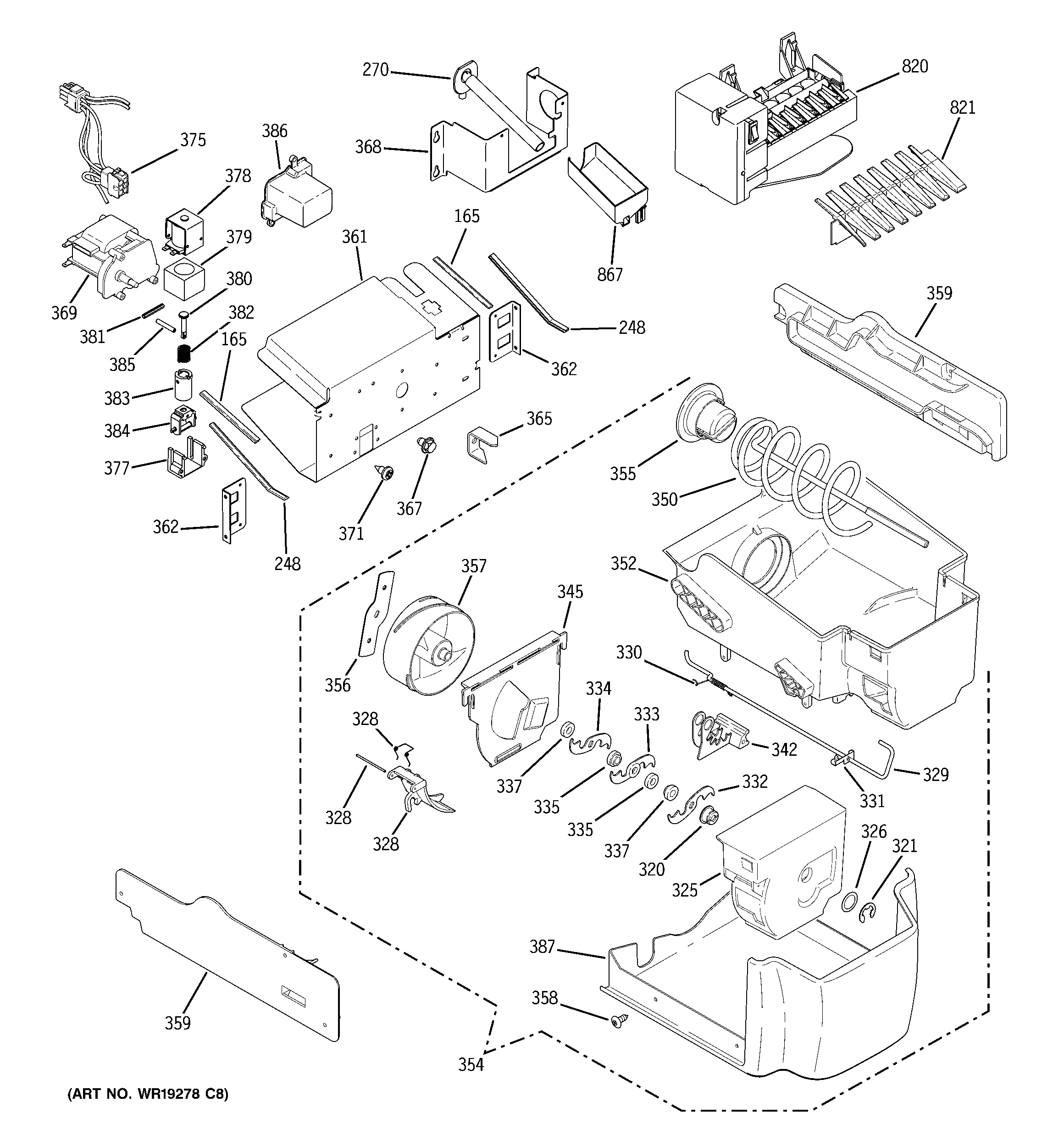

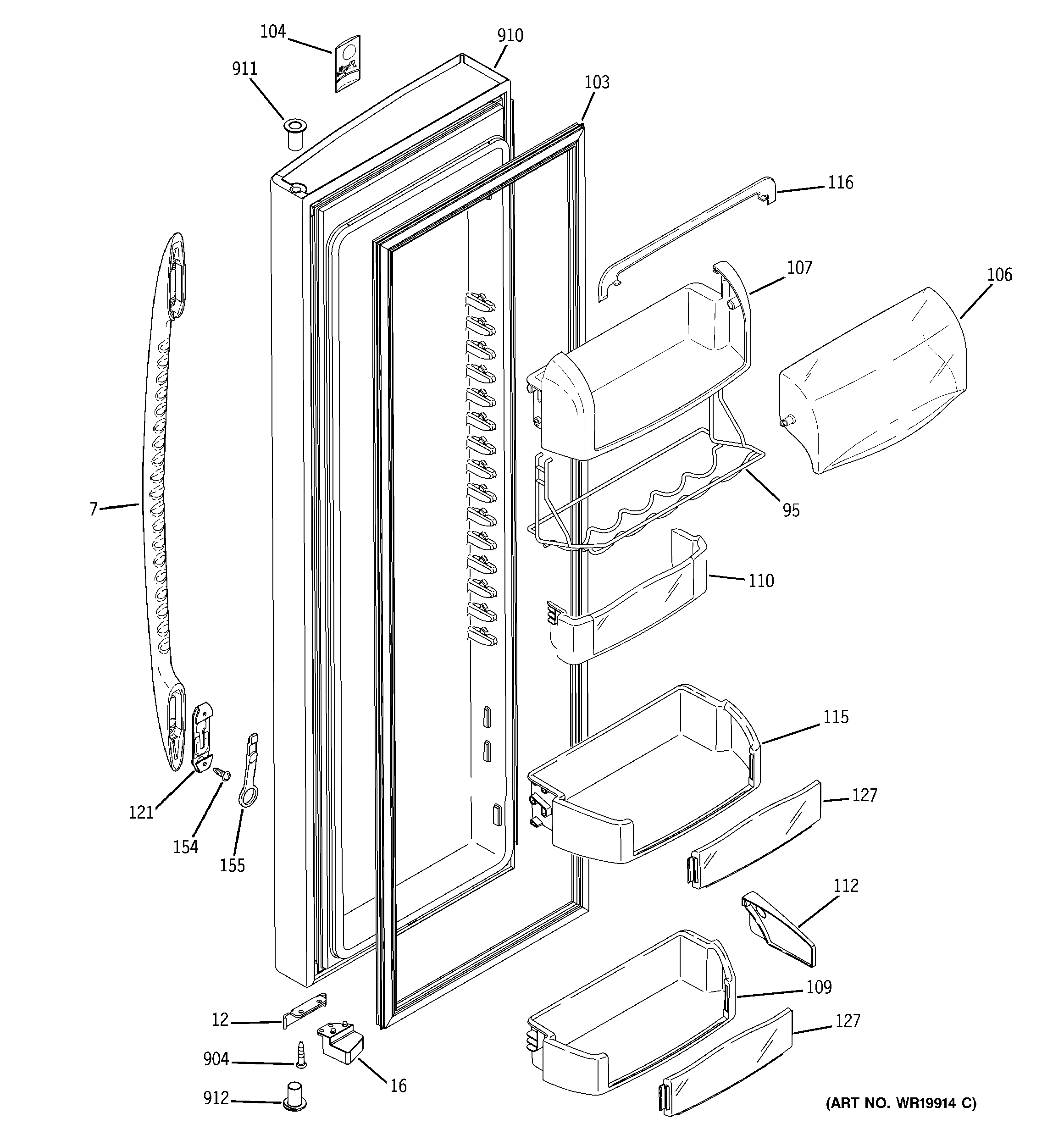

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 303 parts  |
Ge Profile Refrigerator Temperature Sensor WR55X10025
#241

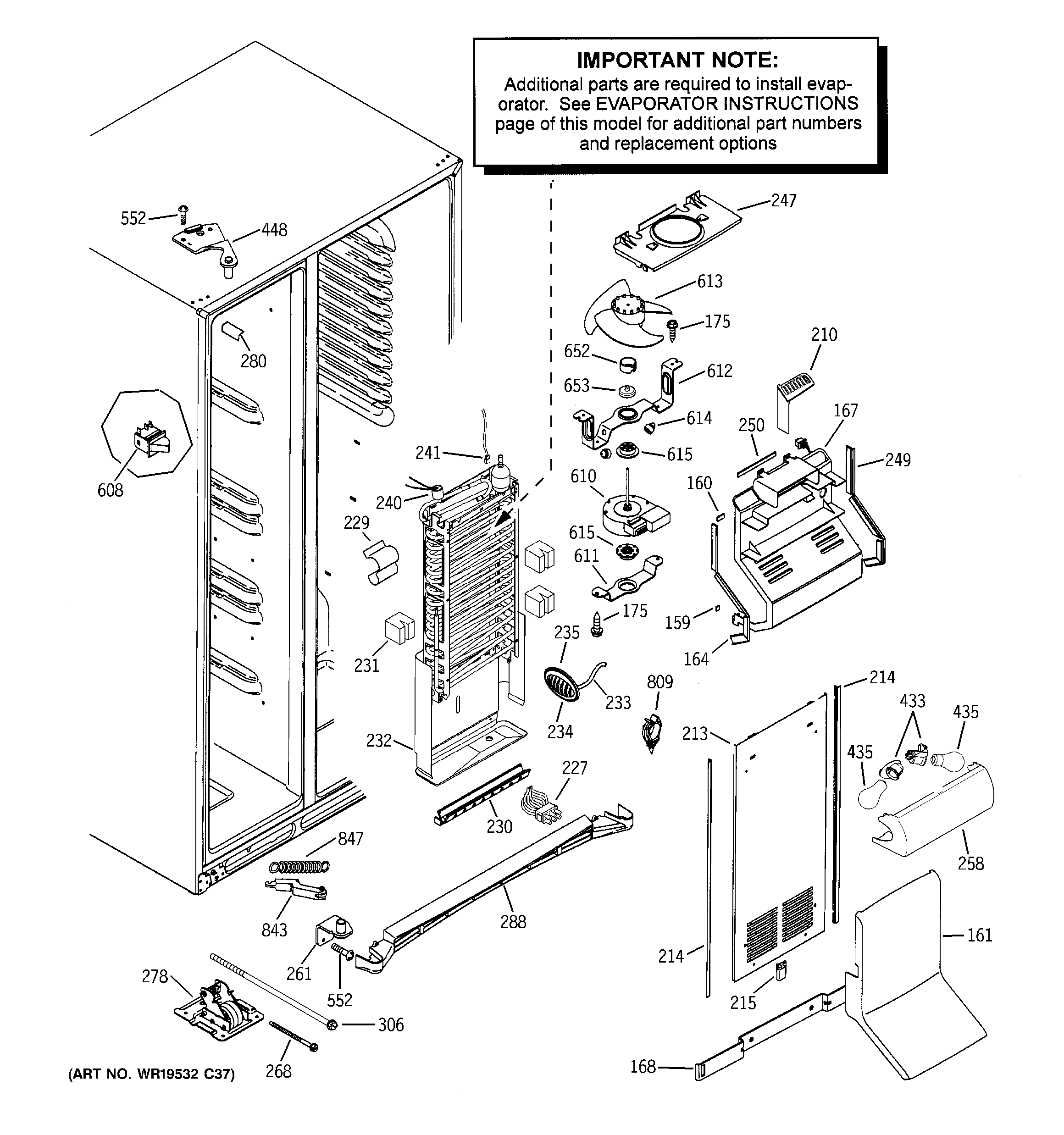

Freezer section diagram

Ge profile refrigerator temperature sensor

Part #WR55X10025

BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10028
#237

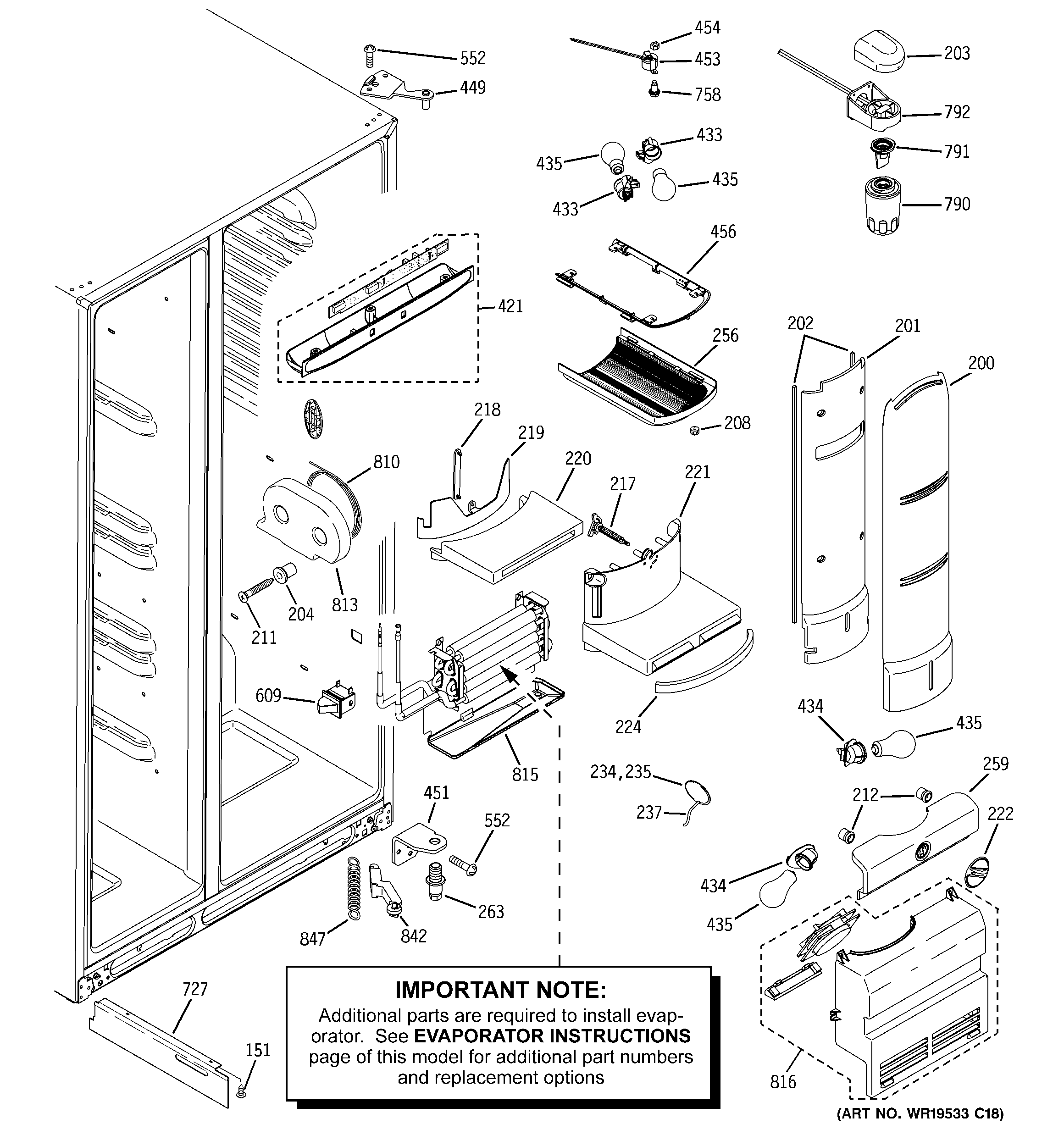

Fresh food section diagram

Refrigerator temperature sensor

Part #WR55X10028

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10028. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10026
#233

Freezer section diagram

Refrigerator temperature sensor

Part #WR55X10026

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10026. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock

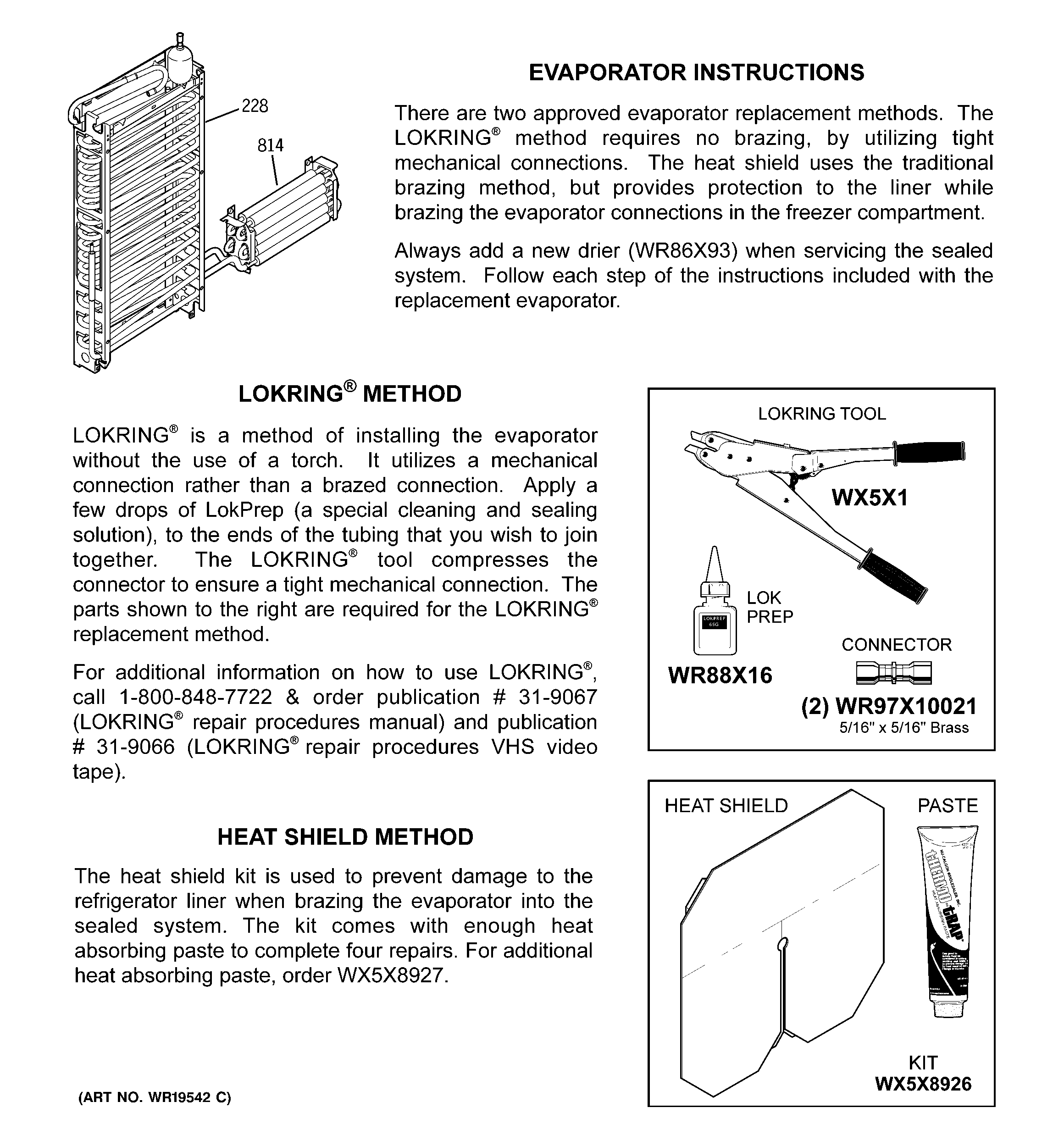

Dryer Bifurc WR86X10030
#740

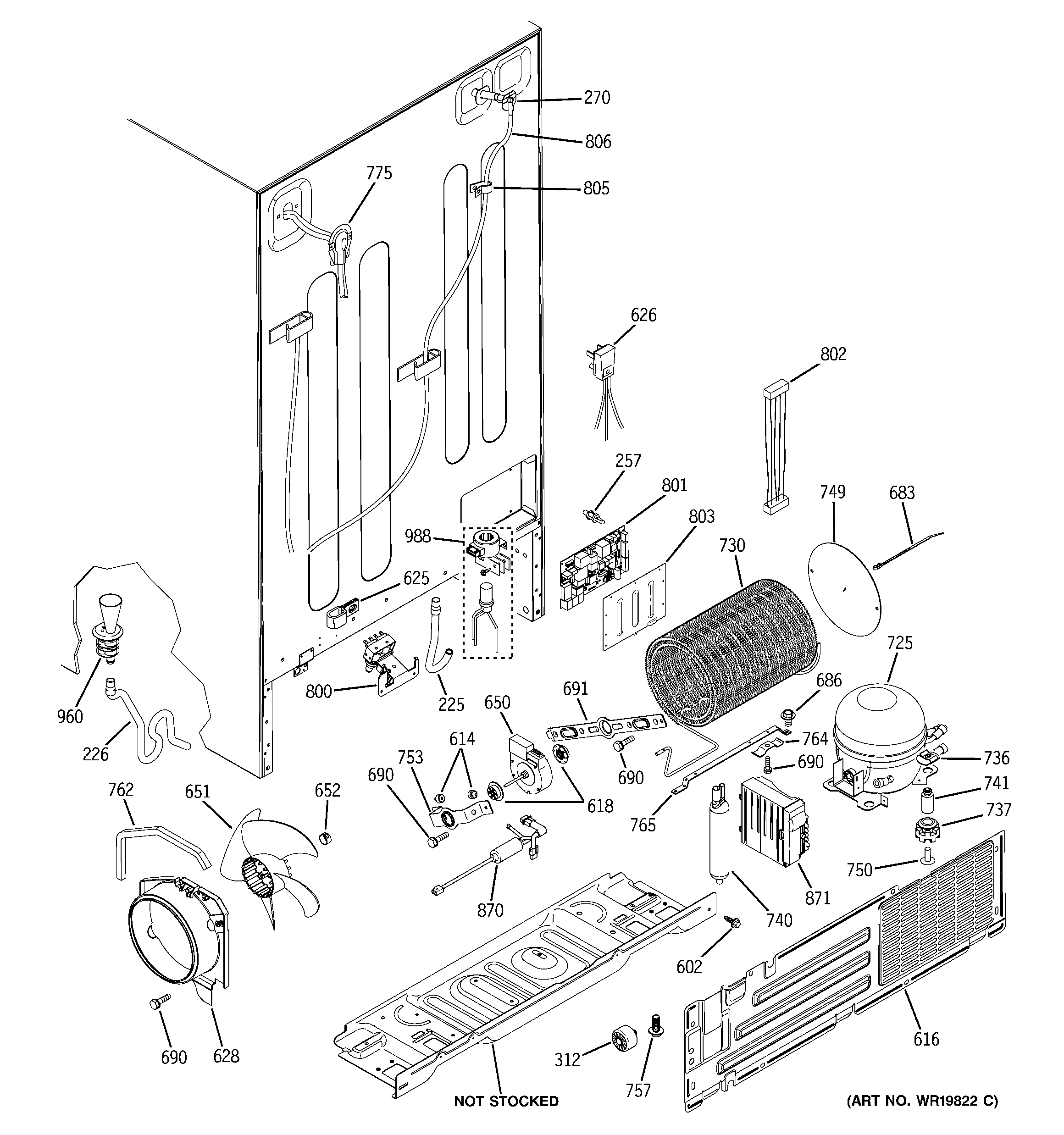

Sealed system & mother board diagram

Dryer bifurc

Part #WR86X10030

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X10030. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Defrost Thermostat WR50X10028
#240

Freezer section diagram

Refrigerator defrost thermostat

Part #WR50X10028

Replaced by #WR50X10068

?
Manufacturer substitution
This part replaces WR50X10028. Substitute parts can look different from the original.
BEST SELLER
$20.93 |
22% OFF Phone Price : $26.93
In Stock
Rca Refrigerator Dispenser Ice Chute Door Solenoid (replaces Wr62x10020) WR62X10055
#36

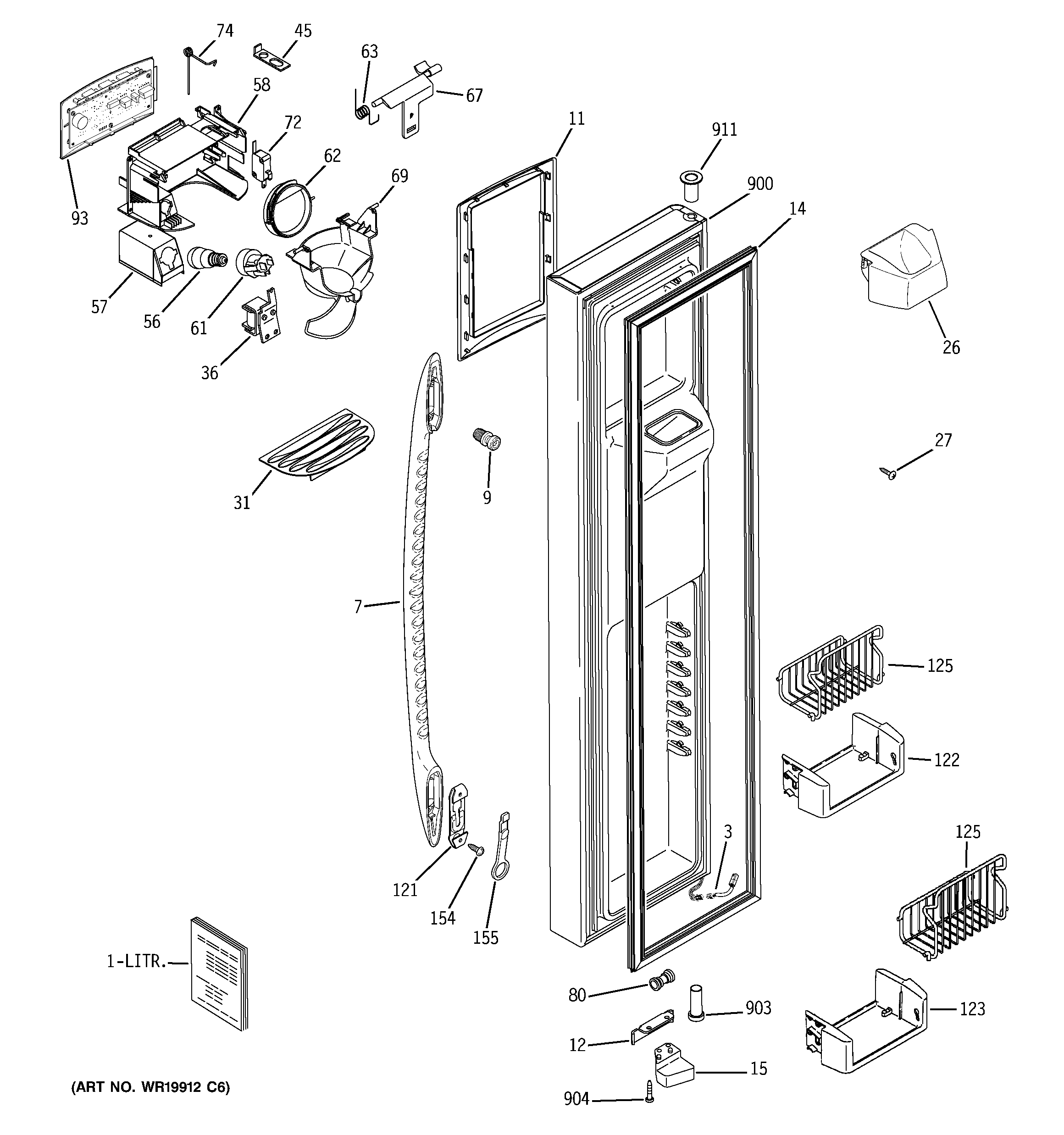

Freezer door diagram

Rca refrigerator dispenser ice chute door solenoid (replaces wr62x10020)

Part #WR62X10055

BEST SELLER
$54.06 |
10% OFF Phone Price : $60.06
In Stock
Refrigerator Solenoid WR62X10020
#36

Freezer door diagram

Refrigerator solenoid

Part #WR62X10020

Replaced by #WR62X10055

?
Manufacturer substitution
This part replaces WR62X10020. Substitute parts can look different from the original.
BEST SELLER
$54.06 |
10% OFF Phone Price : $60.06
In Stock
Refrigerator Water Tube Fitting, 5/16 X 5/16-in (replaces Wr02x10471) WR02X11330
#80

Freezer door diagram

Refrigerator water tube fitting, 5/16 x 5/16-in (replaces wr02x10471)

Part #WR02X11330

BEST SELLER
$8.20 |
11% OFF Phone Price : $9.20
In Stock
Refrigerator Dispenser Ice Chute Door Kit (replaces Wr17x3093) WR17X11653
#62

Freezer door diagram

Refrigerator dispenser ice chute door kit (replaces wr17x3093)

Part #WR17X11653

BEST SELLER
$12.76 |
14% OFF Phone Price : $14.76
In Stock
Refrigerator Evaporator Fan Blade WR60X10208
#613

Freezer section diagram

Refrigerator evaporator fan blade

Part #WR60X10208

Replaced by #WR60X30922

?
Manufacturer substitution
This part replaces WR60X10208. Substitute parts can look different from the original.
BEST SELLER
$85.08 |
7% OFF Phone Price : $91.08
In Stock
