Kenmore
Gas Water Heater

Model # 153336951 Official Kenmore power miser 6 gas water heater

Here are the diagrams and repair parts for Official Kenmore 153336951 power miser 6 gas water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Water Heater Temperature And Pressure Relief Valve 9000071
#1

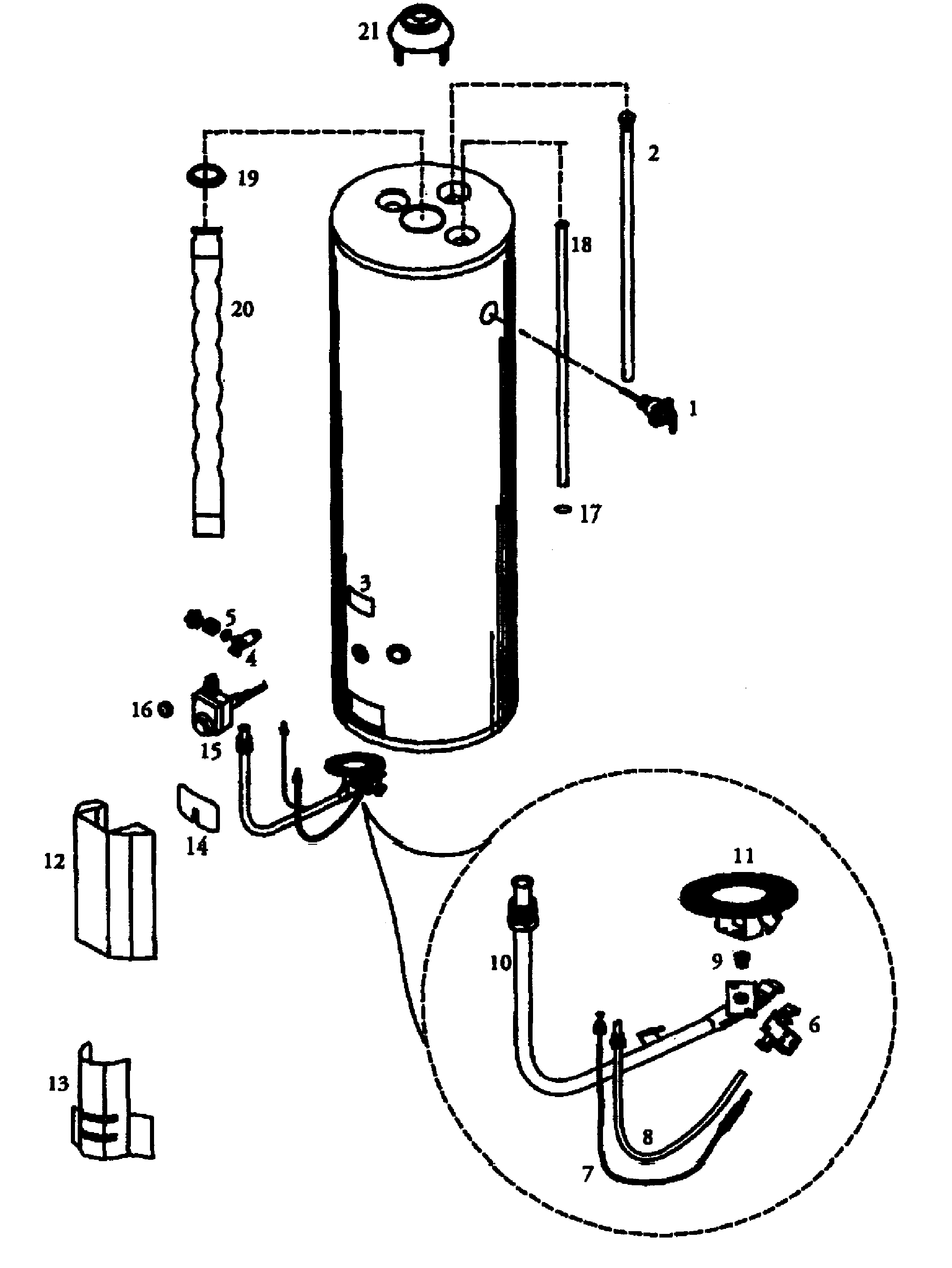

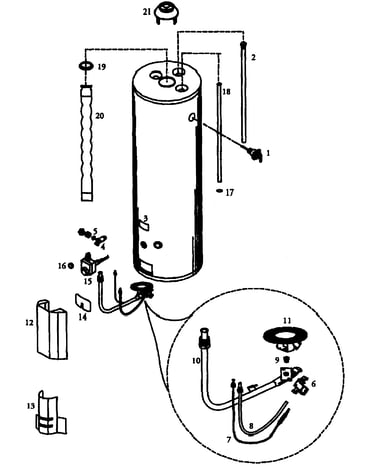

Main assembly diagram

Water heater temperature and pressure relief valve

Part #9000071

Replaced by #9000071015

?
Manufacturer substitution
This part replaces 9000071. Substitute parts can look different from the original.
BEST SELLER
$14.36 |
12% OFF Phone Price : $16.36
In Stock
Water Heater Gas Valve Assembly F145-1278
#15

Main assembly diagram

Water heater gas valve assembly

Part #F145-1278

The manufacturer no longer makes this part, and there's no substitute part

Thermocouple 42-33900
#7

Main assembly diagram

Thermocouple

Part #42-33900

Replaced by #H06E-36

?
Manufacturer substitution
This part replaces 42-33900. Substitute parts can look different from the original.
This item is not returnable
$14.52 |
12% OFF Phone Price : $16.52
Back Order
Water Heater Manifold Inner Door 9000281
#14

Main assembly diagram

Water heater manifold inner door

Part #9000281

$17.69 |
10% OFF Phone Price : $19.69
In Stock
Water Heater Gas Control Valve Knob F145-1280
#16

Main assembly diagram

Water heater gas control valve knob

Part #F145-1280

The manufacturer no longer makes this part, and there's no substitute part

Water Heater Dip Tube Gasket 9002277
#17

Main assembly diagram

Water heater dip tube gasket

Part #9002277

Replaced by #100108744

?
Manufacturer substitution
This part replaces 9002277. Substitute parts can look different from the original.
$24.44
In Stock
Mag Erad 23600
#NI

Main assembly diagram

Mag erad

Part #23600

Replaced by #23600

?
Manufacturer substitution
This part replaces 23600. Substitute parts can look different from the original.
$35.19
In Stock
Kenmore Elite Water Heater Washer (replaces 0540042) 9001584
#5

Main assembly diagram

Kenmore elite water heater washer (replaces 0540042)

Part #9001584

Replaced by #100108603

?
Manufacturer substitution
This part replaces 9001584. Substitute parts can look different from the original.
$24.44
In Stock
State Water Heater Dip Tube (replaces 9000908, 9001852) 9001595
#18

Main assembly diagram

State water heater dip tube (replaces 9000908, 9001852)

Part #9001595

Replaced by #100108608

?
Manufacturer substitution
This part replaces 9001595. Substitute parts can look different from the original.
$27.78
In Stock
Manifold 9002414
#10

Main assembly diagram

Manifold

Part #9002414

Replaced by #9002618

?
Manufacturer substitution
This part replaces 9002414. Substitute parts can look different from the original.
$22.99
In Stock
