Model # LT700LXD1 Official White-Westinghouse tumble action washer - lw31289030
Here are the diagrams and repair parts for Official White-Westinghouse LT700LXD1 tumble action washer - lw31289030, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
LT700LXD1 Tumble Action Washer - LW31289030
#23

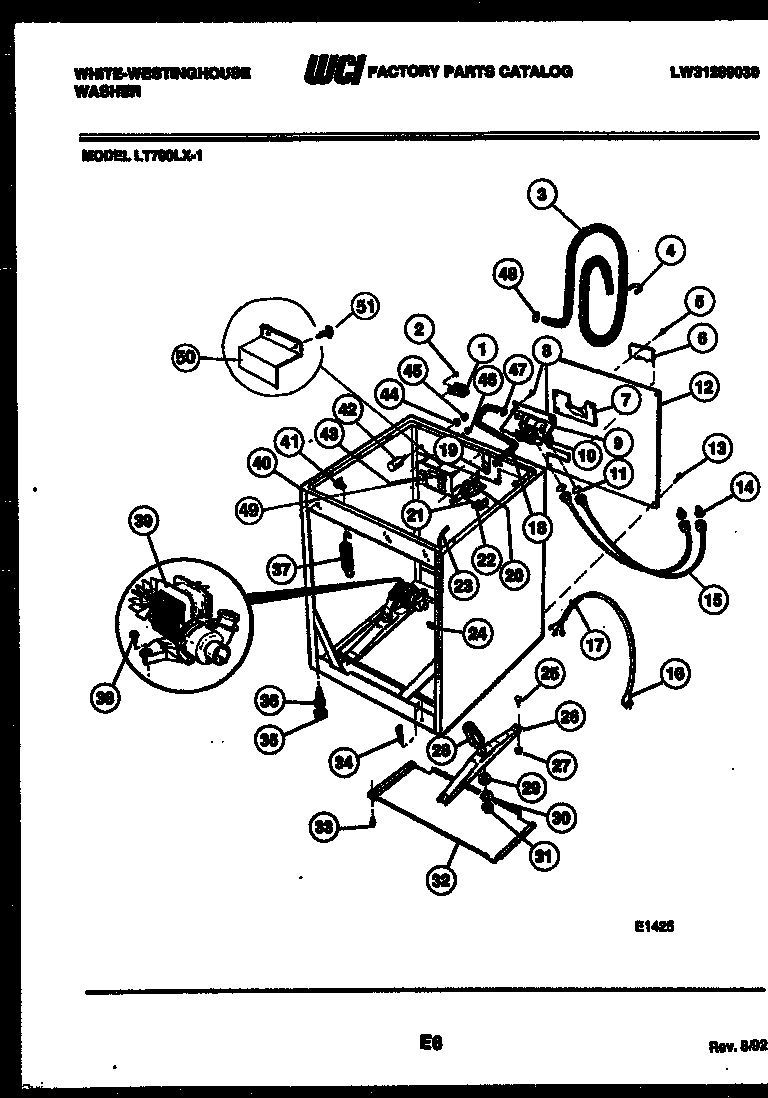

Cabinet parts diagram
Hose
Part #3204162
Replaced by #5304401845
?
Manufacturer substitution
This part replaces 3204162. Substitute parts can look different from the original.
$49.98 |
11% OFF Phone Price : $55.98
In Stock
#11
Cabinet parts diagram
Washer
Part #Q000412501
Replaced by #5303161296
?
Manufacturer substitution
This part replaces Q000412501. Substitute parts can look different from the original.
This item is not returnable
$10.44 |
16% OFF Phone Price : $12.44
In Stock
#17

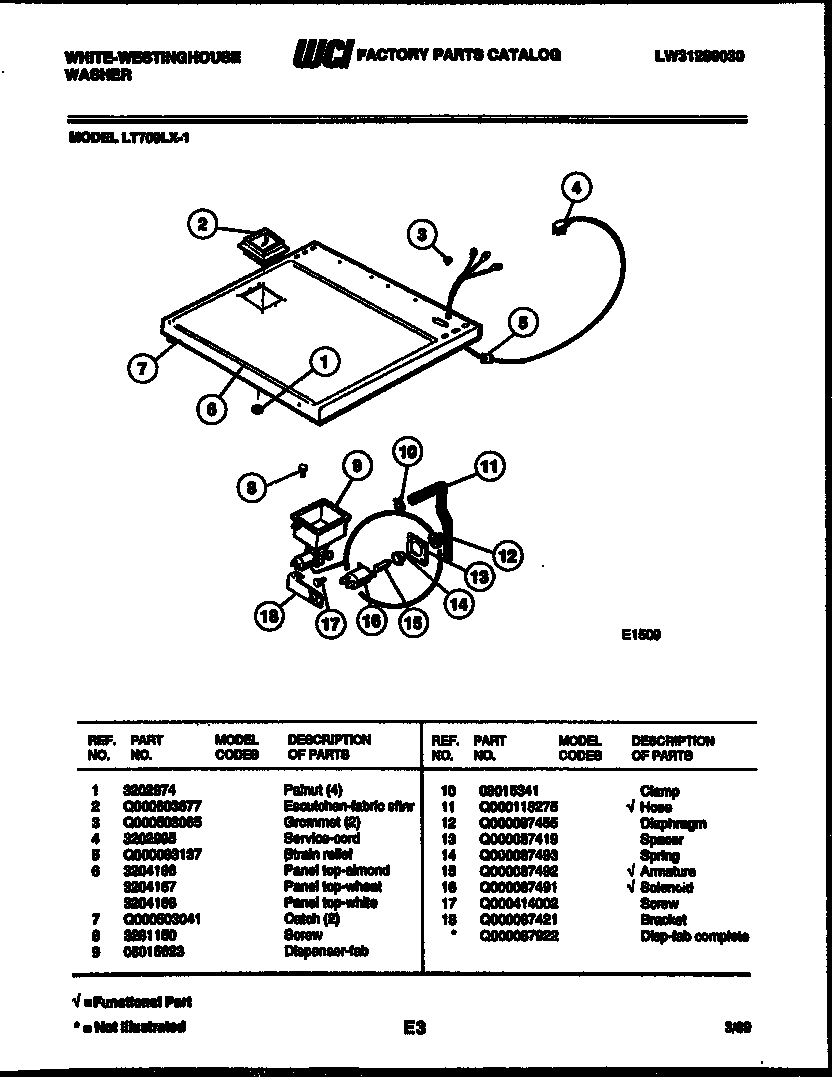

Top parts diagram
Screw
Part #Q000414002
This item is not returnable
$4.99
In Stock
#28

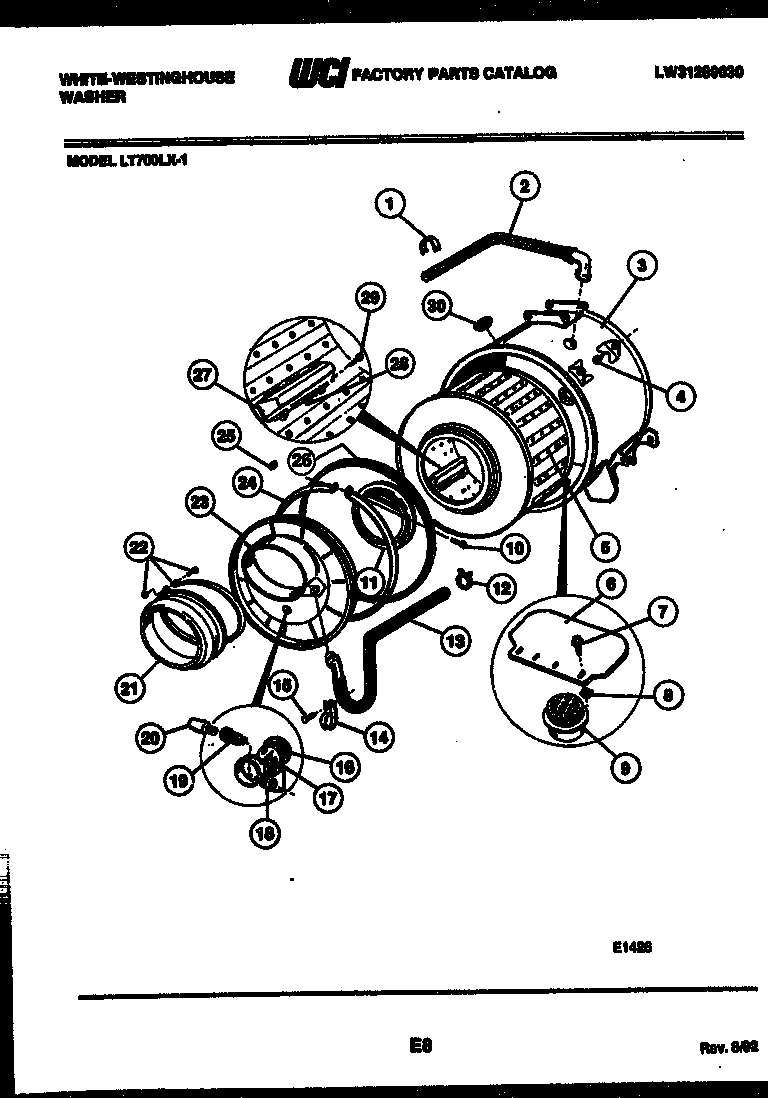

Tub and component parts diagram
Speed nut
Part #3261100
This item is not returnable
$2.26
In Stock
#6
Cabinet parts diagram
Cover
Part #3202982
This item is not returnable
$2.99
In Stock
#8
Tub and component parts diagram
Washer retainer clip
Part #3203010
$14.69
In Stock
Nut
Part #Q000500831
Replaced by #5308001876
?
Manufacturer substitution
This part replaces Q000500831. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Clamp
Part #Q000504893
Replaced by #5303161404
?
Manufacturer substitution
This part replaces Q000504893. Substitute parts can look different from the original.
This item is not returnable
$2.91
In Stock
#9

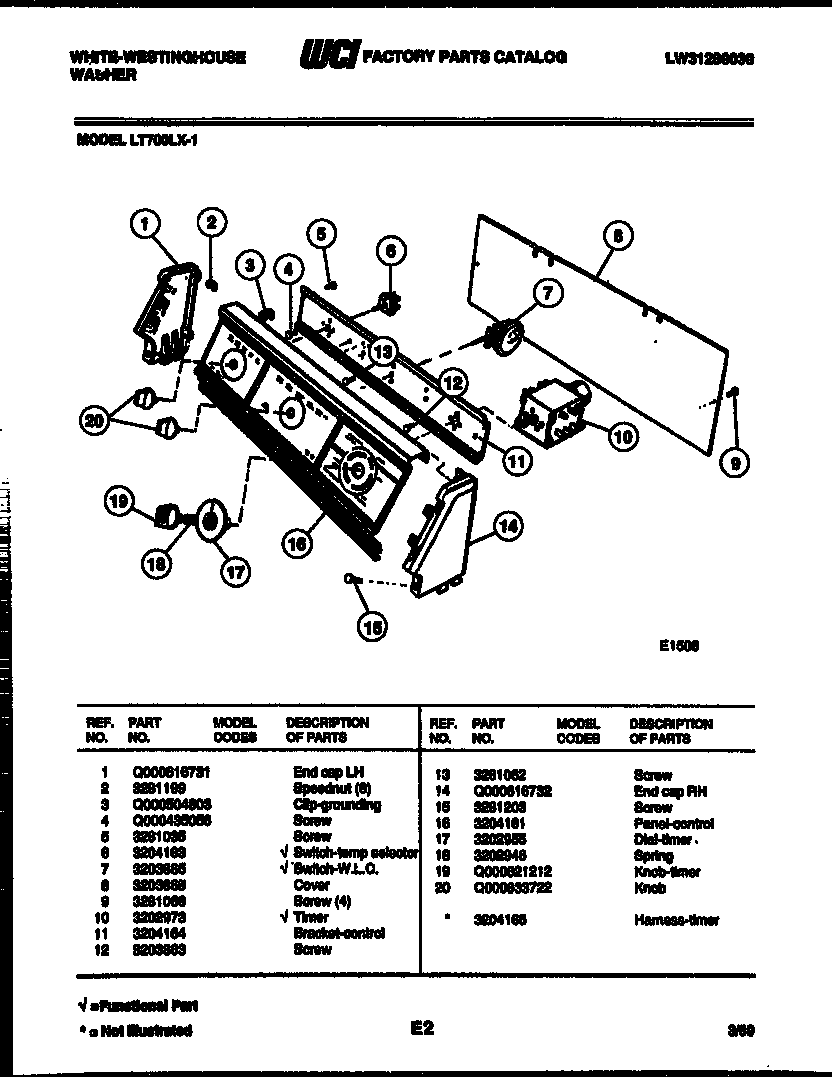

Console and control parts diagram
Screw
Part #3281066
Replaced by #5303300265
?
Manufacturer substitution
This part replaces 3281066. Substitute parts can look different from the original.
This item is not returnable
$42.58
In Stock
#11

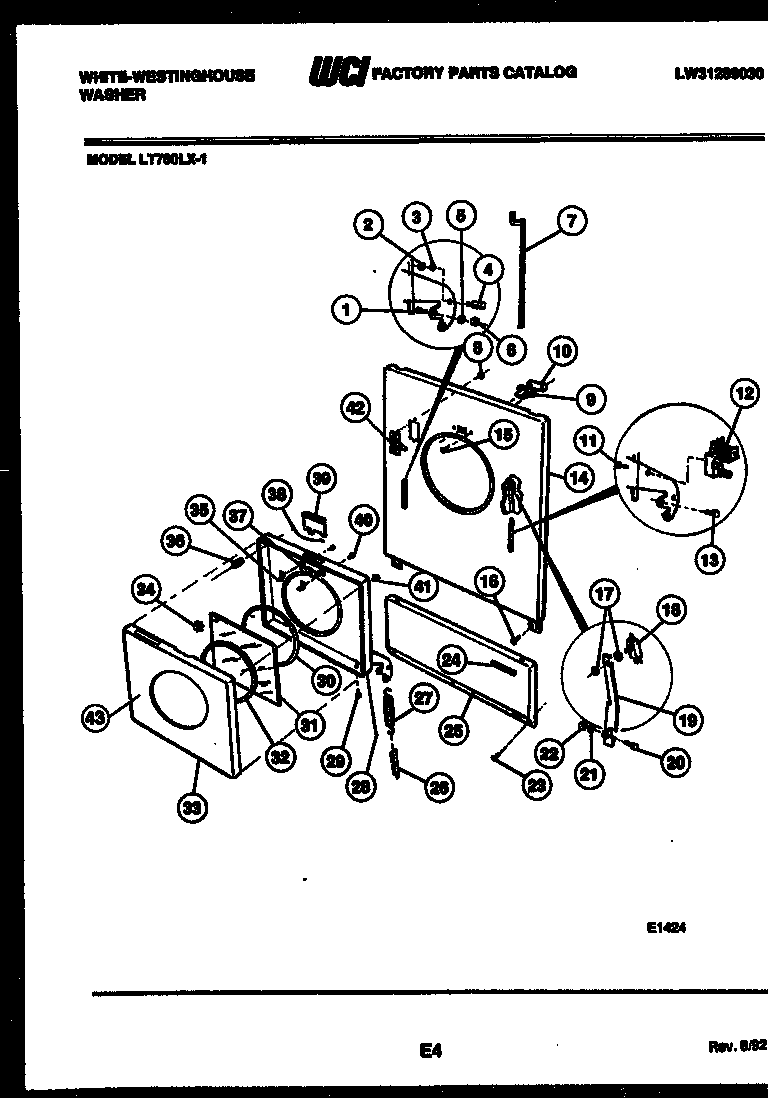

Door parts diagram
Screw
Part #Q000406801
Replaced by #08015289
?
Manufacturer substitution
This part replaces Q000406801. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
