Craftsman
Electric Leaf Blower

Model # 15130381 Official Craftsman blower

Here are the diagrams and repair parts for Official Craftsman 15130381 blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Leaf Blower Concentrator Nozzle GF21BL.00.02
#21

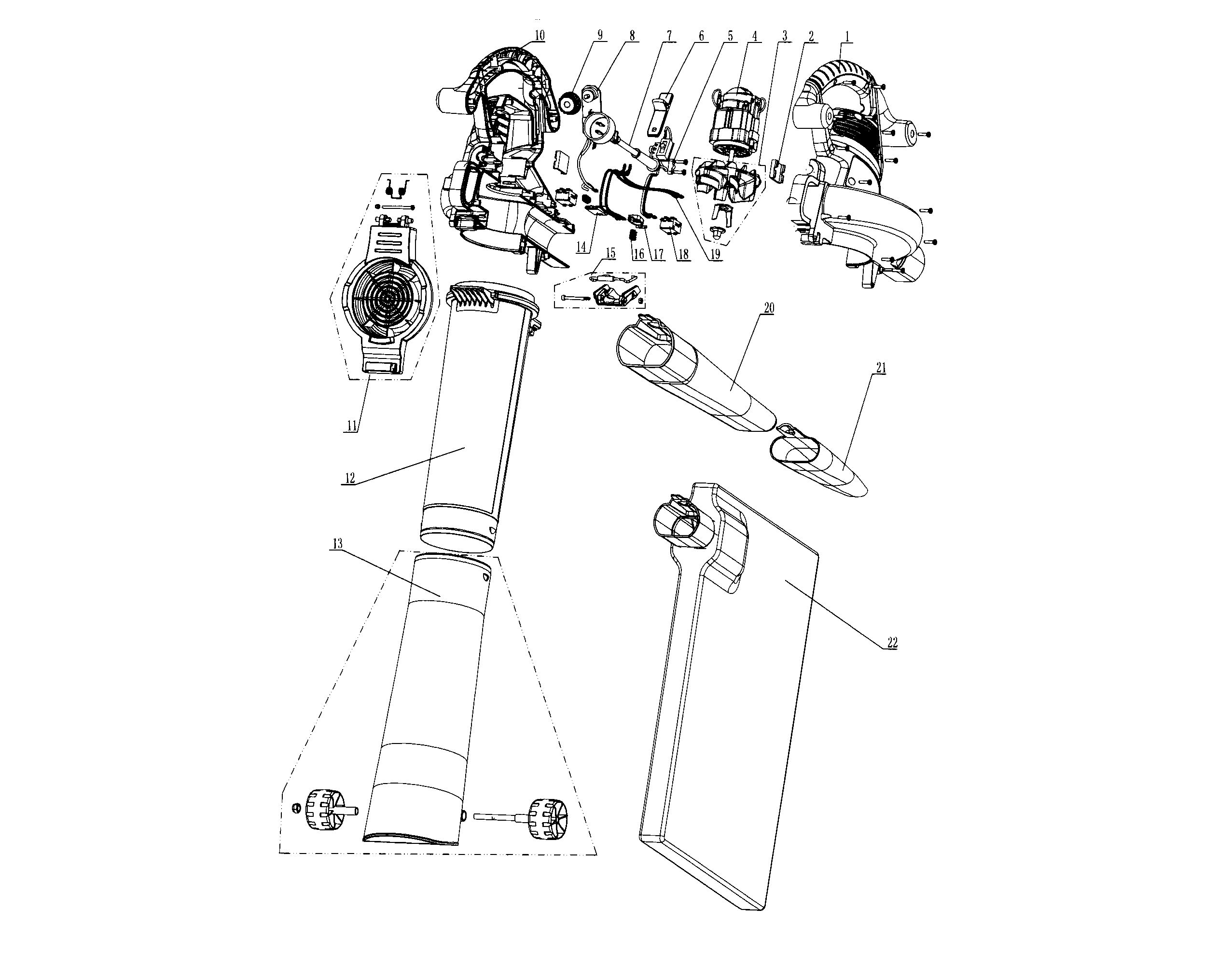

Main assy diagram

Leaf blower concentrator nozzle

Part #GF21BL.00.02

Replaced by #131003120

?
Manufacturer substitution
This part replaces GF21BL.00.02. Substitute parts can look different from the original.
$9.26
In Stock
Leaf Blower Vacuum Bag Assembly GF70BL.30.00
#22

Main assy diagram

Leaf blower vacuum bag assembly

Part #GF70BL.30.00

The manufacturer no longer makes this part, and there's no substitute part

Mulch Vacuum Assembly GF70BL.10.04.X1.01
#11

Main assy diagram

Mulch vacuum assembly

Part #GF70BL.10.04.X1.01

Replaced by #131003110

?
Manufacturer substitution
This part replaces GF70BL.10.04.X1.01. Substitute parts can look different from the original.
$15.43
In Stock
Plate TOQTGX.X0.01.01
#5

Main assy diagram

Plate

Part #TOQTGX.X0.01.01

The manufacturer no longer makes this part, and there's no substitute part

Impeller GF70BL.12.00
#3

Main assy diagram

Impeller

Part #GF70BL.12.00

The manufacturer no longer makes this part, and there's no substitute part

Shell GF71BL.11.00
#10

Main assy diagram

Shell

Part #GF71BL.11.00

The manufacturer no longer makes this part, and there's no substitute part

Wire TODXL1.D6.UL
#19

Main assy diagram

Wire

Part #TODXL1.D6.UL

The manufacturer no longer makes this part, and there's no substitute part

Pad GF70BL.10.07
#2

Main assy diagram

Pad

Part #GF70BL.10.07

The manufacturer no longer makes this part, and there's no substitute part

Button GF21BL.13.00
#6

Main assy diagram

Button

Part #GF21BL.13.00

The manufacturer no longer makes this part, and there's no substitute part

Plate GF21BL.10.08
#14

Main assy diagram

Plate

Part #GF21BL.10.08

The manufacturer no longer makes this part, and there's no substitute part
