Water Pump

Model # 390252155 Official Craftsman pump

Here are the diagrams and repair parts for Official Craftsman 390252155 pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
0-ring U9-226
#19

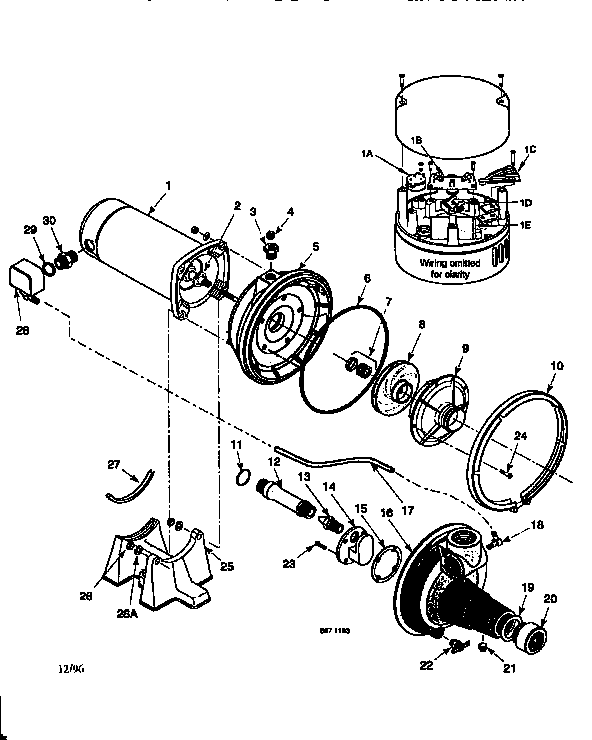

Pump only diagram

0-ring

Part #U9-226

$10.71
Back Order
Sta-rite Captive Air Tank Air Valve (replaces U212-159, U212-162) U212-160

#NI

All parts diagram

Sta-rite captive air tank air valve (replaces u212-159, u212-162)

Part #U212-160

This item is not returnable
$25.18 |
19% OFF Phone Price : $31.18
Back Order
Pump Check Valve (replaces N12-12p) N166-5P
#20

Pump only diagram

Pump check valve (replaces n12-12p)

Part #N166-5P

$123.89 |
9% OFF Phone Price : $135.89
In Stock
Pump Impeller J105-40PE
#8

Pump only diagram

Pump impeller

Part #J105-40PE

$139.59 |
8% OFF Phone Price : $151.59
In Stock
Pump Body Jet Insert N76-29P
#14

Pump only diagram

Pump body jet insert

Part #N76-29P

$71.79 |
8% OFF Phone Price : $77.79
In Stock
Pump Venturi N32P-66
#12

Pump only diagram

Pump venturi

Part #N32P-66

$57.40
In Stock
Connector L43-5C
#30

Pump only diagram

Connector

Part #L43-5C

$19.77
Back Order
Draincock U212-68T
#22

Pump only diagram

Draincock

Part #U212-68T

The manufacturer no longer makes this part, and there's no substitute part

Insert Elbow U78-796P
#4

Tank only diagram

Insert elbow

Part #U78-796P

$14.66
In Stock
Pad Motor C35-11
#27

Pump only diagram

Pad motor

Part #C35-11

This item is not returnable
$6.27
In Stock
