Model # 30-3982-23-03 Official Tappan gas range - 5995250072

Here are the diagrams and repair parts for Official Tappan 30-3982-23-03 gas range - 5995250072, as well as links to manuals and error code tables, if available.

By Schematic
By Part

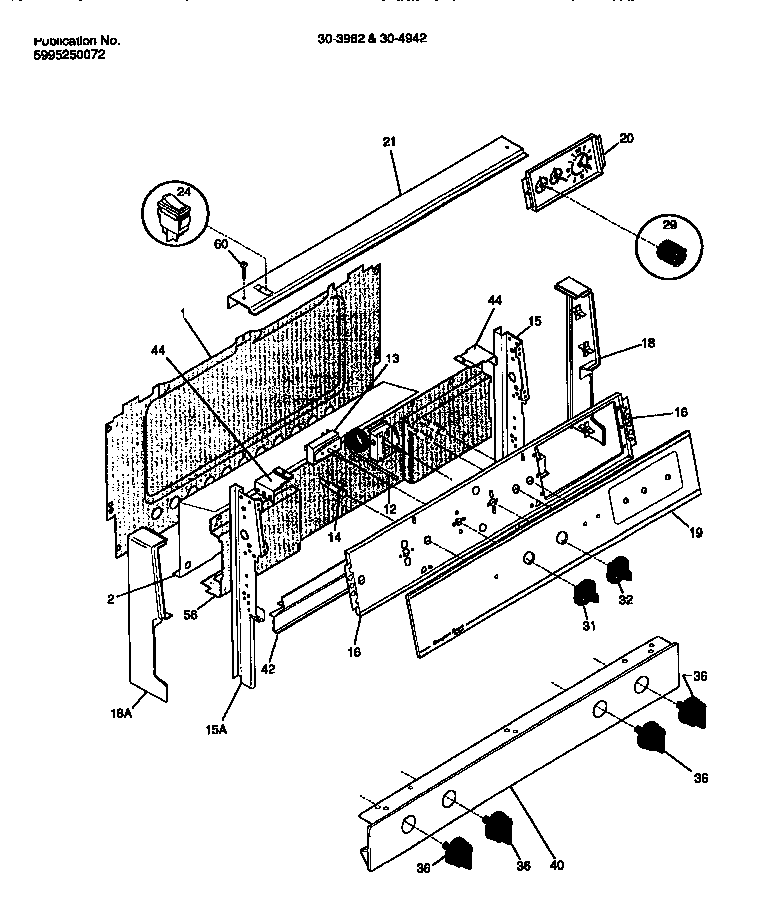

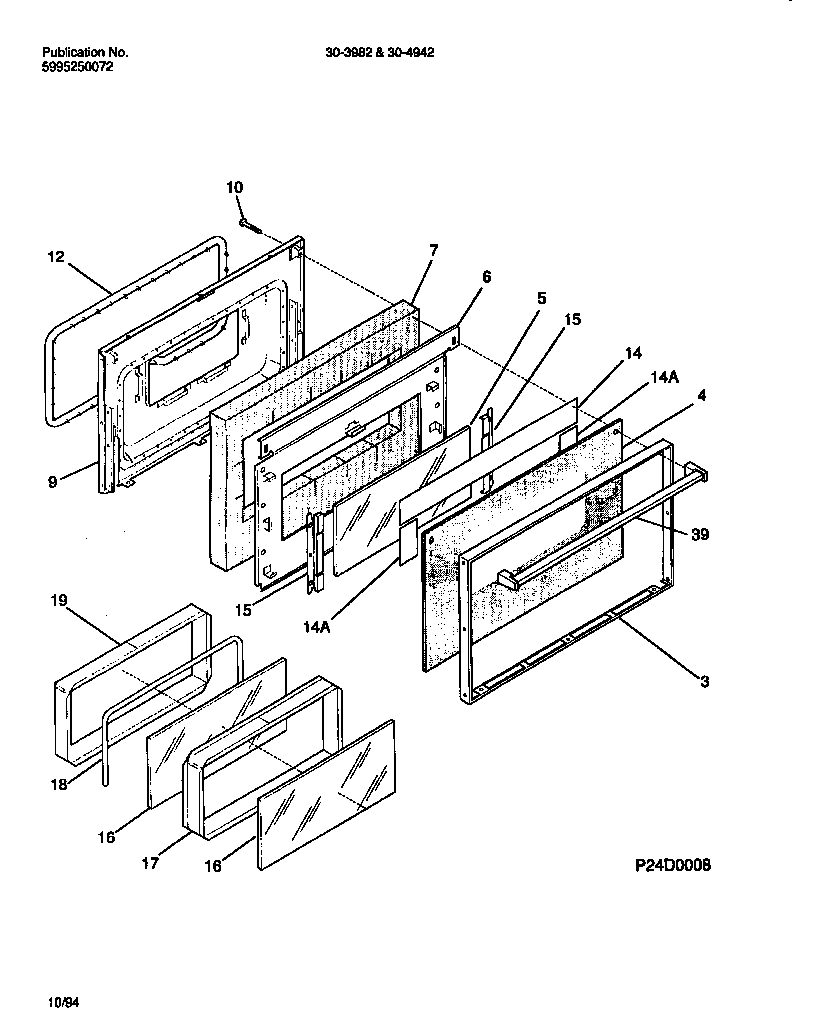

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
30-3982-23-03 Ranges
Igniter 5303131300
#19

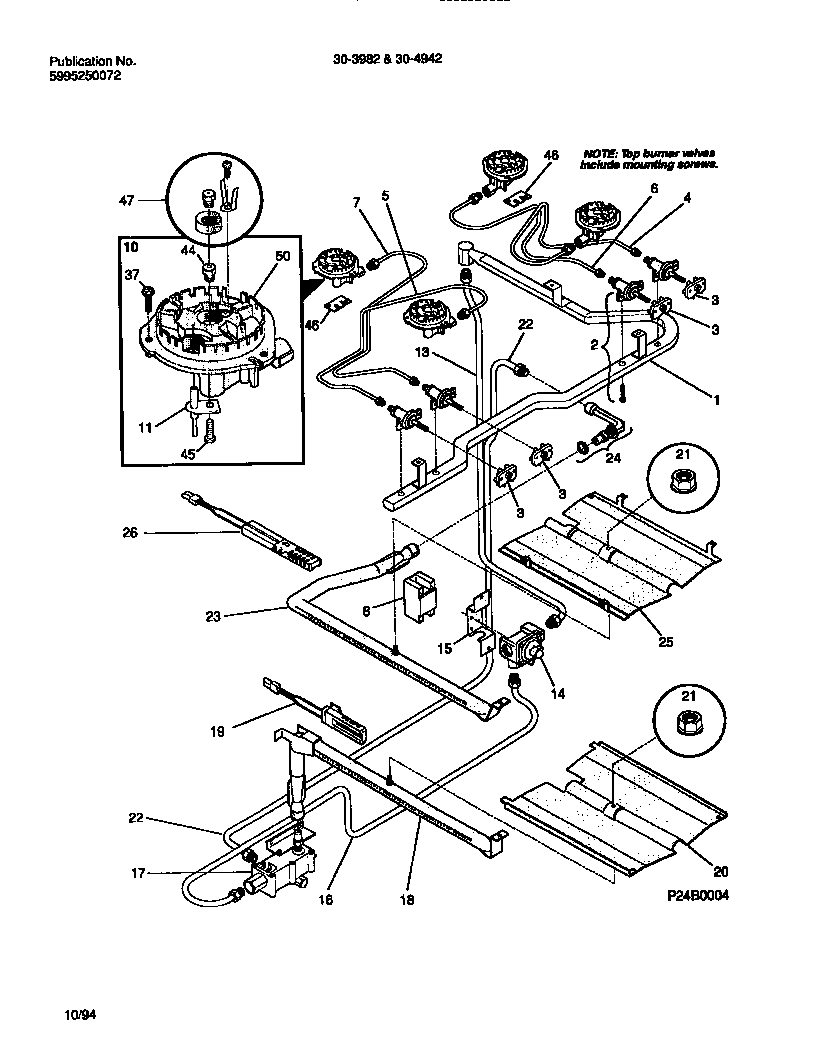

Burner diagram

Igniter

Part #5303131300

Replaced by #5303935066

?
Manufacturer substitution
This part replaces 5303131300. Substitute parts can look different from the original.
BEST SELLER
$34.33
15% OFF Phone Price : $40.33
In Stock
Range Oven Light Bulb 5303013071
#15

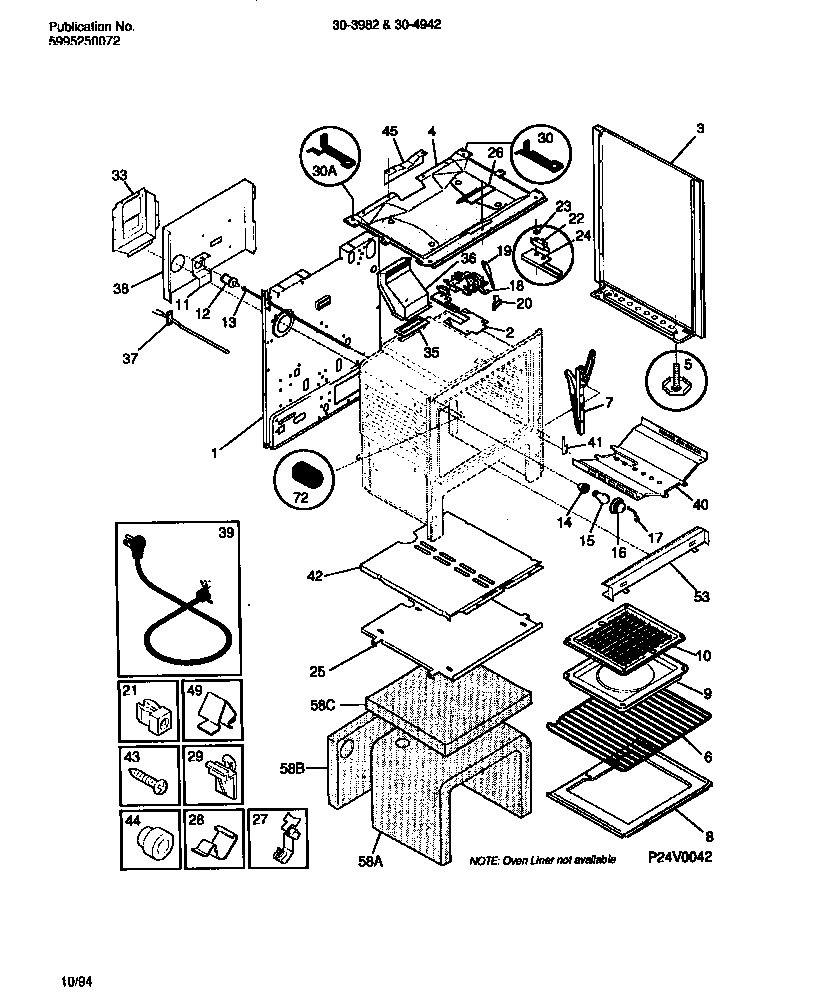

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$17.47
10% OFF Phone Price : $19.47
In Stock
Range Drawer Glide, Front (replaces 08067766, 3012698, 3051361, 3131687) 3051162
#29

Body diagram

Range drawer glide, front (replaces 08067766, 3012698, 3051361, 3131687)

Part #3051162

BEST SELLER
This item is not returnable
$3.79
21% OFF Phone Price : $4.79
In Stock
Range Drawer Glide (replaces 08067822, 3012699) 3051163
#7

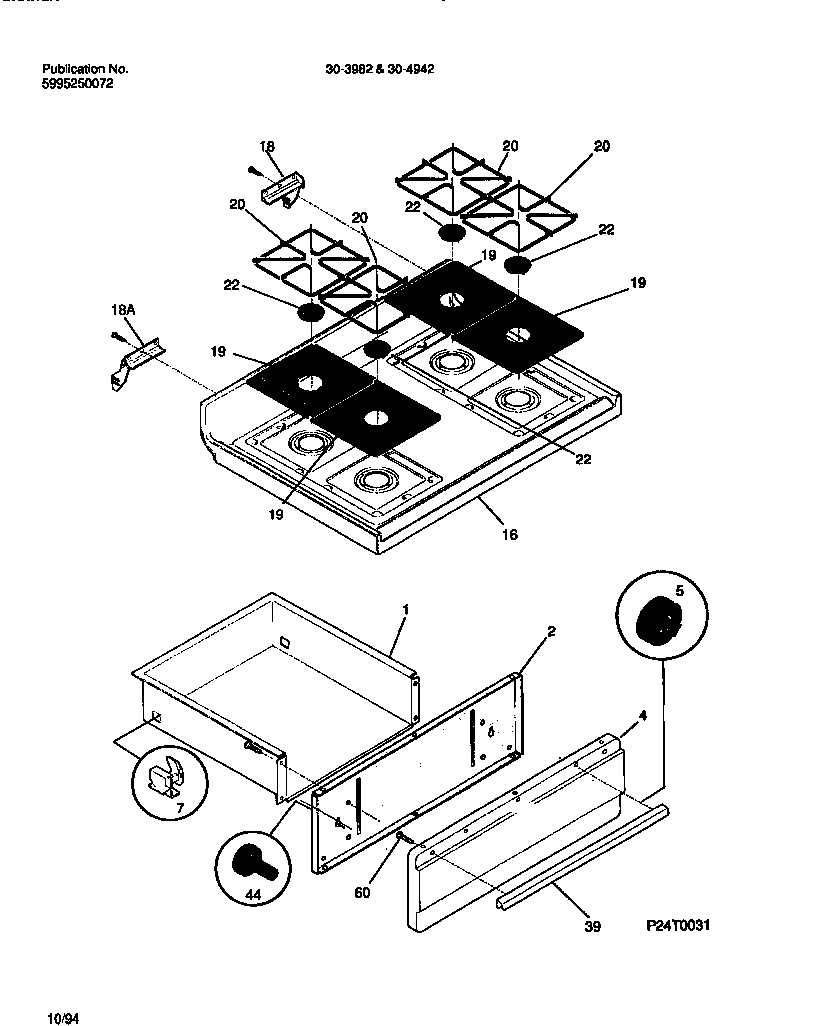

Top/drawer diagram

Range drawer glide (replaces 08067822, 3012699)

Part #3051163

BEST SELLER
This item is not returnable
$4.85
17% OFF Phone Price : $5.85
In Stock
Socket 3014073
#14

Body diagram

Socket

Part #3014073

Replaced by #316116400

?
Manufacturer substitution
This part replaces 3014073. Substitute parts can look different from the original.
BEST SELLER
$41.42
13% OFF Phone Price : $47.42
In Stock
Cord 3202006
#39

Body diagram

Cord

Part #3202006

Replaced by #5304515659

?
Manufacturer substitution
This part replaces 3202006. Substitute parts can look different from the original.
$28.86
17% OFF Phone Price : $34.86
In Stock
Oven Temperature Probe 3204593
#37

Body diagram

Oven temperature probe

Part #3204593

Replaced by #5304497424

?
Manufacturer substitution
This part replaces 3204593. Substitute parts can look different from the original.
This item is not returnable
$30.62
16% OFF Phone Price : $36.62
In Stock
Range Igniter Spark Module 5303280394
#8

Burner diagram

Range igniter spark module

Part #5303280394

Replaced by #5304505695

?
Manufacturer substitution
This part replaces 5303280394. Substitute parts can look different from the original.
$104.62
10% OFF Phone Price : $116.62
In Stock
Oven Rack 5303281625
#6

Body diagram

Oven rack

Part #5303281625

Replaced by #5304526378

?
Manufacturer substitution
This part replaces 5303281625. Substitute parts can look different from the original.
$36.71
14% OFF Phone Price : $42.71
In Stock
Range Hex Nut 5303013272
#21

Burner diagram

Range hex nut

Part #5303013272

This item is not returnable
$19.01
10% OFF Phone Price : $21.01
In Stock
