Model # EGD6500D1WW Official GE gas dryer

Here are the diagrams and repair parts for Official GE EGD6500D1WW gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

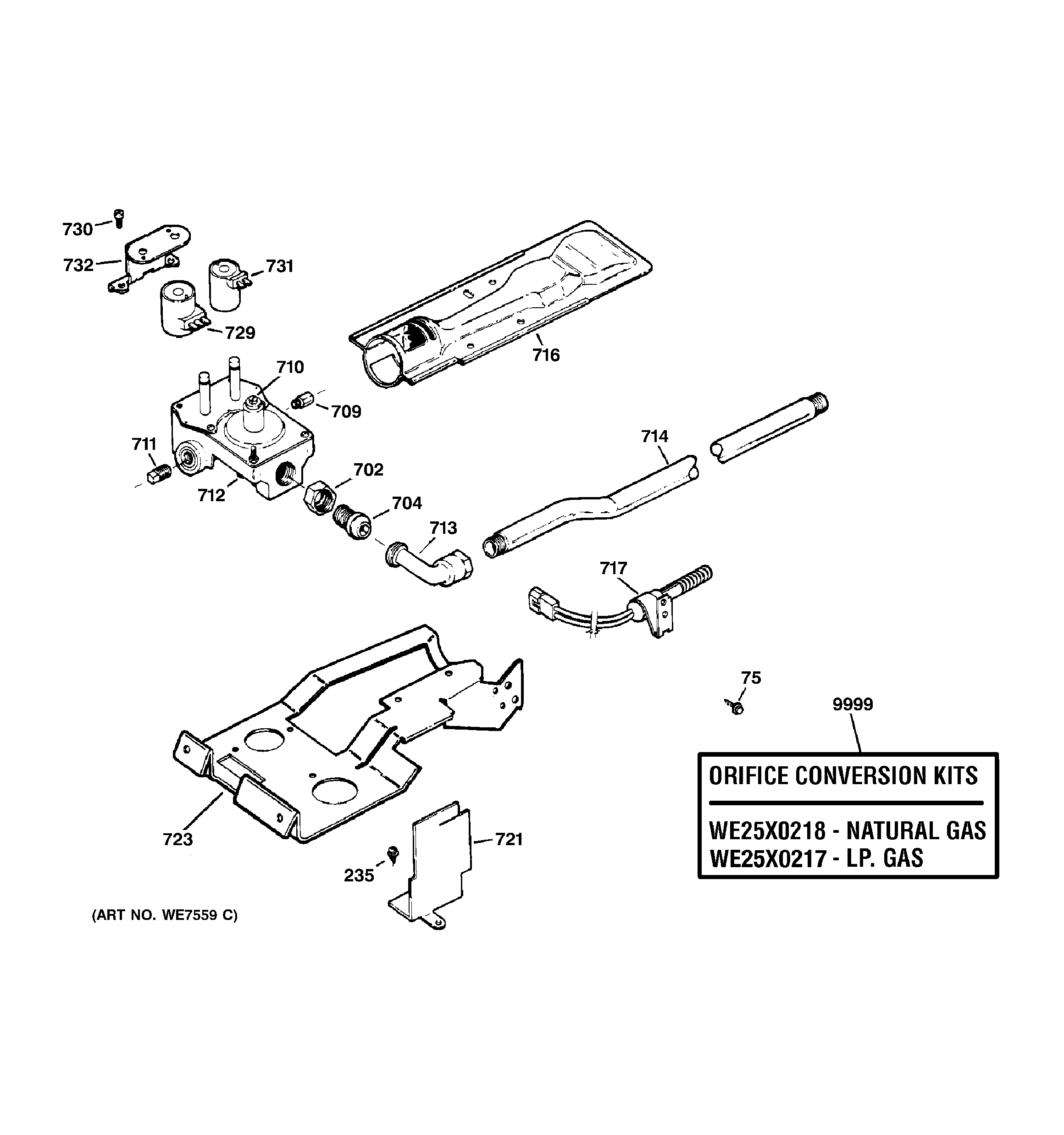

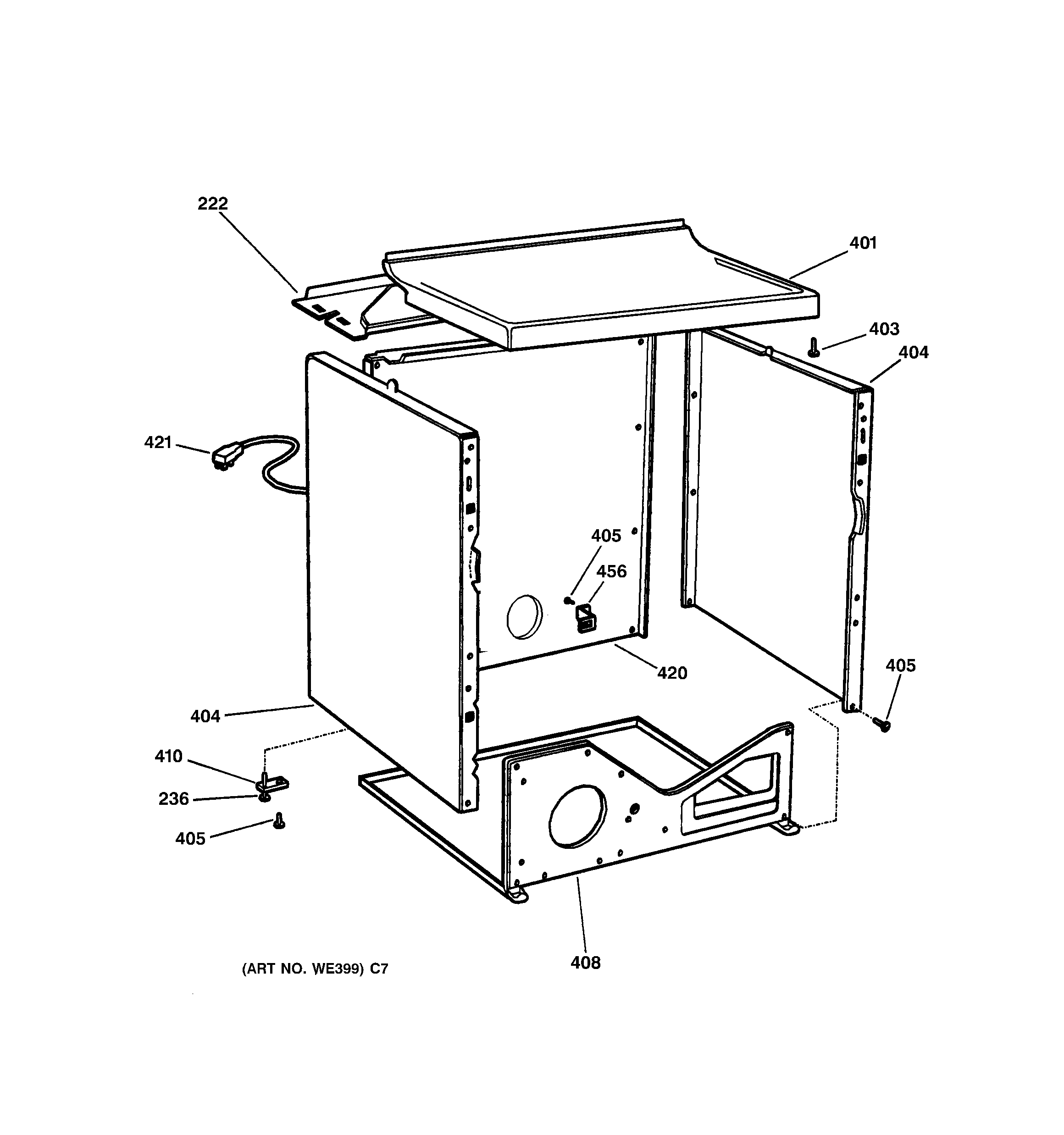

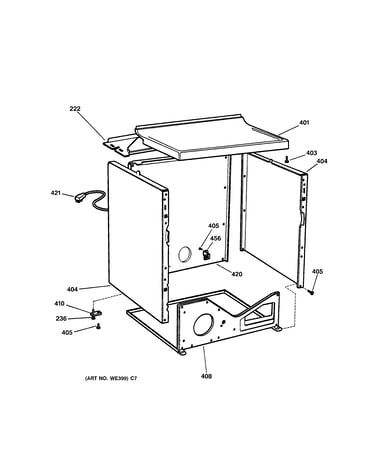

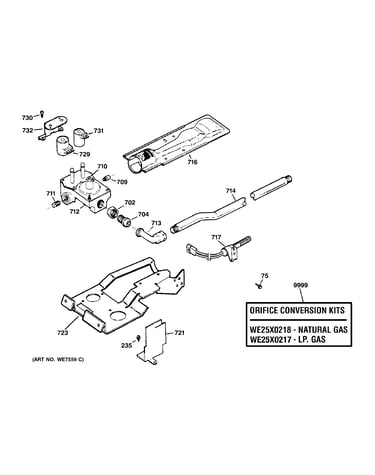

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 121 parts  |
Dryer Drum Bearing, Front (replaces We03m0026, We3m20) WE3M26
#313

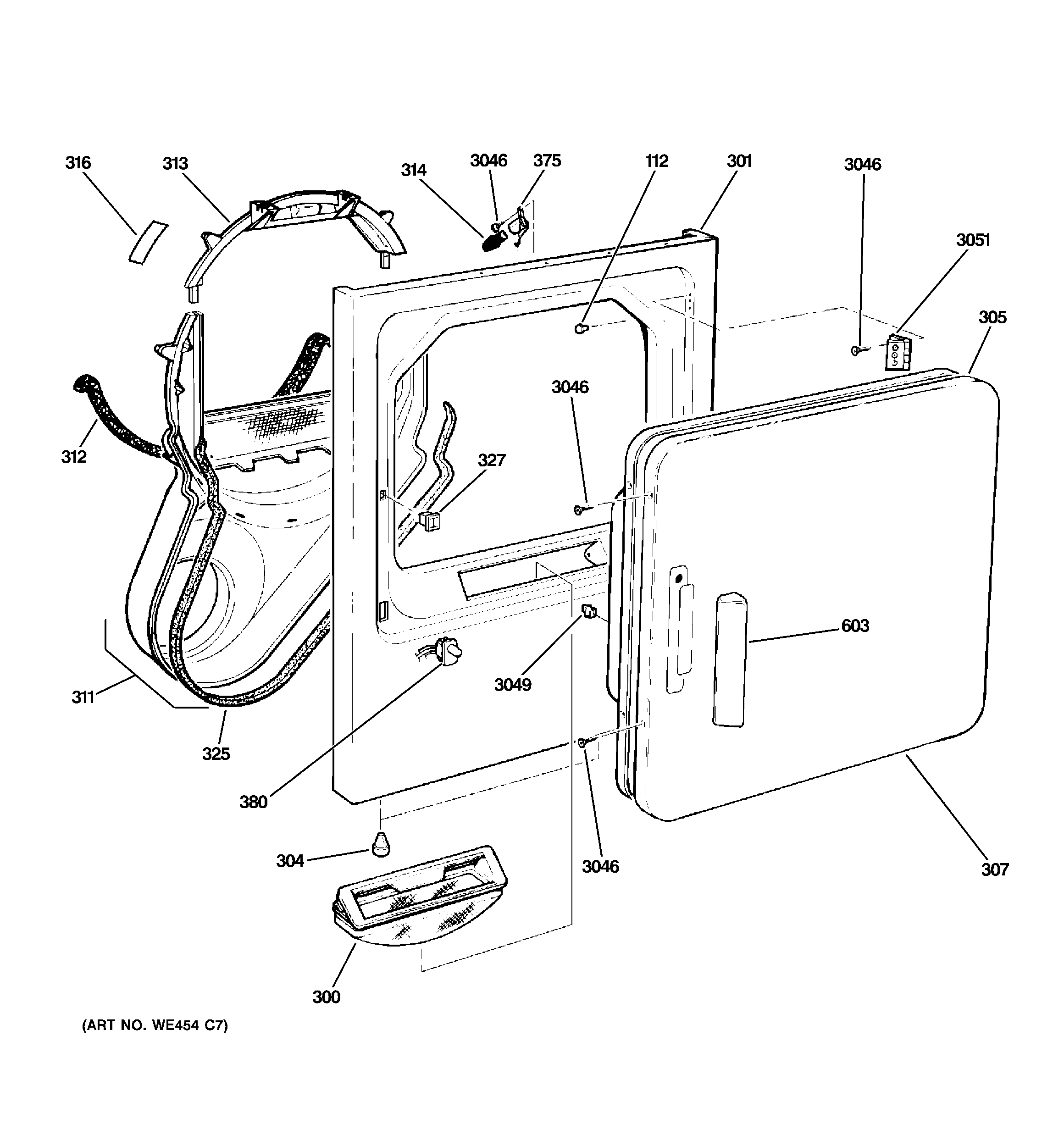

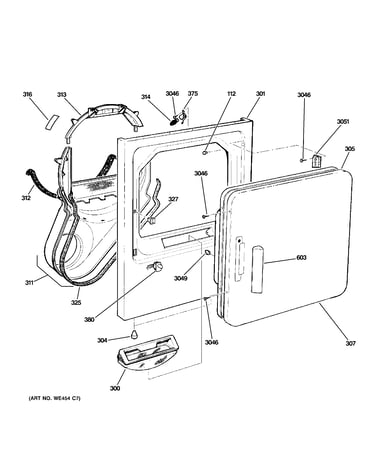

Front panel & door diagram

Dryer drum bearing, front (replaces we03m0026, we3m20)

Part #WE3M26

BEST SELLER
$31.04 |
16% OFF Phone Price : $37.04
In Stock
Felt WE9M15
#312

Front panel & door diagram

Felt

Part #WE9M15

Replaced by #WE09X27634

?
Manufacturer substitution
This part replaces WE9M15. Substitute parts can look different from the original.
BEST SELLER
$22.36 |
21% OFF Phone Price : $28.36
In Stock
Air Duct Assembly WE14M92
#311

Front panel & door diagram

Air duct assembly

Part #WE14M92

Replaced by #WE14X25080

?
Manufacturer substitution
This part replaces WE14M92. Substitute parts can look different from the original.
BEST SELLER
$85.99 |
7% OFF Phone Price : $91.99
In Stock
Idler Pulley WE12M8
#216

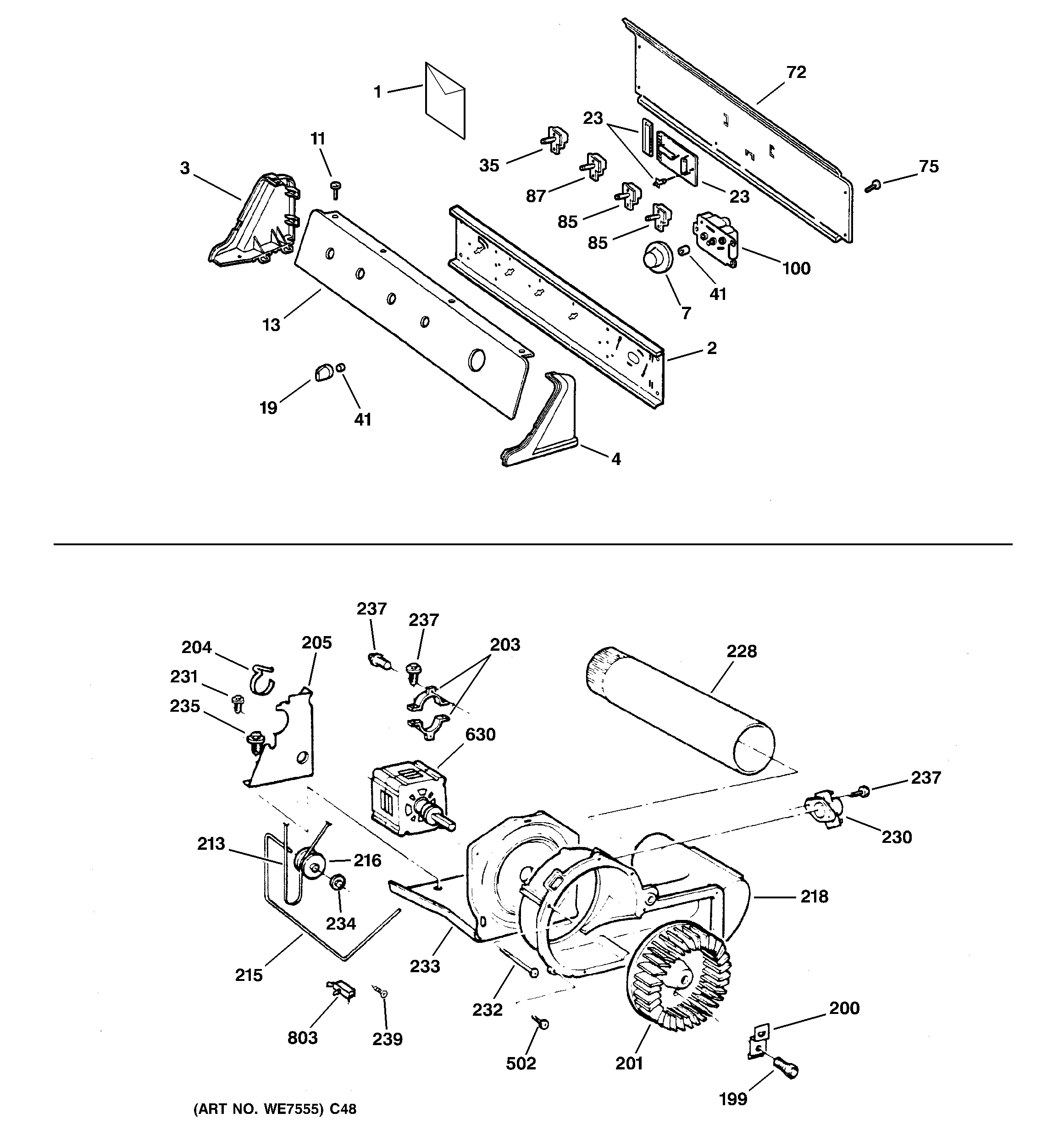

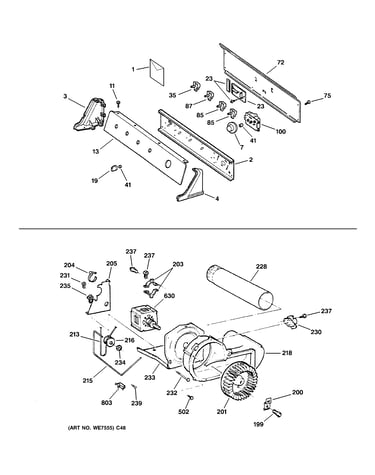

Backsplash, blower & motor assembly diagram

Idler pulley

Part #WE12M8

Replaced by #WE12X83

?
Manufacturer substitution
This part replaces WE12M8. Substitute parts can look different from the original.
BEST SELLER
$25.35 |
19% OFF Phone Price : $31.35
In Stock
Shft-brkt WE3X39
#508

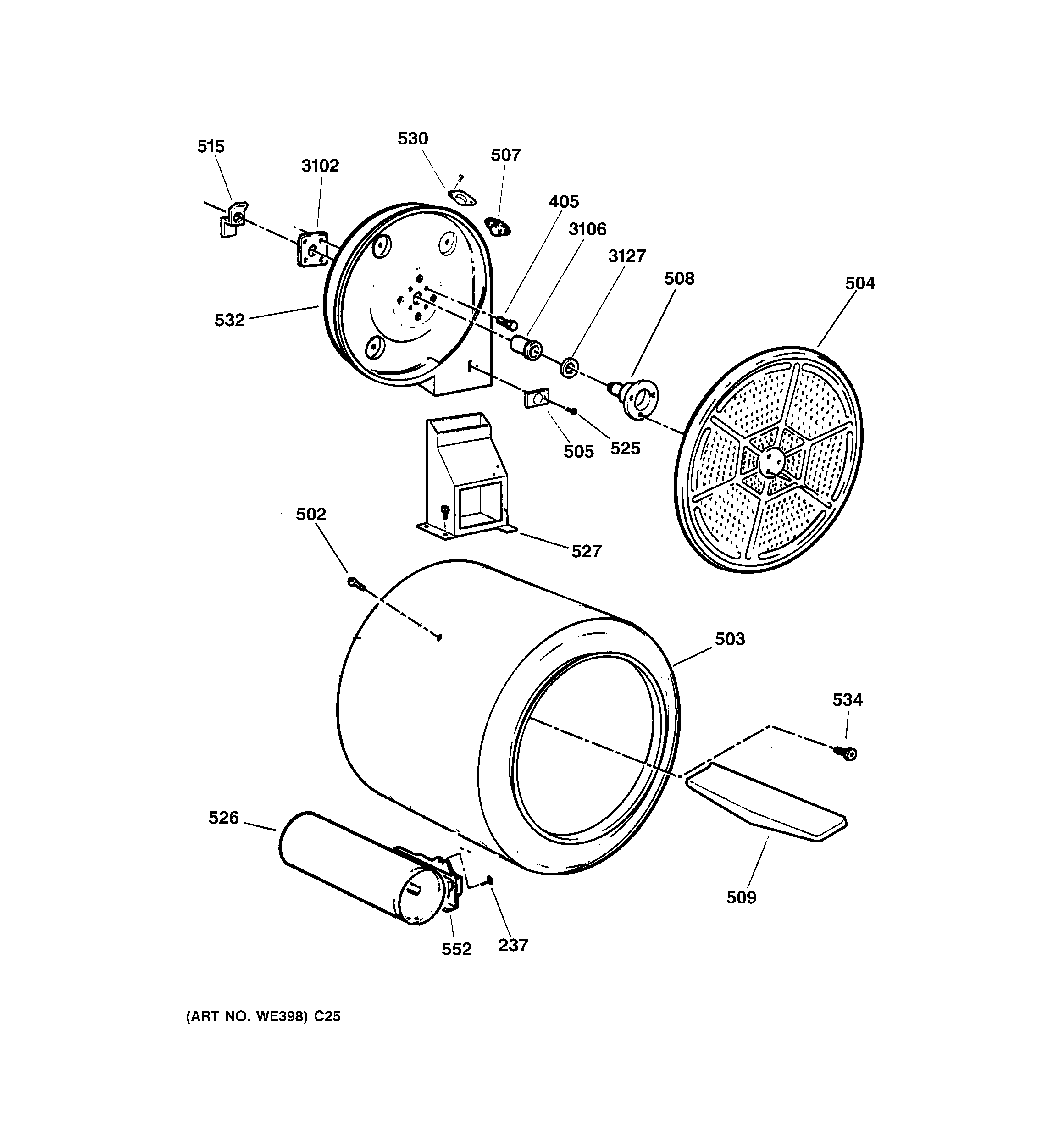

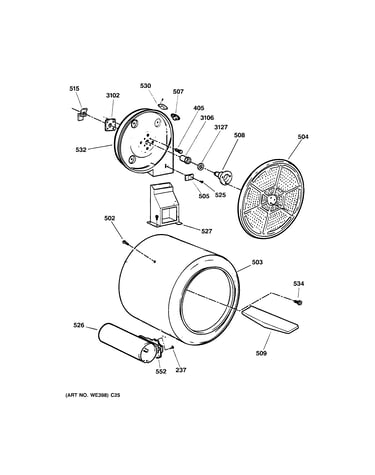

Drum diagram

Shft-brkt

Part #WE3X39

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE3X39. Substitute parts can look different from the original.
BEST SELLER
$71.61 |
8% OFF Phone Price : $77.61
In Stock
Kenmore Dryer Rear Bearing O-ring WE1M461
#3127

Drum diagram

Kenmore dryer rear bearing o-ring

Part #WE1M461

BEST SELLER
$7.63 |
12% OFF Phone Price : $8.63
In Stock
Start Switch WE4M315
#35

Backsplash, blower & motor assembly diagram

Start switch

Part #WE4M315

Replaced by #WE4M519

?
Manufacturer substitution
This part replaces WE4M315. Substitute parts can look different from the original.
BEST SELLER
$17.31 |
10% OFF Phone Price : $19.31
In Stock
Dryer Drum Bearing Bracket (replaces We01m0300) WE1M300
#3102

Drum diagram

Dryer drum bearing bracket (replaces we01m0300)

Part #WE1M300

BEST SELLER
$15.97 |
11% OFF Phone Price : $17.97
In Stock
Dryer Operating Thermostat (replaces We04m0181, We4m0181, We4m245) WE4M181
#507

Drum diagram

Dryer operating thermostat (replaces we04m0181, we4m0181, we4m245)

Part #WE4M181

BEST SELLER
$31.33
In Stock
Gasket Seal WE00M169
#325

Front panel & door diagram

Gasket seal

Part #WE00M169

Replaced by #WE1M825

?
Manufacturer substitution
This part replaces WE00M169. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.96 |
13% OFF Phone Price : $7.96
In Stock
