Craftsman
Walk-Behind Mower

Model # 536375702 Official Craftsman 18" reserve power reel lawn mower

Here are the diagrams and repair parts for Official Craftsman 536375702 18" reserve power reel lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |

Carriage Bolt 998010
Carriage bolt

Part #998010

The manufacturer no longer makes this part, and there's no substitute part

Washer 8728
#25

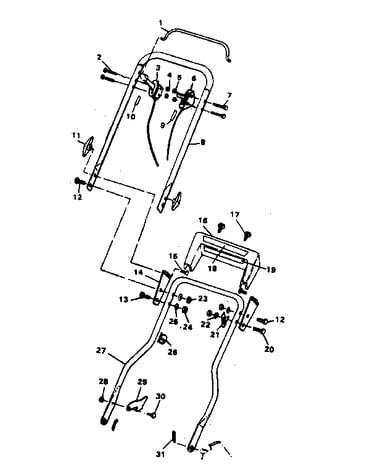

Handle assembly diagram

Washer

Part #8728

Replaced by #783000MA

?
Manufacturer substitution
This part replaces 8728. Substitute parts can look different from the original.
This item is not returnable
In Stock
Lock Nut 997316
#4

Handle assembly diagram

Lock nut

Part #997316

Replaced by #997316MA

?
Manufacturer substitution
This part replaces 997316. Substitute parts can look different from the original.
This item is not returnable
In Stock
Lock Nut 9424215
#24

Handle assembly diagram

Lock nut

Part #9424215

Replaced by #703251

?
Manufacturer substitution
This part replaces 9424215. Substitute parts can look different from the original.
$8.07
11% OFF Phone Price : $9.07
In Stock
Cap Screw 122052
#19

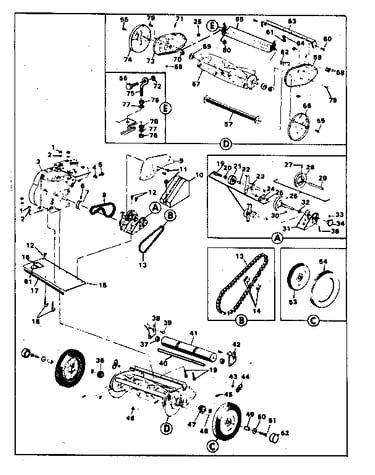

Reel assembly diagram

Cap screw

Part #122052

Replaced by #578794MA

?
Manufacturer substitution
This part replaces 122052. Substitute parts can look different from the original.
$11.69
15% OFF Phone Price : $13.69
In Stock
Screw 35498
#12

Reel assembly diagram

Screw

Part #35498

Replaced by #782967MA

?
Manufacturer substitution
This part replaces 35498. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 995363
#5

Reel assembly diagram

Screw

Part #995363

The manufacturer no longer makes this part, and there's no substitute part

Tire 53555
#54

Reel assembly diagram

Tire

Part #53555

The manufacturer no longer makes this part, and there's no substitute part

Control Bar 52890
#1

Handle assembly diagram

Control bar

Part #52890

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 9412349
#80

Reel assembly diagram

Lock nut

Part #9412349

The manufacturer no longer makes this part, and there's no substitute part
