Model # SV590-0013 Official Kohler engine

Here are the diagrams and repair parts for Official Kohler SV590-0013 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

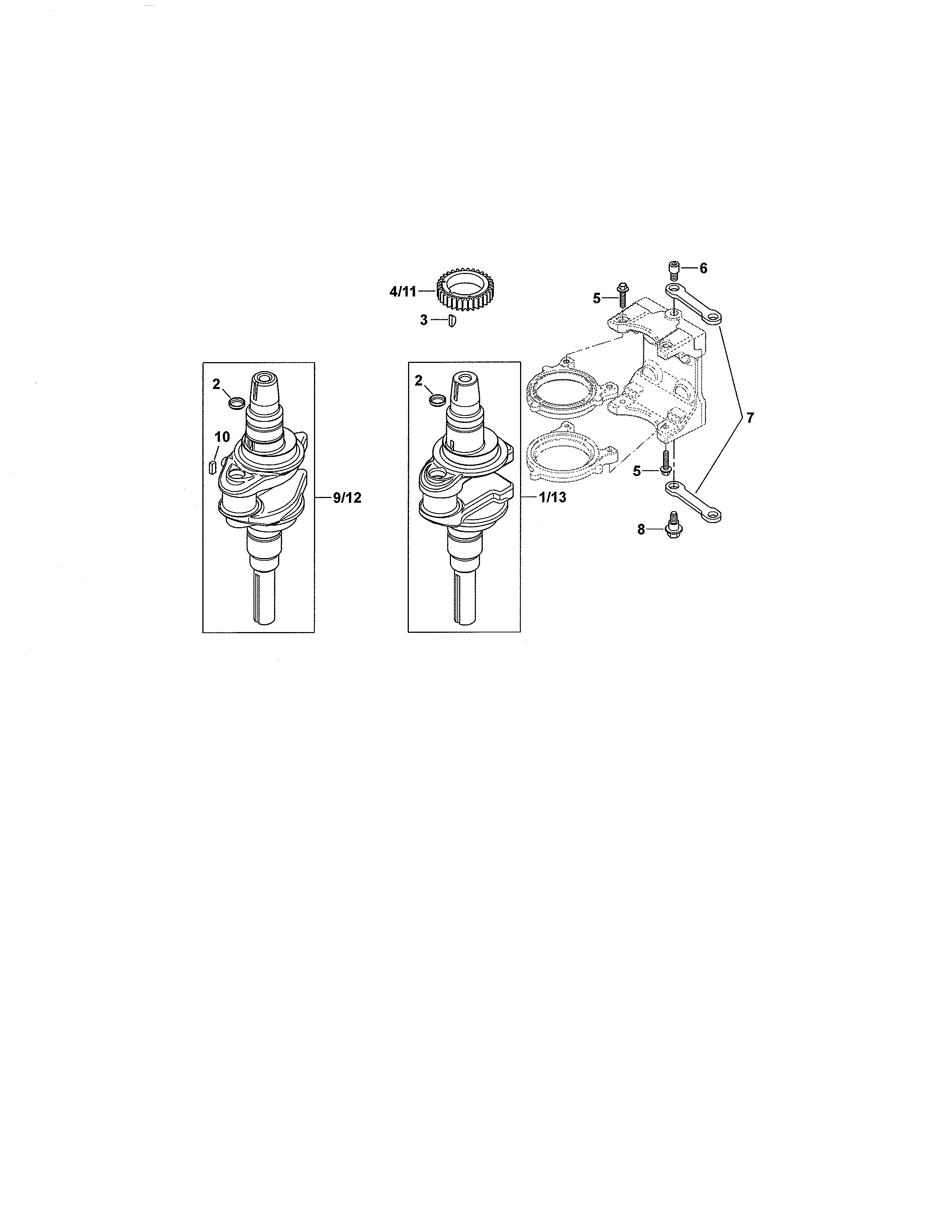

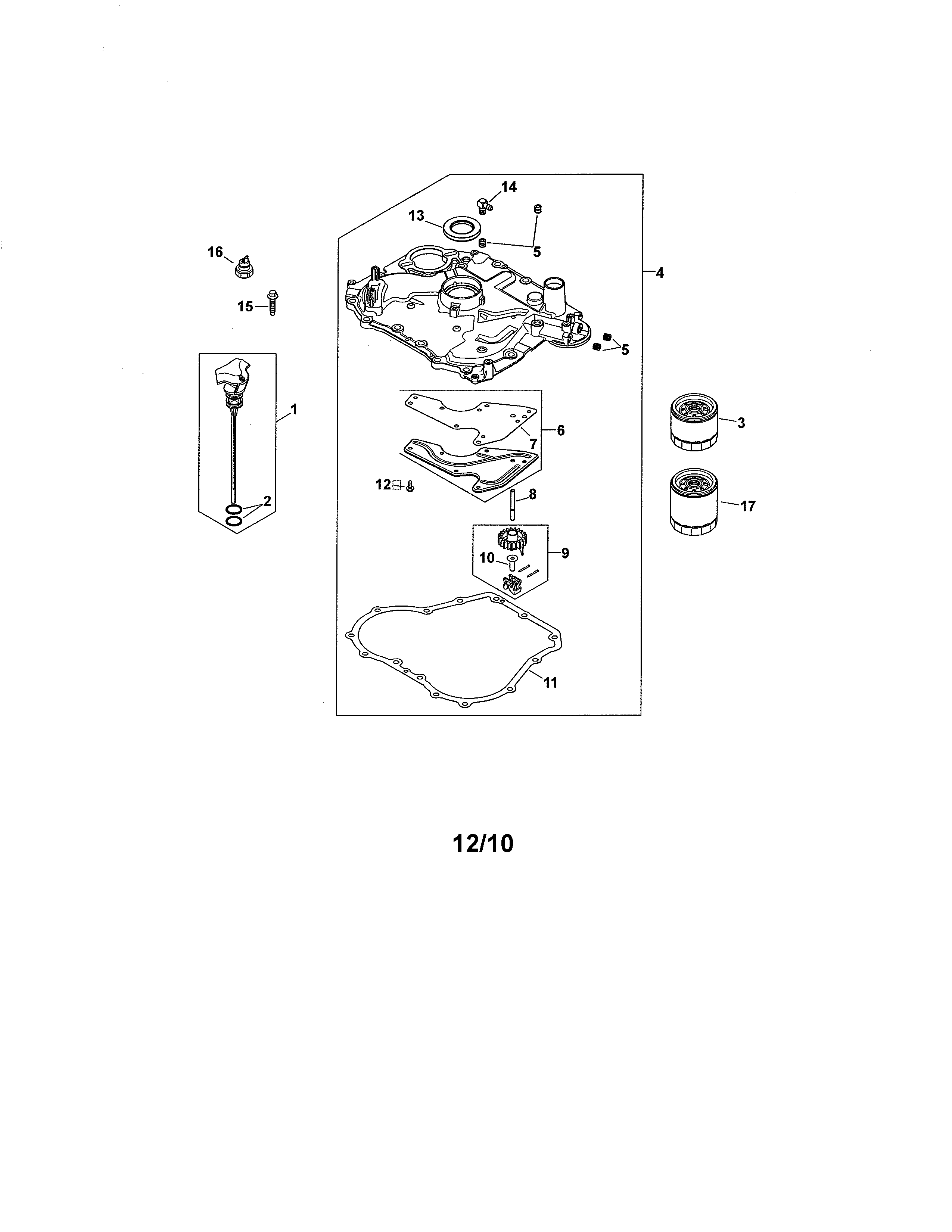

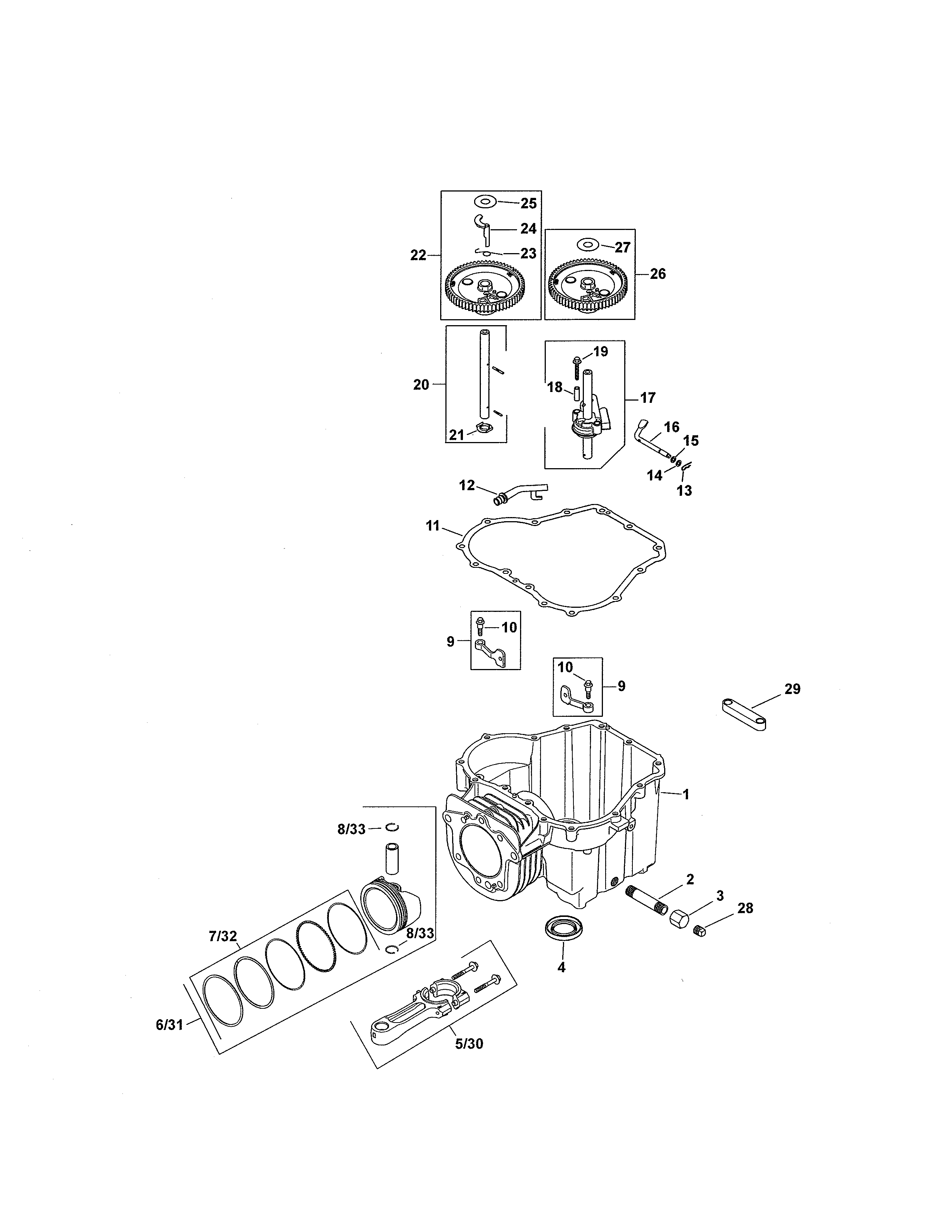

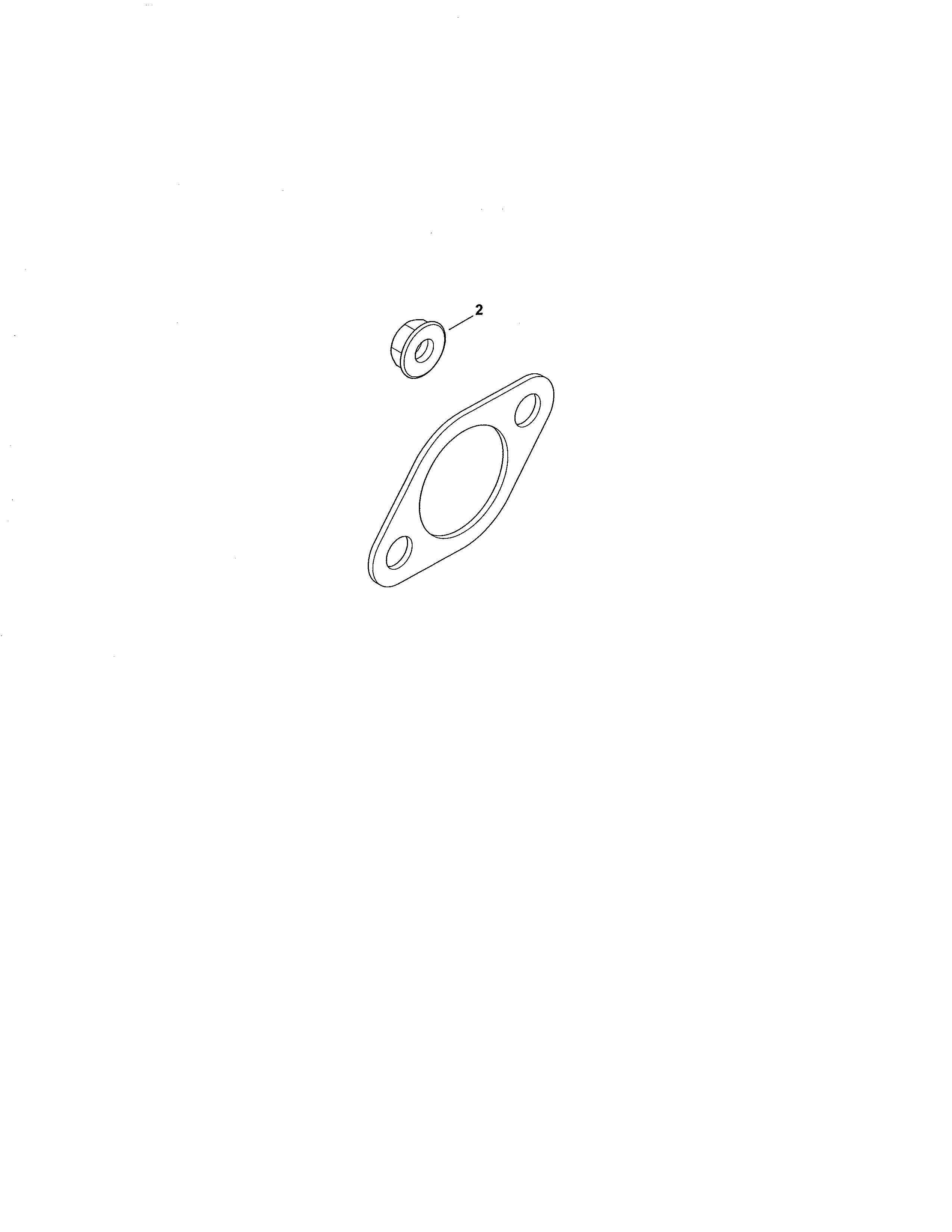

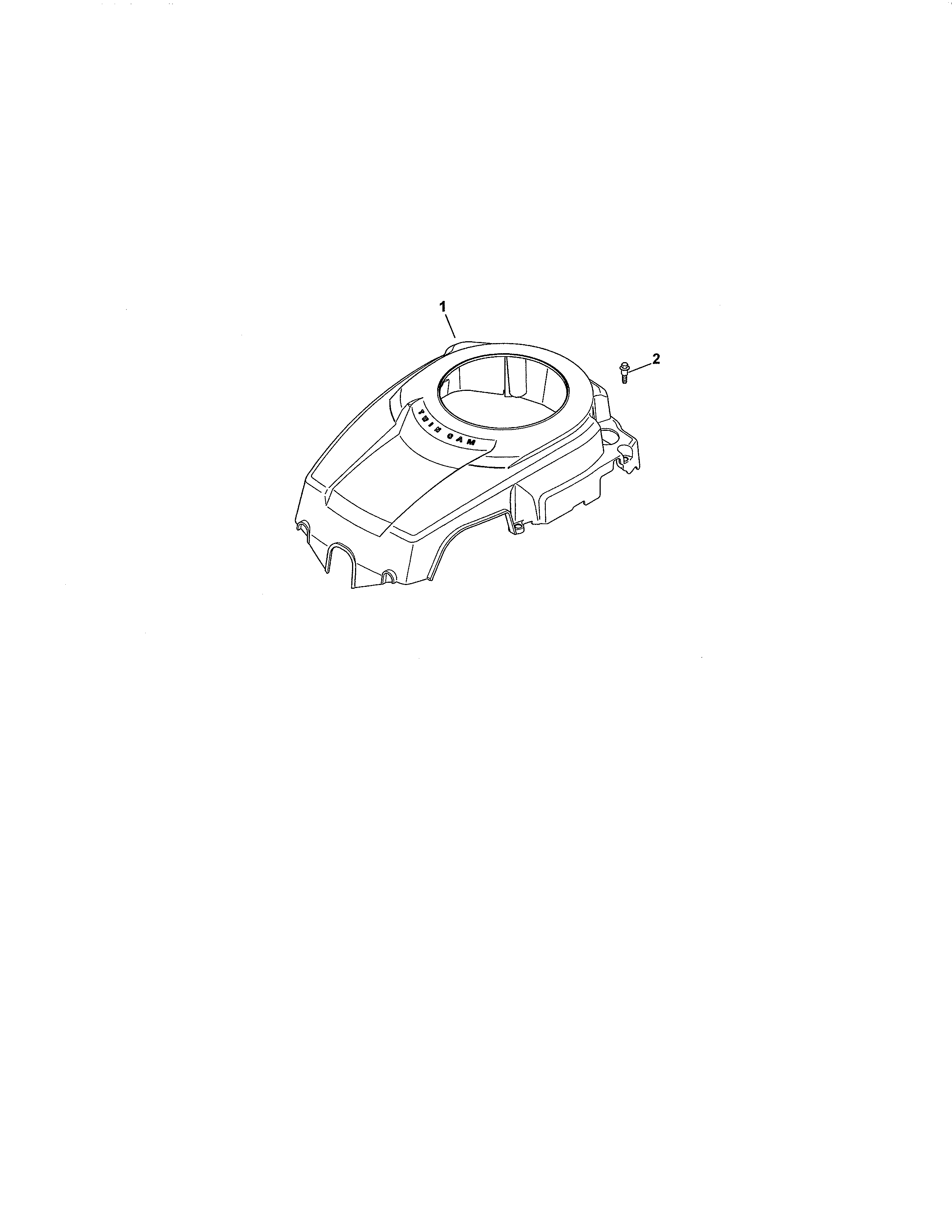

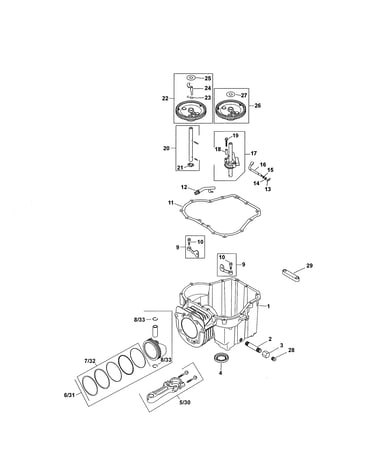

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Lawn & Garden Equipment Engine Fuel Shut-off Solenoid Kit (replaces 12-755-34, 12-757-09, 12-757-09-s, 12-757-33, 12-757-33s, Kh-12-757-33) 12-757-33-S

#NI08

All parts diagram

Lawn & garden equipment engine fuel shut-off solenoid kit (replaces 12-755-34, 12-757-09, 12-757-09-s, 12-757-33, 12-757-33s, kh-12-757-33)

Part #12-757-33-S

BEST SELLER
$96.57 |
11% OFF Phone Price : $108.57
In Stock
Lawn & Garden Equipment Engine Air Filter 20-083-02-S
#4

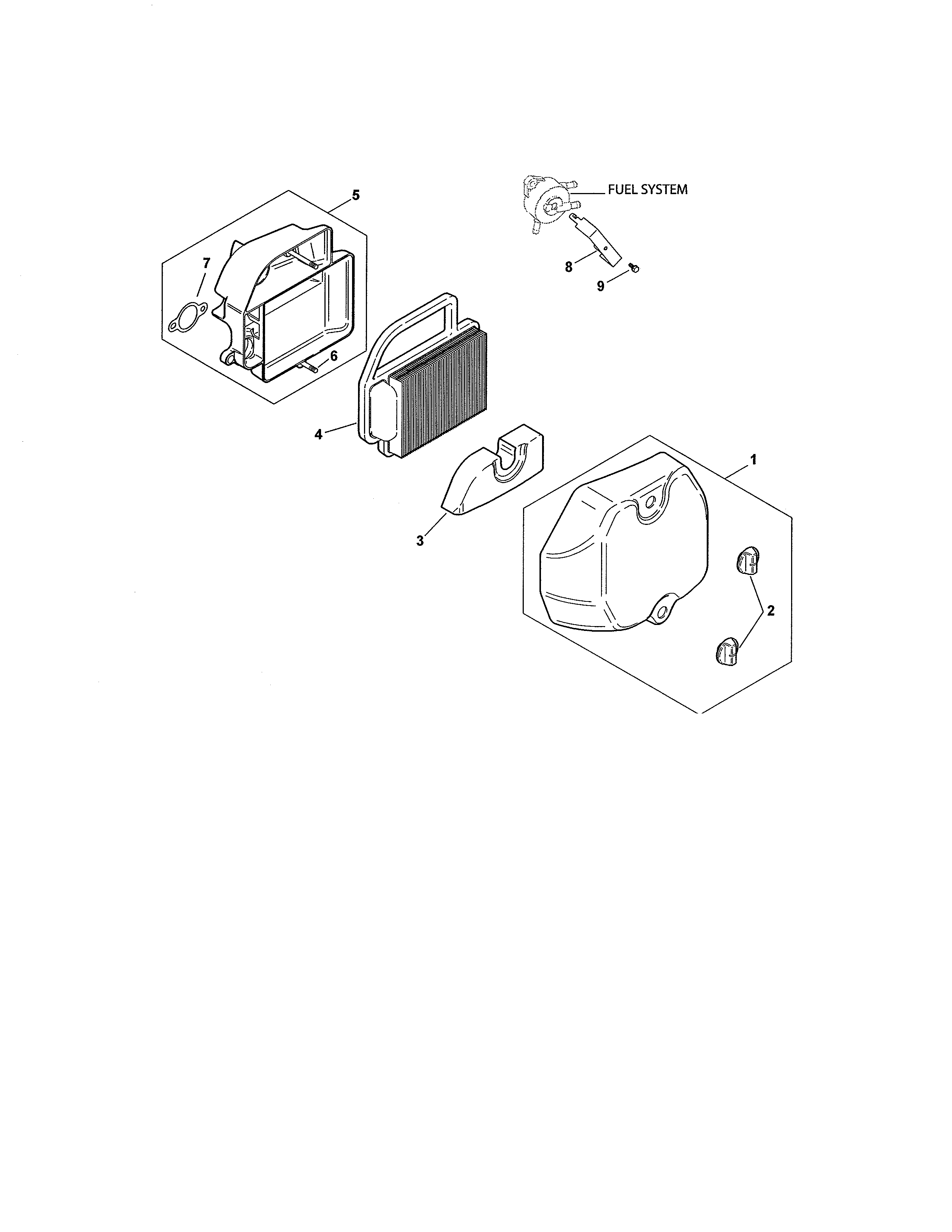

Air intake/filtration diagram

Lawn & garden equipment engine air filter

Part #20-083-02-S

Replaced by #20-083-06-S

?
Manufacturer substitution
This part replaces 20-083-02-S. Substitute parts can look different from the original.
BEST SELLER
$17.11 |
10% OFF Phone Price : $19.11
In Stock
Lawn & Garden Equipment Engine Fuel Filter (replaces 2505021-s, Kh-25-050-21-s) 25-050-21-S
#31

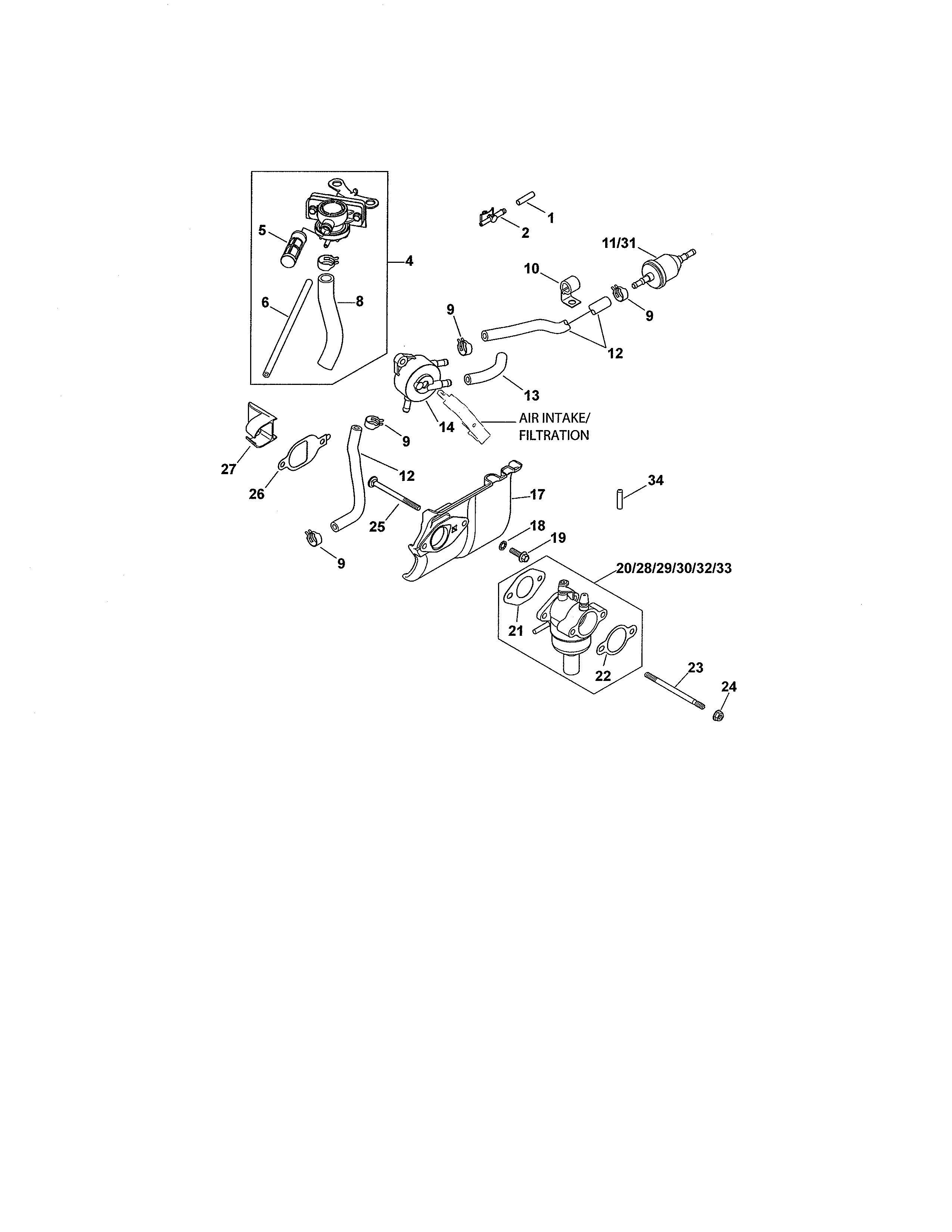

Fuel system diagram

Lawn & garden equipment engine fuel filter (replaces 2505021-s, kh-25-050-21-s)

Part #25-050-21-S

BEST SELLER
$9.14 |
10% OFF Phone Price : $10.14
In Stock
Bushing 25-158-11
#12

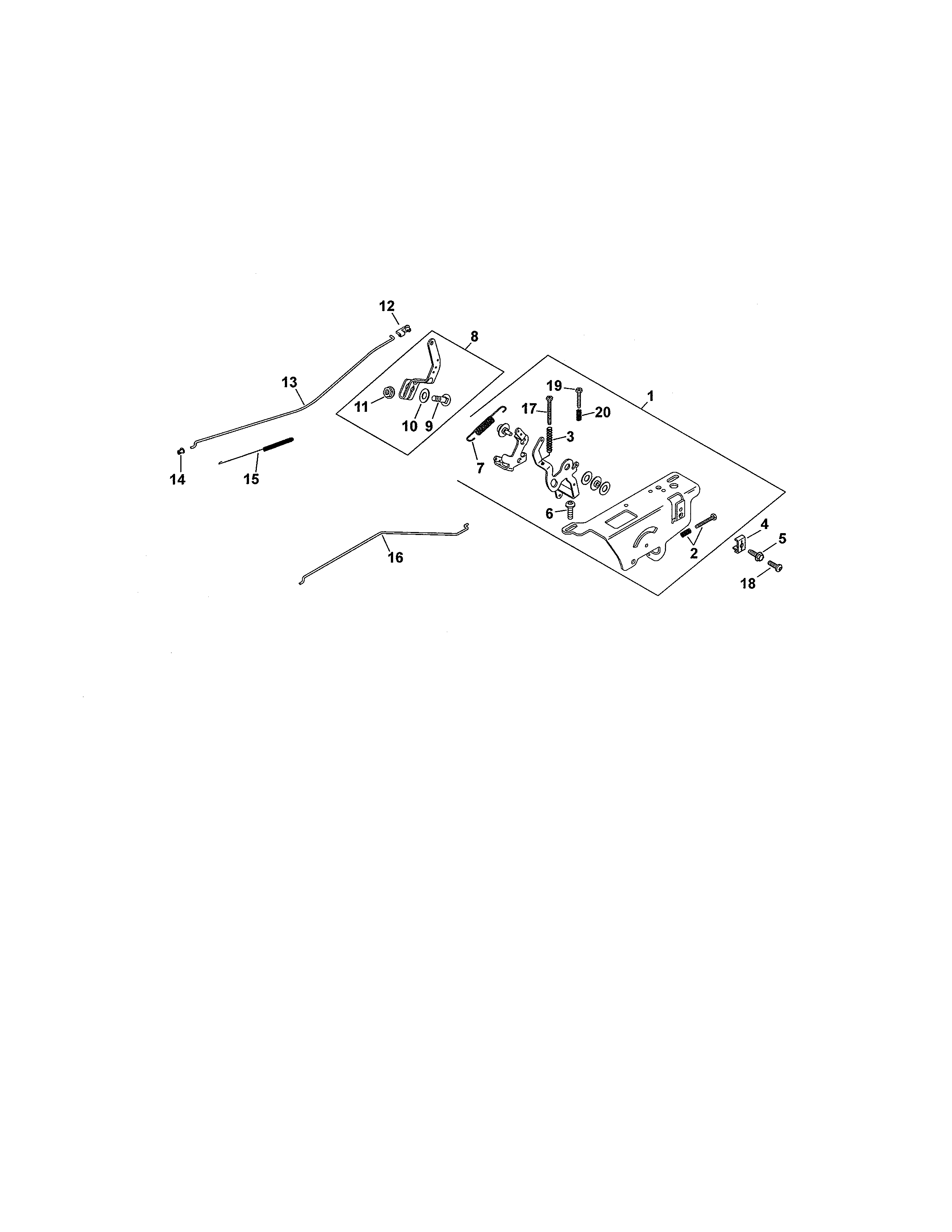

Engine controls diagram

Bushing

Part #25-158-11

Replaced by #25-158-11-S

?
Manufacturer substitution
This part replaces 25-158-11. Substitute parts can look different from the original.
This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Lawn & Garden Equipment Engine Valve Cover Gasket (replaces 20-041-04-s, Kh-20-041-13-s) 20-041-13-S
#2

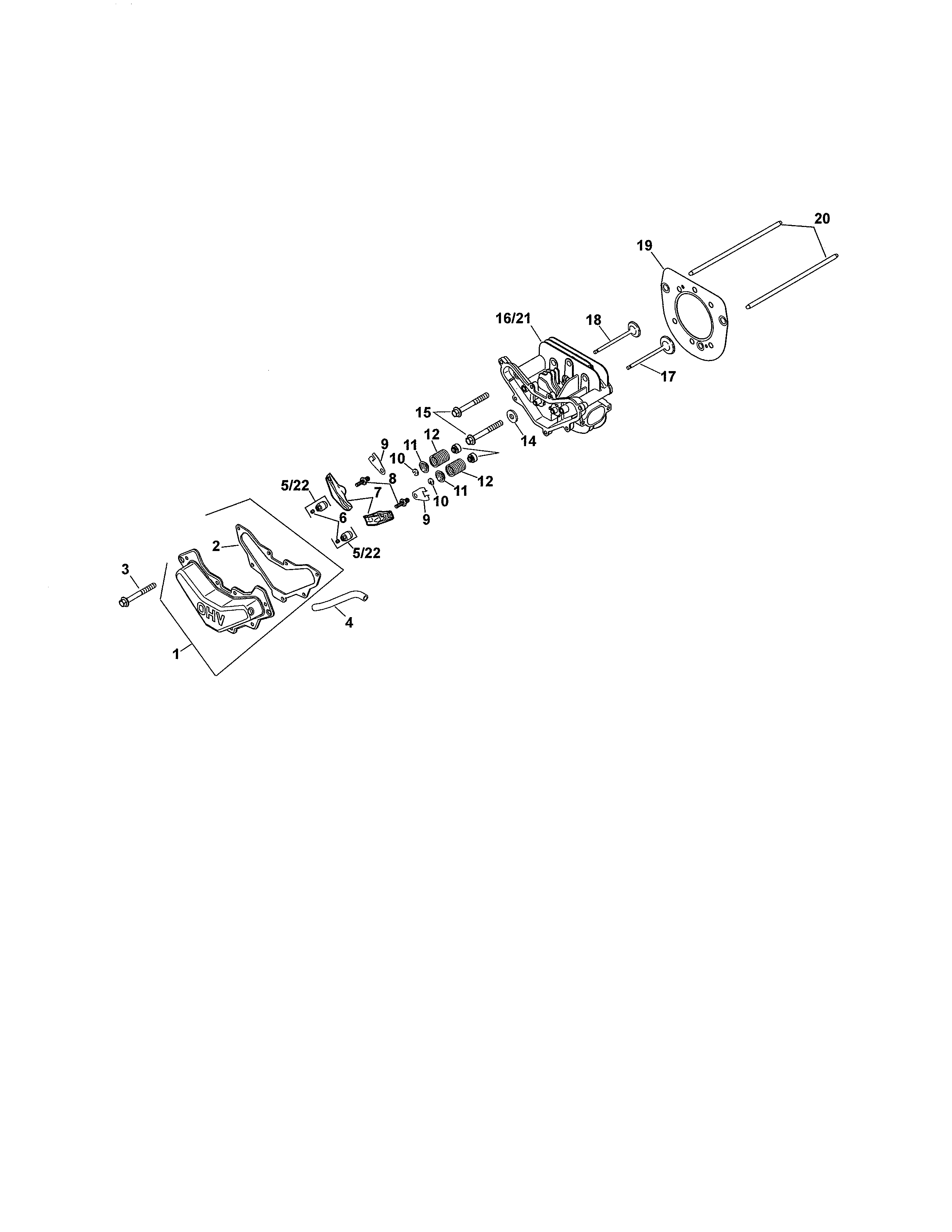

Head/valve/breather diagram

Lawn & garden equipment engine valve cover gasket (replaces 20-041-04-s, kh-20-041-13-s)

Part #20-041-13-S

This item is not returnable
$17.29 |
10% OFF Phone Price : $19.29
In Stock
Starter 20-098-05-S
#1

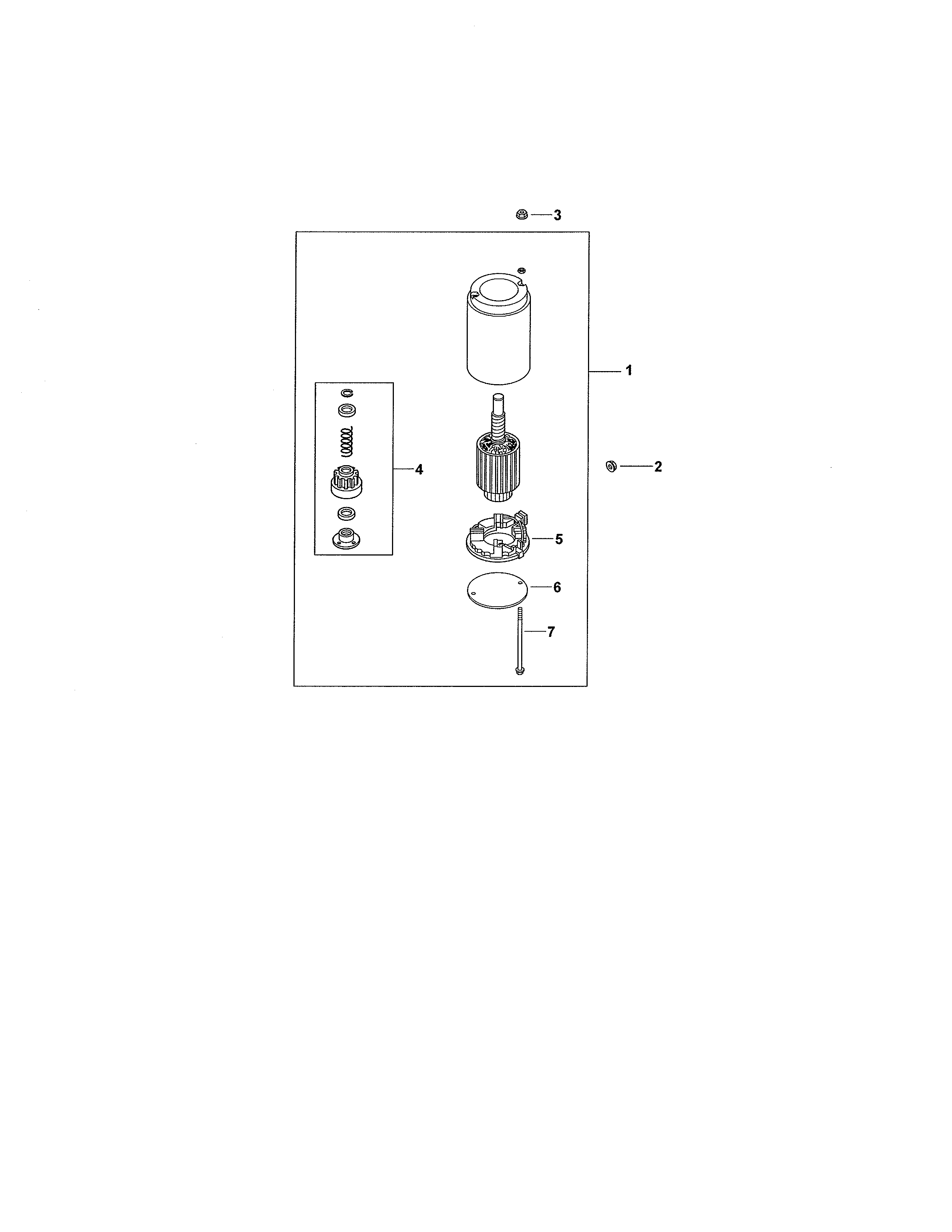

Starting system diagram

Starter

Part #20-098-05-S

Replaced by #20-098-11-S

?
Manufacturer substitution
This part replaces 20-098-05-S. Substitute parts can look different from the original.
$136.39 |
8% OFF Phone Price : $148.39
In Stock
Bushing 25-158-08
#14

Engine controls diagram

Bushing

Part #25-158-08

Replaced by #25-158-08-S

?
Manufacturer substitution
This part replaces 25-158-08. Substitute parts can look different from the original.
This item is not returnable
$7.03 |
12% OFF Phone Price : $8.03
In Stock
Lawn & Garden Equipment Engine Ignition Module 20-584-03-S
#16

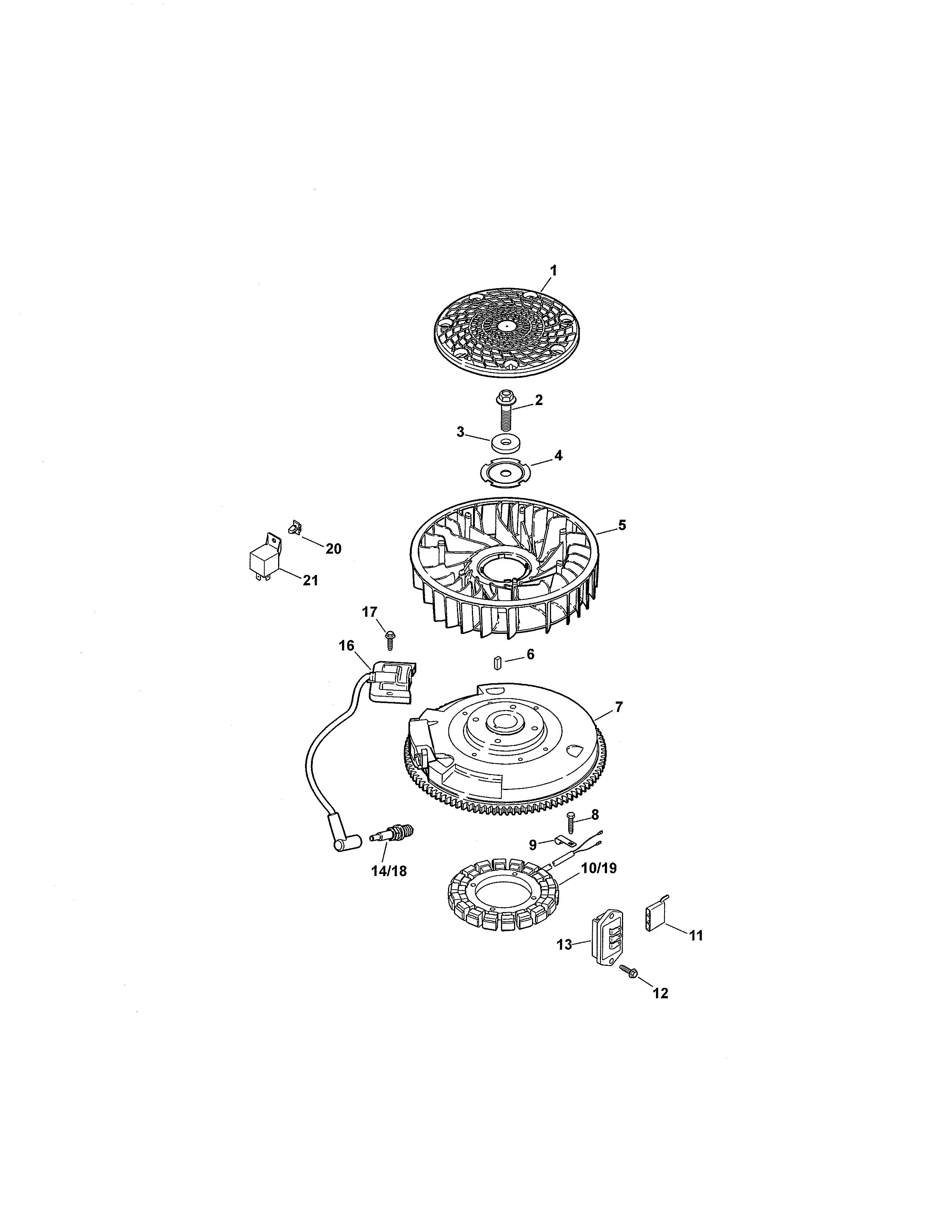

Ignition/electrical diagram

Lawn & garden equipment engine ignition module

Part #20-584-03-S

$39.49 |
13% OFF Phone Price : $45.49
In Stock
Lawn & Garden Equipment Engine Rectifier Wire Connector 25-155-41-S
#11

Ignition/electrical diagram

Lawn & garden equipment engine rectifier wire connector

Part #25-155-41-S

This item is not returnable
$9.49 |
10% OFF Phone Price : $10.49
In Stock
Lawn & Garden Equipment Engine Carburetor Shield 20-265-09-S
#17

Fuel system diagram

Lawn & garden equipment engine carburetor shield

Part #20-265-09-S

$38.60
In Stock
