Model # 25361112100 Official Kenmore top-mount refrigerator
Here are the diagrams and repair parts for Official Kenmore 25361112100 top-mount refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

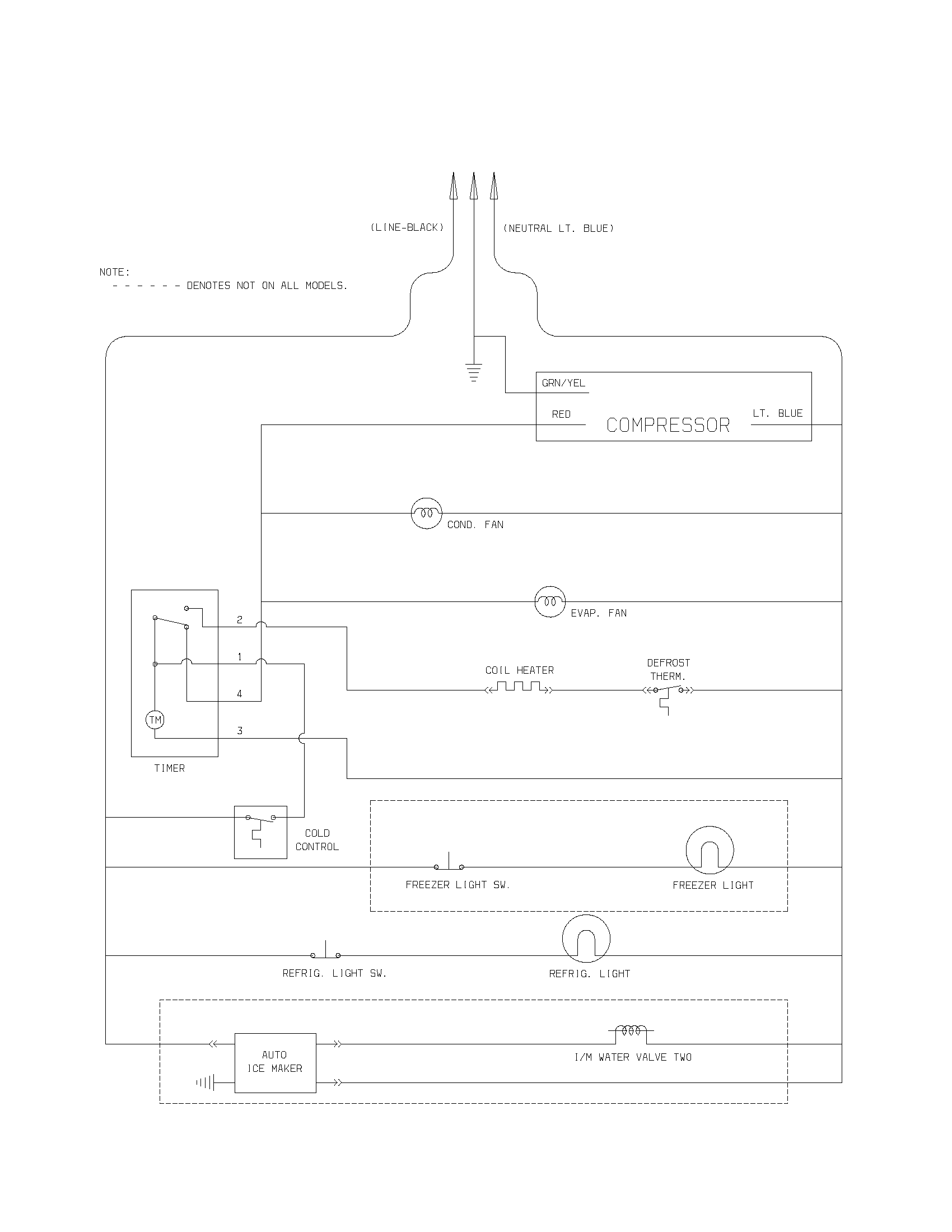

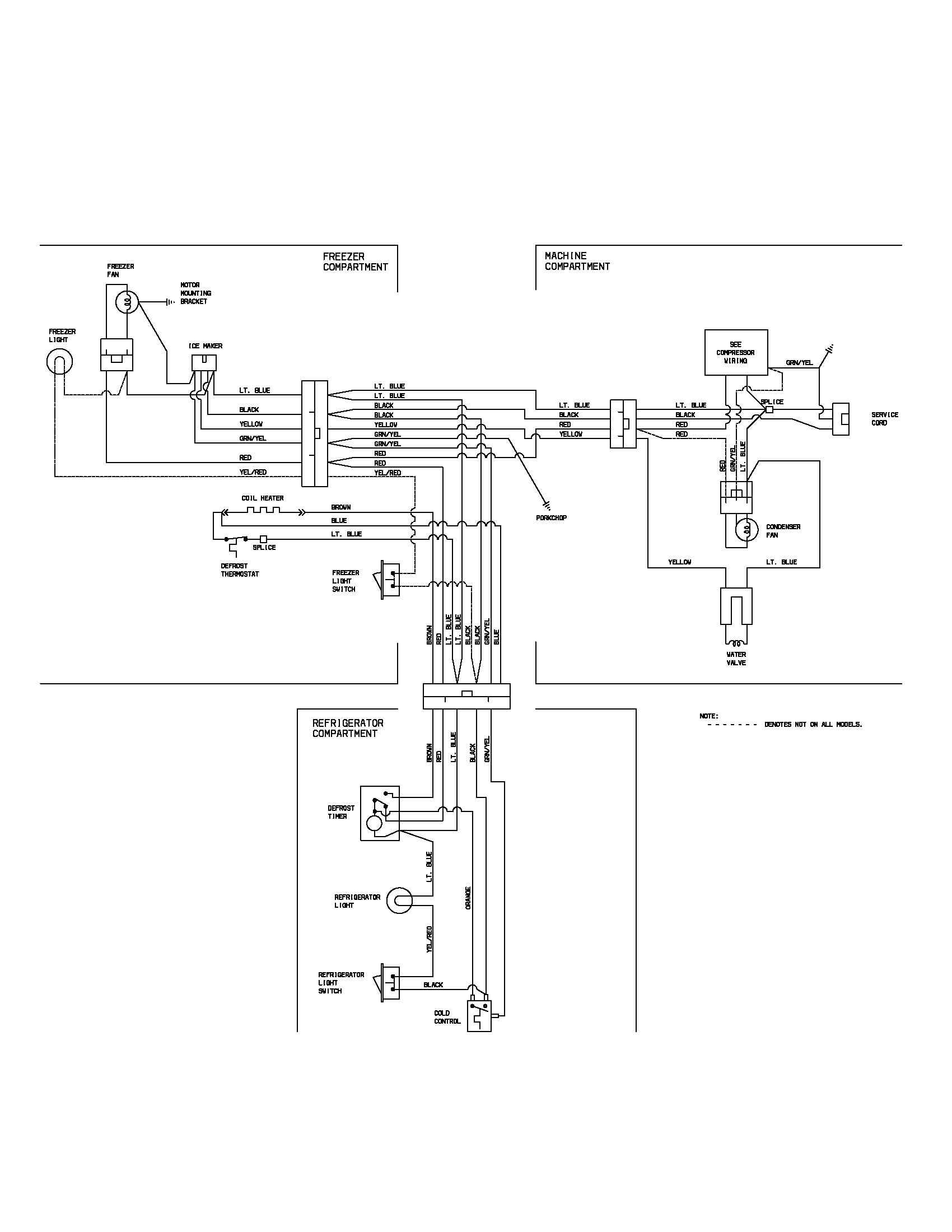

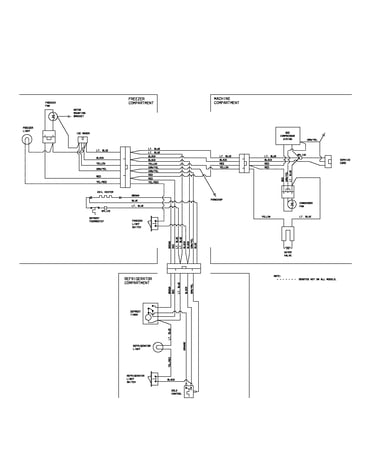

SELECT DIAGRAM
Browse Parts for25361112100 Refrigerators
- #4

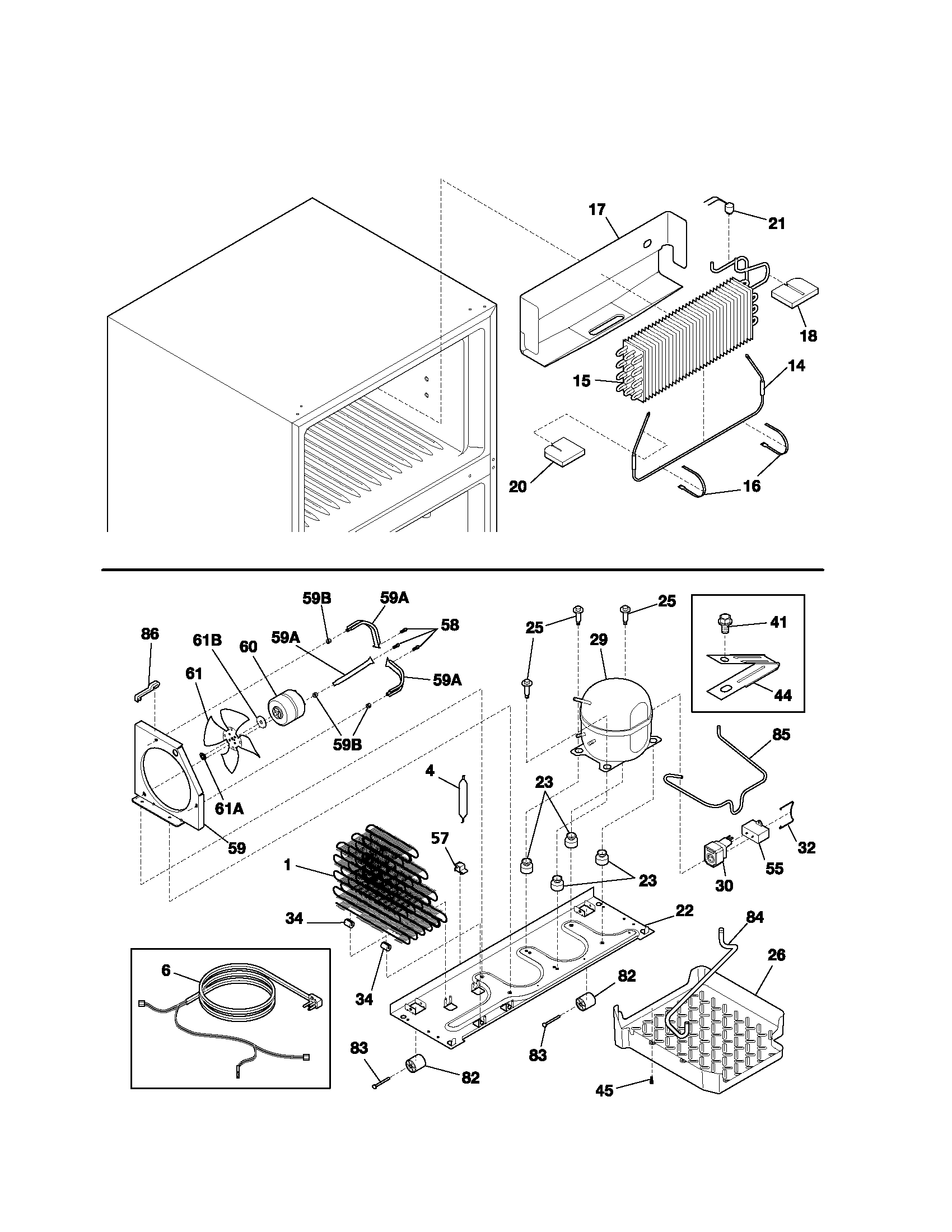

System diagram
Refrigerator filter drierPart #218944001
Replaced by #5303305677
?Manufacturer substitutionThis part replaces 218944001. Substitute parts can look different from the original.$23.67 |20% OFF Phone Price : $29.67In Stock - #15

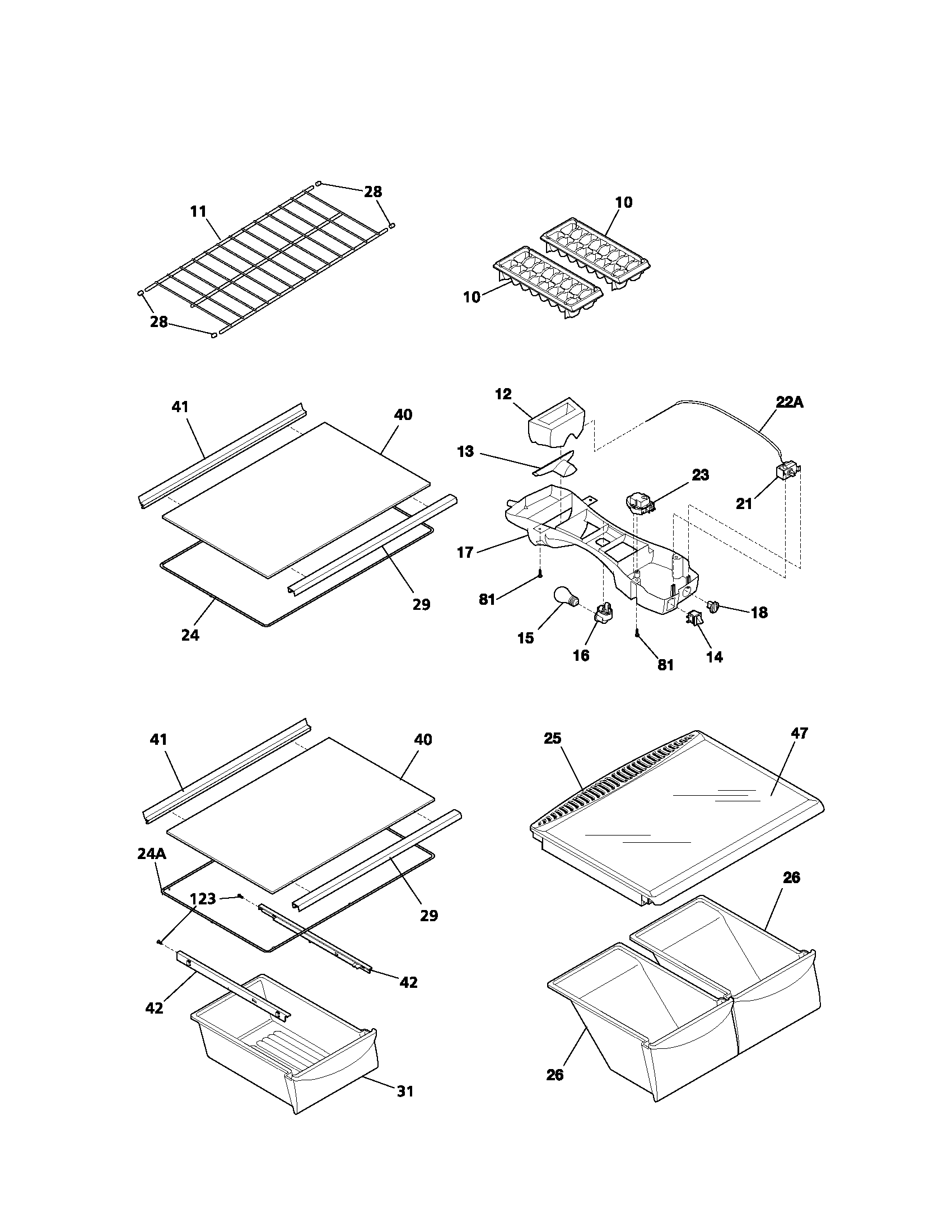

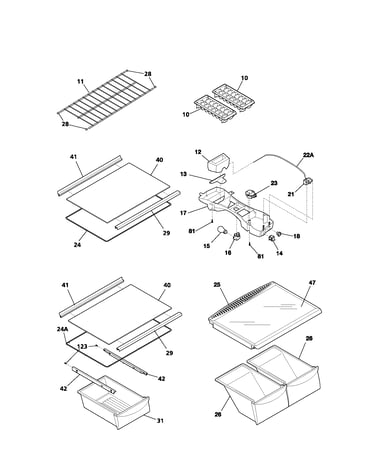

Shelves diagram
Refrigerator light bulbPart #240436701
Replaced by #316538904
?Manufacturer substitutionThis part replaces 240436701. Substitute parts can look different from the original.$15.89 |11% OFF Phone Price : $17.89In Stock - #42
Shelves diagram
Refrigerator meat hangerPart #240460501
Replaced by #240530701
?Manufacturer substitutionThis part replaces 240460501. Substitute parts can look different from the original.$45.47 |12% OFF Phone Price : $51.47In Stock - #34

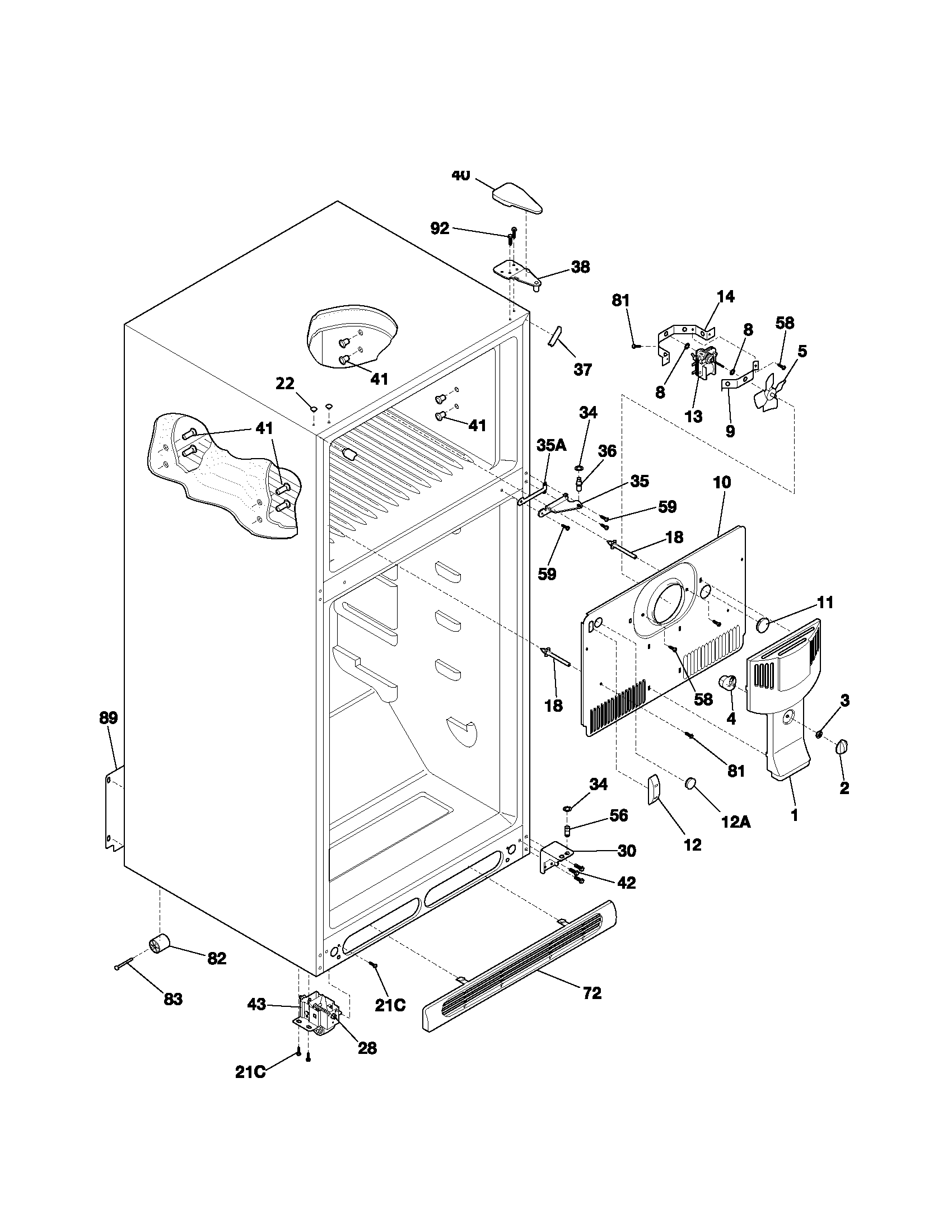

Cabinet diagram
WasherPart #240311301
Replaced by #240311303
?Manufacturer substitutionThis part replaces 240311301. Substitute parts can look different from the original.$9.69 |9% OFF Phone Price : $10.69In Stock - #5
Cabinet diagram
Refrigerator evaporator fan bladePart #5308000010
$39.98 |13% OFF Phone Price : $45.98In Stock - #21
Shelves diagram
Refrigerator temperature control thermostatPart #5304421256
Replaced by #241537103
?Manufacturer substitutionThis part replaces 5304421256. Substitute parts can look different from the original.This item is not returnable$61.87 |9% OFF Phone Price : $67.87In Stock - #13
Cabinet diagram
Evaporator motorPart #240369701
Replaced by #5303918549
?Manufacturer substitutionThis part replaces 240369701. Substitute parts can look different from the original.$59.36 |9% OFF Phone Price : $65.36In Stock - #2

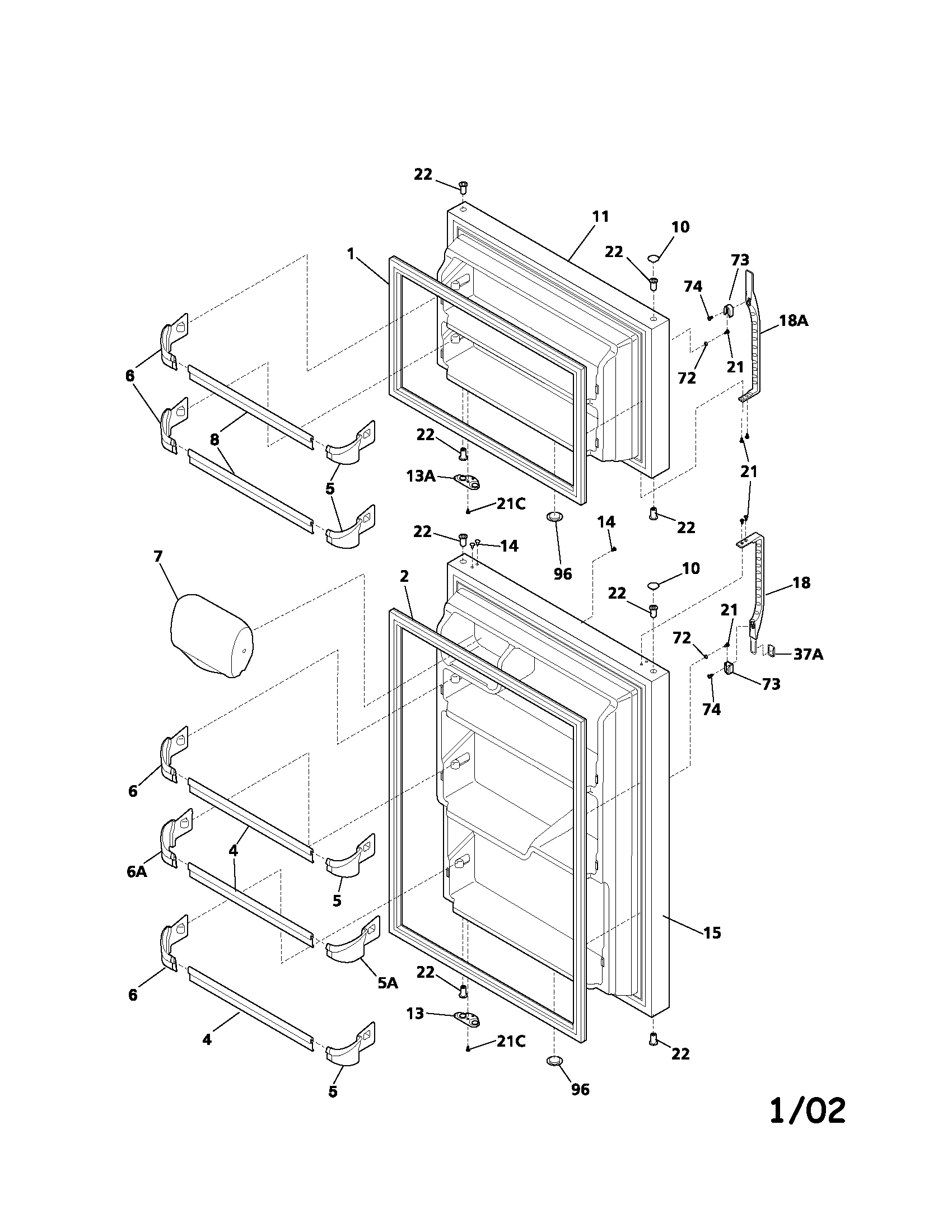

Doors diagram
Refrigerator doorPart #240514608
Replaced by #242193213
?Manufacturer substitutionThis part replaces 240514608. Substitute parts can look different from the original.$108.39 |10% OFF Phone Price : $120.39In Stock - #29
System diagram
Refrigerator compressorPart #5303918264
Replaced by #5304507765
?Manufacturer substitutionThis part replaces 5303918264. Substitute parts can look different from the original.$420.99 |$12.00 OFF Phone Price : $432.99In Stock - #23
Shelves diagram
Refrigerator timerPart #215846606
Replaced by #215846602
?Manufacturer substitutionThis part replaces 215846606. Substitute parts can look different from the original.$24.38 |20% OFF Phone Price : $30.38In Stock
