Fisher & Paykel
Top-Mount Refrigerator

Model # E521TRM-21693A Official Fisher & Paykel refrigerator

Here are the diagrams and repair parts for Official Fisher & Paykel E521TRM-21693A refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

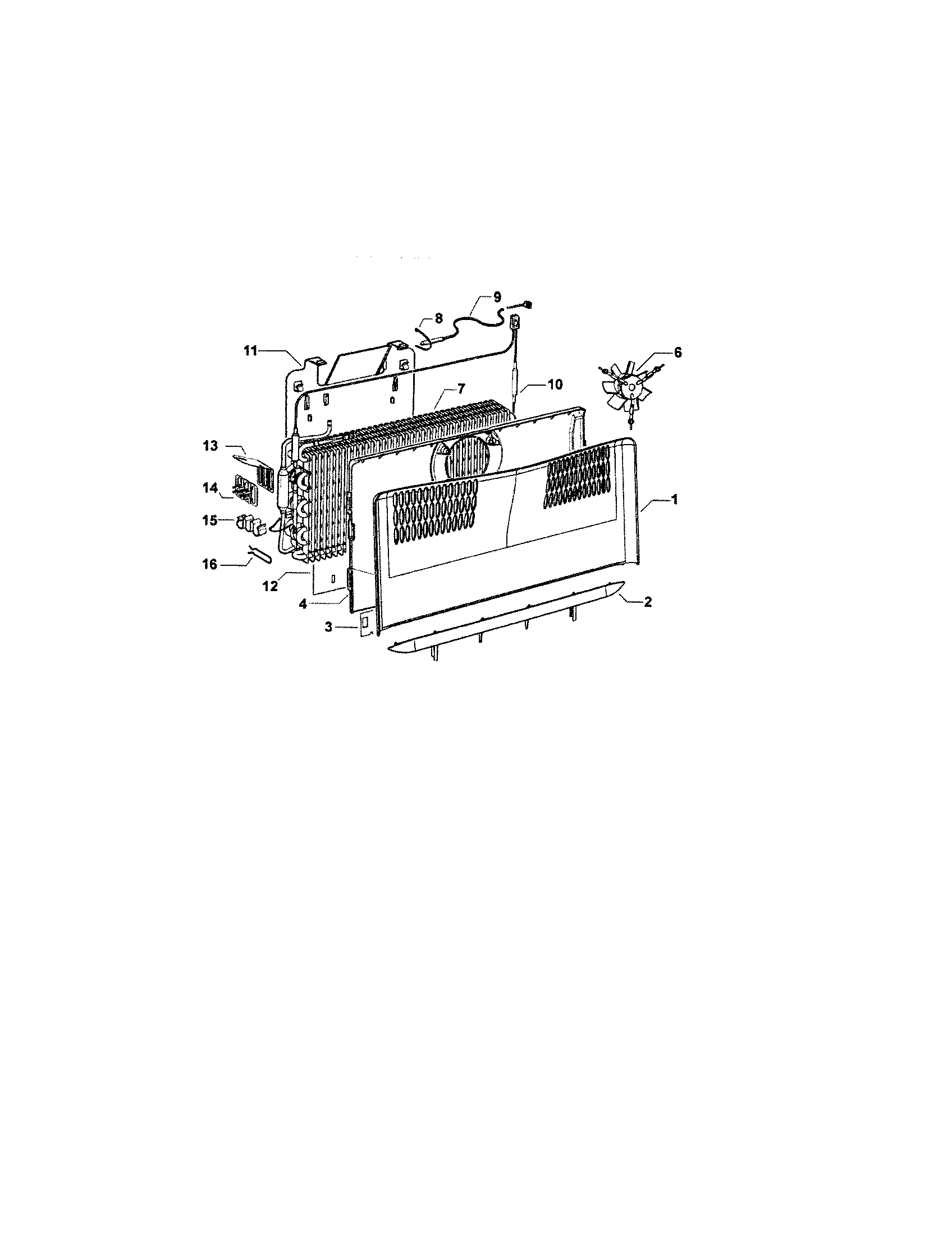

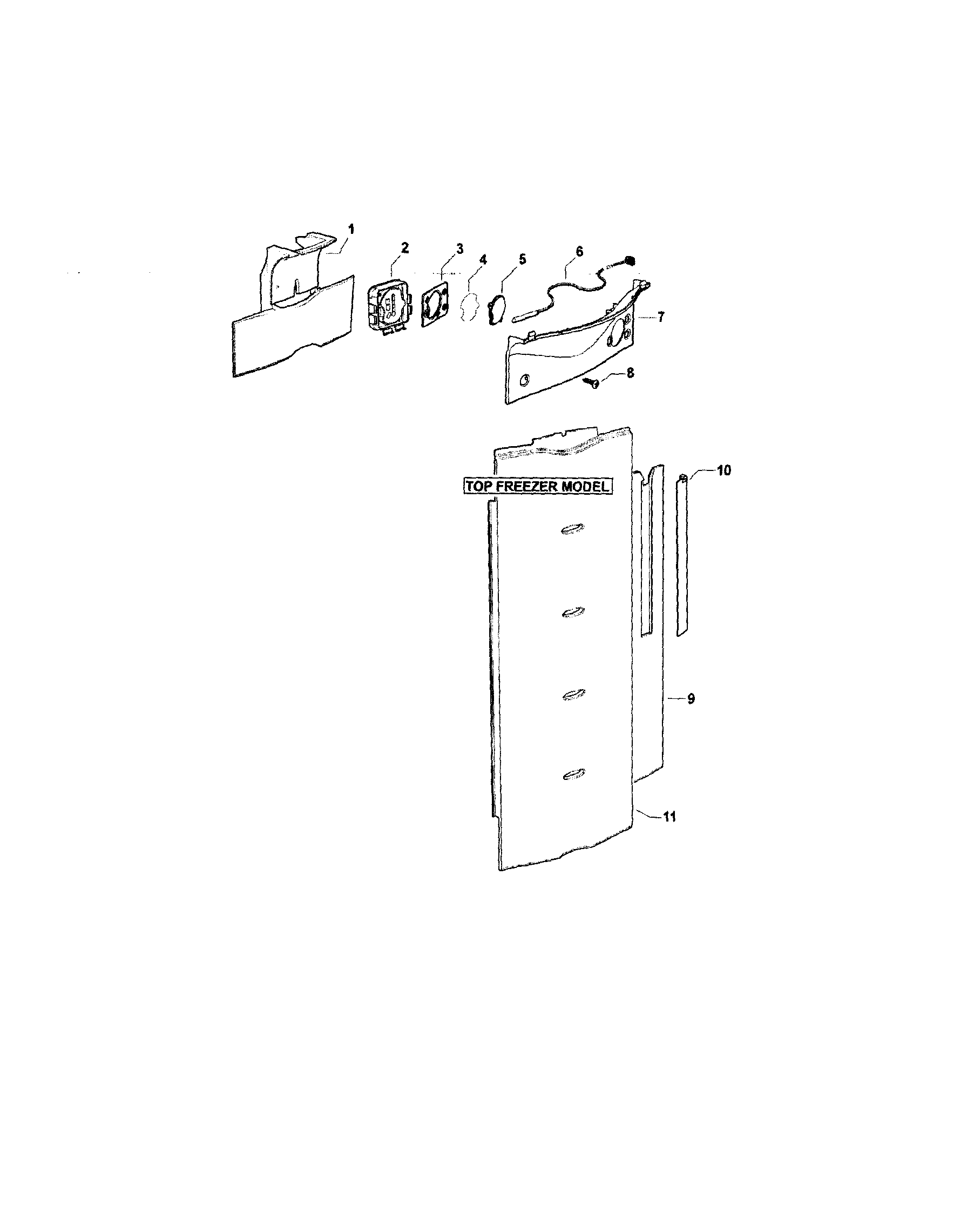

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 154 parts  |
Refrigerator Lamp 874017
#16

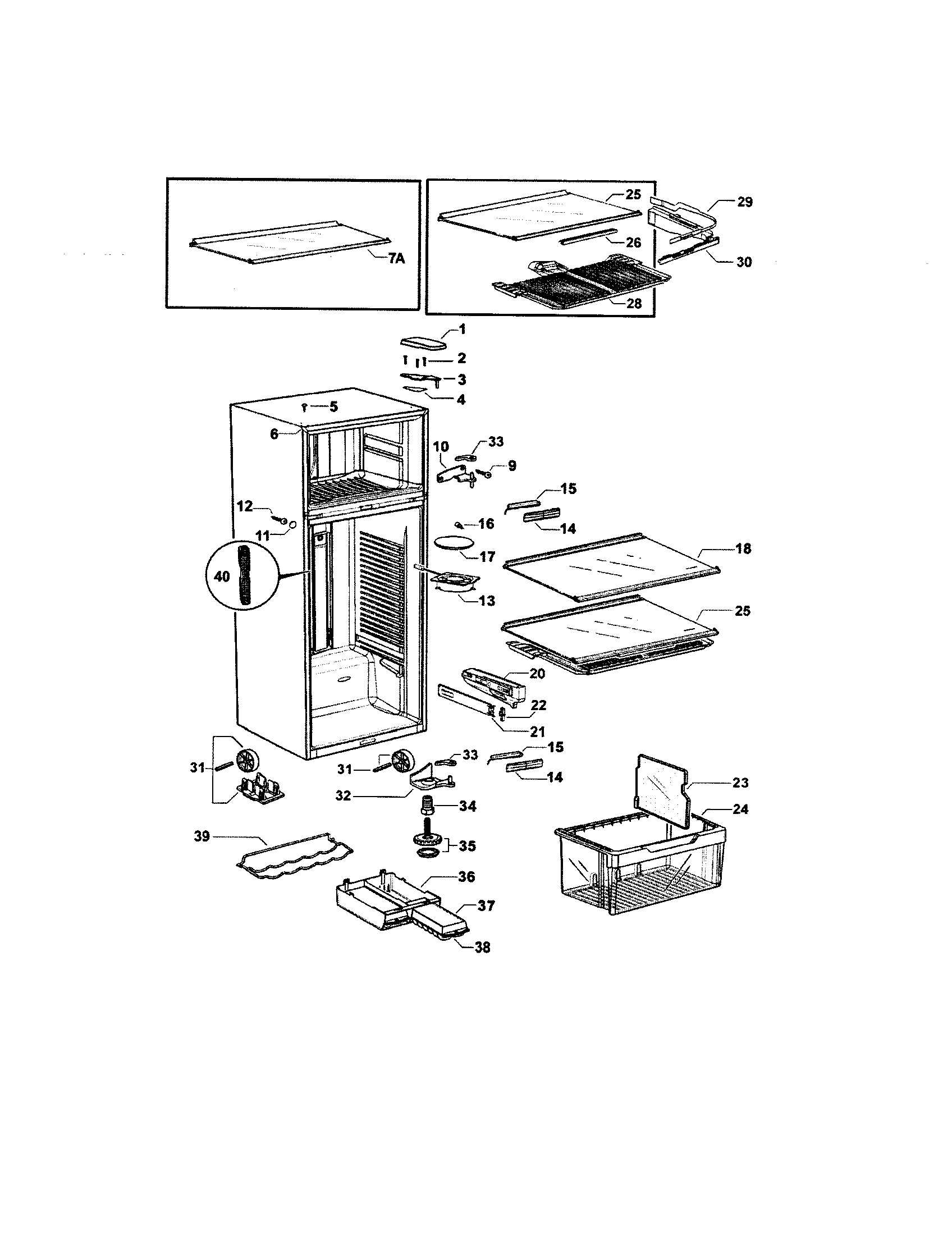

Cabinet diagram

Refrigerator lamp

Part #874017

Replaced by #874017P

?
Manufacturer substitution
This part replaces 874017. Substitute parts can look different from the original.
This item is not returnable
$12.09 |
14% OFF Phone Price : $14.09
In Stock
Fisher & Paykel Refrigerator Freezer Handle 884571
#23

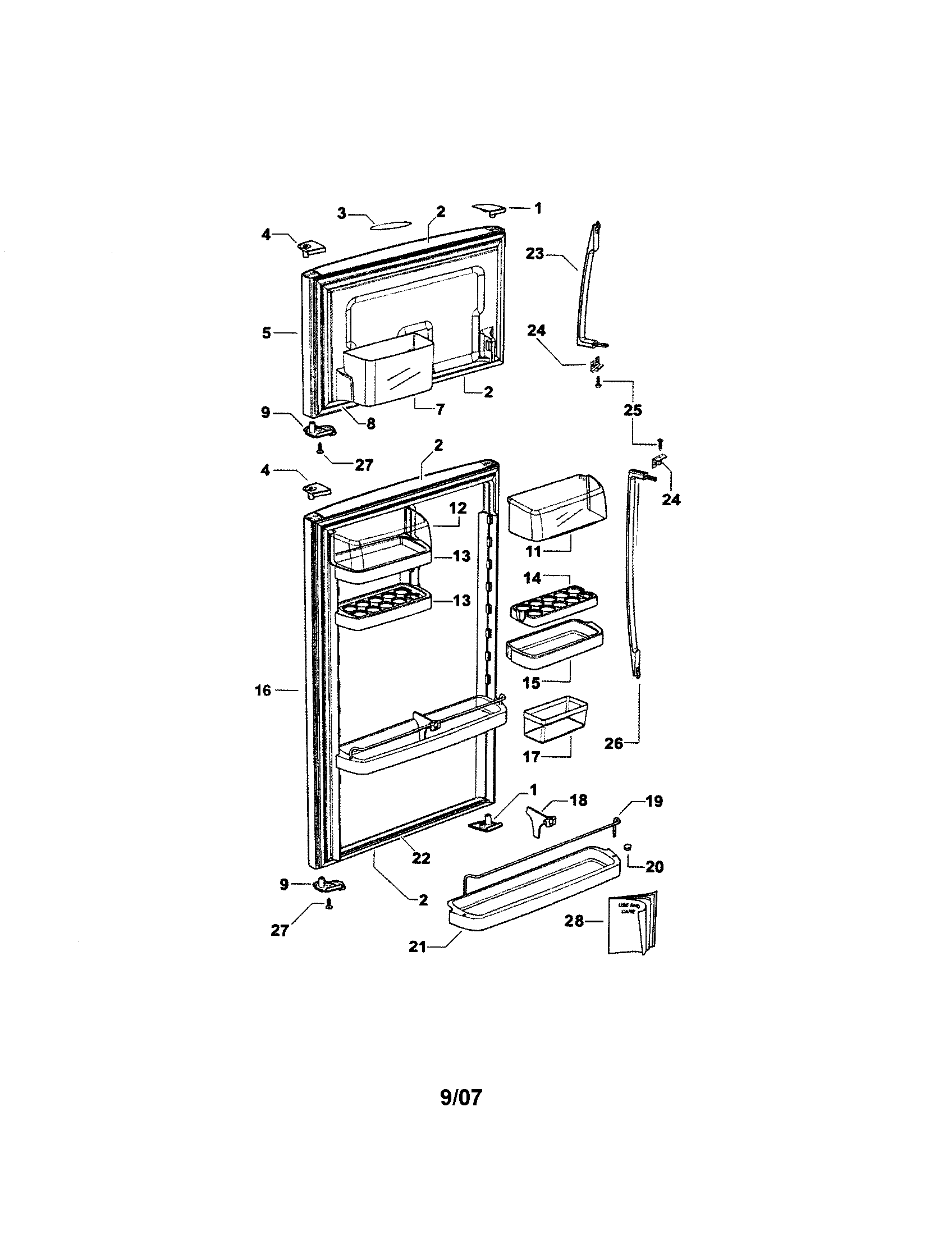

Doors diagram

Fisher & paykel refrigerator freezer handle

Part #884571

$99.11 |
11% OFF Phone Price : $111.11
In Stock
Fisher & Paykel Bin Large 790 Assy 836661
#24

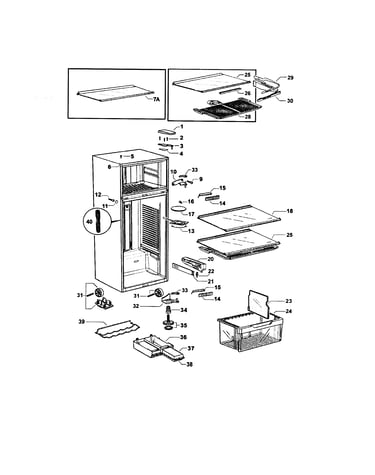

Cabinet diagram

Fisher & paykel bin large 790 assy

Part #836661

$68.11 |
8% OFF Phone Price : $74.11
In Stock
Fisher & Paykel Slide Left 836701
#21A

Cabinet diagram

Fisher & paykel slide left

Part #836701

$29.90 |
17% OFF Phone Price : $35.90
In Stock
Fisher & Paykel Refrigerator Door Cover 882141
#11

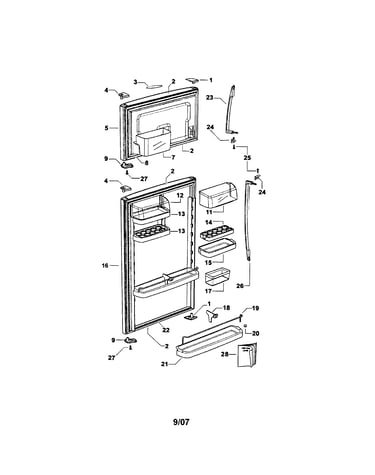

Doors diagram

Fisher & paykel refrigerator door cover

Part #882141

$16.98 |
11% OFF Phone Price : $18.98
In Stock
Refrigerator Glass Shelf 881299
#18

Cabinet diagram

Refrigerator glass shelf

Part #881299

Replaced by #836751P

?
Manufacturer substitution
This part replaces 881299. Substitute parts can look different from the original.
$86.92 |
6% OFF Phone Price : $92.92
In Stock
Fisher & Paykel Plug Male 51138-0200 Mlx 881593
#4

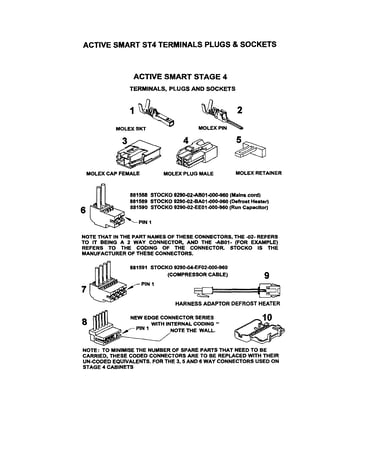

St4 terminals/plugs/sockets diagram

Fisher & paykel plug male 51138-0200 mlx

Part #881593

$7.15 |
12% OFF Phone Price : $8.15
In Stock
Fisher & Paykel Egg Shelf 882323
#14

Doors diagram

Fisher & paykel egg shelf

Part #882323

$7.58 |
12% OFF Phone Price : $8.58
In Stock
Refrigerator Power Cable 884243
#23

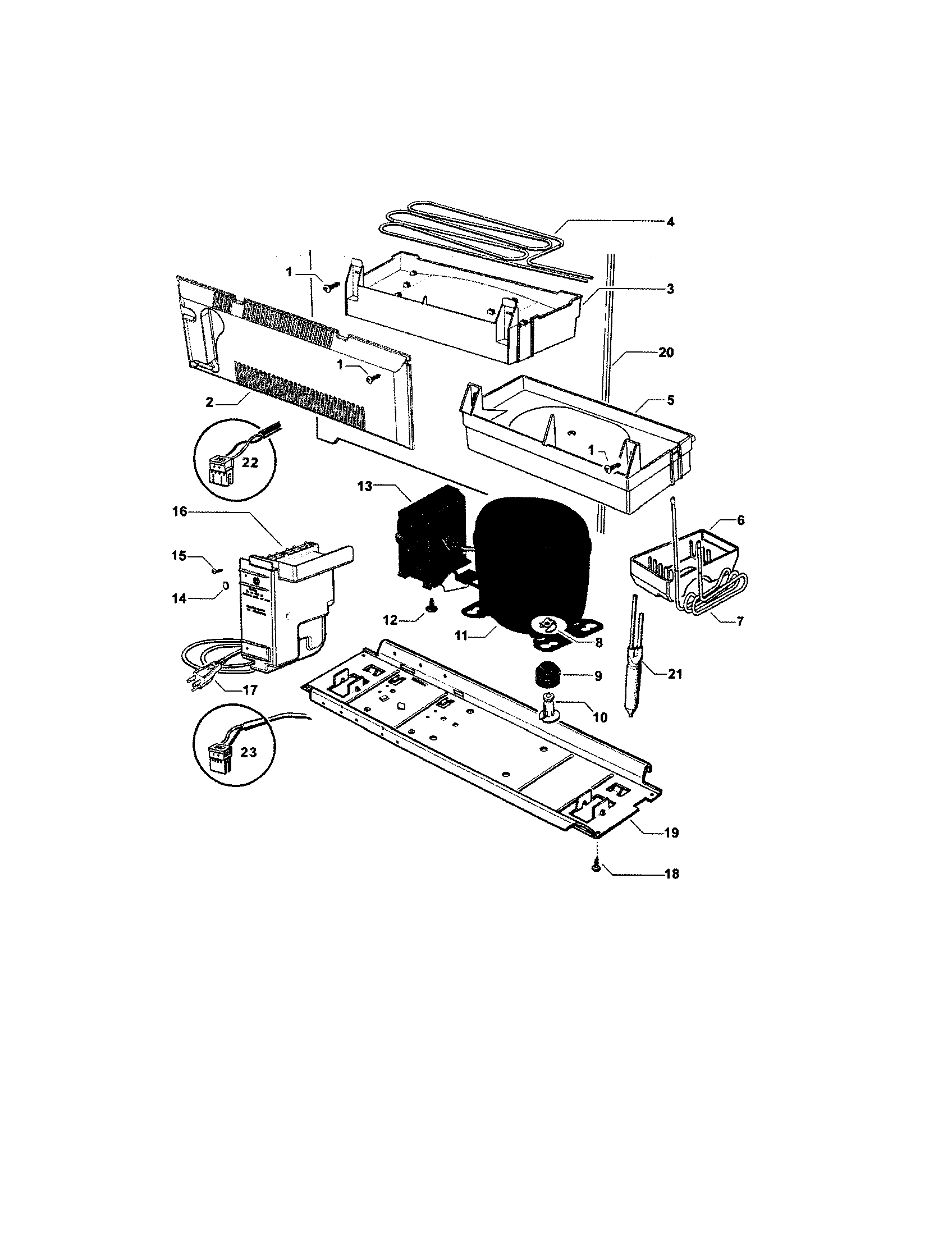

Compressor/power module diagram
