Model # AKF-1-P85004-1S Official Amana range

Here are the diagrams and repair parts for Official Amana AKF-1-P85004-1S range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

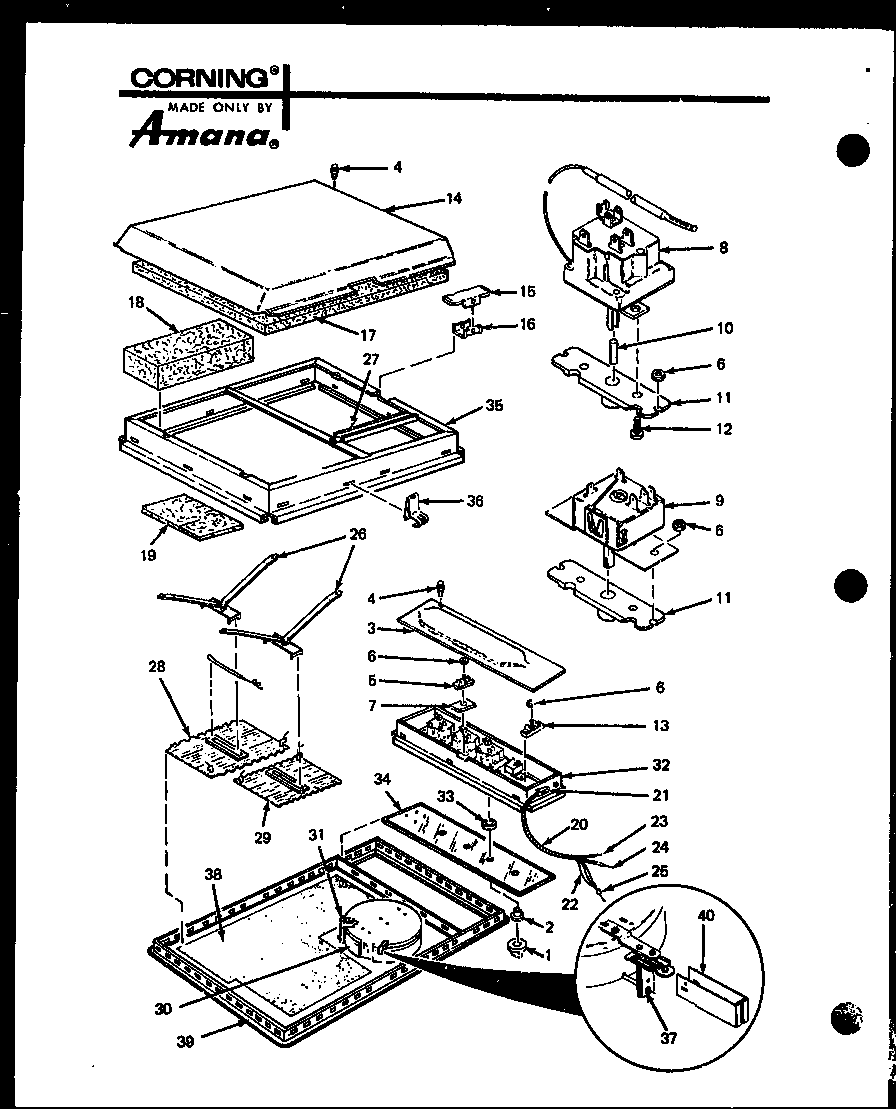

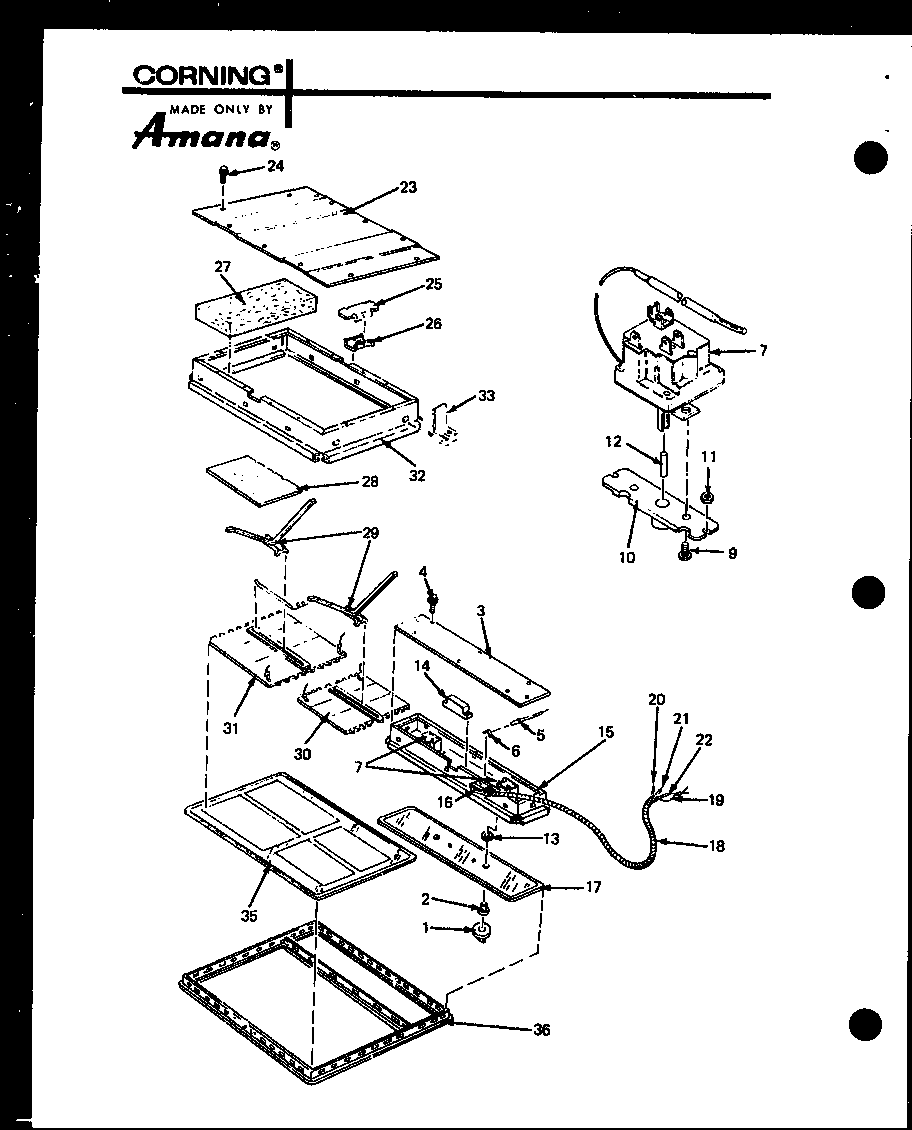

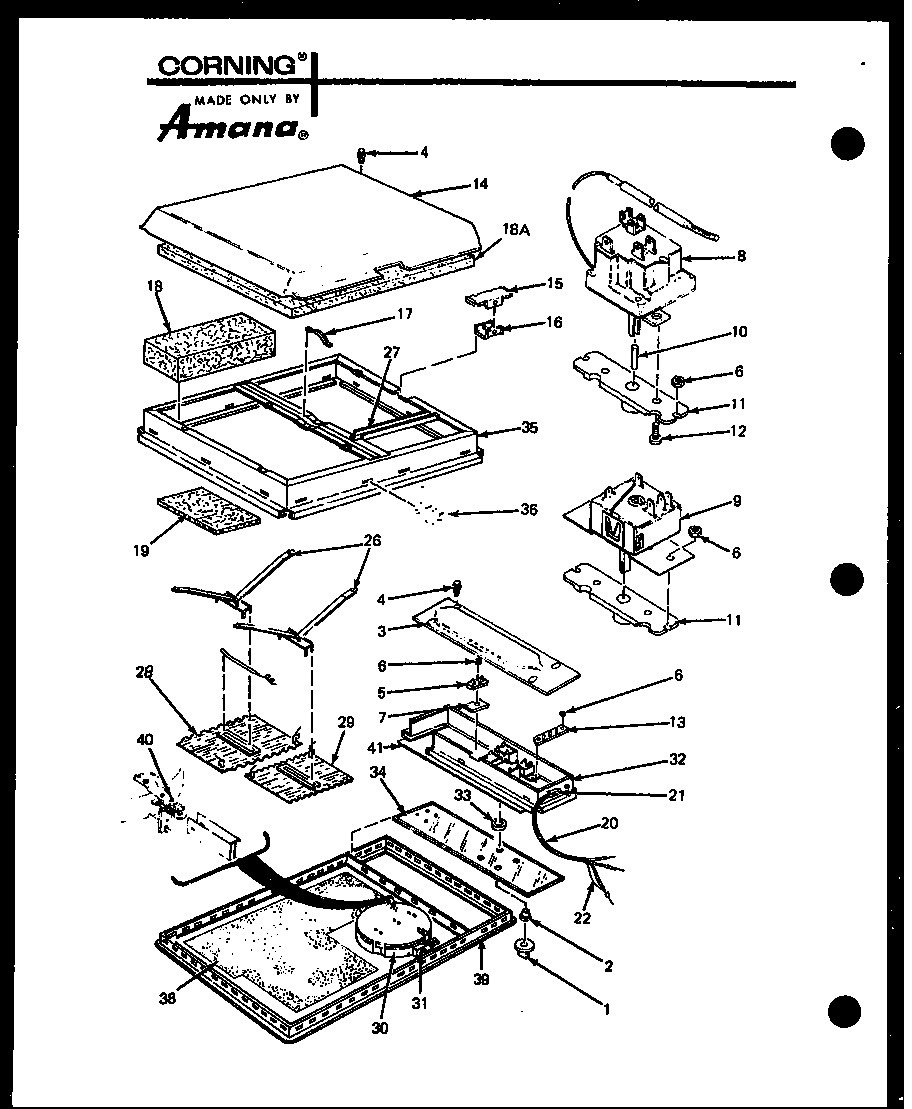

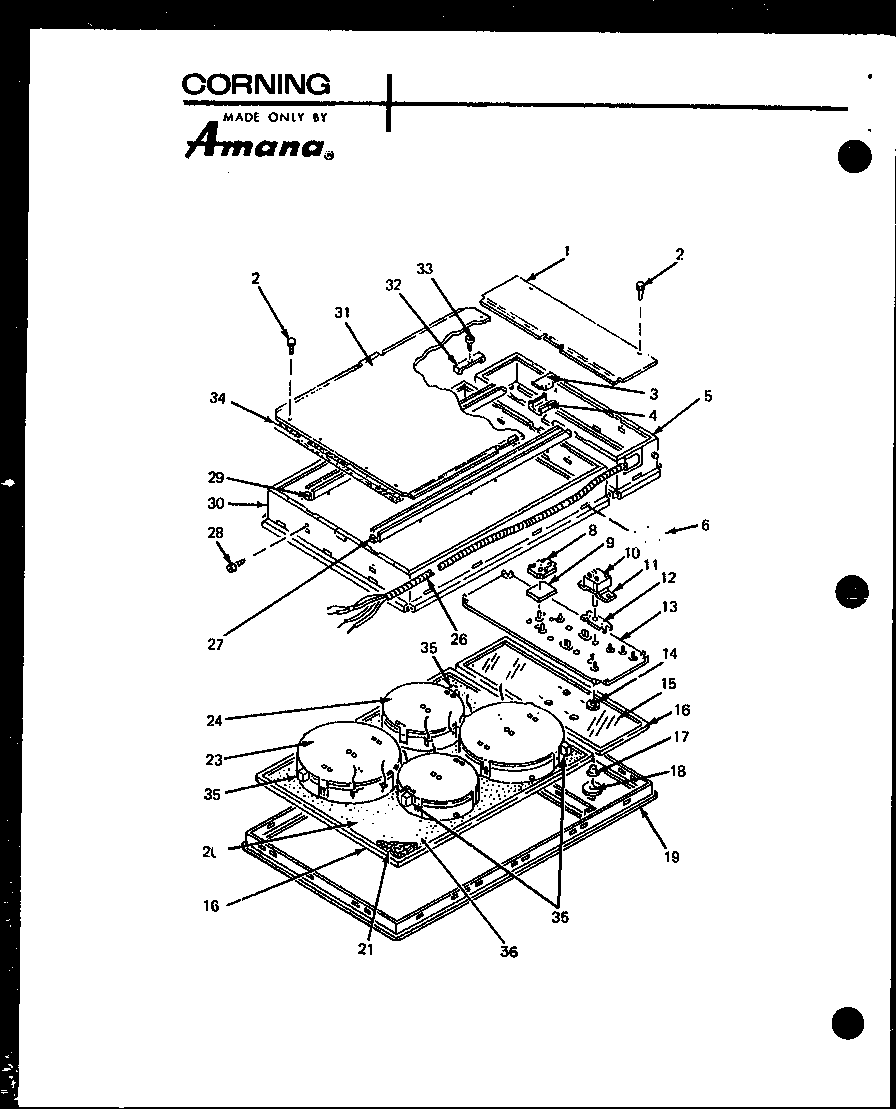

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Control Shaft Wick A4402601
Control shaft wick

Part #A4402601

The manufacturer no longer makes this part, and there's no substitute part

Cable Conduit D8503801
#20

(akc-3/p85002-3s) (akc-4/p85002-4s) diagram

Cable conduit

Part #D8503801

The manufacturer no longer makes this part, and there's no substitute part

Heater Box Cover D8518301
#23

(akg-1/p85003-1s) diagram

Heater box cover

Part #D8518301

The manufacturer no longer makes this part, and there's no substitute part

Element, Large (temp-assure Tm) CG981139
Element, large (temp-assure tm)

Part #CG981139

The manufacturer no longer makes this part, and there's no substitute part

Switch, Hot Light (multipan Tm) CG984277
#31

(akc-3/p85002-3s) (akc-4/p85002-4s) diagram

Switch, hot light (multipan tm)

Part #CG984277

The manufacturer no longer makes this part, and there's no substitute part

Heater Box CG984530
#35

(akc-1/p85002-1s) (akc-2/p85002-2s) diagram

Heater box

Part #CG984530

The manufacturer no longer makes this part, and there's no substitute part

Glass, Control Panel Akc-3 Only CG984753
#34A

(akc-3/p85002-3s) (akc-4/p85002-4s) diagram

Glass, control panel akc-3 only

Part #CG984753

The manufacturer no longer makes this part, and there's no substitute part

Hot Life Switch CG984976
Hot life switch

Part #CG984976

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Control Mounting CG980149
Bracket, control mounting

Part #CG980149

The manufacturer no longer makes this part, and there's no substitute part

Element (multipan Tm) CG985021
Element (multipan tm)

Part #CG985021

The manufacturer no longer makes this part, and there's no substitute part
