Model # FCP3600A Official ICP fan coil

Here are the diagrams and repair parts for Official ICP FCP3600A fan coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#13

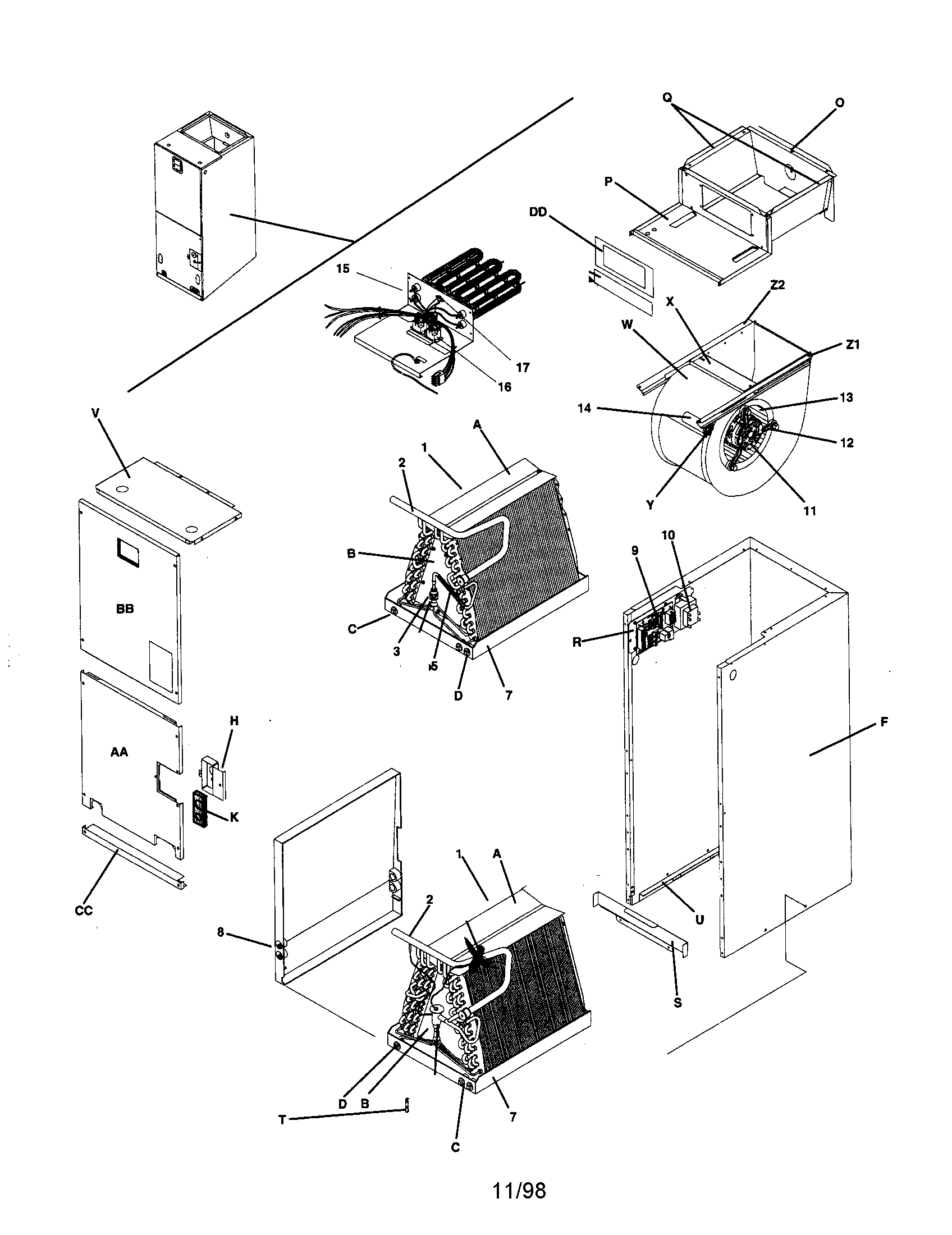

Fan coils diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
8% OFF Phone Price : $142.20
In Stock
Transformer 1082611
#10

Fan coils diagram

Transformer

Part #1082611

$101.35 |
11% OFF Phone Price : $113.35
In Stock
Limit Switch 1084734
#17

Fan coils diagram

Limit switch

Part #1084734

$25.57
In Stock
Clamp Capctr 1095020
#Y

Fan coils diagram

Clamp capctr

Part #1095020

$100.98
In Stock
Mount Kit 1002801
#12

Fan coils diagram

Mount kit

Part #1002801

$39.00
In Stock
Central Air Conditioner Air Handler Drain Pan 1082776
#7

Fan coils diagram

Central air conditioner air handler drain pan

Part #1082776

$251.31
In Stock
Plate 1084606
#DD

Fan coils diagram

Plate

Part #1084606

$35.67
In Stock
Adapter 1082864
#5

Fan coils diagram

Adapter

Part #1082864

$50.82
In Stock
Housing 1082972
#3

Fan coils diagram

Housing

Part #1082972

$43.62
In Stock
Central Air Conditioner Air Handler Blower Motor 1083044
#11

Fan coils diagram

Central air conditioner air handler blower motor

Part #1083044

$599.52
In Stock
