Model # DSC-WX150/B Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-WX150-B digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |

Gear Wh Lu A1861259A
#154

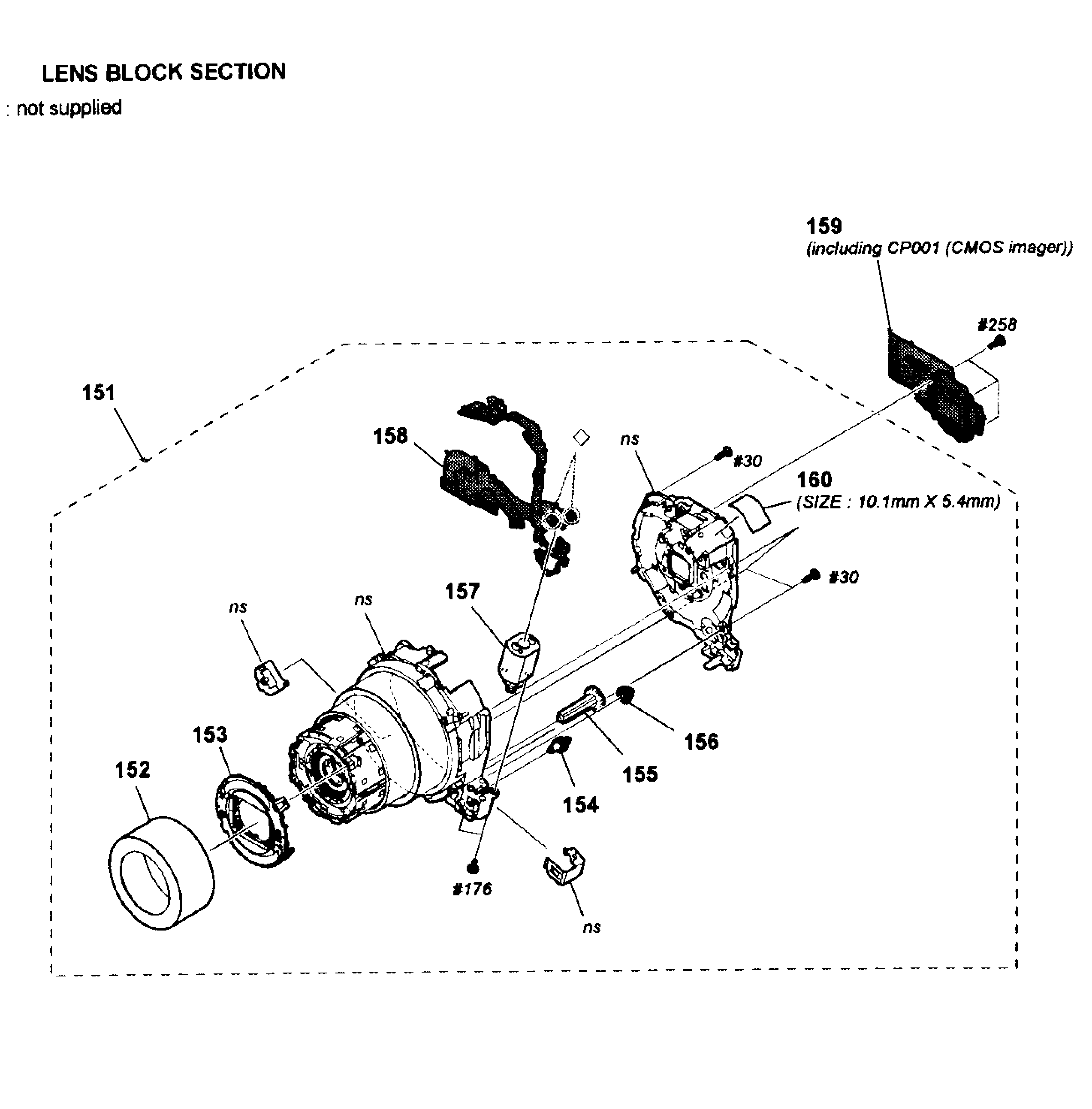

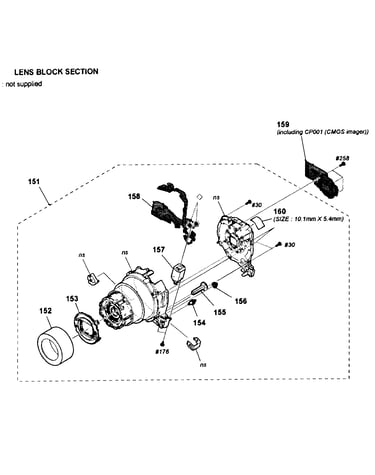

Lens assy diagram

Gear wh lu

Part #A1861259A

This item is not returnable
In Stock
Cover, Sf 441930201
#101

Main section diagram

Cover, sf

Part #441930201

In Stock
Microphone 441164901
#58

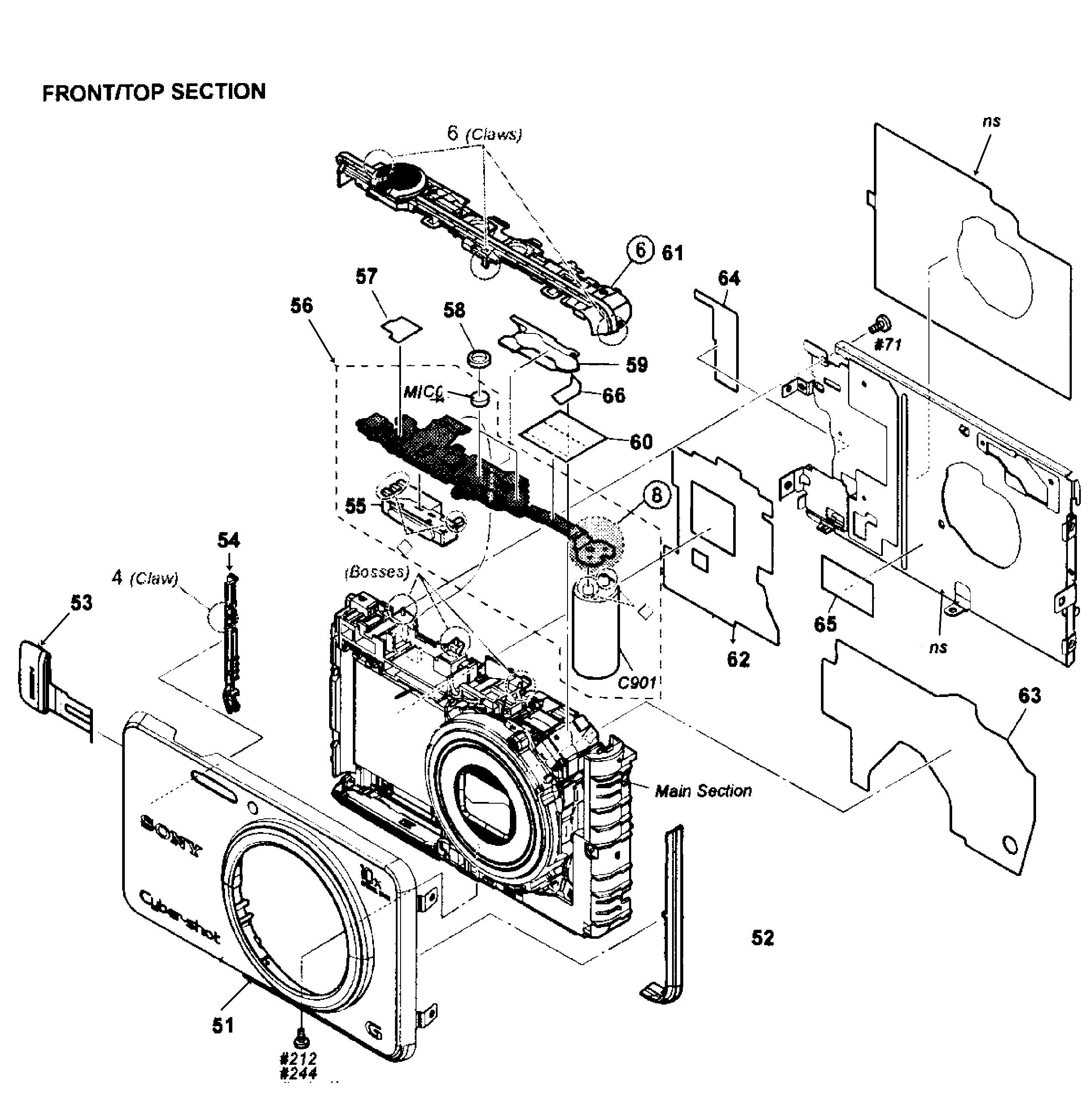

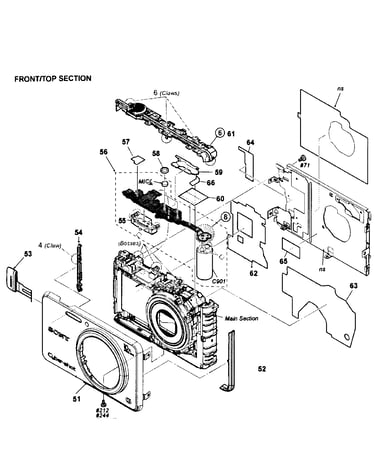

Front/top assy diagram

Microphone

Part #441164901

In Stock
Bt-068 Pcb 188382011
#107

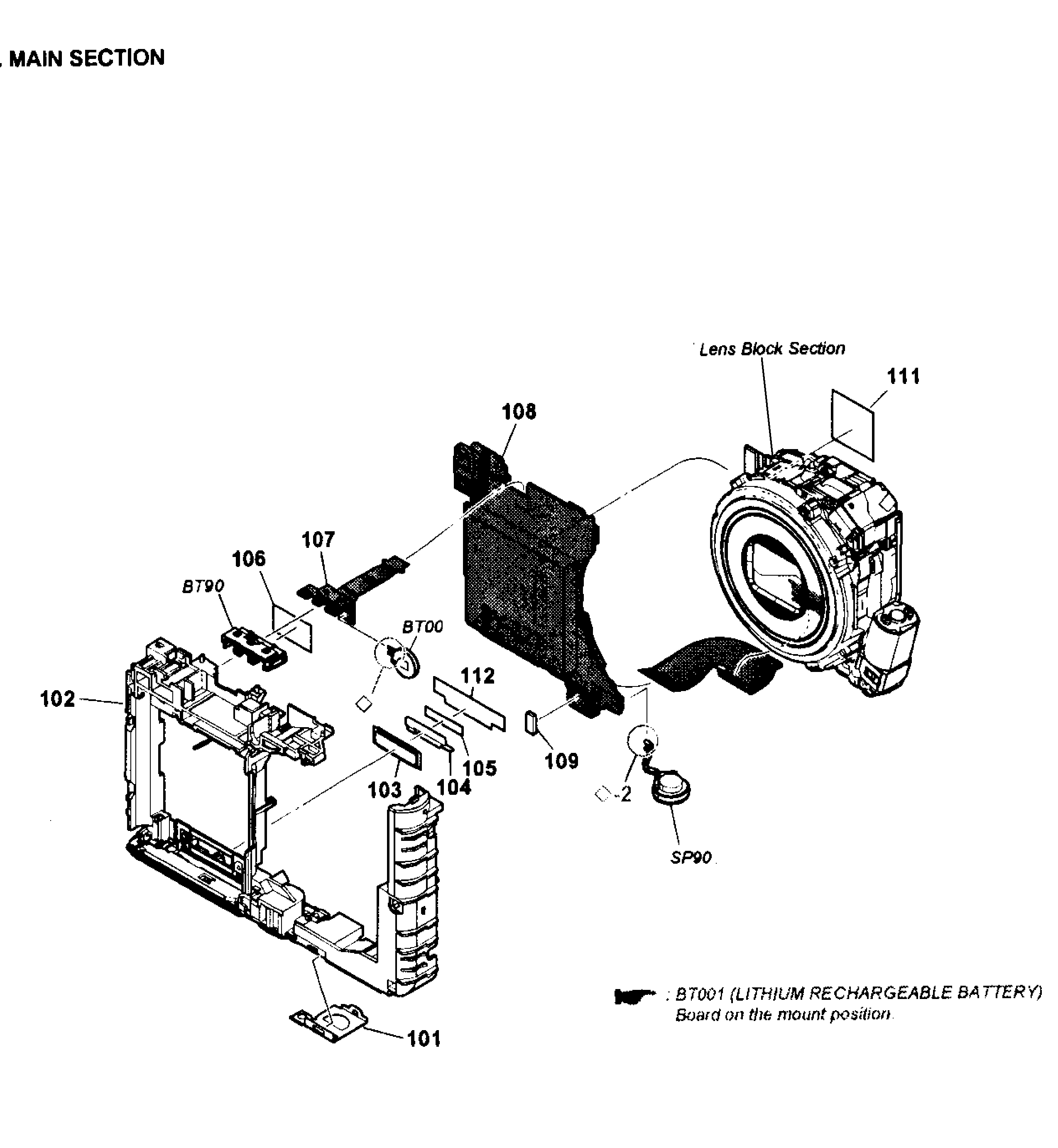

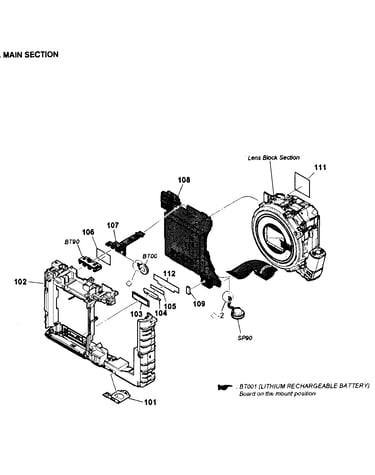

Main section diagram

Bt-068 pcb

Part #188382011

In Stock
Battery 178082611
#BT90

Main section diagram

Battery

Part #178082611

In Stock
Sheet 427006401
#105

Main section diagram

Sheet

Part #427006401

In Stock
Sy327 Pcb A1866836A
#108

Main section diagram

Sy327 pcb

Part #A1866836A

In Stock
Sheet Yp 441929901
#2

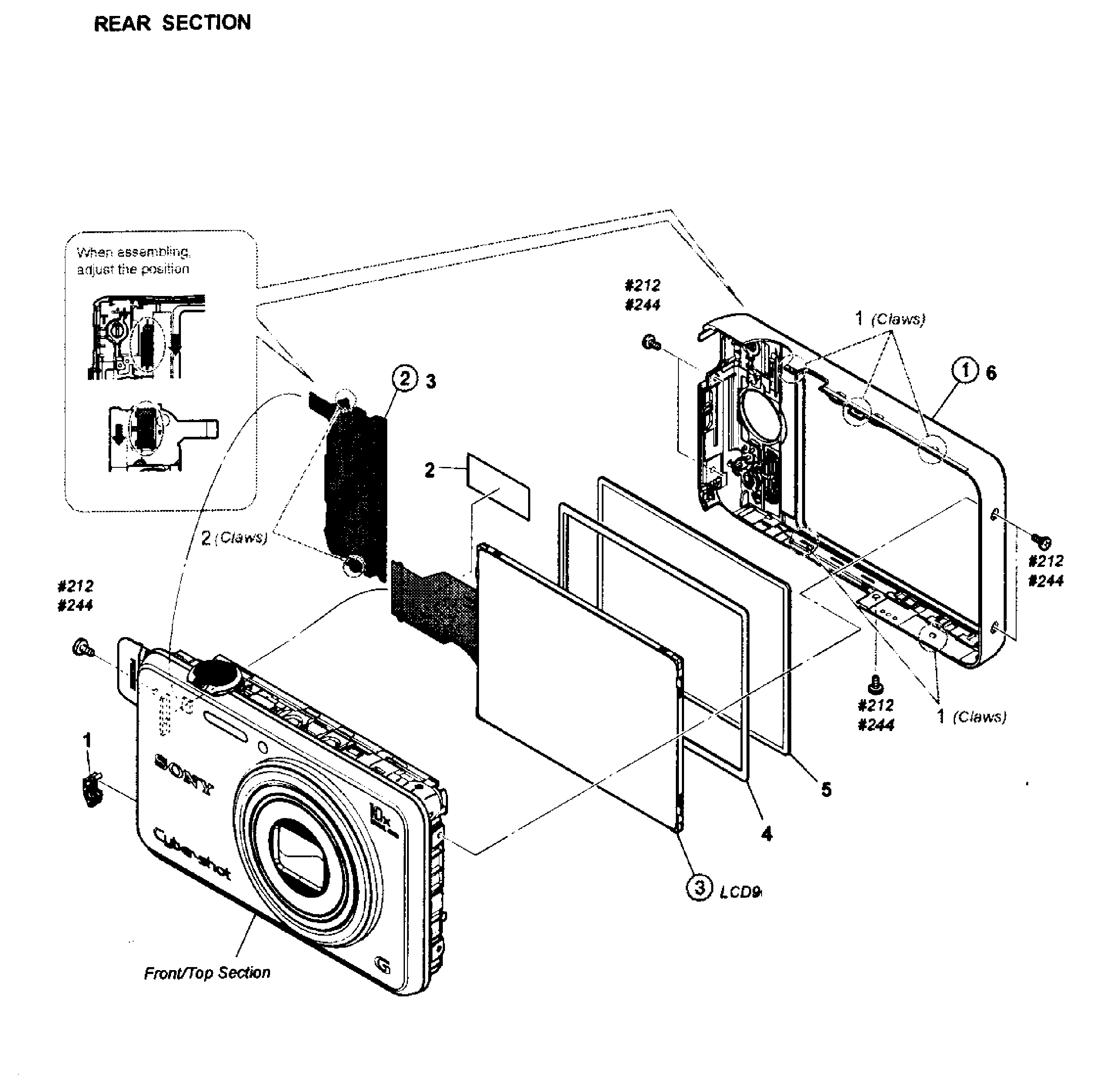

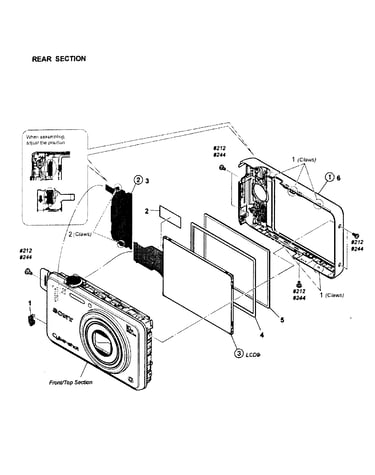

Rear section diagram

Sheet yp

Part #441929901

This item is not returnable
In Stock
Sheet (sy) 441932001
#63

Front/top assy diagram

Sheet (sy)

Part #441932001

In Stock
Sony Fr Block A1866141A
#51

Front/top assy diagram

Sony fr block

Part #A1866141A

In Stock
