Model # 57559370 Official Sears electric fishing motor

Here are the diagrams and repair parts for Official Sears 57559370 electric fishing motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Grip 625G08
#6

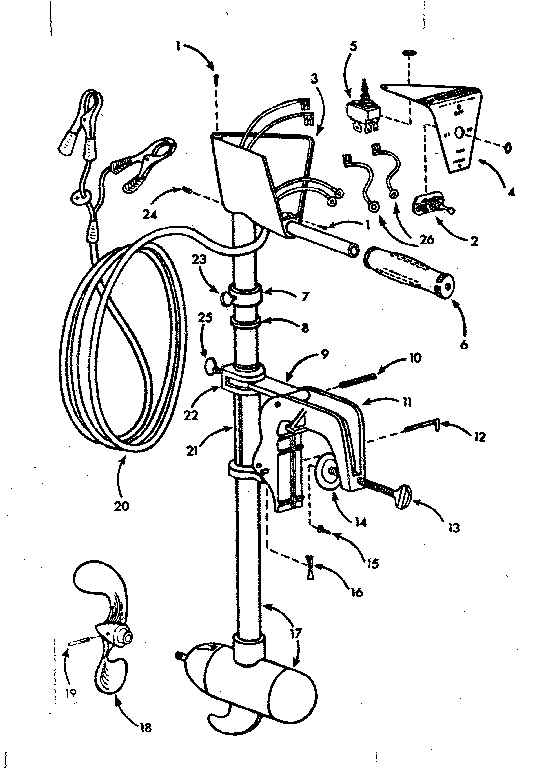

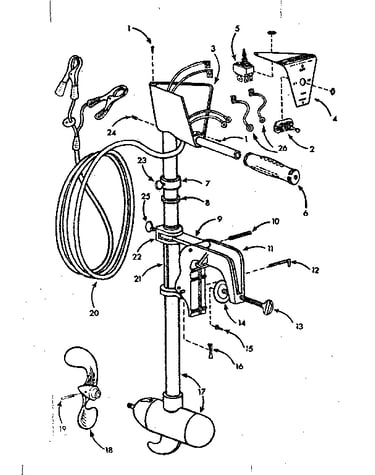

Electric motor diagram

Grip

Part #625G08

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 667S12
#24

Electric motor diagram

Set screw

Part #667S12

The manufacturer no longer makes this part, and there's no substitute part

Switch Plate 655P18
#4

Electric motor diagram

Switch plate

Part #655P18

The manufacturer no longer makes this part, and there's no substitute part

Screw 667S08
#1

Electric motor diagram

Screw

Part #667S08

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 682S34
#3

Electric motor diagram

Housing assembly

Part #682S34

The manufacturer no longer makes this part, and there's no substitute part

Bushing 691T12
#21

Electric motor diagram

Bushing

Part #691T12

The manufacturer no longer makes this part, and there's no substitute part

Swivel Pin 652P13-1
#10

Electric motor diagram

Swivel pin

Part #652P13-1

The manufacturer no longer makes this part, and there's no substitute part

Switch Tog 685S01
#2

Electric motor diagram

Switch tog

Part #685S01

The manufacturer no longer makes this part, and there's no substitute part

Swivel 688S07
#9

Electric motor diagram

Swivel

Part #688S07

The manufacturer no longer makes this part, and there's no substitute part

Collar 613C03
#7

Electric motor diagram

Collar

Part #613C03

The manufacturer no longer makes this part, and there's no substitute part
