Frigidaire
Top-Mount Refrigerator

Model # ATC130BK2 Official Frigidaire top-mount refrigerator - 5995218632

Here are the diagrams and repair parts for Official Frigidaire ATC130BK2 top-mount refrigerator - 5995218632, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |
Filter 5308000027
#4

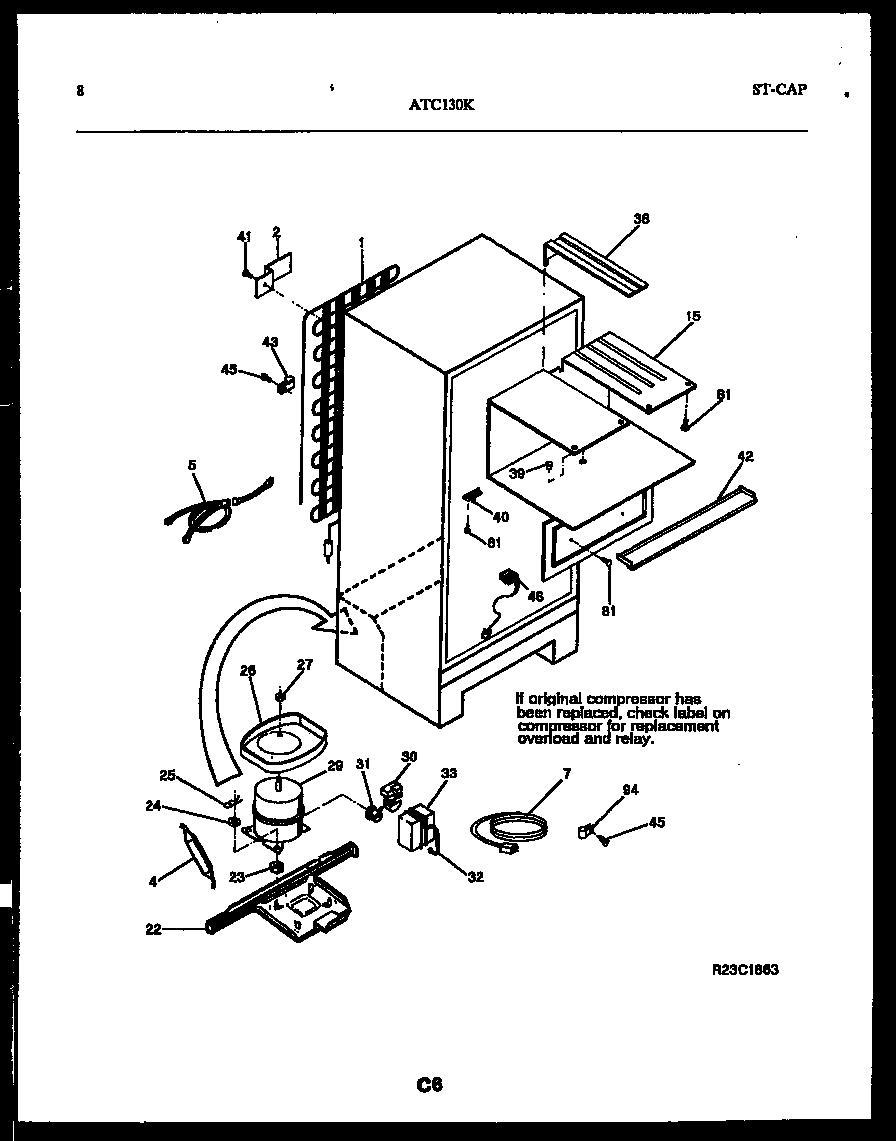

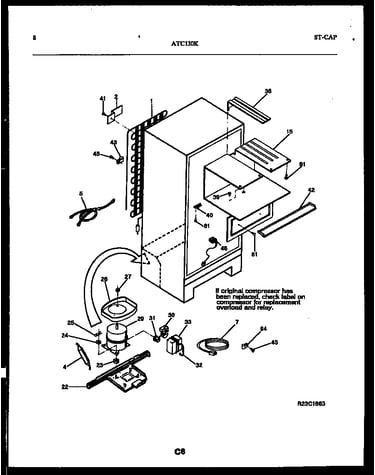

System and automatic defrost parts diagram

Filter

Part #5308000027

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 5308000027. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Appliance Light Bulb, 40-watt 5303001179
#15

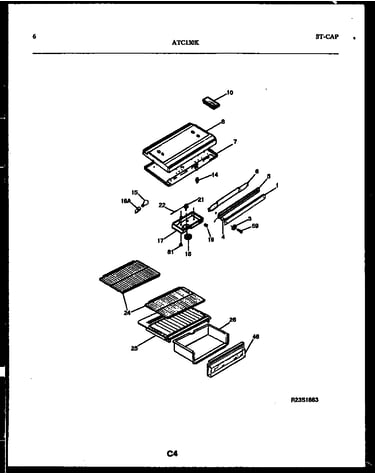

Shelves and supports diagram

Appliance light bulb, 40-watt

Part #5303001179

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303001179. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Refrigerator Receptacle 5308000815
#16A

Shelves and supports diagram

Refrigerator receptacle

Part #5308000815

Replaced by #218906802

?
Manufacturer substitution
This part replaces 5308000815. Substitute parts can look different from the original.
This item is not returnable
$18.49 |
10% OFF Phone Price : $20.49
In Stock
Refrigerator Evaporator Fan Mounting Bracket Screw 5308016566
Refrigerator evaporator fan mounting bracket screw

Part #5308016566

Replaced by #5304455650

?
Manufacturer substitution
This part replaces 5308016566. Substitute parts can look different from the original.
This item is not returnable
$14.79 |
12% OFF Phone Price : $16.79
In Stock
Screw 5303001479
#38A

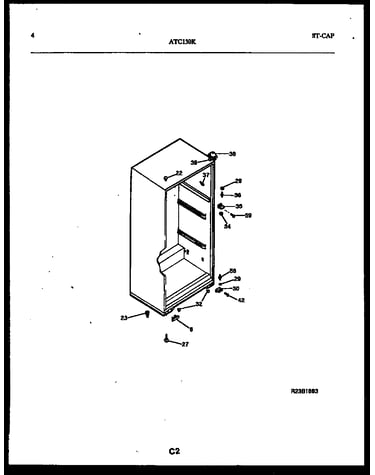

Cabinet parts diagram

Screw

Part #5303001479

Replaced by #241710601

?
Manufacturer substitution
This part replaces 5303001479. Substitute parts can look different from the original.
This item is not returnable
$14.19 |
12% OFF Phone Price : $16.19
In Stock
Refrigerator Screw 3206143
#42

Cabinet parts diagram

Refrigerator screw

Part #3206143

Replaced by #241710601

?
Manufacturer substitution
This part replaces 3206143. Substitute parts can look different from the original.
This item is not returnable
$14.19 |
12% OFF Phone Price : $16.19
In Stock
Refrigerator Door Hinge 5303001321
#56

Cabinet parts diagram

Refrigerator door hinge

Part #5303001321

This item is not returnable
$13.24 |
13% OFF Phone Price : $15.24
In Stock
Refrigerator Door Shelf Rail End Cap, Right 3206165
#5A

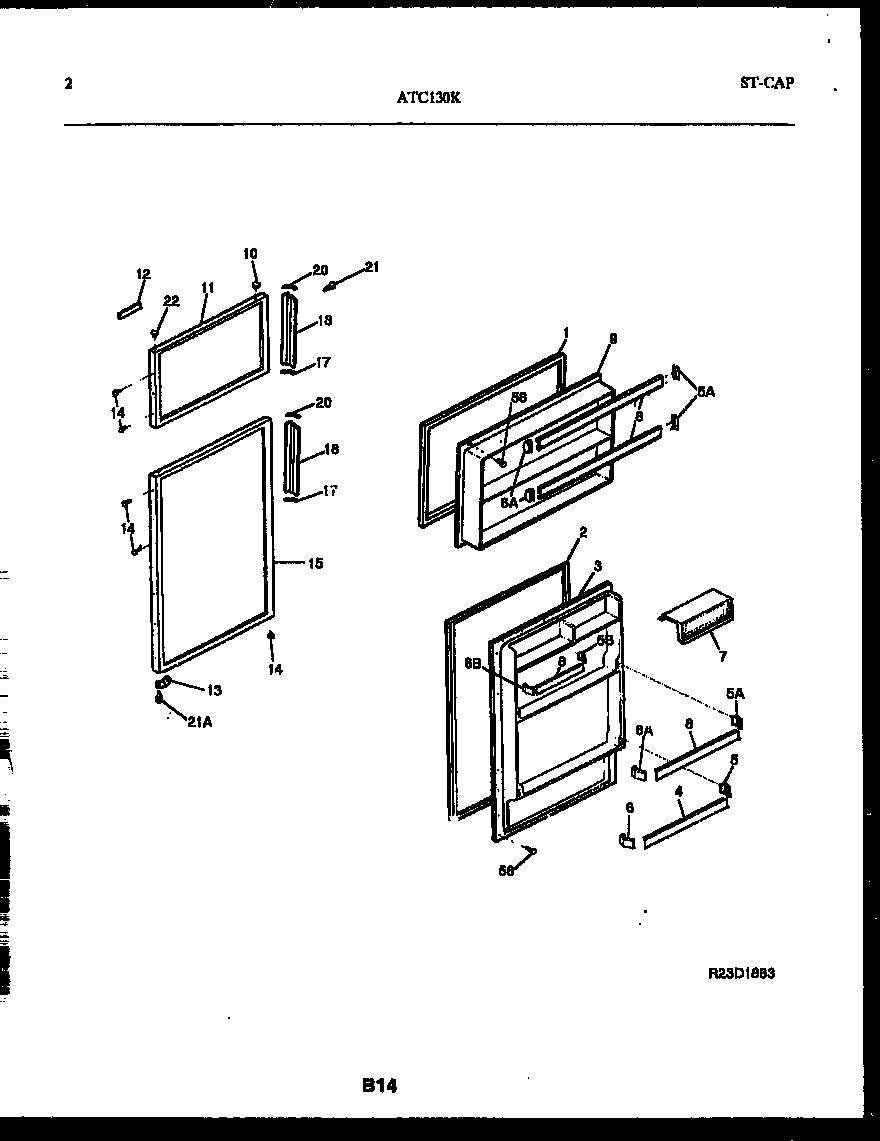

Door parts diagram

Refrigerator door shelf rail end cap, right

Part #3206165

This item is not returnable
$12.39 |
14% OFF Phone Price : $14.39
In Stock
Grommet 5308008778
#23

System and automatic defrost parts diagram

Grommet

Part #5308008778

Replaced by #218513300

?
Manufacturer substitution
This part replaces 5308008778. Substitute parts can look different from the original.
$36.56 |
14% OFF Phone Price : $42.56
In Stock
Refrigerator Drain Tube 5303211514
#23

Cabinet parts diagram

Refrigerator drain tube

Part #5303211514

This item is not returnable
$4.99
In Stock
